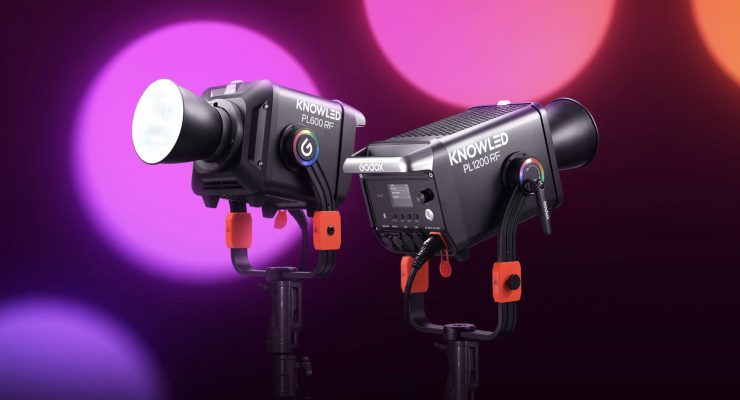

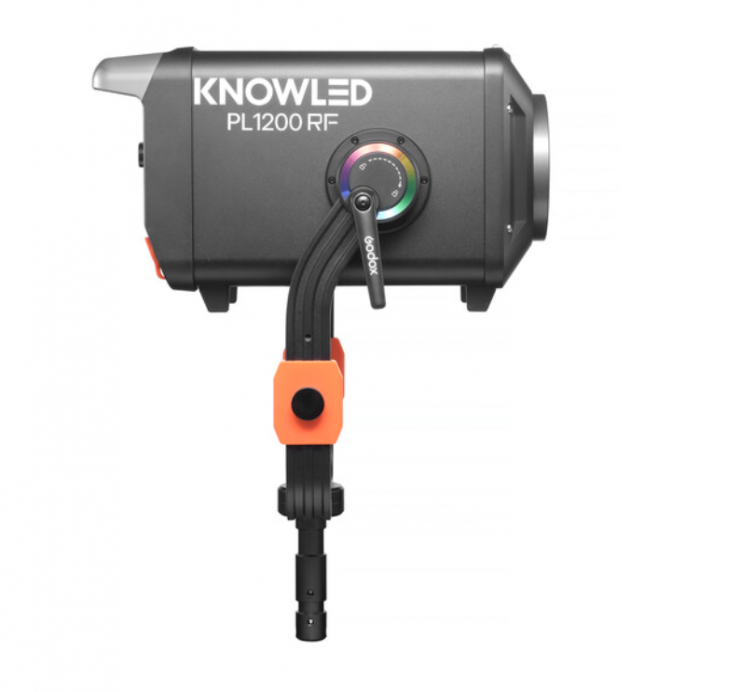

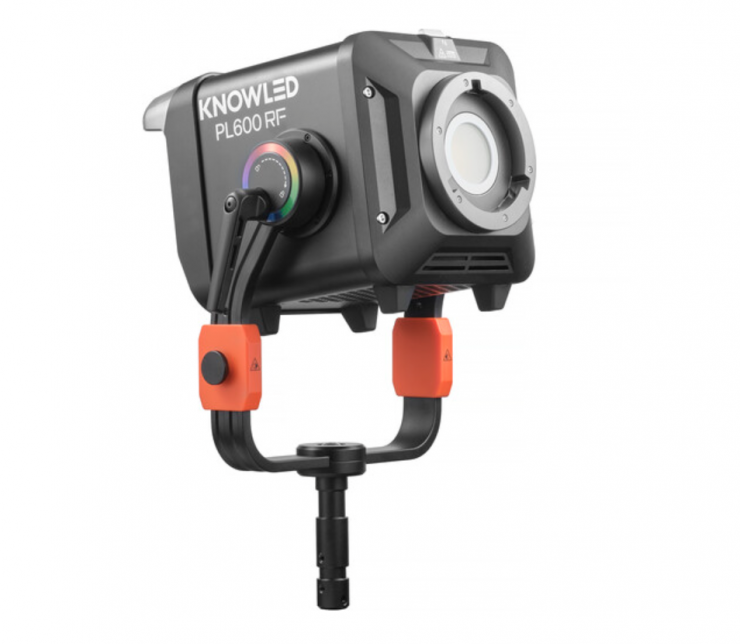

Godox has announced its new KNOWLED PL600RF and PL1200RF flagship fixtures. They are part of the new PL series, designed for high-end film production, commercial advertising, and studio environments.
Both lights feature Godox’s new PaletteLab full-spectrum color engine; that is claimed to deliver highly accurate color reproduction, improved spectral consistency, and enhanced rendering of skin tones in complex lighting scenes.

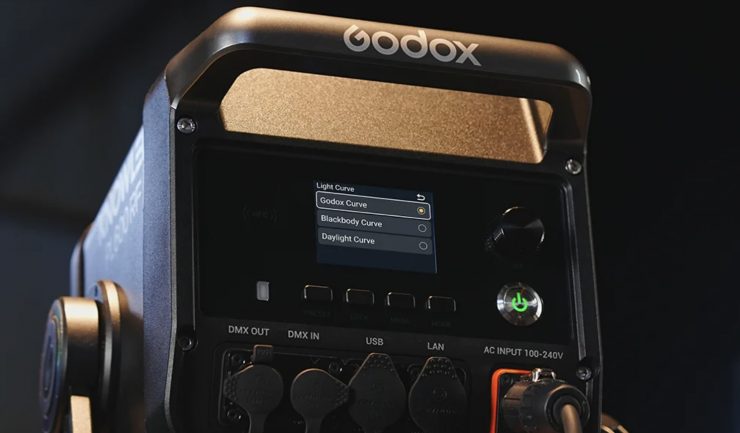

The PaletteLab system also introduces three adjustable curves (Godox Curve, Blackbody Curve, and Daylight Curve).
- Blue: 5 bands coupling with a smooth, gap-free distribution render blue light with clarity and crisp definition
- Red: 3 bands coupling from red to deep red, the continuous spectrum delivers rich and accurate red with no muddiness and natural, lifelike skin tones.
- Green: A waveform engineered to match natural daylight green, restoring true saturation and fidelity without yellow or dull shifts, creating vivid, dimensional visuals.
- Cyan: Bridges the gap between blue and green wavelengths, enabling smoother shadow transitions and cleaner cyan reproduction, enhancing overall clarity and light transparency.
- PC Amber: Recreates the soft warm tone, avoiding dull or waxy casts.

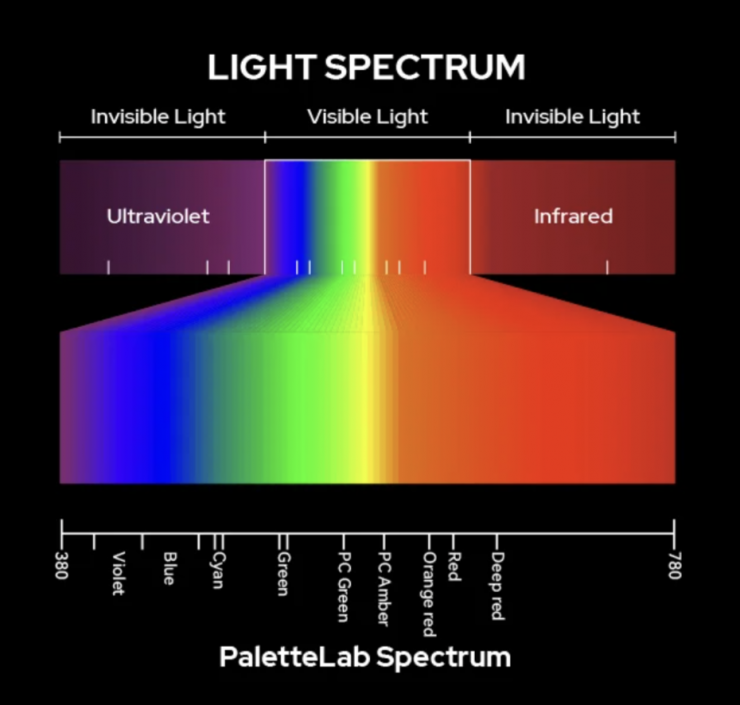

PaletteLab delivers full-spectrum performance across the entire visible wavelength range. PaletteLab is made up of 9 separate color diodes.
It is good to see Godox introducing a new color engine that competes with other advanced color engines that have come to market in the last few years.
Built upon in-depth spectral analysis of natural daylight, PaletteLab is said to reconstruct a light spectrum that closely replicates real sunlight. This results in a highly natural lighting output.
One of the key innovations is its ability to eliminate spectral gaps. Godox states that, through advanced Multispectral Optical Coupling Technology, PaletteLab optimizes continuity across the full visible spectrum. By refining transitions from blue to cyan and from orange-red to deep red, the system is claimed to achieve exceptional spectral consistency.
Key features
- CRI up to 99 (R9 ≈ 99), TM-30 Rf ≈ 97
- SSI D32 ≈ 93 / D55 ≈ 90
- 92% Rec.2020 color gamut coverage with over 281 trillion colors

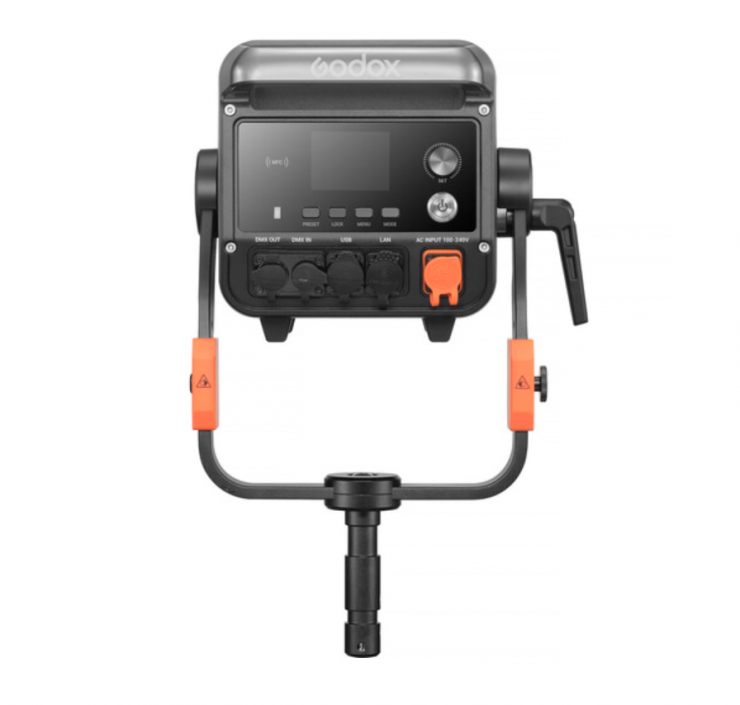

- Integrated CRMX wireless DMX with DMX / Art-Net / sACN support
- IP65-rated housing for studio and outdoor environments
- Bowens mount compatibility with lightweight integrated power design

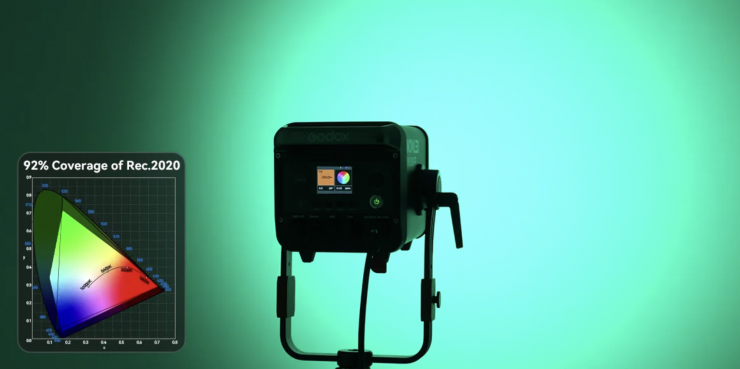

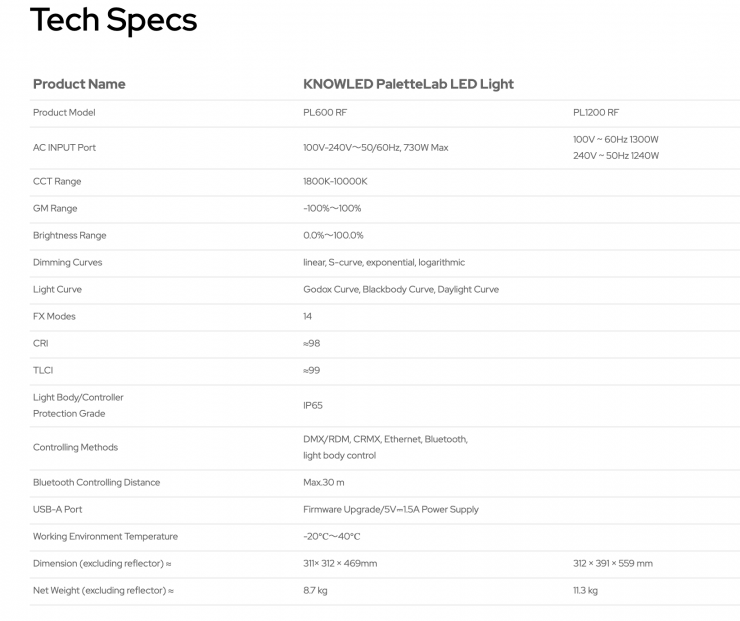

Covering 92% of the Rec.2020 color gamut, the PL series can produce over 281 trillion colors. Both fixtures offer a CCT range of 1800K to 10000K and full +/- G/M adjustment. They are claimed to have photometric scores of:

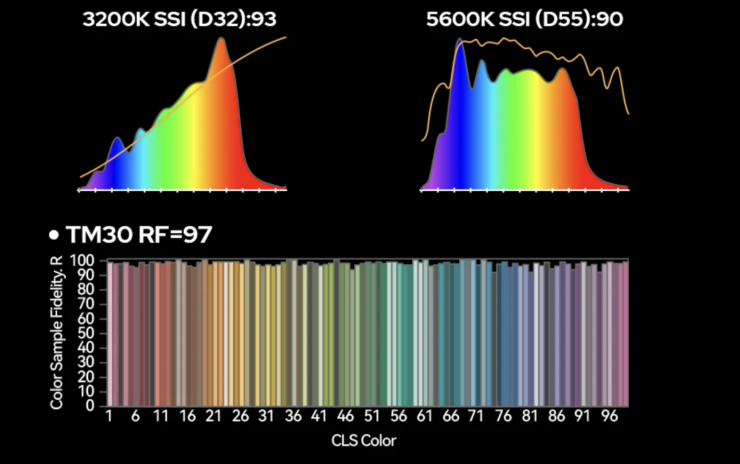

- CRI up to 99 (R9 ≈ 99), TM-30 Rf ≈ 97
- SSI D32 ≈ 93 / D55 ≈ 90

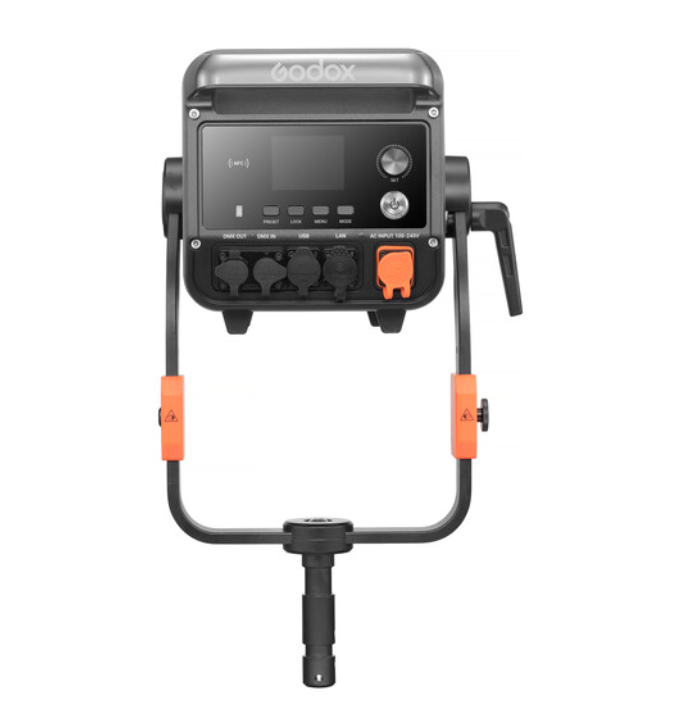

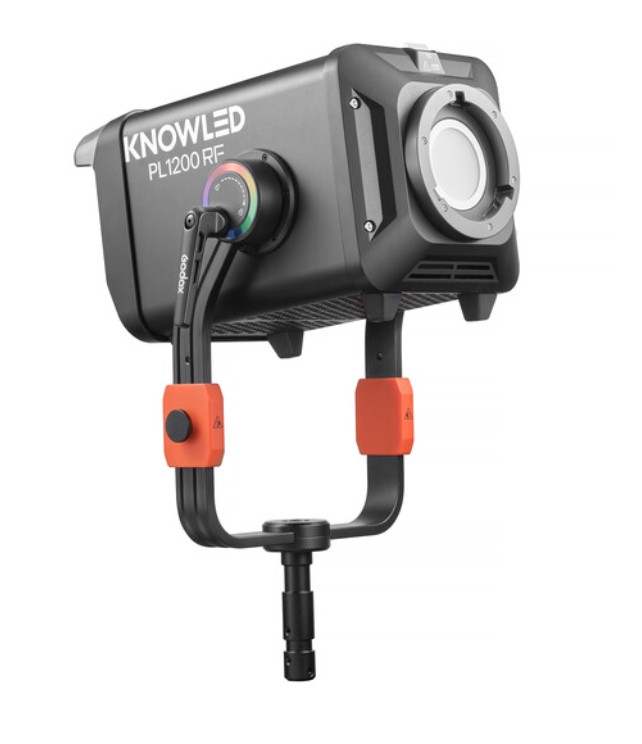

The KNOWLED PL600RF and PL1200RF feature an integrated power supply, which makes them quick and easy to set up and use. The KNOWLED PL600RF draws 730W Max, while the PL1200R draws 1300W Max.

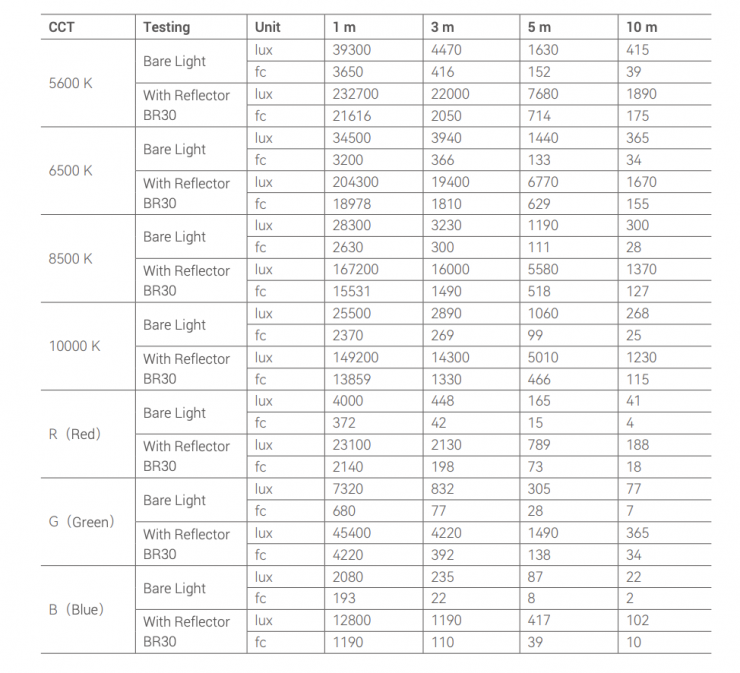

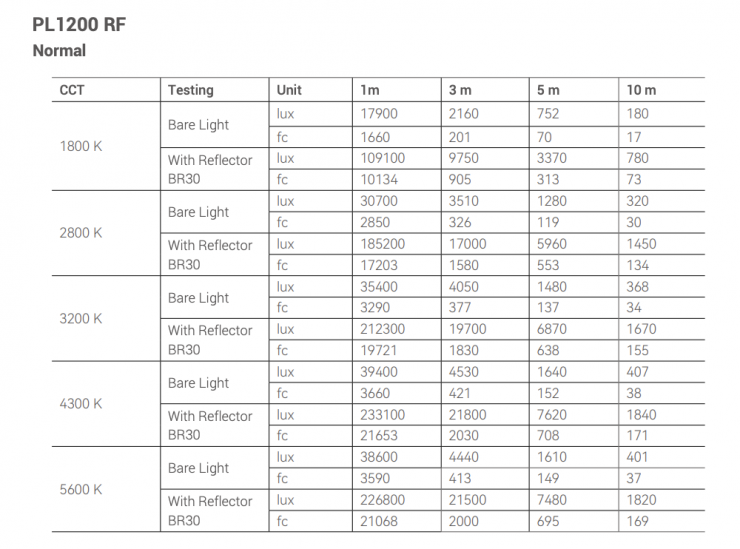

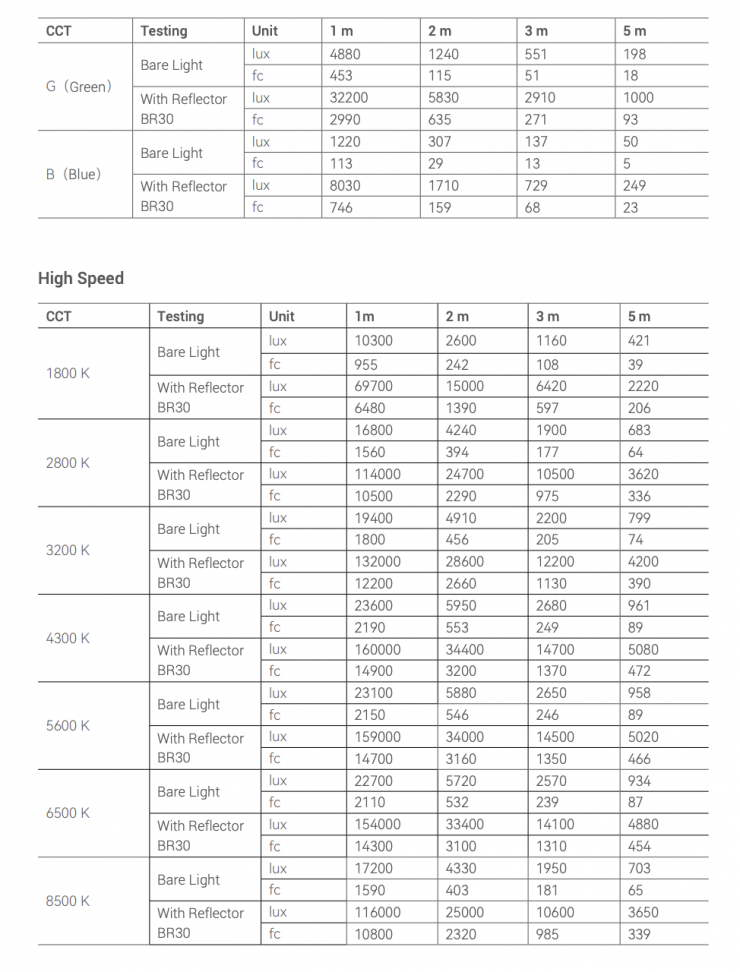

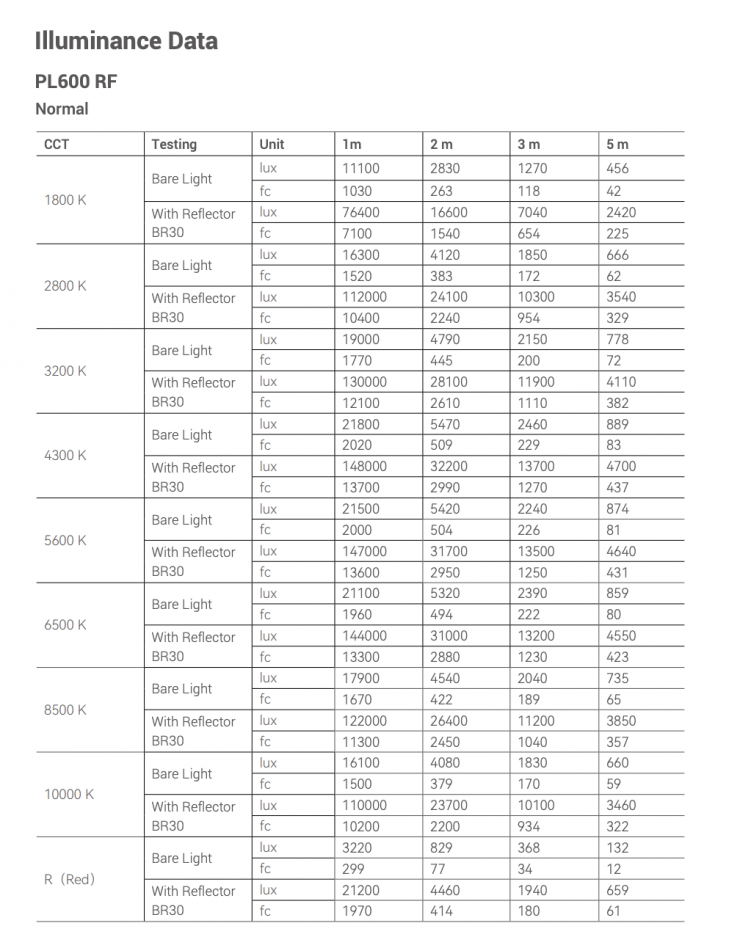

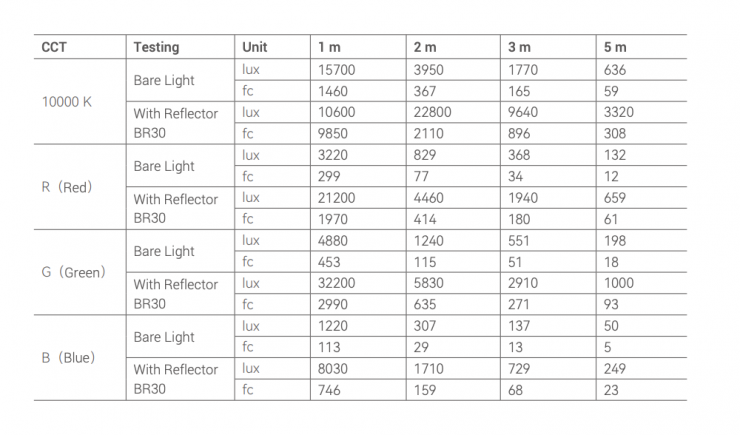

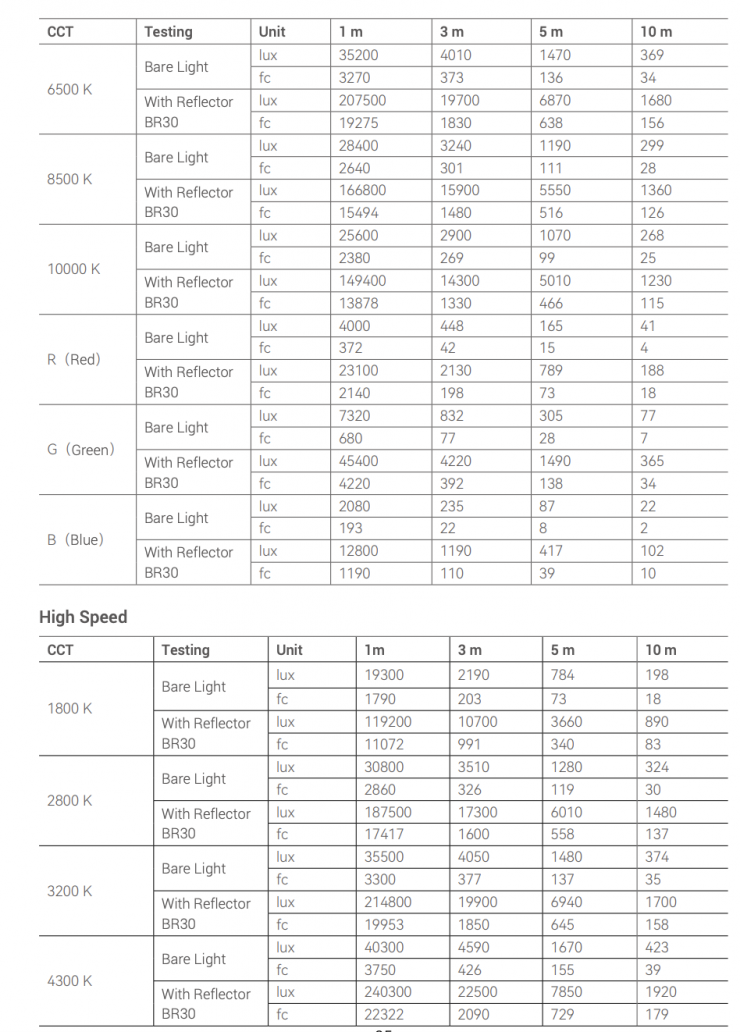

Above, you can see the claimed output figures for both fixtures.

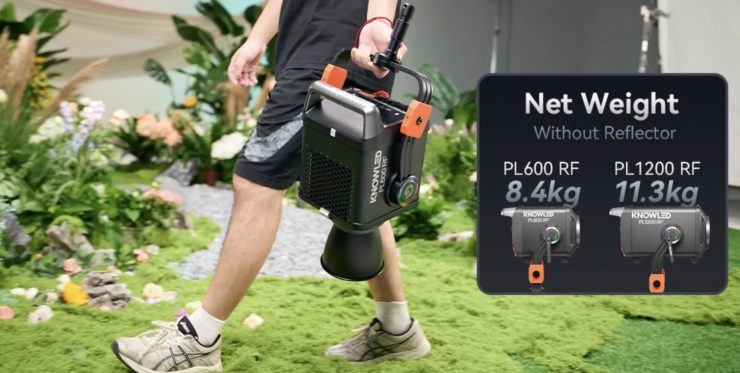

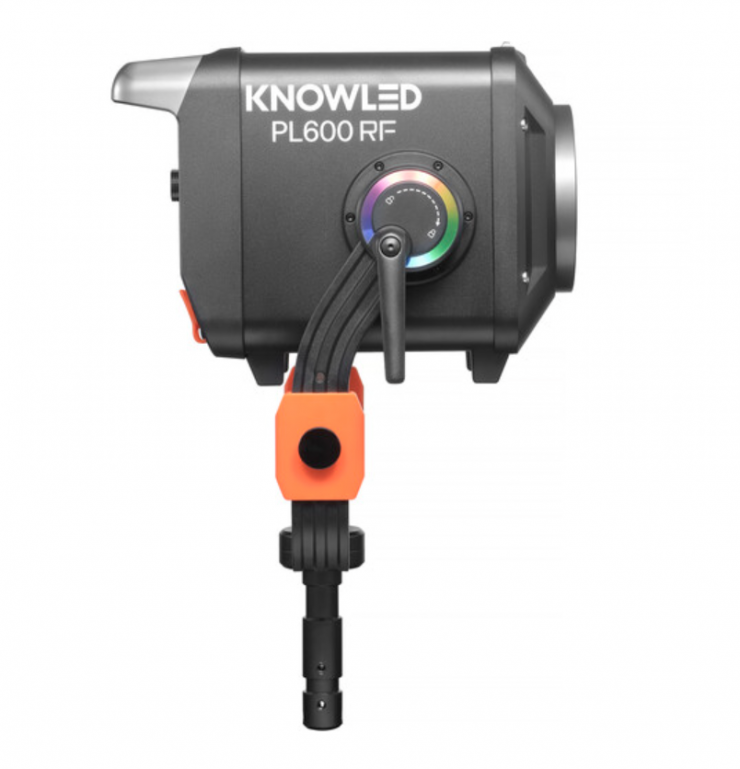

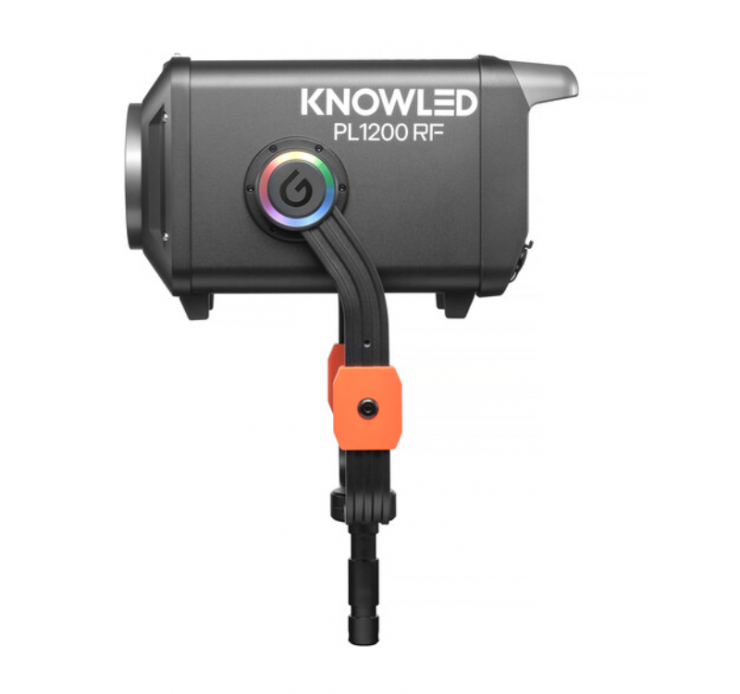

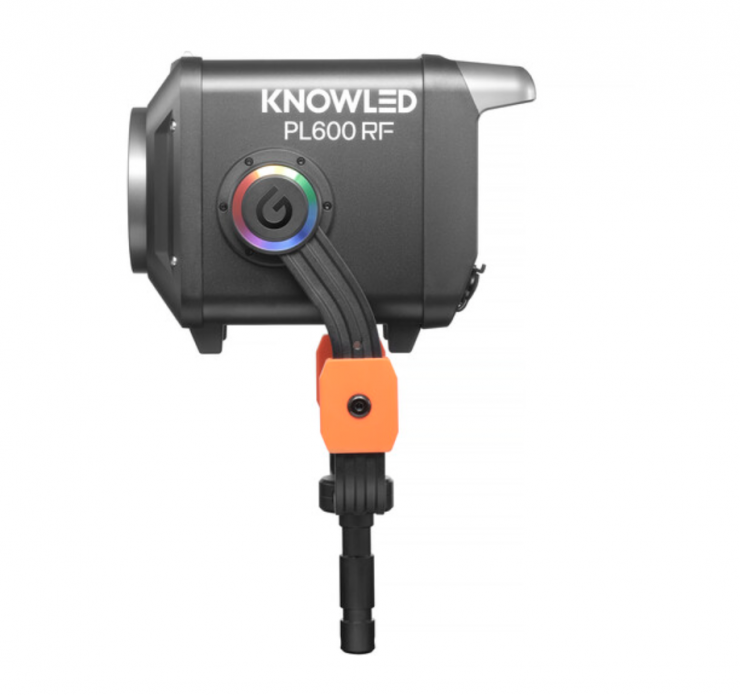

The KNOWLED PL600RF weighs 8.4 kg / 18.52 lb, and the PL1200RF weighs 11.3 kg / 24.91 lb.

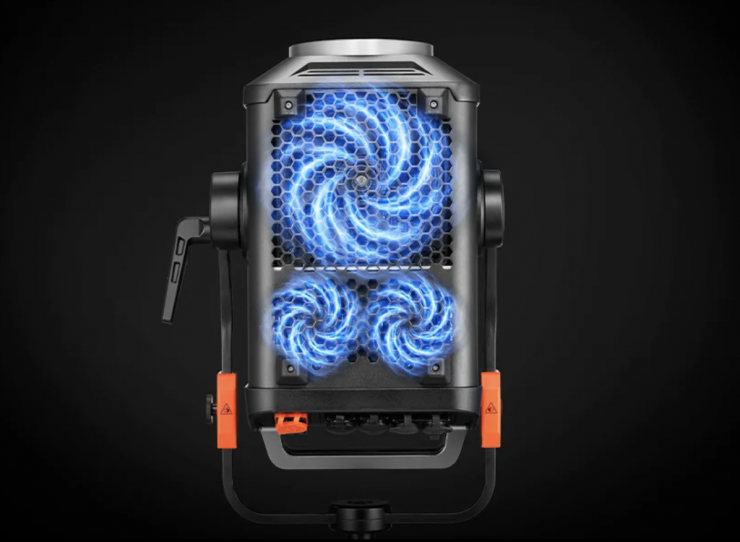

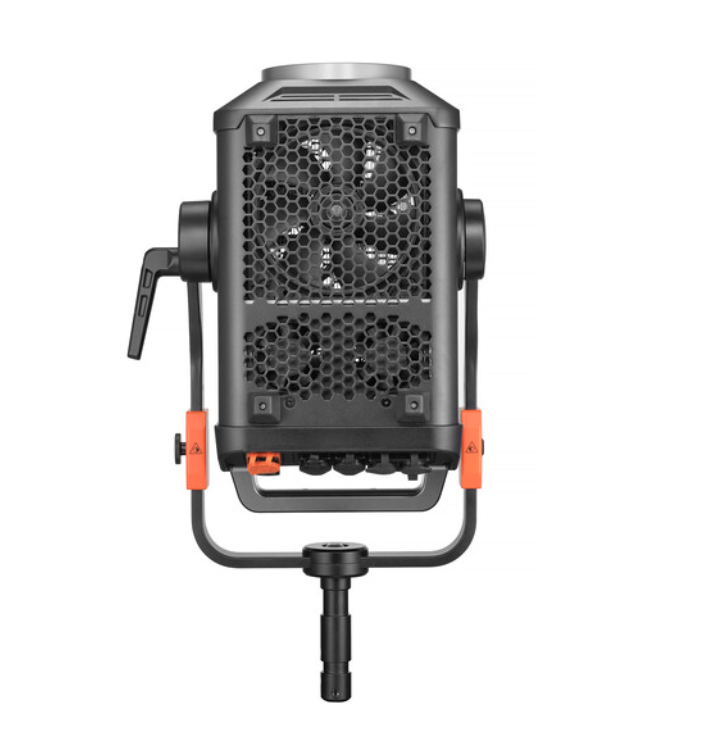

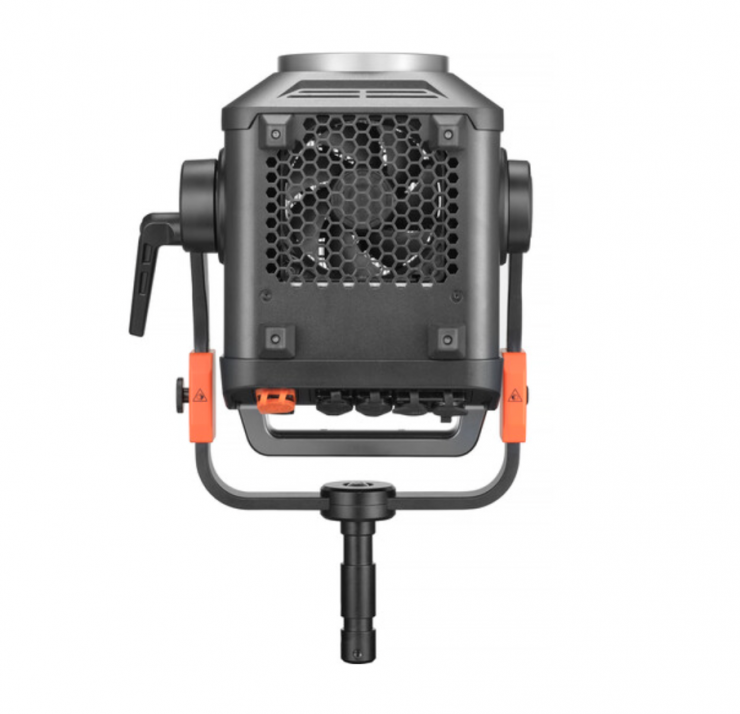

They are claimed to be built with a robust metal housing and smart fan control; the PL600RF and PL1200RF are said to dissipate heat efficiently even under full output.

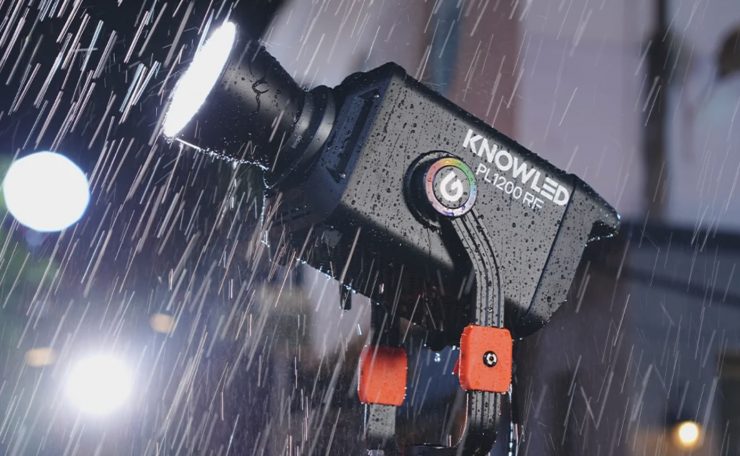

Both fixtures feature Integrated CRMX wireless DMX control for professional lighting networks and IP65-rated construction for use in inclement weather conditions.

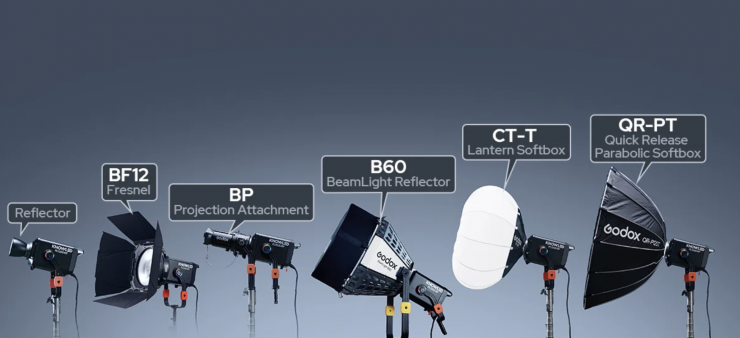

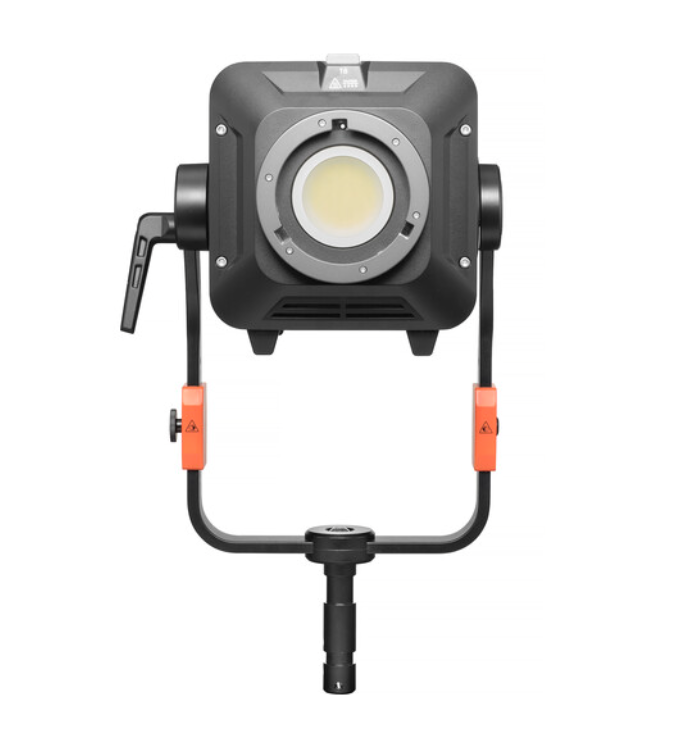

They offer full Bowens mount compatibility, allowing them to be used with a wide range of modifiers

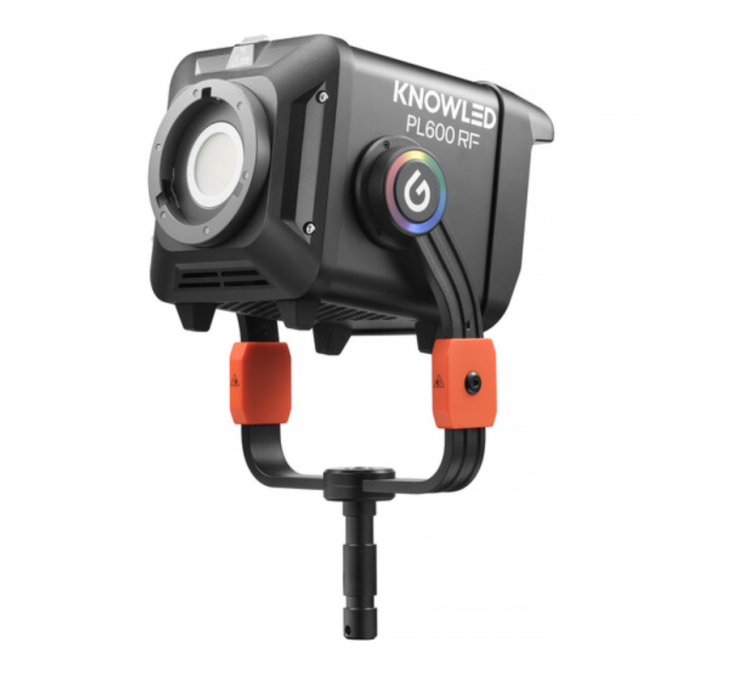

Godox PaletteLab PL600RF 600W Full-Spectral LED Light Kit
Key features
- For Content Creators & Video Productions
- Monolight with 281 Trillion Colors
- PaletteLab Full Spectrum, 92% Rec.2020
- IP65 Rated, CRI R9: 99, TM-30 RF: 97
- Built-In CRMX Module
- Godox, Blackbody, and TM-30 Curves
- Designed for 4K/8K Capture
- Includes Reflector, Power Cable & Case

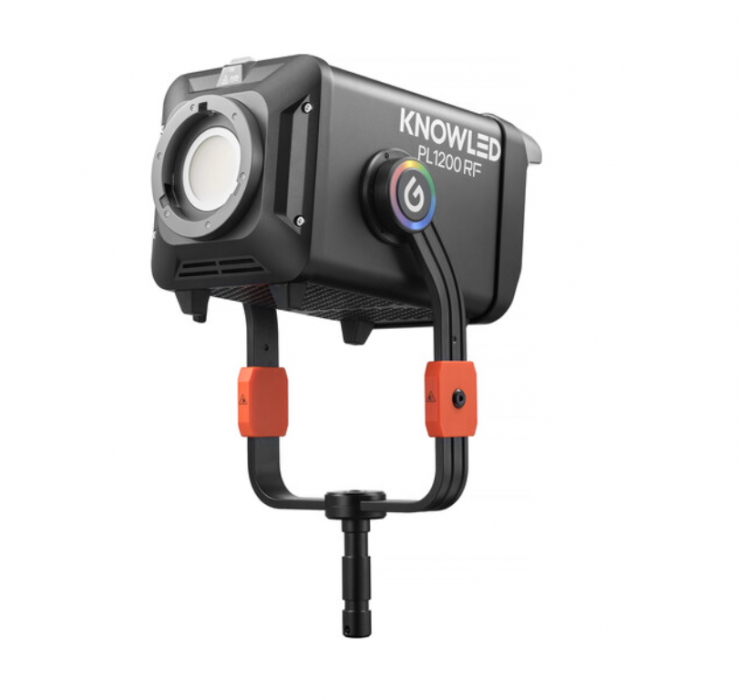

Godox PaletteLab PL1200RF 1200W Full-Spectral LED Light Kit
Key features
- or Content Creators & Video Productions
- Monolight with 281 Trillion Colors
- PaletteLab Full Spectrum, 92% Rec.2020
- IP65 Rated, CRI R9: 99, TM-30 RF: 97
- Built-In CRMX Module
- Godox, Blackbody, and TM-30 Curves
- Designed for 4K/8K Capture
- Includes Reflector, Power Cable & Cases
Pricing & Availability
The Godox PaletteLab 600W Full-Spectral LED Light Kit is now available for $1,990 USD. The PL1200RF is $3,490 USD.
