Sony FE C 16-35mm T3.1 G Cinema Lens

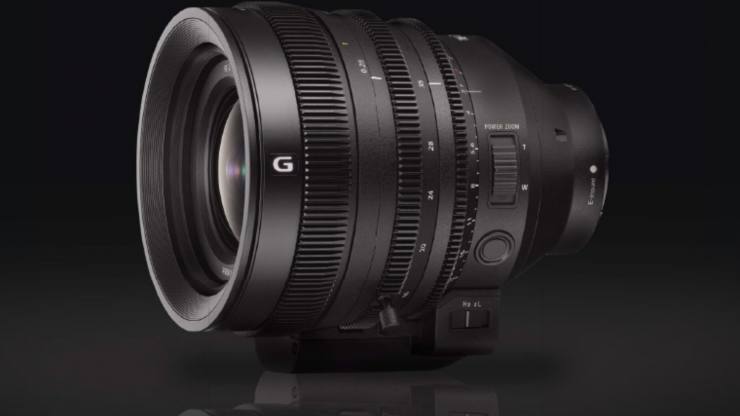

Screen Shot 2020 11 16 at 20 48 28

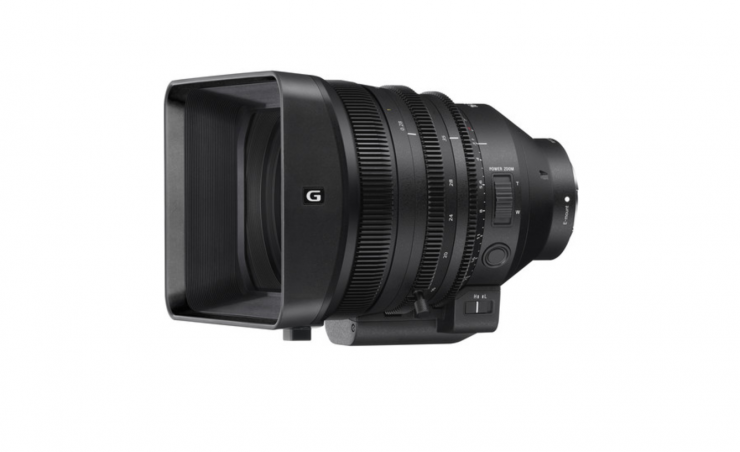

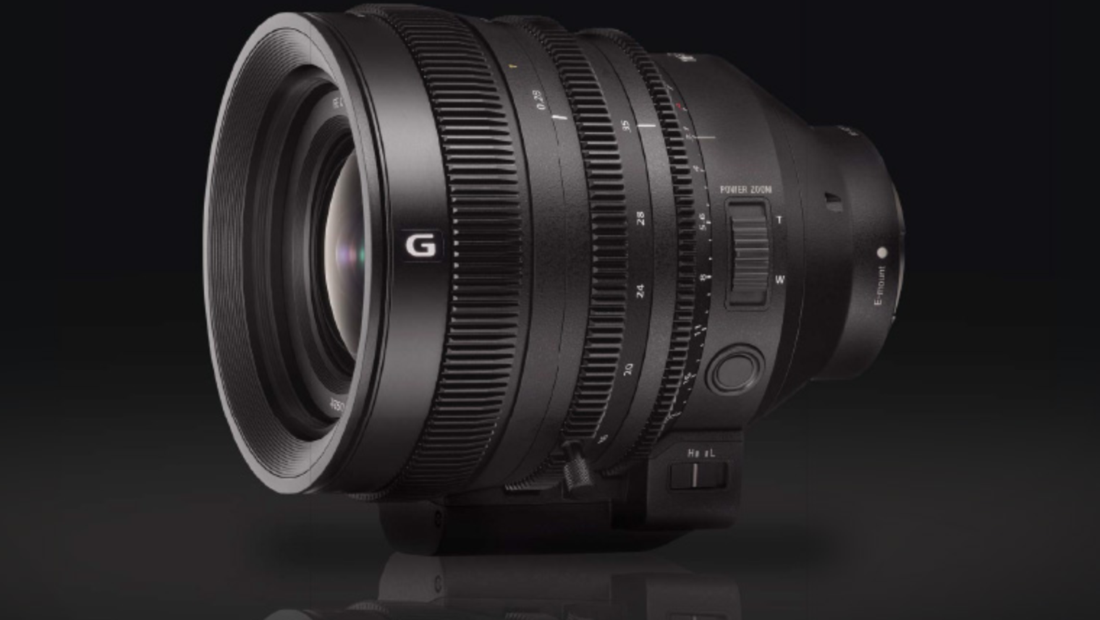

Along with announcing the FX6, Sony has also officially unveiled the Sony FE C 16-35mm T3.1 G Cinema Lens which they have been teasing for quite some time.

Screen Shot 2020 11 14 at 17 07 28

We first saw this lens being announced as a development product way back in September 2019.

Screen Shot 2020 11 14 at 17 07 12

This is the first of three new Cinema Lenses that Sony will be making, however, the focal ranges and details of the other two lenses are unknown at this stage.

Key features

  • Full-Frame Format E-Mount Cine Lens
  • Large T3.1 Aperture
  • Detachable Servo Zoom
  • Two Extra-Low Dispersion Elements
  • Enhanced Hybrid Autofocus, Auto Exposure
  • Lag-Free Linear Response Manual Focus
  • Eleven-Blade Iris for Smooth Bokeh
  • 0.8 MOD Gear, 114mm Front Diameter
  • 120° Focus Rotation
  • Antireflection Coating to Reduce Flare

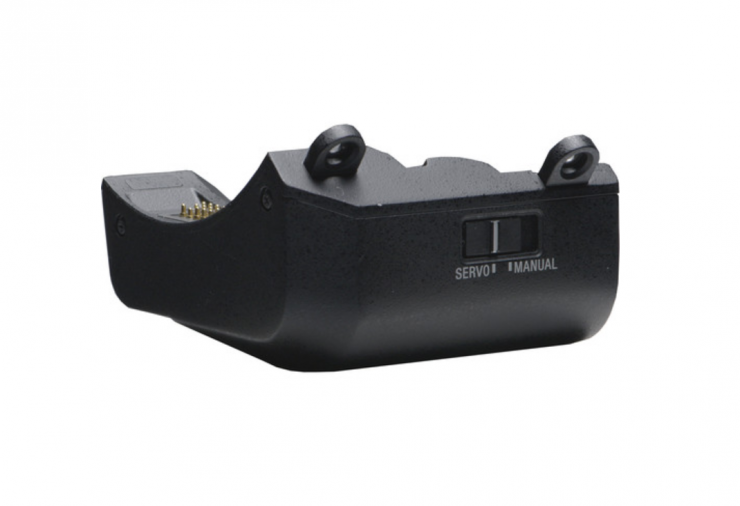

The lens offers full AF support with any E-mount camera, a detachable servo zoom module, and full support for AE (Auto Exposure).

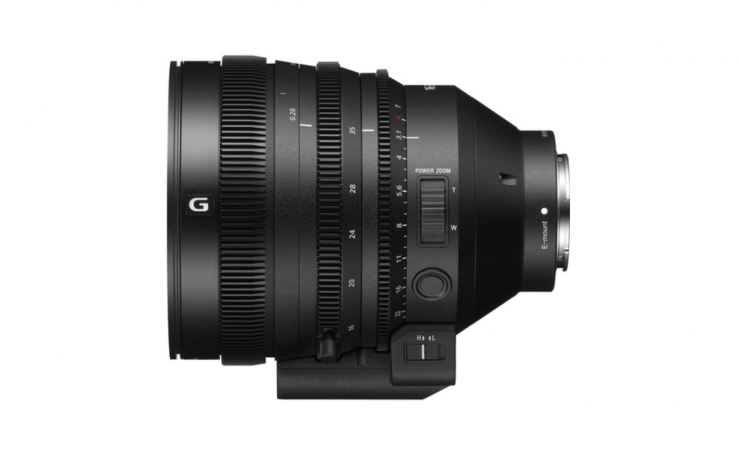

Screen Shot 2020 11 14 at 16 43 23

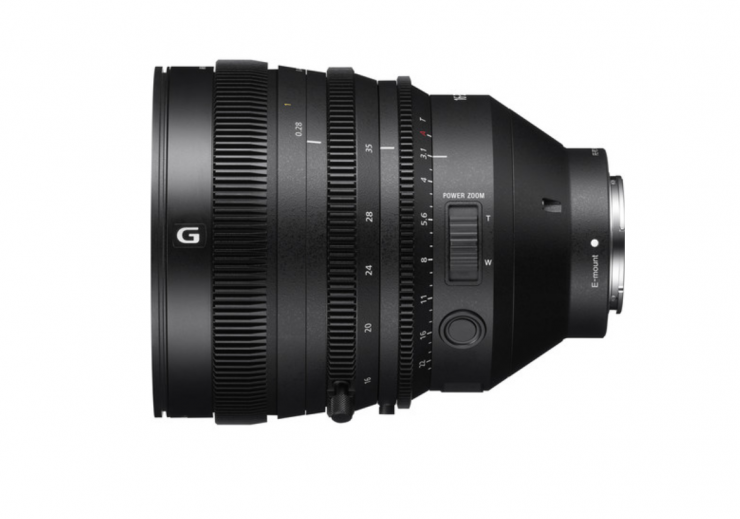

The lens features independent rings for manual control of iris, focus, and zoom. All three rings have 0.8 industry-standard pitch gears on them. The focus rotation is 120 degrees.

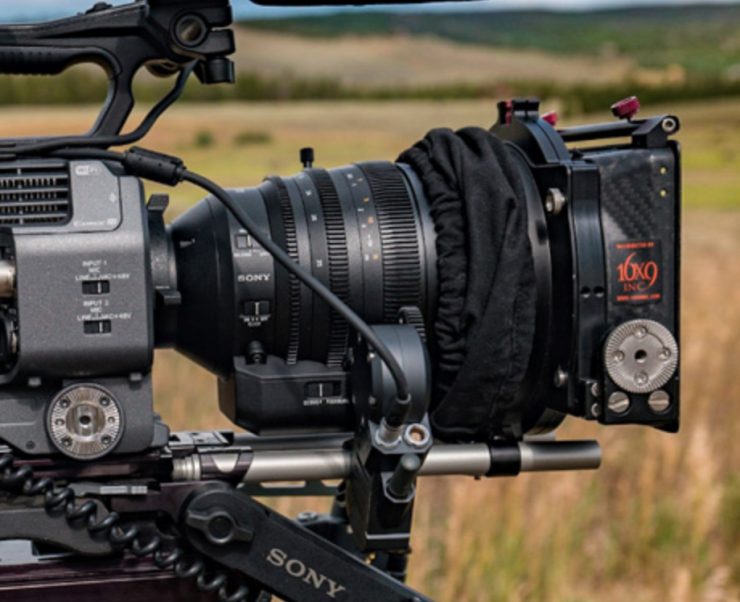

The front diameter of the lens is 114mm so you can attach matte boxes.

Screen Shot 2020 11 16 at 20 52 53

The optical design consists of 16 elements in 13 groups and the lens has 11 aperture blades. Sony claims that although the lens isn’t being referred to as parfocal, it acts like a parfocal lens. They also state that breathing and image axis shift is well controlled.

Screen Shot 2020 11 16 at 20 51 11

The floating focus mechanism moves the two focus lens groups when focusing to effectively suppress various lens aberrations that change depending on the distance to the subject over the entire focus range.

This is not Sony’s first AF Cine Lens

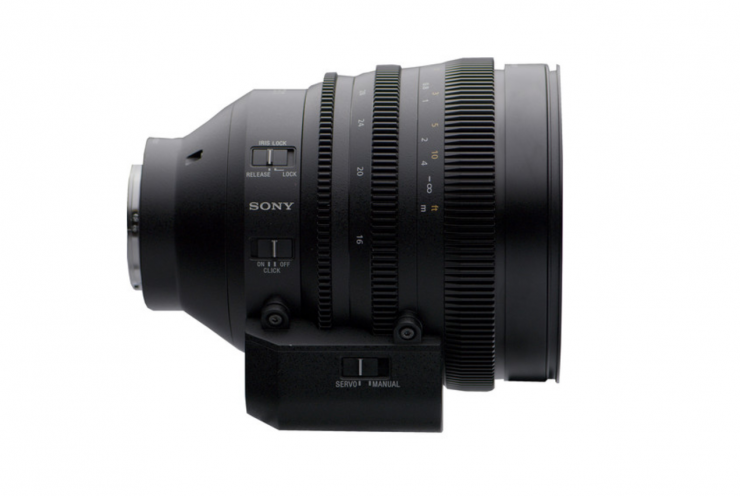

The FE C 16-35mm T3.1 G is not Sony’s first cinema lens that was capable of AF and had a built-in servo zoom. They have released a few over the years, including:

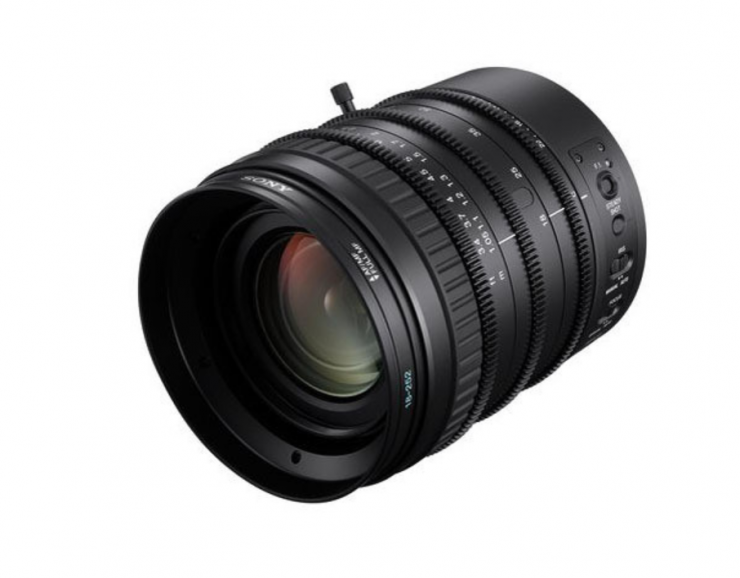

  • Sony SCL-Z18X140 FZ Mount 14X Power Zoom Lens (2011)

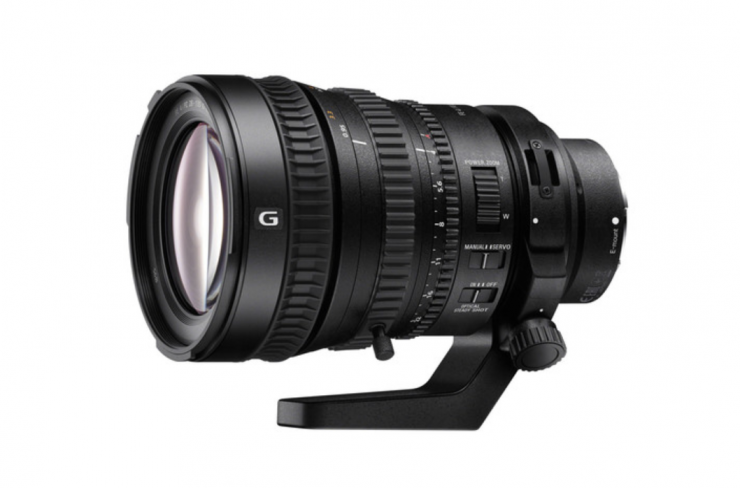

  • Sony FE PZ 28-135mm f/4 G OSS lens (2015)

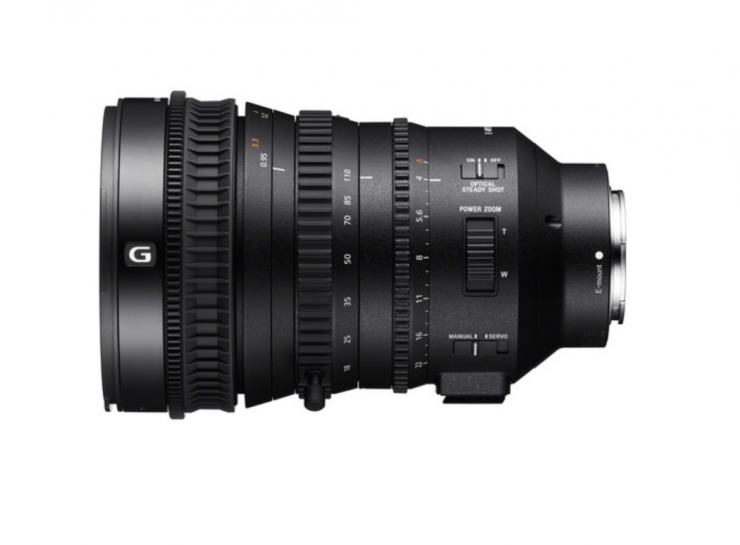

  • Sony E PZ 18-110mm f/4 G OSS Lens (2016)

The problem with AF capable cine lens design

Screen Shot 2020 11 16 at 20 53 07

Despite being labeled by Sony as a ‘Cine Lens‘, the 16-35mm T3.1 is more of a hybrid blend between a stills and a cine lens.

Making an AF cine lens means a lot of compromises have to made. For a start, if you want the lens to also be able to operate in manual focus mode, it has to use a fly-by-wire design. Because the AF may have to make 20 adjustments a second if it is tracking a moving subject, it needs to use a direct drive SSM linear activator to move the elements very quickly, this means you can’t use a traditional mechanical design.

Even though Sony says that the manual focus operation has been improved by refining the fly-by-wire design, anyone who has tried to use manual focus on similar lenses to this knows how bad it was. Who knows, maybe Sony has made this lens better.

We still have a long way to go with AF Cine lenses because of the compromises that have to be made when designing one. You still can’t have your cake and eat it too.

Sony FE C 16-35mm T/3.1 G Specs

Focal Length16 to 35mm
Lens MountSony E
FormatFull Frame
Maximum T-StopT3.1
Maximum F-Stopf/2.8
Minimum T-StopT25
Minimum F-Stopf/22
Horizontal Angle of ViewFull Frame: 97 to 54°
Minimum Focus DistanceFrom Unspecified Point in Lens: 11.02″ / 0.28 m
Optical Design16 Elements in 13 Groups
Iris Blades11
Gear MOD & PitchFocus: 0.8 MOD / 32 Pitch
Front Diameter114 mm
Focus ScalesImperial
Focus Rotation120°
Electronic CommunicationYes
Length5.8″ / 14.7 cm

Price & Availability

Screen Shot 2020 11 14 at 16 44 01

The Sony hybrid cine lenses have never been what I would describe as ‘affordable’ and the FE C 16-35mm T/3.1 G is no exception.

The lens will retail for $5,499 USD. Pre-orders will start on the 18th of November and it is scheduled to start shipping on the 10th of December. It may be hard convincing Sony E-mount camera owners to fork over that much money for this lens.

Screen Shot 2020 11 14 at 17 01 38

As a comparison, the Sony FE 16-35mm f/2.8 GM Lens retails for $1,998 USD, and that is the lens that the FE C 16-35mm T/3.1 G is based on. Both lenses feature the exact same optical design.
