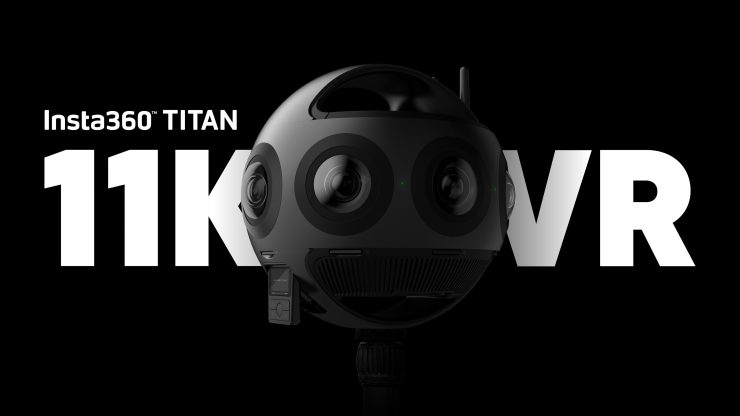

Insta360 Titan Eight-Lens VR Cinema Camera Announced – CES 2019

Insta360 has announced the Titanan eight-lens cinematic VR camera that captures 360 photos and video at up to 11K monoscopic and 10K 3D resolutions.

The Titan uses eight Micro Four Thirds (MFT) sensors, the largest sensors available in any standalone VR camera. The MFT sensors maximize image quality, dynamic range, low-light performance, and color depth, raising the bar for realism in high-end professional VR capture.

Key Features

  • Eight optimised MFT sensors
  • 10-bit support
  • FlowState Stabilization
  • Farsight Live Monitoring
  • CrystalView playback technology
  • $14,999 USD reservation with a fully refundable $150 USD deposit
Reserve your Insta360 Titan camera today
Reserve your Insta360 Titan today

The Titan is the first standalone 360 camera ready to record in 11K monoscopic and up to 10K 3D at 30 FPS. Additionally, it can also record 8K at 60 FPS and 5.3K at 120 FPS.

With 360-degree and VR content, there is a need for high resolution since the image is a lot larger than traditional capture. The 360 camera uses an array of eight micro four-thirds sized sensors for high-performance which support shooting in 10-bit colour and HDR shooting modes.

Insta360 Titan Front

As found in Insta360’s other VR cameras, the Titan also uses their signature FlowState Stabilization technology for smooth video. Also found in the Titan is the Farsight technology for wirelessly monitoring the footage from a distance since you generally have to be completely out of the shot in all directions for 360-degree capture. The Titan comes standard with a Farsight transmitter and receiver.

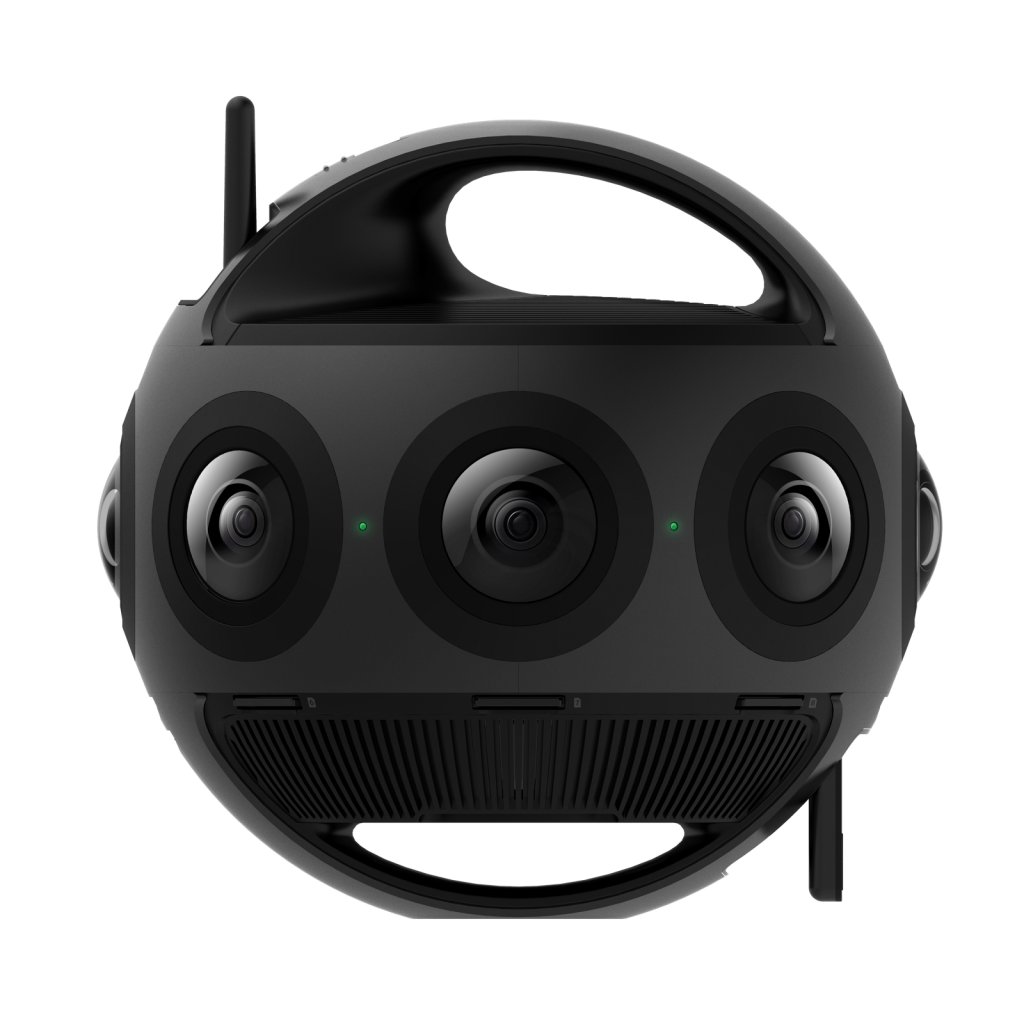

Insta360 Titan Left

To help deliver a smooth experience, CrystalView renders out only what is required and not the complete 360 space, saving processing power.

On the interface side of things, the Titan looks similar to their other cameras like the Pro 2, with multiple memory card slots to record each sensor, plus another for proxy recording. a small display with buttons for adjusting settings and a large handle surface.

The Titan is a cinema-grade camera and is priced at $14,999 USD. You can reserve your Insta360 Titan from today with a refundable $150 USD deposit with the units expected to first ship in April.

Specifications

Diameter
Φ234mm

Material
Aluminum alloy

Lenses
8 x 200° F3.2 fisheye lenses

Photos
Real-time / Post-processing Stitching
10560 x 5280 (11K 2D)
10560 x 10560 (11K 3D)

Video
Post-processing Stitching
10560 x 5280 @30fps (11K 2D)
9600 x 9600 @30fps (10K 3D)
5280 x 2640 @120fps

10-Bit video
7680 x 7680 @30fps (8K 3D)
7680 x 3840 @30fps (8K 2D)

Real-time stitching
3840 x 3840 @30fps (4K 3D)
3840 x 1920 @30fps (4K 2D)

Photo Files
JPEG / DNG

Video Files
MP4

Video Coding
H264 in-camera, H265, and ProRES 422 HQ are available when post stitching.

Live-streaming Modes
Built-in server / Custom server / HDMI output
3840 x 1920 @30 fps ( 4K 2D livestream ) can store 8K video while livestreaming.
3840 x 3840 @30 fps ( 4K 3D livestream ) can store 6K 3D video while livestreaming.
Note: Simultaneous live-streaming + recording is supported.
Live-streaming Protocol
rtsp, rtmp, hls

Storage Specification
9 SD Card

ISO Range
100~6400

Exposure Modes
Auto, Manual, Lens-by-Lens Custom, Shutter Priority (photo only), ISO Priority (photo only), Set ISO Upper Limit (video only).

White Balance Modes
Automatic, manual

Photo Modes
Single shot / Burst (10 continuous shots) / Timelapse /
AEB (Auto Exposure Bracket, optional 3, 5, 7, and 9 photos for in-camera HDR photos)
Note: Both RAW and JPG can be selected for simultaneous shooting for synthetic HDR photos and all other photo modes.

Video Modes
Standard (i-Log is available) / Binning (i-Log is available)

Bitrate per Lens
Up to 180Mbps

Power
19V 9A adapter

Battery Capacity
10000mAh removable battery

Operating Temperature
0 – 40℃

Storage Temperature
-20 – 40℃

WiFi Specifications
802.11 b/g/n, 2.4GHz. Signal range is about 20 meters in open space. Max preview framerate of 30 FPS, supported in roughly 5-meter range.

Antennae
GPS signal antenna + WiFi signal antenna

Ethernet Port
Yes

Video Transmission
Insta360 Farsight provides ground-to-ground range of up to 300 meters and ground-to-air range of up to 1000 meters, with 30 FPS preview.

Audio
4 Mono Microphones

Audio Coding Format
AAC

Spatial Audio
Ambisonic

Gyroscope
Ultra-precise 9-axis gyroscope

Stabilization
FlowState Stabilization

Stitching
Optical Flow / Template

Exposure Range
12 Stop

Supported Operating Systems
Windows / Mac / iOS / Android
