Atomos introduced the Shogun AV-19M at IBC 2026. A monitor-only sibling to the Shogun AV-19 announced at NAB 2026, built for customers who wanted the same rack-mount panel without onboard recording or switching. We caught up with Atomos on the show floor for a closer look.
Featured Specifications
- Display: 19″ 3840 x 2160 4K HDR DCI-P3 touchscreen, 1200 nits
- NDI: HX3 over Ethernet — full-screen single source or 4-source quad-view
- I/O: 1x 12G-SDI in/out, 1x HDMI in/out, XLR audio output
- Cross-brand PTZ compatibility via NDI and standard PTZ control protocols
- Price: $1,899 USD / €1,899 — ships October 2026
Specifications
| Category | Spec |
|---|---|
| Display | 19″, 3840 x 2160, capacitive touchscreen |
| Color | 4K HDR, DCI-P3 |
| Brightness | 1200 nits |

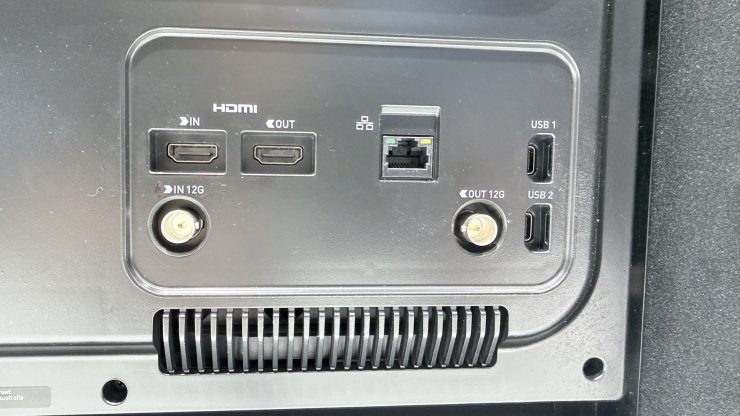

| Video inputs | 1x 12G-SDI, 1x HDMI |
| Video outputs | 1x 12G-SDI, 1x HDMI |
| Network video | NDI HX3 over Ethernet (Gigabit) |

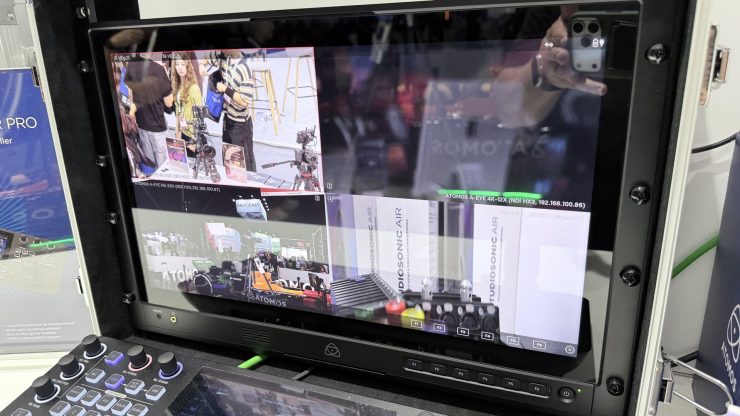

| NDI display modes | Full-screen single source, or quad-view (up to 4 sources) |

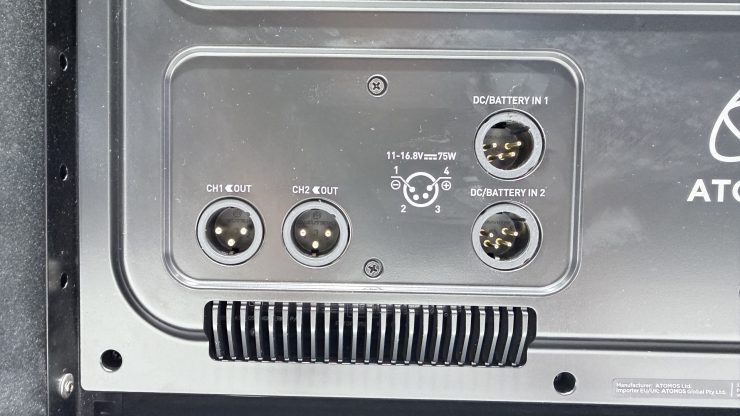

| Audio output | XLR (analog); SDI/HDMI feed can be de-embedded to analog audio |
| Monitoring tools | EL Zone false color, focus peaking, waveform |
| Controls | User-definable function buttons |
| PTZ support | Cross-brand via NDI/PTZ standard protocols (demoed with Z CAM) |
| Calibration | Third-party compatible, ~$200–$20,000 calibrator range |

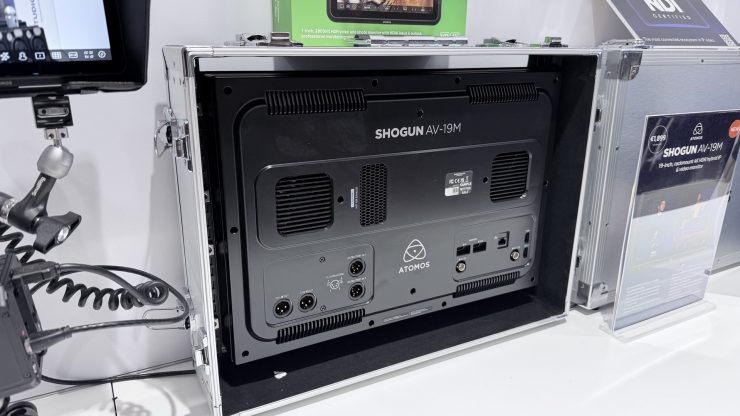

| Accessories | Optional custom flypack (sold separately) |

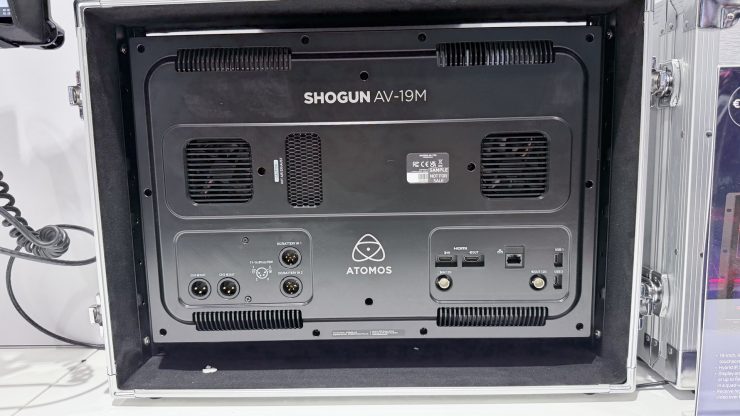

| Chassis | Rack-mount |

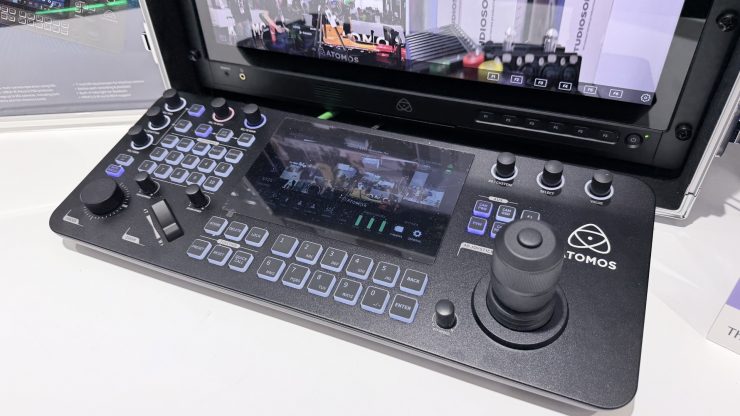

PTZ and cross-brand compatibility
Atomos demoed the AV-19M running alongside PTZ cameras from other manufacturers, including a Z CAM unit, on the same NDI network. Because NDI and standard PTZ control protocols are shared across brands, the monitor isn’t locked to Atomos gear — it’s built to sit in a mixed-vendor NDI infrastructure rather than a closed one.
Calibration
The panel supports third-party display calibration. Atomos said compatible calibrators range from roughly $200 consumer units up to $20,000 professional references, so the calibration path scales with the facility rather than requiring a specific proprietary tool.
Price & availability
The Shogun AV-19M ships in October 2026 at $1,899 USD / €1,899.
