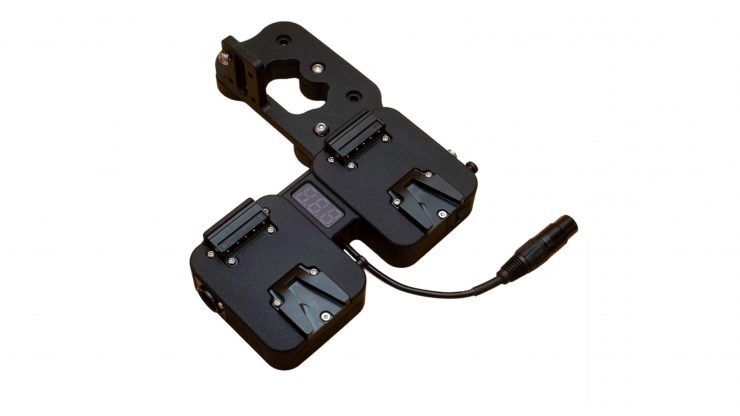

CineParts SmallHD 1303 and 1703 PowerBack V-Mounts were designed to be a versatile addition to any SmallHD users kit.

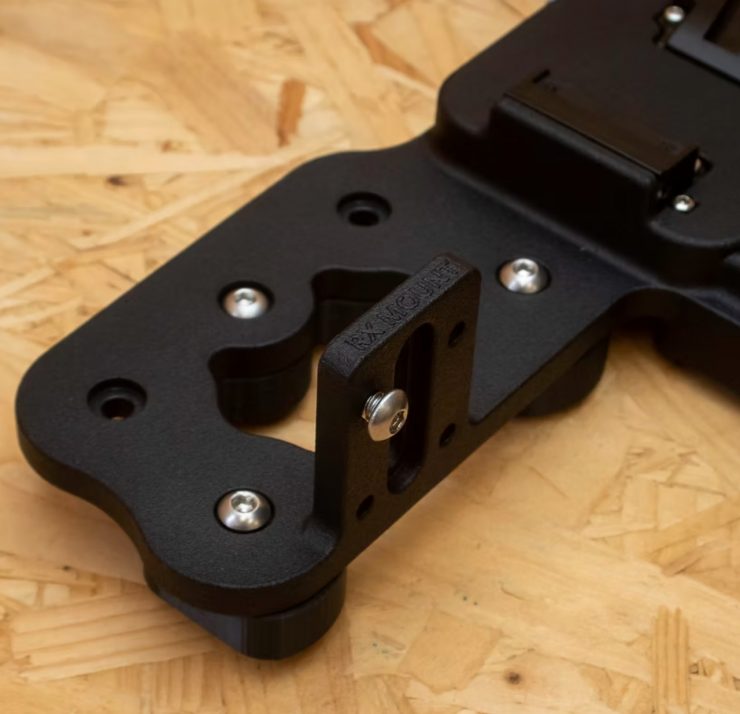

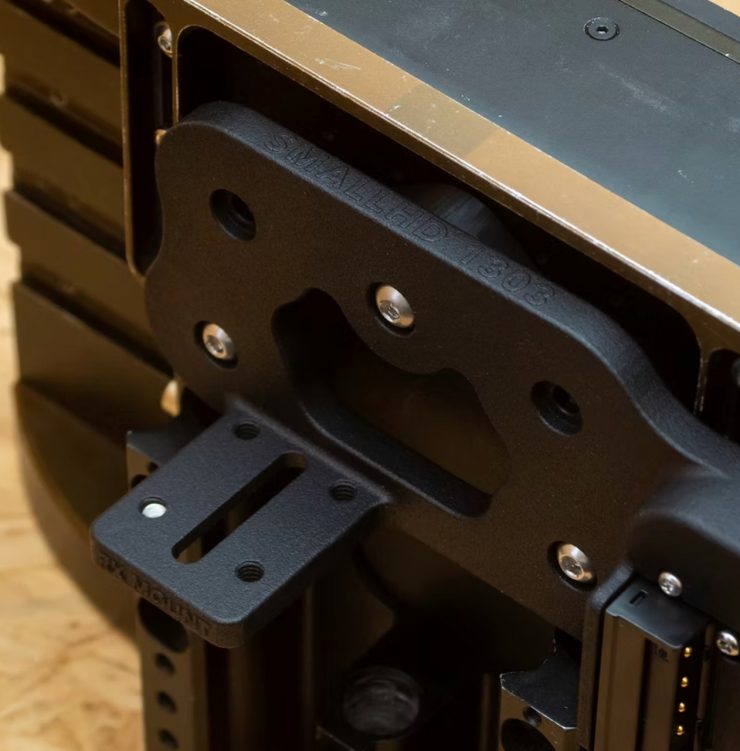

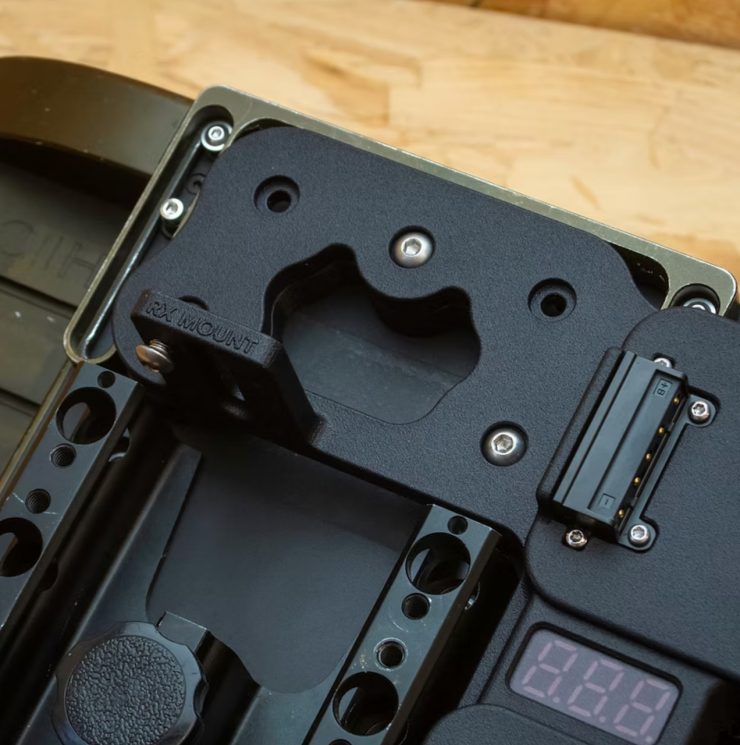

The plate features an integrated 4-Pin XLR cable, dual V-Mount receivers and 4-Pin XLR DC-input for seamless hot-swapping. A built in receiver mount, compatible with VAXIS and Small HD receivers.

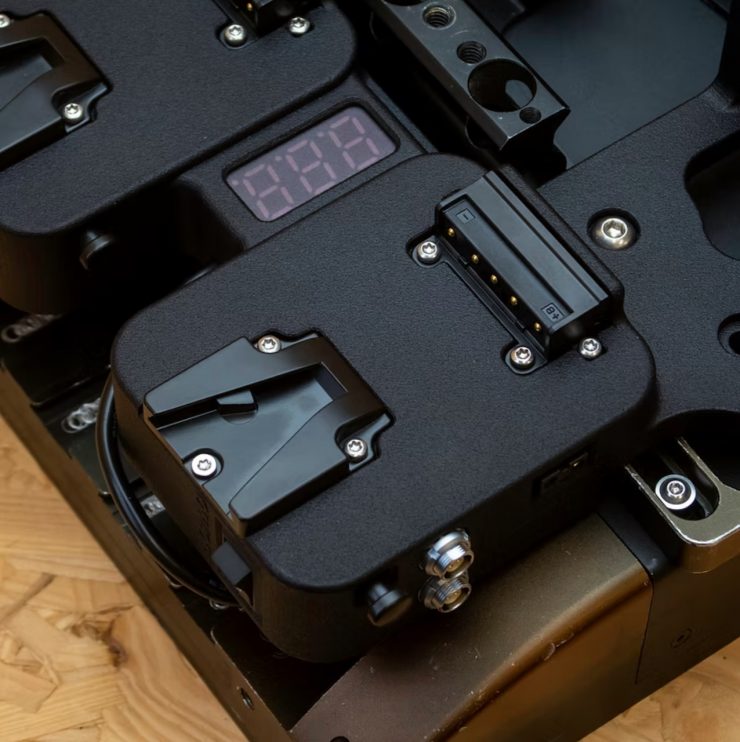

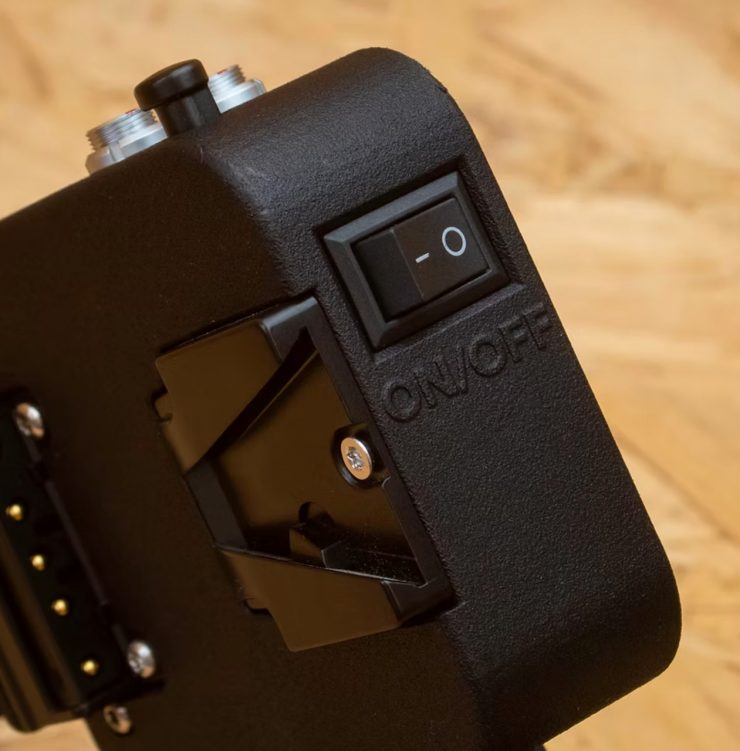

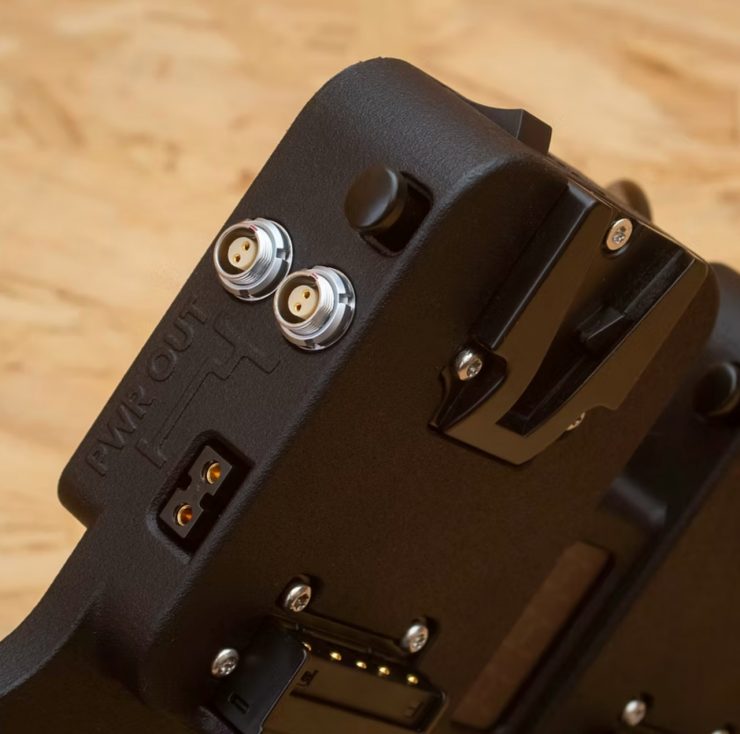

The unit also feature 2x 2-Pin Lemo and 1x D-Tap ports for unregulated output, a recessed on/off switch and a volt meter for a TRUE battery status reading.

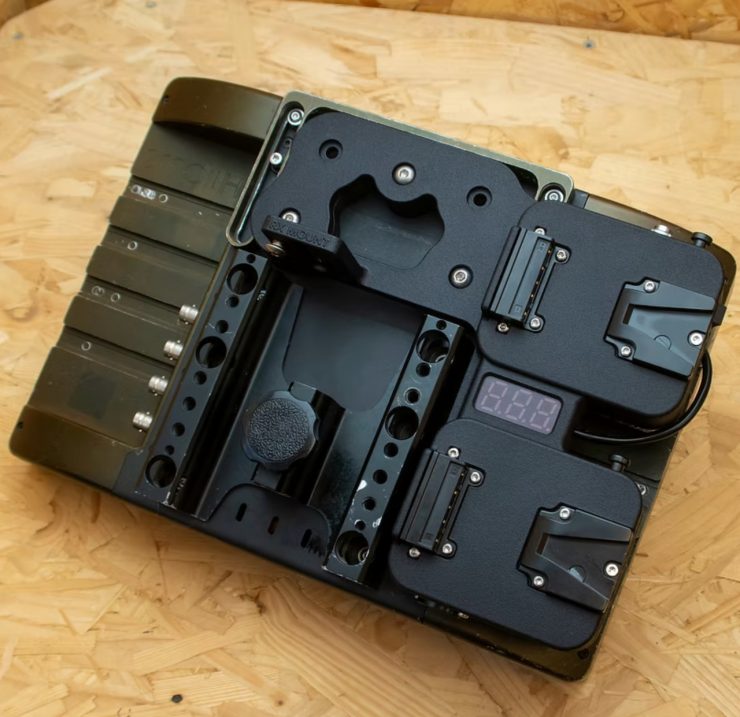

It weighs in at 525g / 1.15 lb and fits within the same footprint as the 1303 and 1703 monitors.

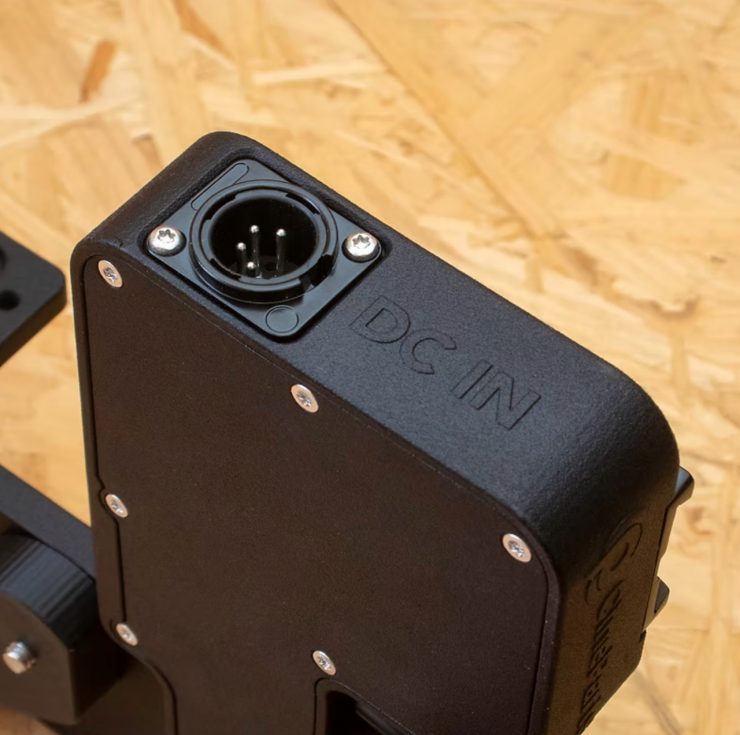

The 4-pin XLR is naturally 12V based, so please make sure the cable used to hot-swap is a D-tap cable, with power on pin 4, ground on pin 1. DO NOT plug in a 24V cable (like for example the Titan LT’s), as this will put 26V into the circuit and cause damage to accessories plugged into the DTaps and 2-Pin connectors.
Pricing & Availability
The CineParts SmallHD 1303 & 1703 PowerBack V-Mounts are now available to order for $476.27 USD.
The pre-order batch is expected to ship in mid-October, so there is still time to grab one at 20% off.
