MID49 has a range of Canon R6 V cages and accessories available. There are three different cage configurations to choose from. The kits are now available to pre-order, with shipping starting in June.

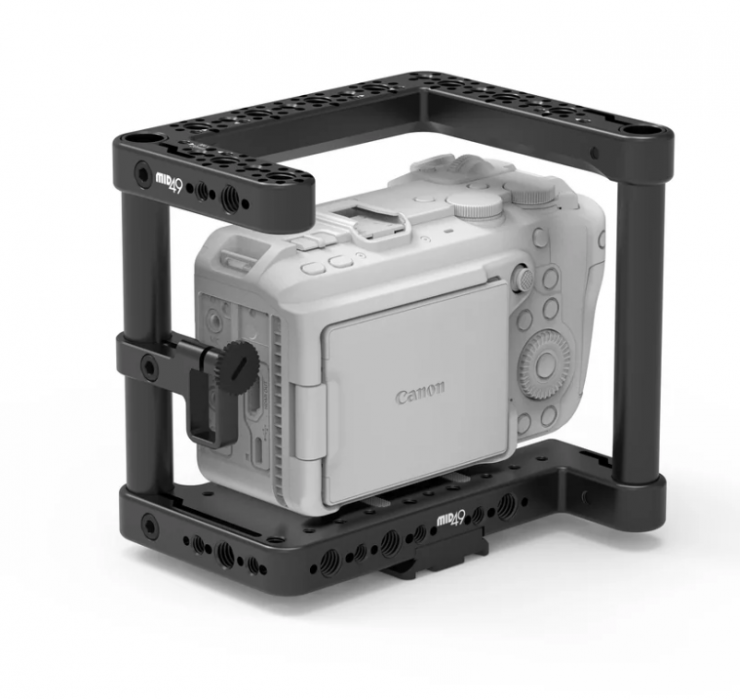

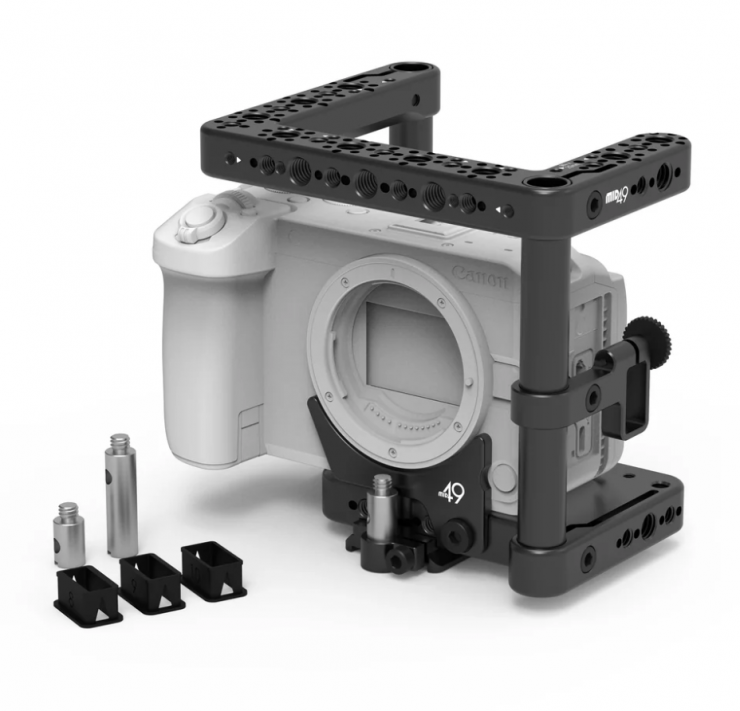

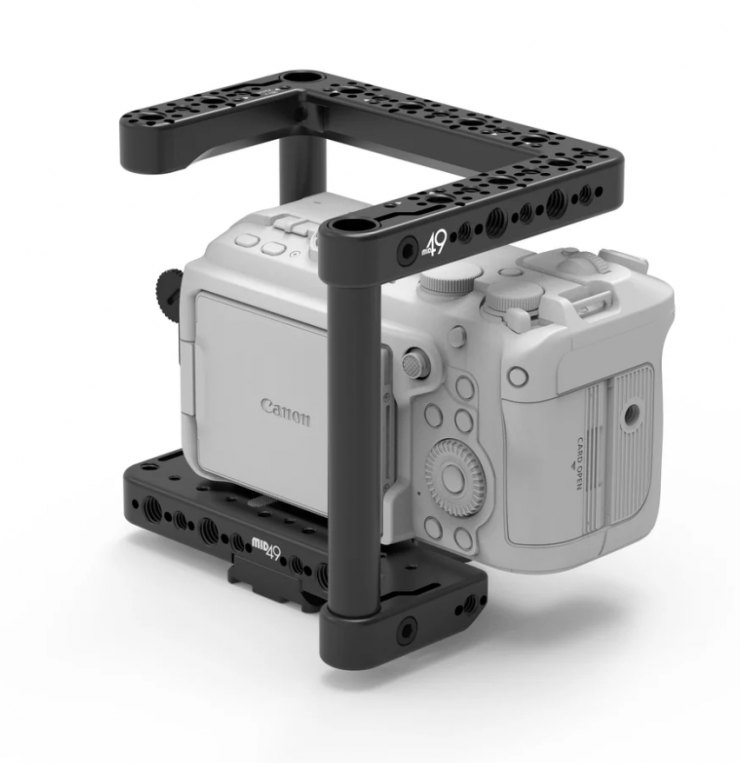

Upper Cage for Canon R6V ($250 USD)
The Upper Cage for Canon R6V is a form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places.
The included HDMI lock with reduction inserts protects the camera’s HDMI port from abuse and can swing away to allow access to the dust cover.

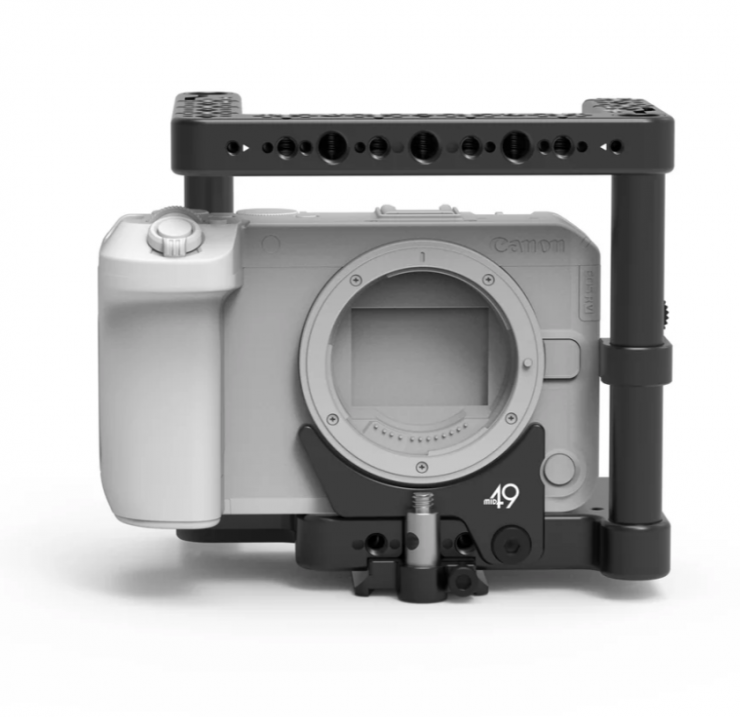

The front camera straightener keeps the R6V from turning under the force of the focus motors.
Lower ARCA Swiss dovetail has an adjustable lens support clamp with three included lengths of 1/4-20 support screw that attach to 3rd party lens adapters like Metabones, etc.
The ARCA Swiss dovetail attaches to the Baseline 15mm Baseplate to provide rods at the correct lens height (sold separately).
Product Weight: 15.5oz (438g)

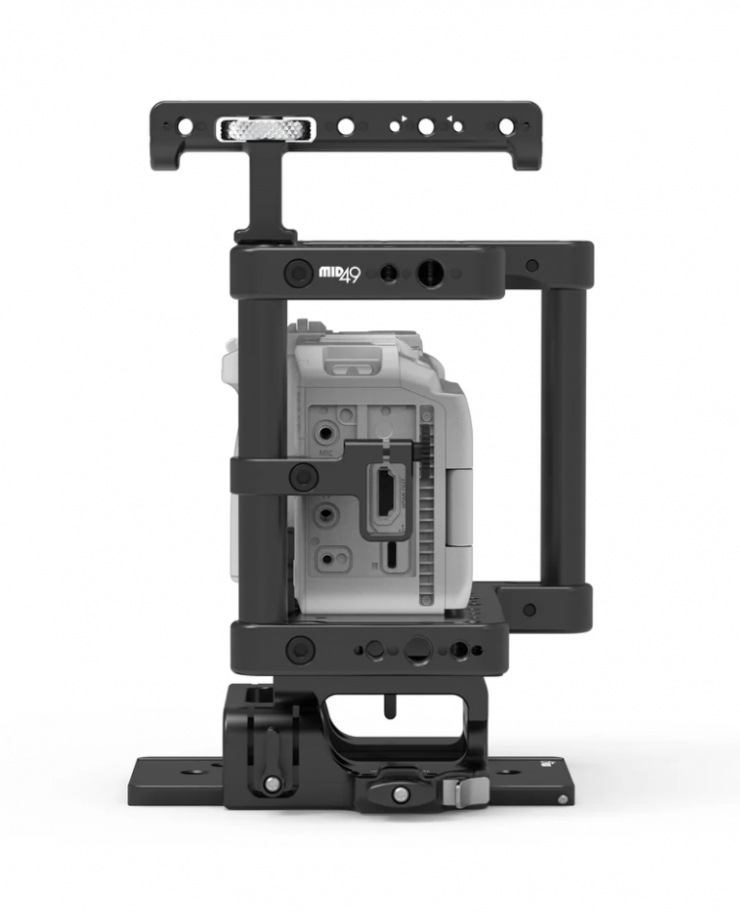

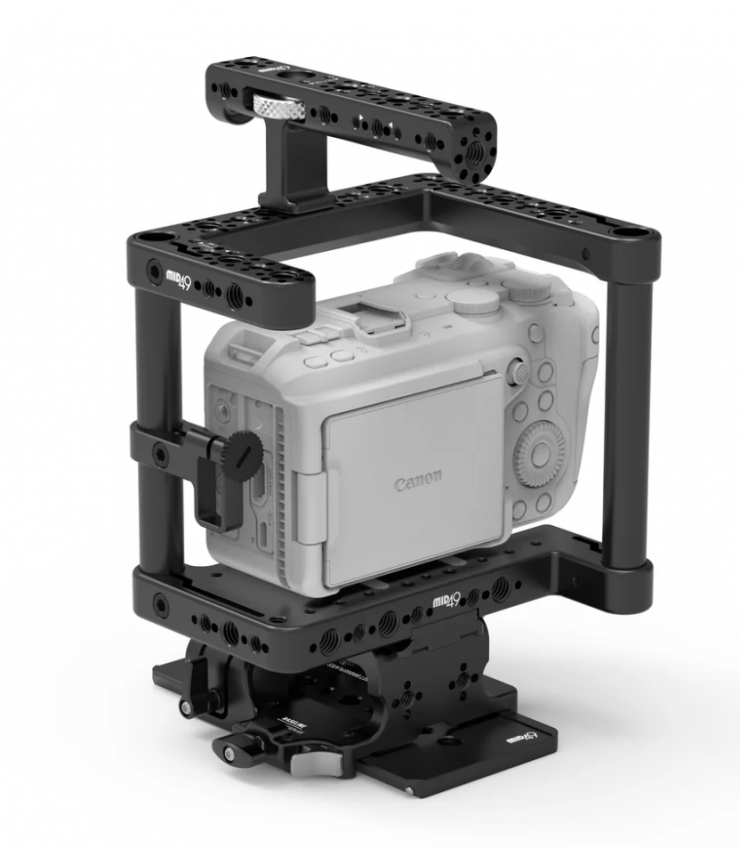

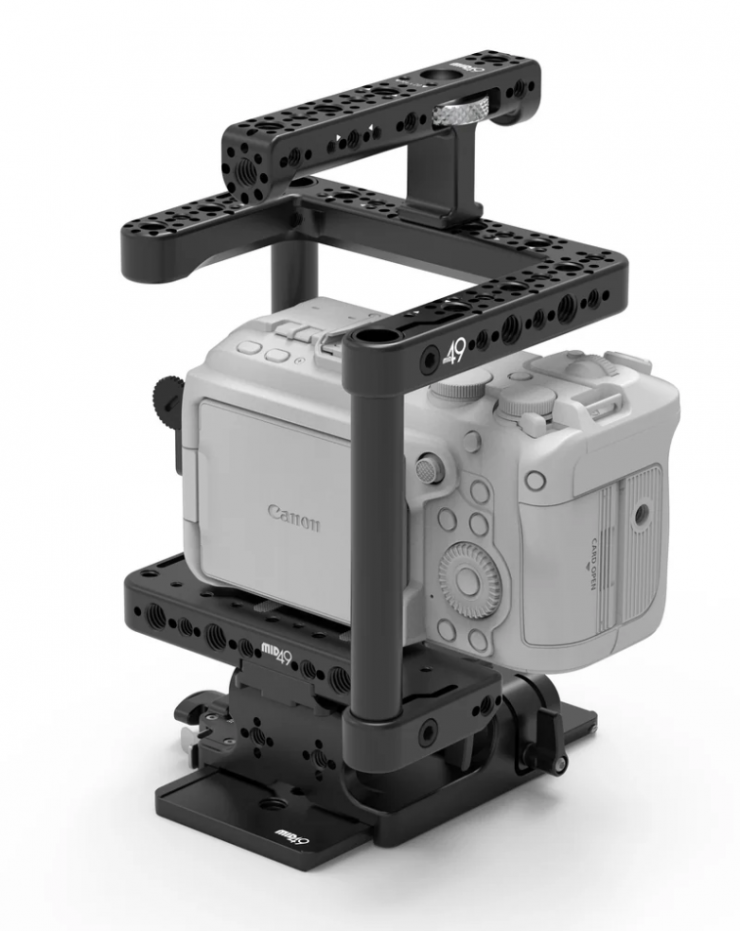

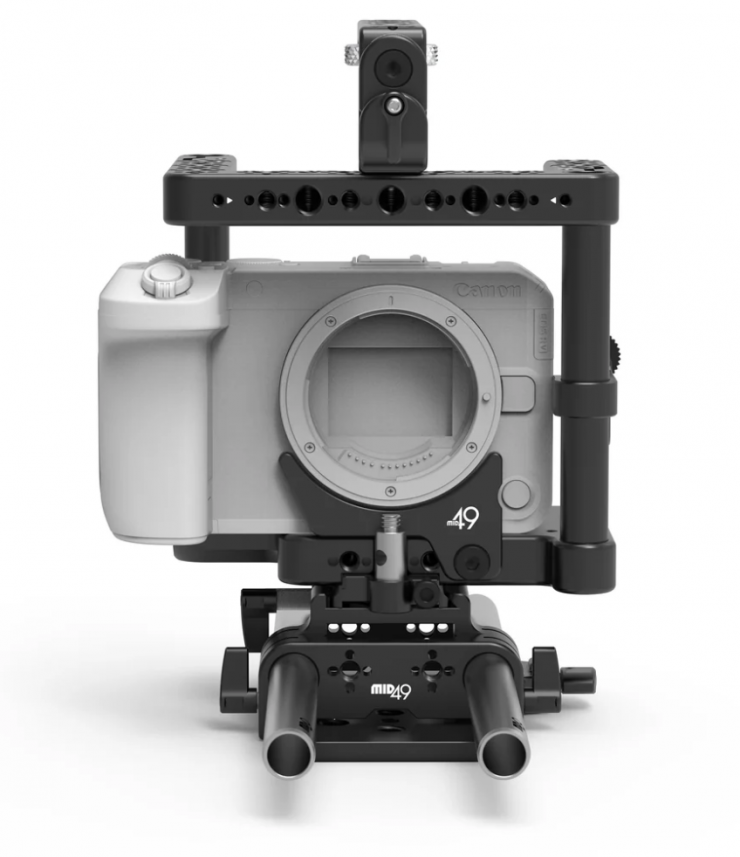

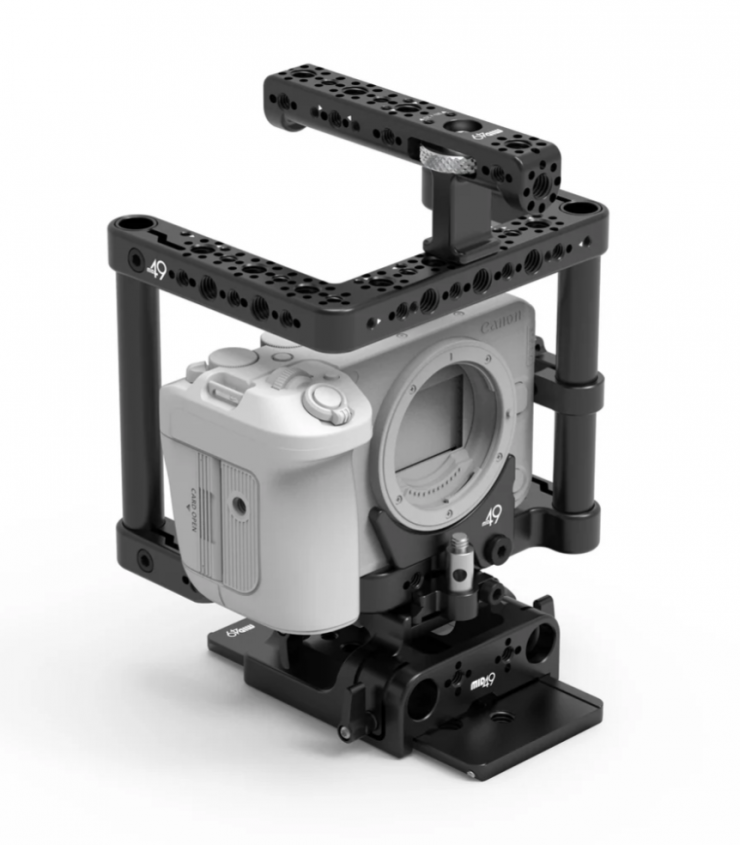

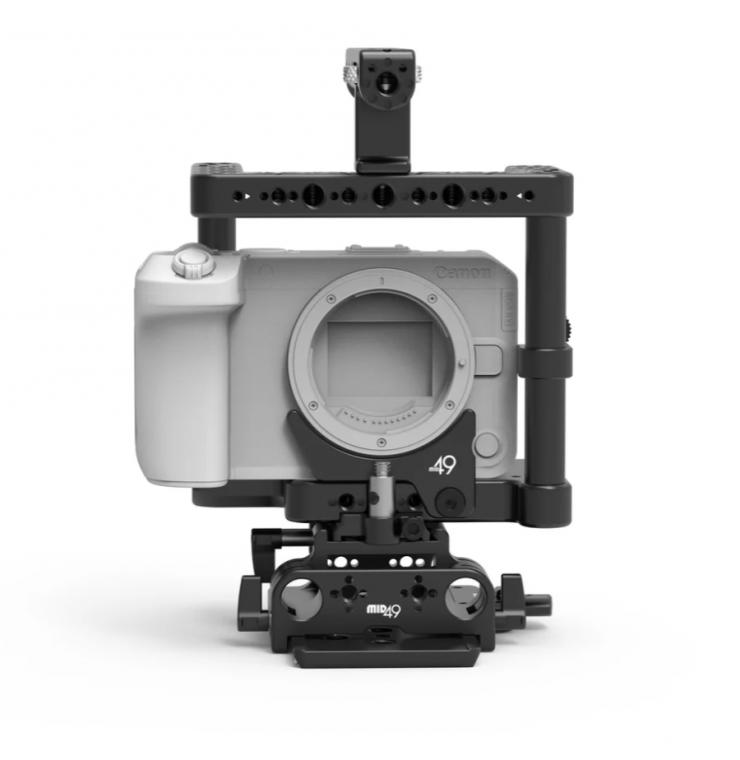

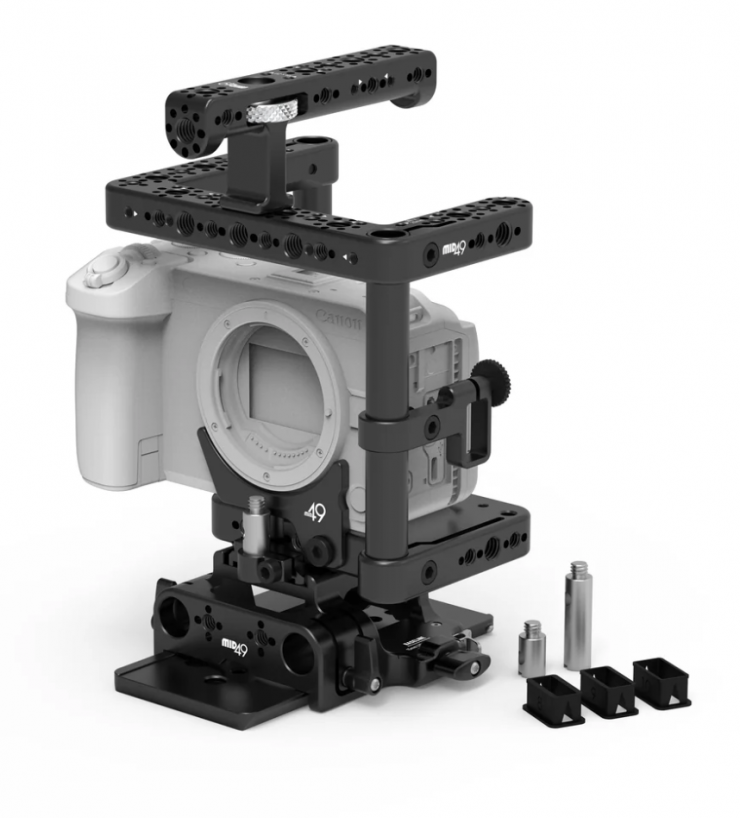

Base Kit for Canon R6V ($595 USD)
The Base Kit for Canon R6V includes:
Form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. HDMI lock with reduction inserts protects the camera’s HDMI port from abuse. The front camera straightener keeps the R6V from turning under the force of the focus motors.
The lower ARCA Swiss dovetail attaches to the included baseplate, and the adjustable lens support adapter with 3 lengths of 1/4-20 support screw attaches to 3rd party lens adapters like Metabones, etc.
Bolt On Top Handle (ARRI 1/4-20)
The top handle attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Baseline 15mm LW (Upper Cage Canon C50, R6V)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
Product Weight: 29.2oz (830g

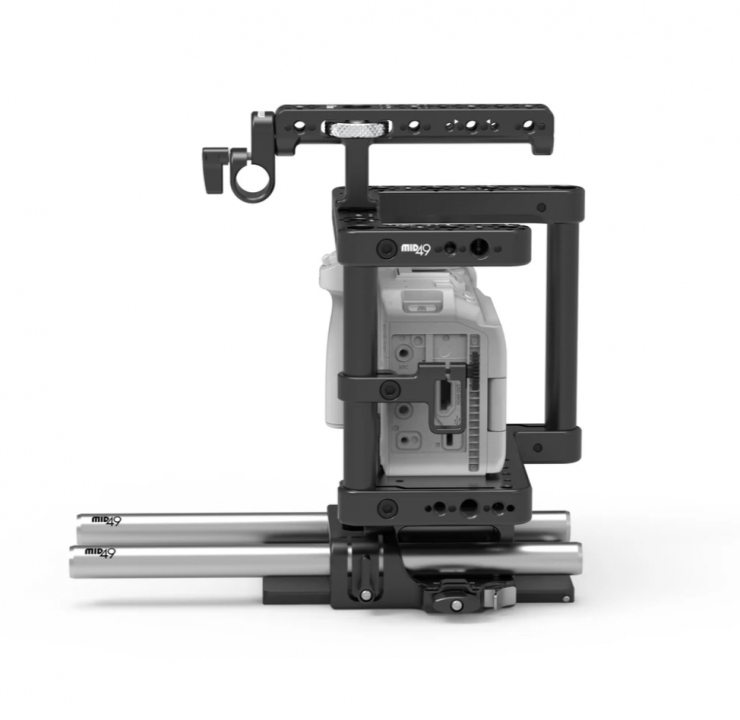

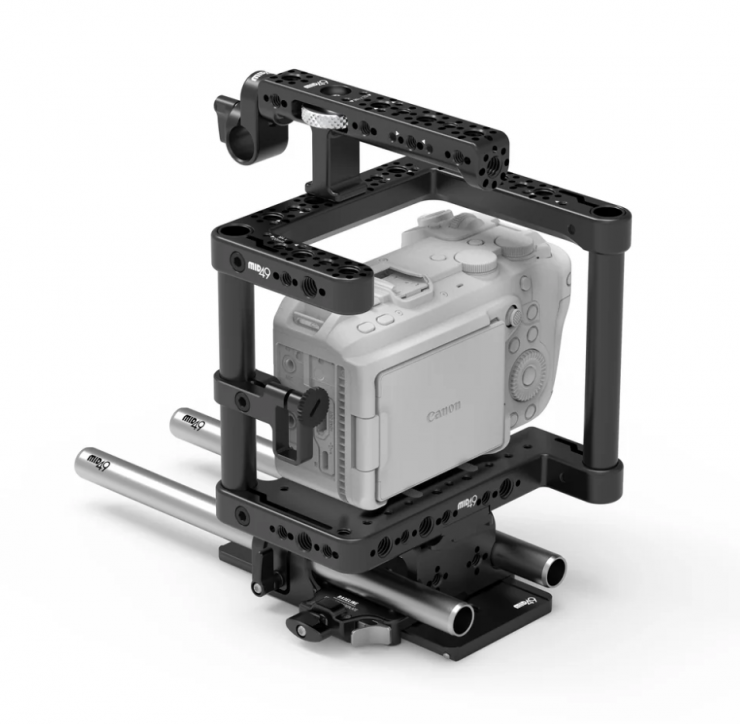

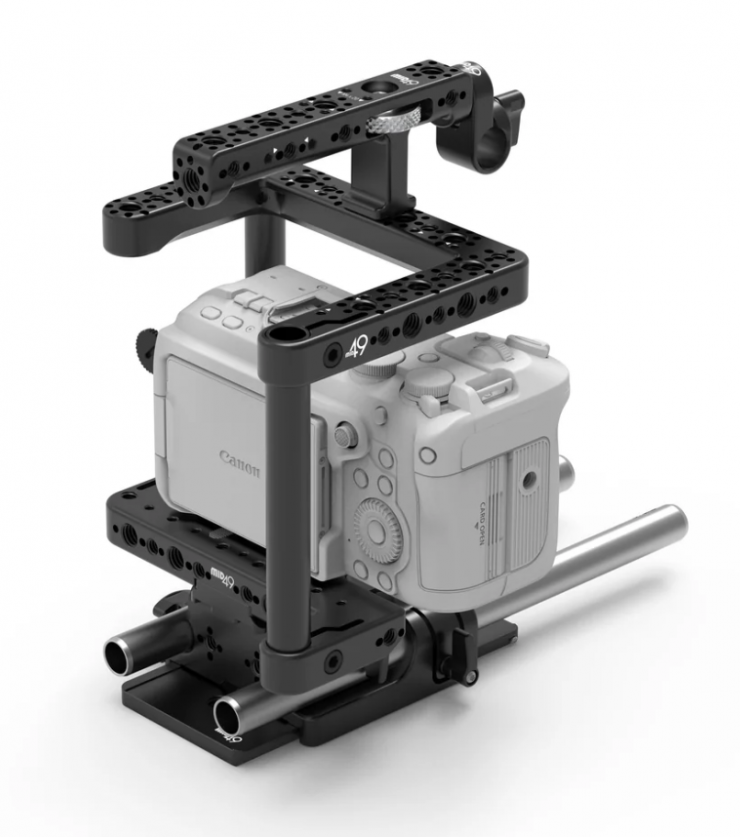

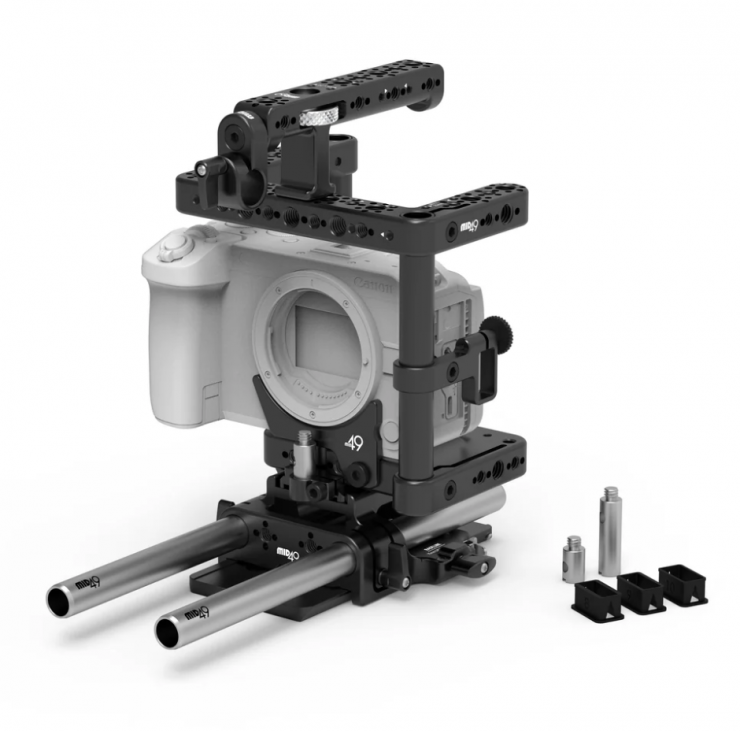

Mid Kit for Canon R6V ($750 USD)
The Mid Kit for Canon R6V includes:
Form-fitting cage with 1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes in several places. HDMI lock with reduction inserts protects the camera’s HDMI port from abuse. A front camera straightener keeps the R6V from turning under the force of focus motors. The Lower ARCA Swiss dovetail attaches to the included baseplate, and the adjustable lens support adapter with 3 lengths of 1/4-20 support screw attaches to 3rd party lens adapters like Metabones, etc.
Bolt On Top Handle (ARRI 1/4-20)
The top handle attaches to a 1/4-20 hole with 3mm locating pin holes spaced 10.4mm center-to-center (ARRI standard).
Locating pins can be removed if alternative mounting is required. Threaded holes are also available at 15mm spacing, which is not standard but is found on some 3rd party cages.
1/4-20, 3/8-16, and M4x20mm ARRI MAP threaded holes for accessory mounting are available in several places.
Baseline 15mm LW (Upper Cage Canon C50, R6V)
Quick-release 15mm LW baseplate with ARCA Swiss camera dovetail interface on top and ARRI standard dovetail interface on the bottom.
15mm Rod Clamp (ARRI 3/8-16)Attaches to the handle’s front 3/8-16 and provides a sideways 15mm rod clamp for TWIST Mount EVF or similar.
Stainless steel iris rods.
Product Weight: 29.2oz (830g)
