The concept of probe lenses, as we know it today, originated from a need for close-ups in tight spaces, which traditional lenses couldn’t achieve. Imagine you’re a special effects director filming a 1:10 scale city model for a commercial. You want the camera to smoothly transition from outside a window, across the room, under a sofa, and past a water basin. Traditional lenses would struggle to navigate such a confined space. This is where probe lenses come in. Their long, narrow design allows for precise movements through tight spaces, capturing every detail without losing focus. This ability to film in such challenging environments became a cornerstone of modern cinematography, setting the stage for the innovations that followed.

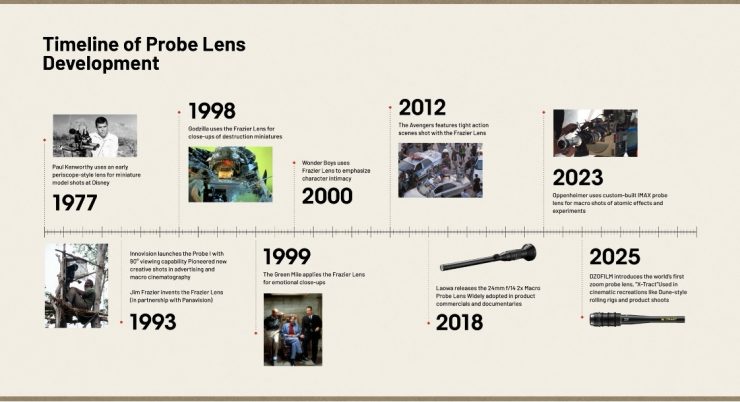

The Early Beginnings of Probe Lenses
Probe lenses, as we know them today, have their roots in the early work of Paul Kenworthy, a Walt Disney Legend. In 1977, Kenworthy was the first to use the periscope lens in the film industry, allowing cameras to get incredibly close to miniature models and small objects. This innovation, which could capture detailed shots from tight spaces and unusual angles, laid the foundation for modern probe lenses. (Walt Disney, 2022)
Another major step forward came from Jim Frazier, an Australian cinematographer and inventor. In 1993, Frazier patented the Frazier lens system, which revolutionized macro cinematography by allowing ultra-close-up shots in confined spaces without losing detail. Frazier’s lens system received a U.S. patent in 1993 and was licensed for production and distribution by the renowned camera manufacturer Panavision. This innovation revolutionized the way filmmakers approached close-up shots and macro cinematography, enabling them to film in tight, intricate spaces with unparalleled detail. Frazier’s lens system was used in a variety of major Hollywood films and TV productions, including Godzilla, The Green Mile, and The Avengers, helping create some of the most iconic close-up shots in cinematic history.

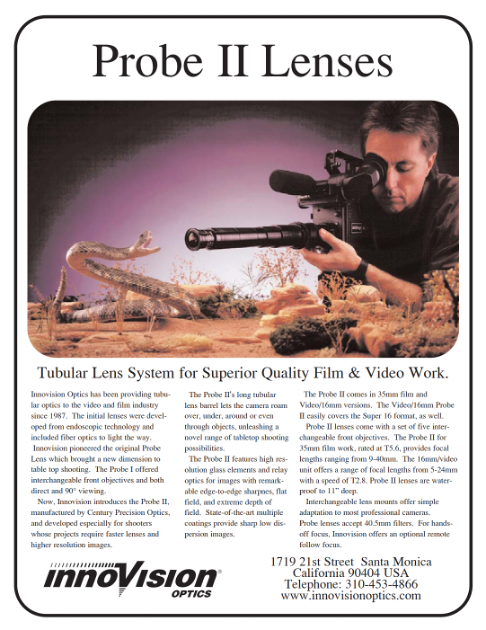

In the same year, Innovision launched the Probe I, which offered interchangeable objectives and 90° viewing. This, along with the later Probe II with T2.8, allowed cameras to maneuver through tight spaces and film shots once thought impossible, pushing the boundaries of filmmaking. (Cinetecnico, 2019)
Representative Applications in Film and Television Productions and the New Era of Probe Lens
In the world of cinematography, the development of probe lenses has opened up exciting new possibilities for filmmakers, enabling them to capture extreme close-ups and intricate details that would otherwise be impossible to achieve. These lenses have become a key tool for capturing the finest details in tight spaces, making them invaluable across various genres in film, television, and even commercials.
One of the most significant contributions to probe lens technology came from Jim Frazier, who, in collaboration with Panavision, developed the Frazier Lens. This system was designed to enable filmmakers to shoot highly detailed close-ups, even in confined spaces, a capability that traditional lenses were unable to achieve. The lens has been widely used in several iconic films, beginning with “Godzilla” (1998), where it helped capture dramatic close-ups of miniature models and destruction scenes, adding a level of realism and intensity to the film’s visual effects. (Shot on What?, 2024) The precision with which the lens could focus on miniatures, such as the monster models, was crucial to making these scenes believable, allowing them to achieve a high degree of realism that was difficult to match with other lenses at the time.
Following the success in “Godzilla”, the Frazier Lens continued to play a significant role in other films, including “The Green Mile” (1999) and “Wonder Boys” (2000). In both of these films, probe lenses were used to capture intimate, emotionally charged close-ups of the characters, providing a level of depth that traditional lenses could not. The ability to film in tight spaces and maintain sharpness allowed for more nuanced storytelling, as these close-ups added texture and intimacy to the characters’ emotional journeys.
The Frazier Lens proved invaluable in capturing the fine details that brought these stories to life, making every shot feel deeply personal and affecting.
Later, in “The Avengers” (2012), probe lenses made their mark again, this time in the realm of high-energy action sequences. The lens system was used to film tightly framed action shots and specific close-ups of props and characters, ensuring that even in the midst of fast-paced scenes, the clarity and sharpness of the image were never compromised. The ability to maintain high resolution in the midst of complex, dynamic action was a key feature that set the Frazier Lensapart from traditional lenses. (Maher, 2019)
Beyond feature films, probe lenses have also been essential in the world of nature documentaries, where capturing the fine details of the natural world is critical. In the acclaimed “Planet Earth II” (2016), cinematographer Tom Hooker utilized LAOWA lenses to film extreme close-ups of small animals and insects, allowing for a level of detail that brought the beauty of nature into sharp focus. (Han, 2017) This was particularly important in documenting wildlife in their natural habitats, where the lens helped filmmakers minimize their impact on the animals while still capturing stunning visuals. The ability to film these animals up close without disturbing them was a breakthrough in wildlife cinematography, allowing the audience to witness nature in its rawest form.
In recent years, probe lenses have played a crucial role in elevating the visual storytelling in films, especially in capturing intricate close-ups and extreme macro shots that are difficult to achieve with traditional lenses. A prime example of this innovation can be found in Christopher Nolan’s Oppenheimer (2023). In a groundbreaking approach to filmmaking, Nolan and cinematographer Hoyte van Hoytema collaborated with Panavision to develop a specialized probe lens with T1.4 for shooting some of the film’s most intense and visually complex scenes.
The challenge arose when the team sought to film scientifically accurate depictions of atomic explosions and other close-up scientific experiments, where traditional lenses were not capable of capturing the required level of detail in extreme close-ups. To overcome this limitation, van Hoytema and Dan Sasaki, a lens artist at Panavision, worked together to design a custom probe lens specifically for IMAX cameras. This lens,
approximately two feet long, was thin and designed to allow for a greater depth of field, enabling the team to shoot extreme close-ups of miniature models and delicate scientific setups without losing focus or detail.
This innovative probe lens was essential for filming in confined spaces such as water tanks or glass enclosures, bringing an unprecedented level of realism and immersion to the film. The ability to capture scenes at such close range without sacrificing image clarity significantly enhanced the visual impact of the film, providing audiences with a more visceral, up-close experience of the events unfolding on screen.
Entering the digital era, the design of probe lenses underwent further innovations, focusing on both miniaturization and higher resolution. The advancements in digital camera technology, with the rise of high-definition and 4K filming, increased the demand for lenses that could deliver sharp, high-quality imagery even at extremely close distances. In 2018, Laowa (Venus Optics), a Chinese lens manufacturer, made waves in the industry by launching the 24mm f/14 2× Probe Macro Lens. This lens quickly gained attention for its remarkable capabilities, offering a 2x magnification ratio, ultra-close focusing, and a unique long, slim barrel design.

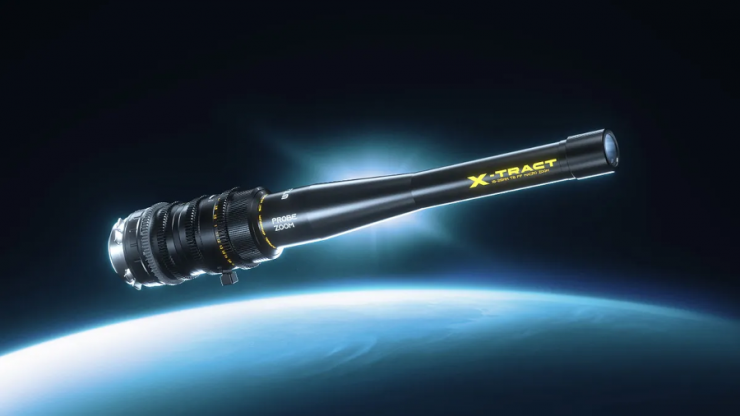

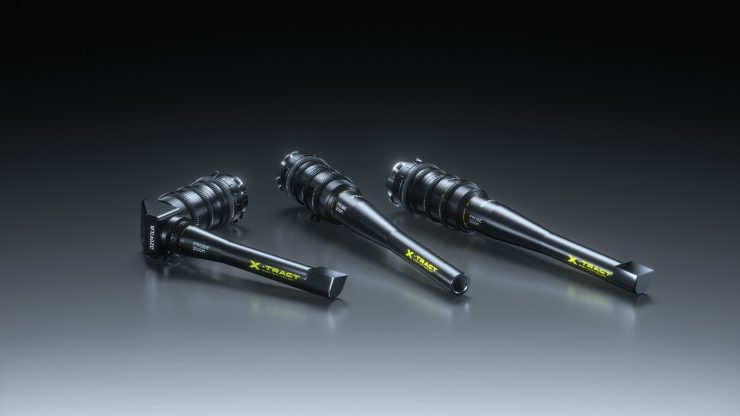

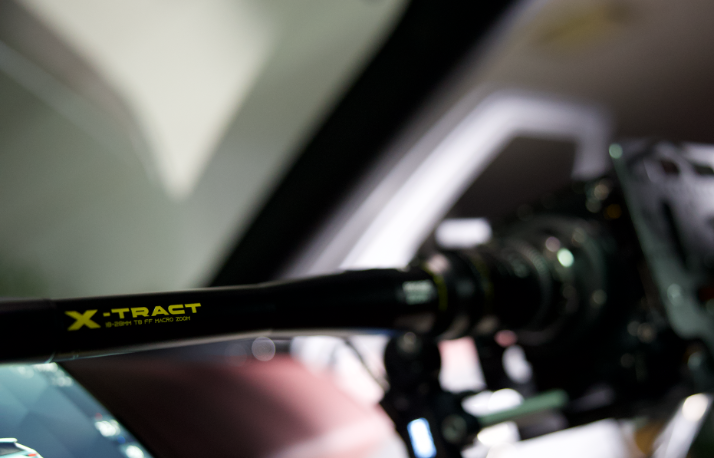

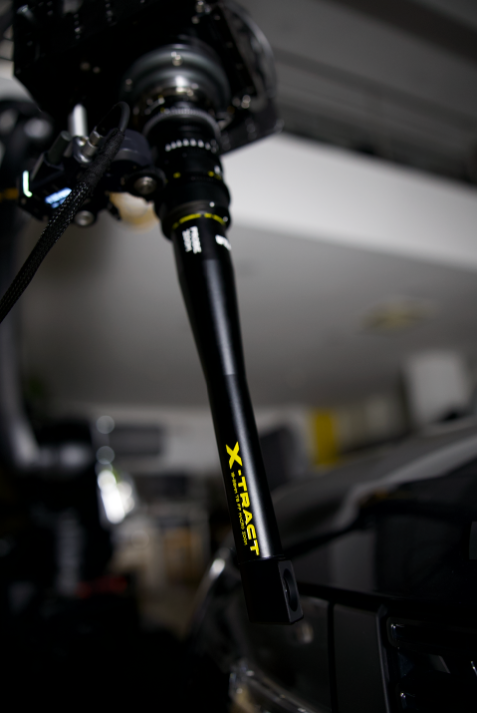

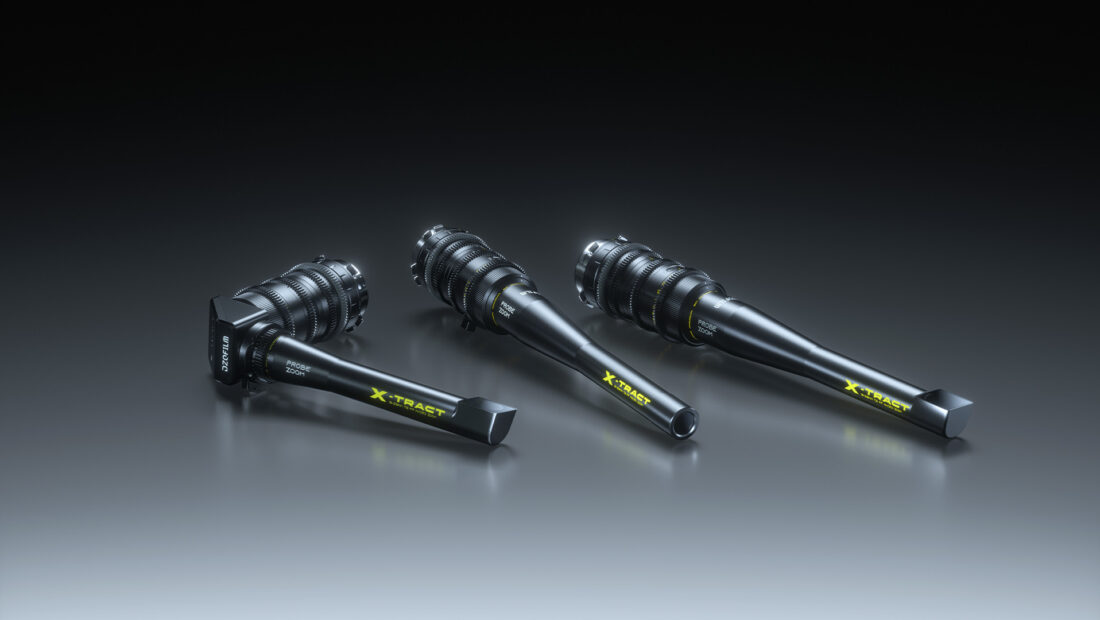

In 2025, DZOFILM revolutionized the probe lens market with the launch of the world’s first probe zoom lens series, the ‘X-Tract’. Previously, probe lenses had fixed focal lengths, limiting flexibility when shooting dynamic scenes or adjusting framing. The addition of zoom functionality combines the precision of probe lenses with the versatility of zoom lenses, offering more creative freedom.
This innovation brings several advantages, such as enabling smooth focal length transitions like Hitchcock’s famous dolly zoom technique, but in close-ups. It also opens up new possibilities for the “rolling rig,” allowing dynamic shots from low angles or confined spaces. With the ability to shoot at 0°, 90°, and 360° angles, this probe zoom lens offers unparalleled flexibility, enhancing visual storytelling with greater ease and creativity. In the future, these lenses may also allow for interchangeable front and rear groups, giving creators greater flexibility in their budget and creative combinations.
Probe lenses have also found a significant role in the world of advertising, particularly in high-end commercials for luxury goods, electronics, and automobiles. Their ability to capture intricate textures and fine details has made them indispensable for showcasing products in their best light. From the gleam of a luxury watch to the smooth finish of a high-end car, probe lenses allow advertisers to highlight the craftsmanship and unique features of products, bringing every detail into sharp focus. A notable example is the whiskey commercial for The Himalayan Reserve, where the Laowa 24mm f/14 2X Macro Probe Lens was utilized. This lens enabled the filmmakers to capture extreme close-ups of the whiskey bottle, highlighting its intricate label design and the rich amber color of the liquid. The unique perspective provided by the probe lens added a cinematic flair to the commercial, emphasizing the premium quality of the product.
These developments continue to push the boundaries of what is possible with probe lenses, further cementing their place as essential tools for contemporary filmmaking. As technology continues to evolve, we can expect even more exciting innovations in the field of macro cinematography in the years to come.
The Unique Contribution of Probe Lenses to Visual Language
Probe lenses have significantly impacted both cinema and advertising, providing filmmakers with a tool that captures extreme close-ups and intricate details in tight spaces without losing sharpness or depth of field. This allows for a more intimate and complex storytelling approach, revealing subtle emotions, textures, and movements that might otherwise be missed.
In visual storytelling, close-ups reveal emotional depth or emphasize objects’ significance, and probe lenses amplify this by capturing even the smallest details, creating a deeper connection with the audience. Their narrow, cylindrical design allows for creative compositions, where focus shifts rapidly between small details, adding richness to scenes.
In advertising, probe lenses elevate product shots by highlighting textures, craftsmanship, and design, enhancing the brand’s message and quality. By showcasing every nuance, these lenses make objects feel more intimate and carefully crafted, reinforcing the narrative of excellence.
The development of the probe zoom lens, which combines the precision of probe lenses with zoom functionality, offers even more flexibility. It allows filmmakers to smoothly transition between focal lengths while maintaining detail, making it easier to create dynamic shots. As technology evolves, probe lenses will continue to shape the visual language of both film and advertising, bringing richness and immersion to storytelling.
The Role and Future Trend of Probe Lenses in Modern Filmmaking Industry
Probe lenses have become essential in modern filmmaking, allowing cinematographers to capture intricate details and extreme close-ups in tight spaces. These lenses have enabled filmmakers to push the boundaries of visual storytelling, offering new perspectives and enhancing immersion in both blockbuster films and independent productions. Their ability to maintain focus and depth of field at close distances has made them indispensable for achieving highly detailed visuals that traditional lenses cannot replicate.
Imagine you’re a special effects director for a commercial, and you need to film a 1:10 scale city model. You want the camera to seamlessly move through the window, across the room, under the sofa, and past a water basin. Traditional lenses simply can’t navigate such a confined space. This is where a probe lens comes in. Its long, narrow design allows for smooth, precise transitions through tight spaces, capturing the shot without losing focus or detail.
As digital technology advances, particularly with the rise of 4K and 8K formats, the demand for lenses that can capture hyper-detailed imagery is growing. Probe lenses are well-suited for this demand, offering filmmakers unparalleled precision while preserving the integrity of the scene. Whether in high-end TV series or cinematic films, probe lenses help capture minute details, adding realism and emotional depth to every shot.
Looking ahead, the continued development of probe lenses, including innovations like zoom functionality, will further expand creative possibilities. These lenses will integrate seamlessly with emerging technologies like virtual production and augmented reality, enabling filmmakers to create dynamic shots in unconventional spaces. As the filmmaking landscape evolves, probe lenses will remain a key tool in shaping visual storytelling, offering endless opportunities for dynamic, immersive content creation.
Cinetecnico Probe II lenses. Available at: https://cinetecnico.com/wp-content/uploads/2019/12/Probe-II-Lenses.pdf (Accessed: 28 April 2025).
Han, J. (2017) BBC Planet Earth II Cinematography explained, CineD. Available at: https://www.cined.com/bbc-planet-earth-ii-cinematography-explained/ (Accessed: 28 April 2025).
Lenses Panavision Frazier lenses (no date) ShotOnWhat? Available at: https://shotonwhat.com/lenses/panavision-frazier-lens (Accessed: 28 April 2025).
Maher, M. (2019) The cameras and lenses behind the marvel cinematic universe – phase Two, The Beat: A Blog by PremiumBeat. Available at: https://www.premiumbeat.com/blog/cameras-behind-marvel-cinematic-universe-phase-two/ (Accessed: 28 April 2025).
Paul Kenworthy (2018) D23. Available at: https://d23.com/walt-disney-legend/paul-kenworthy/ (Accessed: 28 April 2025).
