Creamsource Vortex2 and Vortex2 Soft: A Compact Entry Point Into the Vortex Ecosystem

---

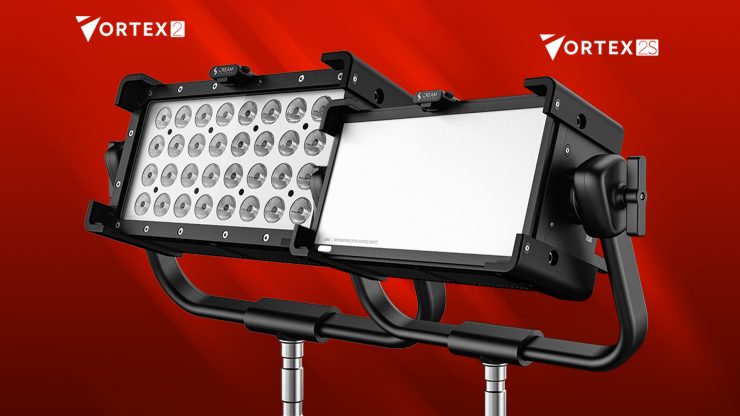

Creamsource has expanded the Vortex family with two new fixtures aimed at the smaller end of the production spectrum. The Vortex2 and Vortex2 Soft (Vortex2S) are 160W LED panels built around the same core hardware and software platform as the rest of the Vortex line — just in a form factor designed to move.

---

Two Fixtures, One Platform

The distinction between the two is simple and intentional. The Vortex2 is a hard light with a native 20° beam, producing 3,410 lux at 3 meters (5600K, open face). The Vortex2 Soft opens that up to a native 110° spread, outputting 662 lux at the same distance — a meaningful trade-off between coverage and punch. Both heads weigh in around 6 kg without the yoke and share identical dimensions: roughly 390 x 208 x 184mm.

What Creamsource is selling here isn’t raw output — it’s the same RRGBBW color engine, IP65 weather resistance, and CreamOS workflow you’d get from a Vortex8 or Vortex24, packaged into something a two-person crew can realistically move between setups without a dedicated grip.

---

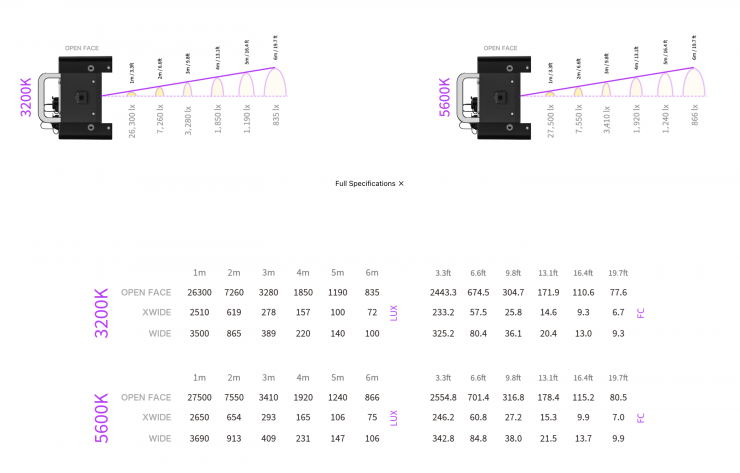

Vortex2 Photometrics

Vortex2 beam distribution at 3200K (left) and 5600K (right). Native 20° beam angle. Images courtesy Creamsource.

---

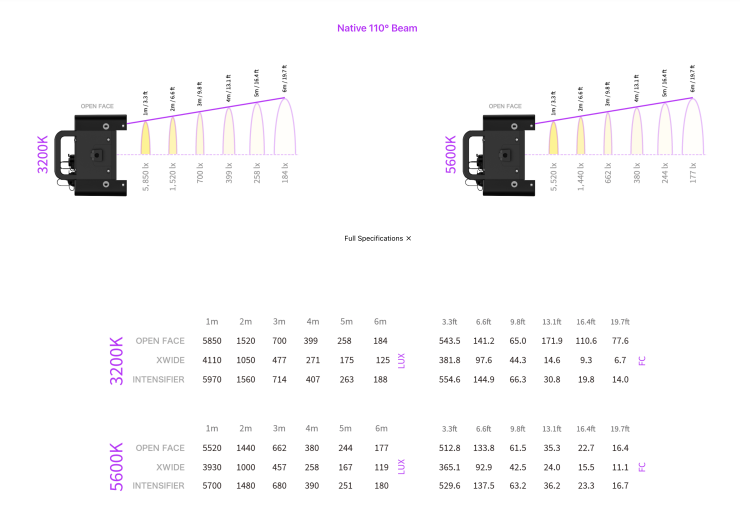

Vortex2 Soft Photometrics

Vortex2 full photometric data. Image courtesy Creamsource.

---

The Color Engine

The RRGBBW configuration — red, deep red, green, blue, royal blue, white — is the same one running across the Vortex line. Creamsource calls it the Creamsource Color Management System (CCMS), and it handles factory calibration, thermal compensation, and dimming accuracy in native CIE xy color space. The practical result is color consistency across fixtures and across dimming levels, which matters when you’re mixing V2s with larger Vortex panels on the same set.

High-speed mode supports frame rates up to 5,000fps via Creamsource’s FrameSync system, making both fixtures usable for high-speed camera work without flicker.

---

Connectivity and Control

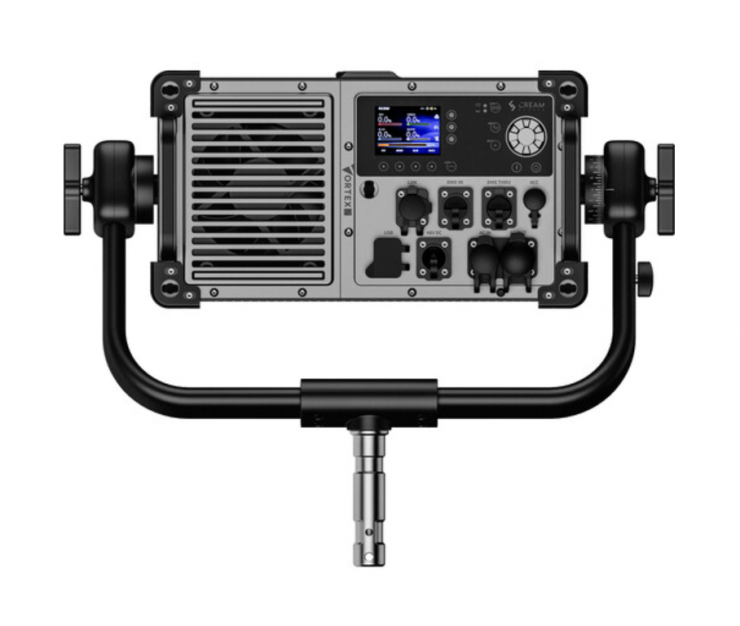

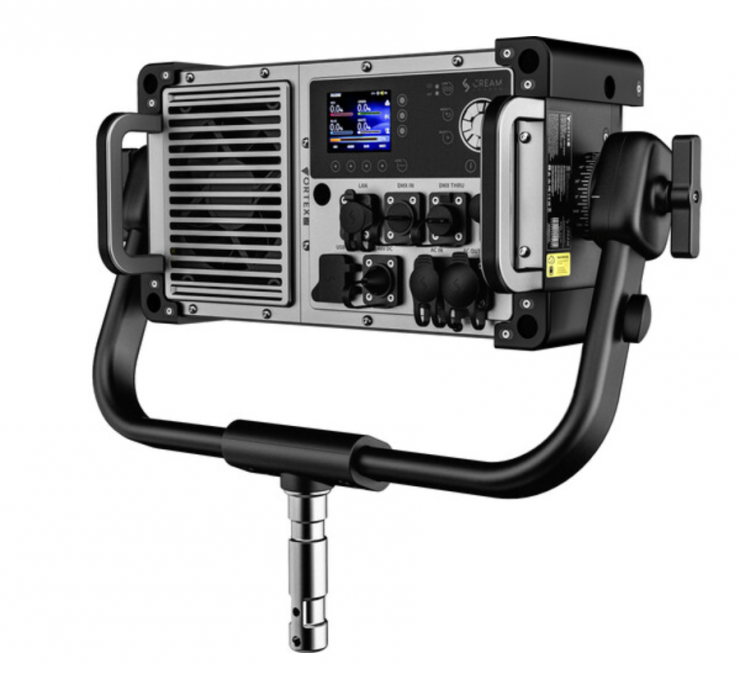

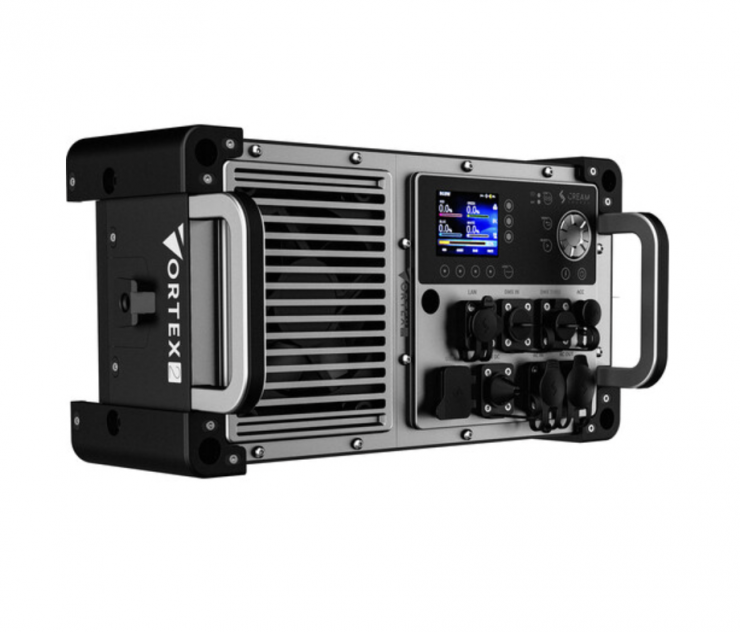

Both fixtures include etherCON, 5-pin XLR DMX pass-through, LumenRadio CRMX, Bluetooth, and an accessory port. Power comes in via 48V DC on a 3-pin XLR, and both fixtures include a built-in PSU with pass-through AC. The 2-pixel zone configuration allows for basic effects and zone-level dimming control.

CreamOS V3.0 runs the show, with a browser-based web interface accessible from any device on the same network. The UI is multilingual — English, Chinese (Simplified), French, German, Japanese, Korean, Italian, Spanish, and Portuguese.

---

LNX Rigging

The V2 Series is compatible with Creamsource’s LNX rigging system, which allows fixtures to be arrayed and mounted in configurations that would otherwise require custom rigging. A front latch system handles diffuser and accessory swaps without tools.

---

lineup

The Vortex2 sits below the Vortex4 in the lineup and appears aimed squarely at smaller productions, run-and-gun documentary crews, and cinematographers who want Vortex ecosystem compatibility without committing to the larger panels. The IP65 rating and internal PSU remove two common friction points on location — weatherproofing and power distribution.

Pricing and Availability

Pricing hasn’t been listed on the product page; availability is through Creamsource’s dealer network. Full spec sheets and photometrics are available via the Creamsource knowledge base.
