If you are working with a camera that only has single SDI output, but you need to output two signals, you can use the new Wooden Camera 12G-SDI Distribution Amplifier to send two latency-free signals into different
accessories at the same time.

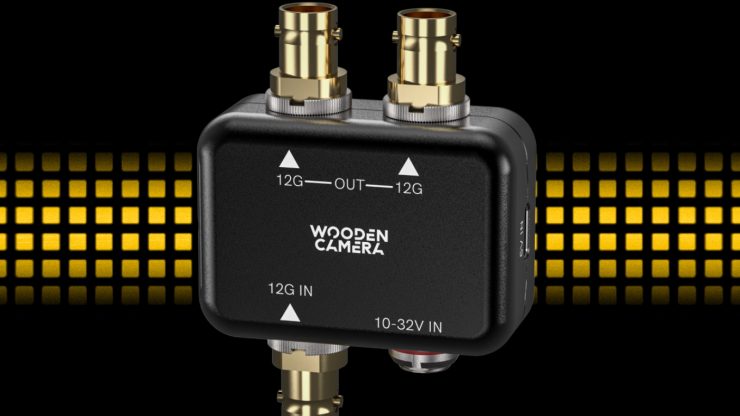

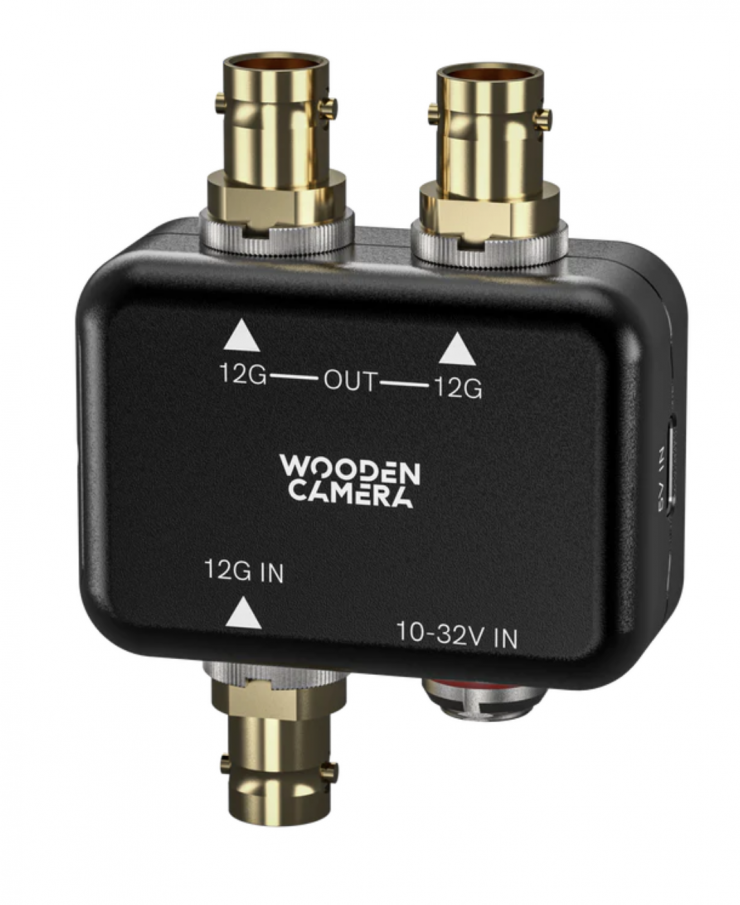

The 12G-SDI Distribution Amplifier (1×2) is a high-performance signal distribution device designed for broadcast, live production, and professional video environments. It accepts a single 12G-SDI input—electrically isolated from the outputs—and distributes the signal to two independent 12G-SDI outputs with no signal loss or degradation. Built-in reclocking and equalization ensure stable, low-jitter transmission over long cable runs.
Supporting resolutions up to 2160p (4K UHD) at 60fps with 10-bit color depth and HDR metadata, this splitter delivers pristine video quality for demanding workflows.
The unit includes:

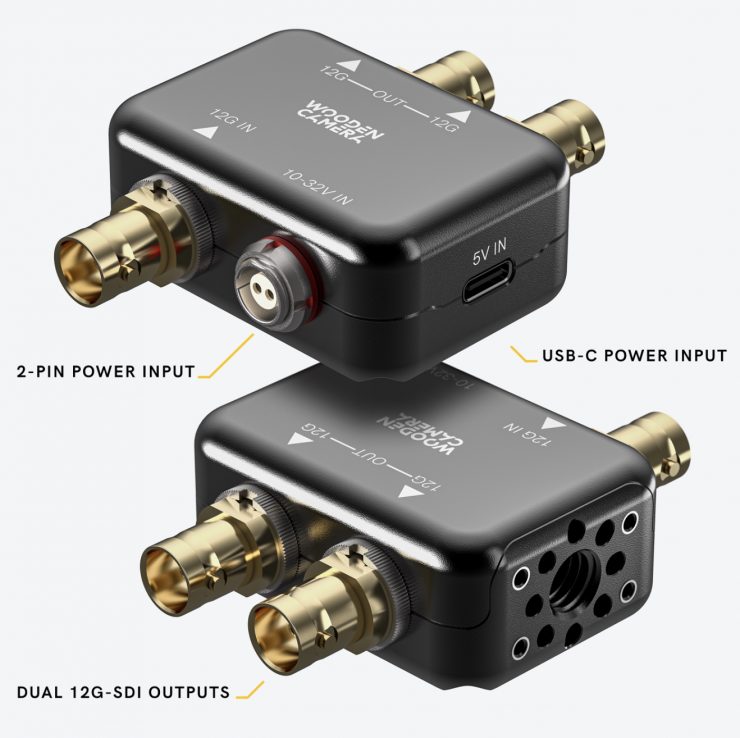

- A 2-pin 10–32V DC input for direct connection to cinema batteries, power distribution systems, or AC-powered rigs.
- A USB-C 5V input for compatibility with compact cameras, monitors, or auxiliary power sources where traditional cinema power isn’t available.
Designed for zero-latency, frame-accurate performance, this amplifier is ideal for use by directors, DITs, and video engineers who require flawless video feeds on set or in the field.

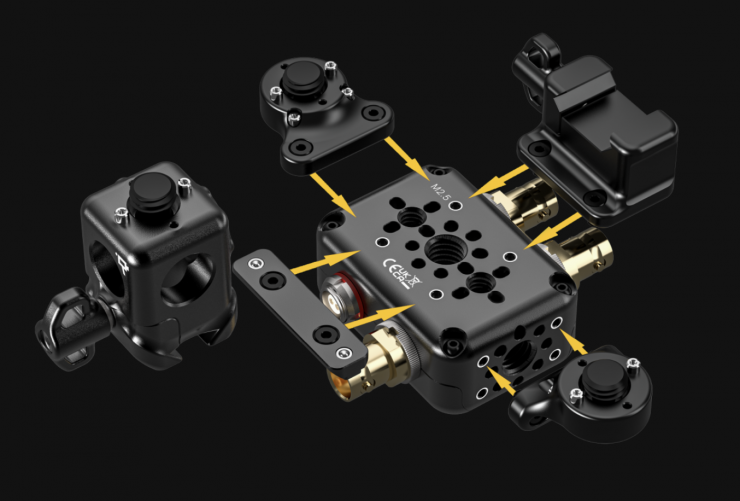

Designed with flexibility in mind, this splitter features integrated 3/8″ -16, 1/4″-20, and M2.5 mounting points so it can be easily mounted onto any rig
Price & Availability
The Wooden Camera 12G-SDI Distribution Amplifier is available for $355 USD.
You can also get a kit version that includes a high-powered 30W USB 3.0 Type-C AC adapter for plug-and-play power right out of the box for $389 USD

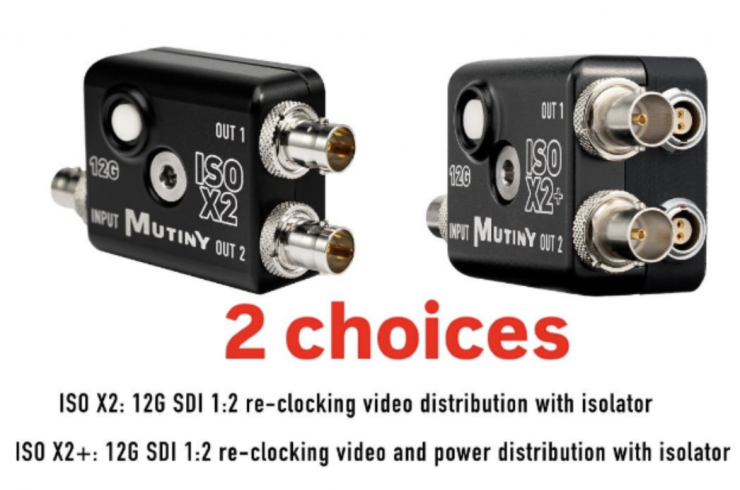

Mutiny also makes the ISO X2 and ISO X2+ that retail for $450 USD and $500 USD, respectively.
