Tiffen Steadicam G-70×2 Arm

Tiffen’s new Steadicam G-70×2 Arm that can hold payloads of up to 70 lbs / 31.75 kg, is now available to purchase.

We first saw a prototype of the Steadicam G-70×2 Arm back in June 2023 at Cine Gear 2023. It is a This is a major overhaul and update of the G-70x Arm. The only part the G-70×2 Arm shares with its predecessor is the springs, everything else is newly designed.

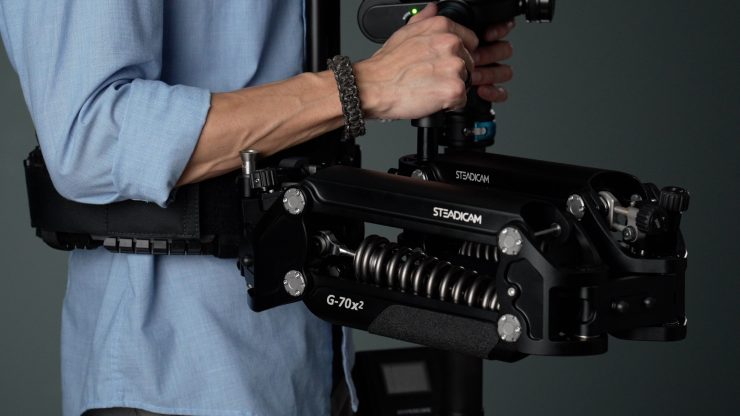

G70x2 Tyson 02

Key features

  • Easier tuning of ISO Elasticity settings
  • Sleeker Design
  • Twist-resistant core
  • Lower Profile Arm links minimize operator interference
  • Redesigned Socket Block for precision sled positioning, faster setup & on-the-fly adjustment, tool-free, without arm removal
  • Multi-position adjustability
  • Reduced spring kick-back
  • Better for back-mount users
  • Rubberized, larger & better spaced Lift & Ride Knobs
  • Updated Bumpers
  • New Arm Post Lever lock
  • Dual bearing mounted 3/4″ extendable Post with rotational locking & drag control
  • Metric Assembly Components for easier service

The all new Arm is the result of decades of experience and input from top Steadicam operators combined with today’s latest engineering and component technology.

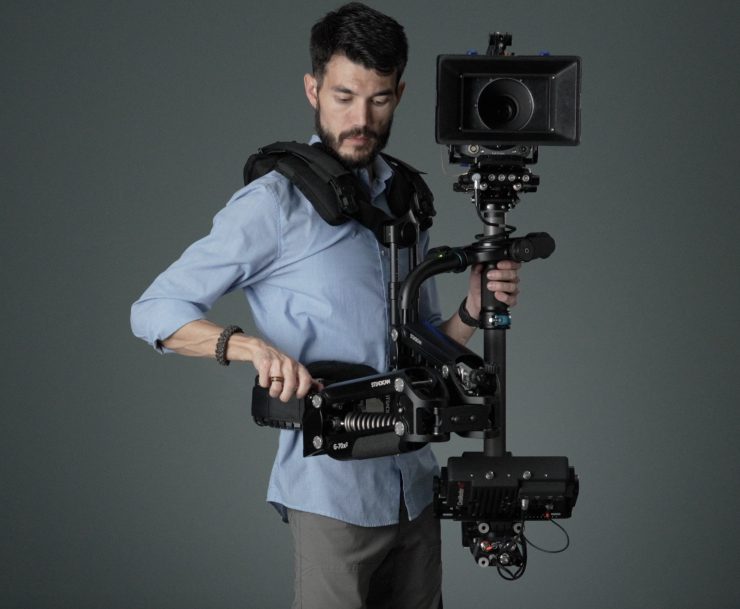

Screenshot 2024 02 16 at 21 02 01

The G-70 line owes its success to the twist-resistant core design architecture and fundamental engineering principals, combined with carefully sourced metal alloys, propriety coatings, and other components that work together to add strength, enhanced stability, and durability. Integrating the best achievements of the G-70x with its patented Iso-elastic performance and patented Geo Spring Geometry, the new G-70×2 includes features and functions that significantly enhance reliability, durability, safety, set-up speed, and smooth stabilization.

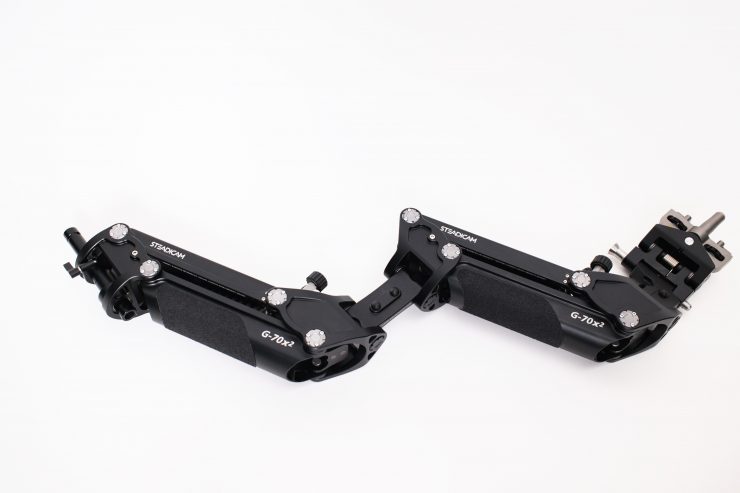

tiffen Steadicam G70X2 Arm DSCF3583

The payload capacity is 13 lbs / 5.9kg to 70 lbs / 31.75kg, and the G-70×2 offers a 29″ / 737mm boom range and a host of operating updates. The new dual bearing mounted ¾” arm post, with no-tools rotational locking and drag control, allows for quick adjustability from a solid lock off to free rotation of the arm post, even when changing posts.

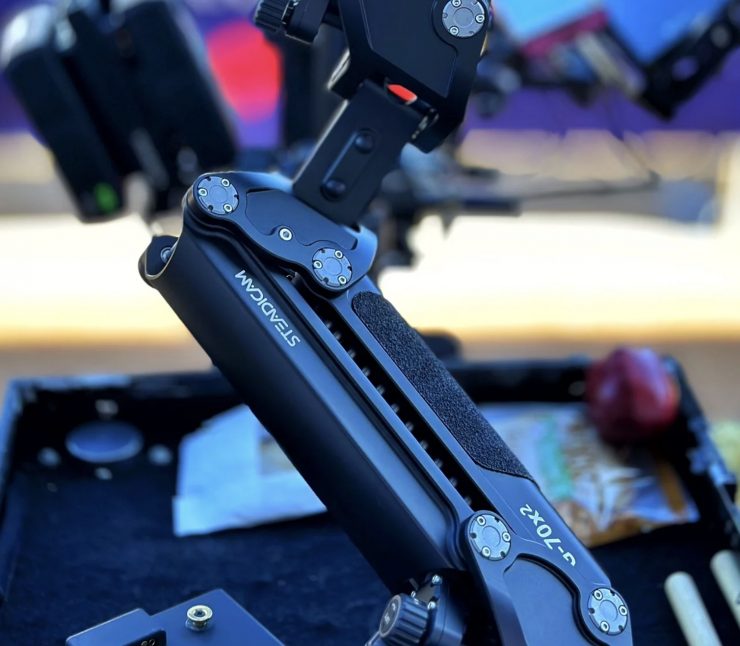

Screenshot 2024 02 16 at 21 08 07

There is also now a rigid pivoting steel Socket Block, also with no-tools adjustability. This advance eliminates the flex inherent in traditional rod ends, offering more precise sled positioning, with faster set-ups and on-the-fly adjustments, without removing the arm. A safety benefit, it prevents the operator from mistakenly over-extending the rod ends.

The popular kickback link which gets the arm further out of the way as the sled crosses the operator’s body, now features a multi-position socket block to locate the arm in the most convenient position, whether operating front- or back-mounted.

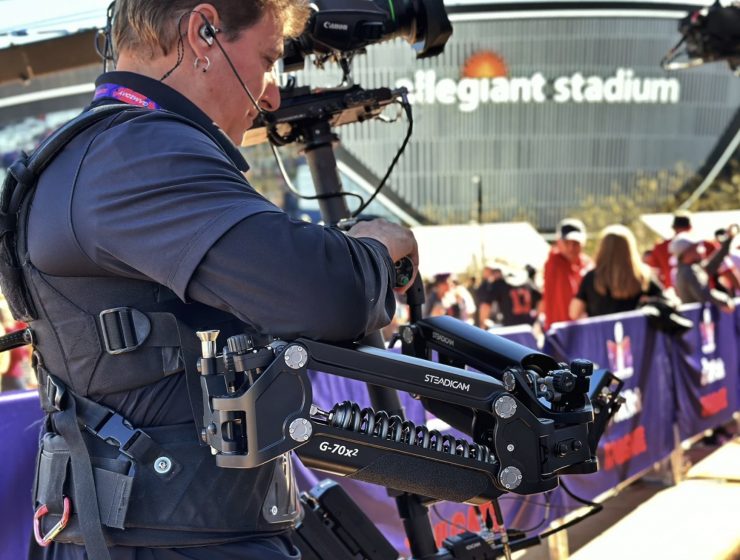

Screenshot 2024 02 16 at 21 06 59

The G-70×2 also offers a sleeker design with lower profile arm links that make it appear more transparent and less intrusive to operator movements. Operation is smoother in general due to the full complement of low friction pivot point bearings, updated arm bumper design, and other meticulous details—down to the rubber-gripped, easy-turn, Lift and Ride knobs. The practical design features Metric assembly components for easier service.

The G-70×2 comes with a soft-sided Arm carrying bag, special tool for user servicing, an operating manual, and 3-Year Full Parts and Labor Warranty.

Price & Availability

The Tiffen Steadicam G-70×2 Arm retails for $12,995 USD and it will start shipping in March.
