Atomos Ninja V Pro Kit Review

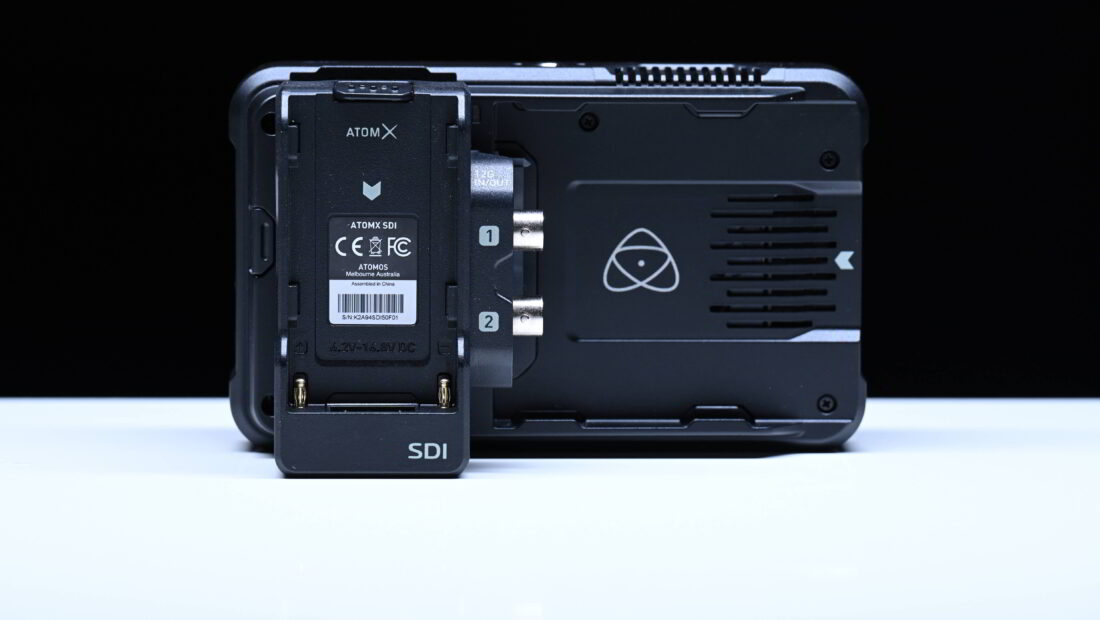

DSC 4280

Atomos recently announced the Ninja V Pro Kit, which enables you to record RAW over SDI from select cameras. The Ninja V Pro Kit also comes with a range of accessories that increase functionality.

Just to be crystal clear this is not a new Ninja V, it is simply the current Ninja V with the AtomX SDI and a few accessories. I thought it was worth having a closer look at this kit because I had not yet seen the AtomX SDI module.

I have previously reviewed the Ninja V and if you want to read that in-depth review you can here. So let’s dive in and see if the Ninja V Pro Kit meets all of the expectations it promises on paper.

Concept

According to Atomos, the Ninja V Pro Kit was designed to ‘bridge the gap between compact cinema and mirrorless cameras that can output Apple ProRes RAW via HDMI or SDI‘. The Ninja V Pro Kit is far more than just a device to record RAW video. The ability to input or output both HDMI and SDI as well as having the ability to cross covert signals makes the Ninja V a far more versatile tool.

What do you get in the Pro Kit?

Screenshot 2021 02 10 at 10 00 00 AM

The Pro Kit includes the following items:

  • Atomos Ninja V 5″ 4K HDMI Recording Monitor
  • Master Caddy II
  • 12V, 3A AC Power Supply
  • Battery Eliminator
  • Limited 1-Year Warranty
  • Upgradeable to Limited 3-Year Warranty with Product Registration
  • Atomos AtomX SDI Module for Ninja V
  • Limited 1-Year Warranty
  • Atomos Connect 4K
  • Limited 1-Year Warranty
  • D-Tap Cable
  • AtomX 5″ Sunshade
  • Limited 1-Year Warranty
  • Upgradeable to Limited 3-Year Warranty with Product Registration

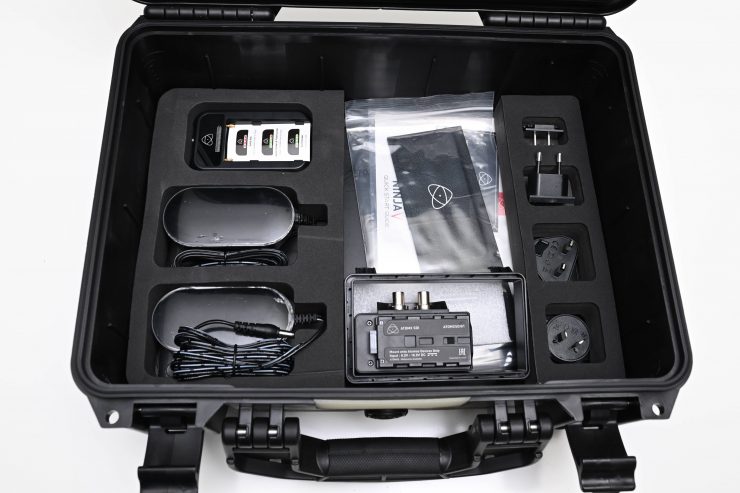

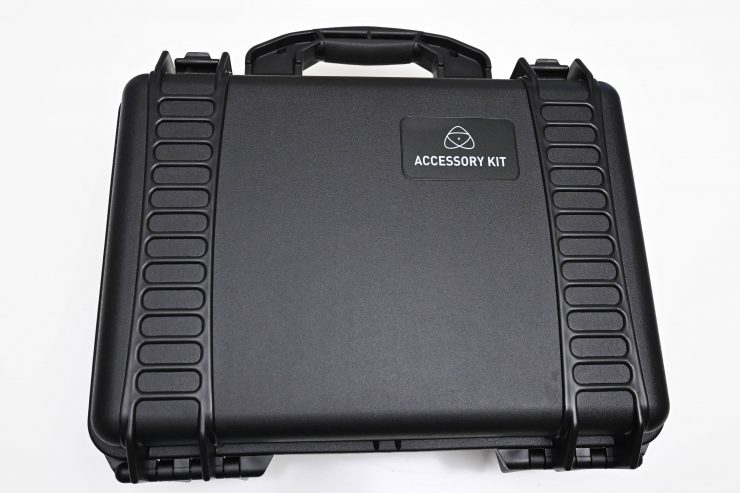

The kit I was testing came with the Atomos Hard Case with Custom Foam, the Atomos Power Kit v2, Atomos AtomX 5 and 7″ Monitor Mount, and a few HDMI cables. I’m not sure if they actually intend to sell a kit like this, but it would make a lot of sense to do so.

RAW over SDI

Screenshot 2021 02 10 at 9 38 27 AM

The addition of the AtomX SDI Module allows users to record not only traditional ProRes over SDI but also ProRes RAW. This allows you to use the Ninja V with a wide array of cameras. Between RAW over HDMI and RAW over SDI, the Ninja V Pro Kit has you covered.

Screenshot 2021 02 10 at 10 01 35 AM

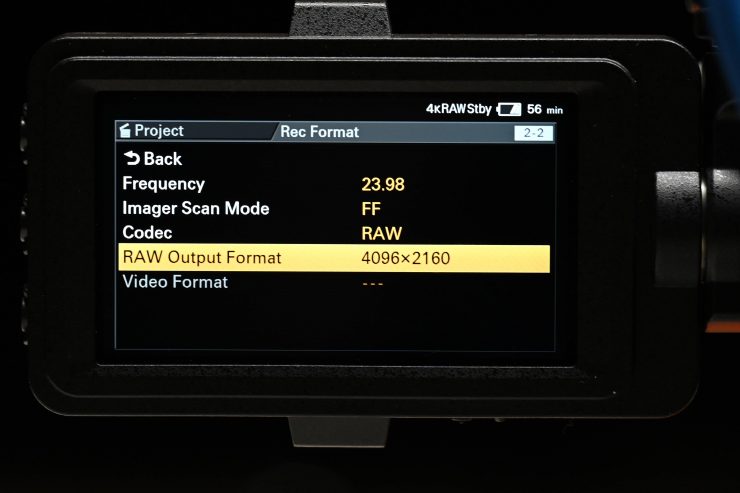

You can also record RAW from the Sony FX6 over SDI to the Ninja V. I tried this out and I can confirm that it does work as advertised.

Even though setting up the RAW output from the FX6 is more complicated than it should be, once it is done, everything works well.

Screenshot 2021 02 10 at 9 48 34 AM

With the FX6, to record RAW over SDI you previously needed to use an Atomos Shogun 7. In my opinion, this monitor was way too big for the camera. I feel sorry for anyone who rushed out and bought a Shogun 7 recently to use it with an FX6. The Ninja V’s size makes it much more suitable for use with smaller-sized cameras such as the FX6.

Screenshot 2021 02 10 at 9 58 48 AM

The Ninja V Pro Kit is also able to record RAW over SDI from other cameras such as the Panasonic EVA-1, Varicam LT, Canon C500, Canon C300 Mark II.

Now, you need to be very aware that RAW outputs from Sony’s FS range (FS700, FS5, FS7) are NOT SUPPORTED on the Ninja V with the AtomX SDI Module and RAW upgrade. Support for these cameras is ONLY available on the Shogun 7.

DSC 4311 01

The Ninja V Pro Kit comes pre-loaded with the SDI RAW and ProRes RAW Activation.

Improved I/O

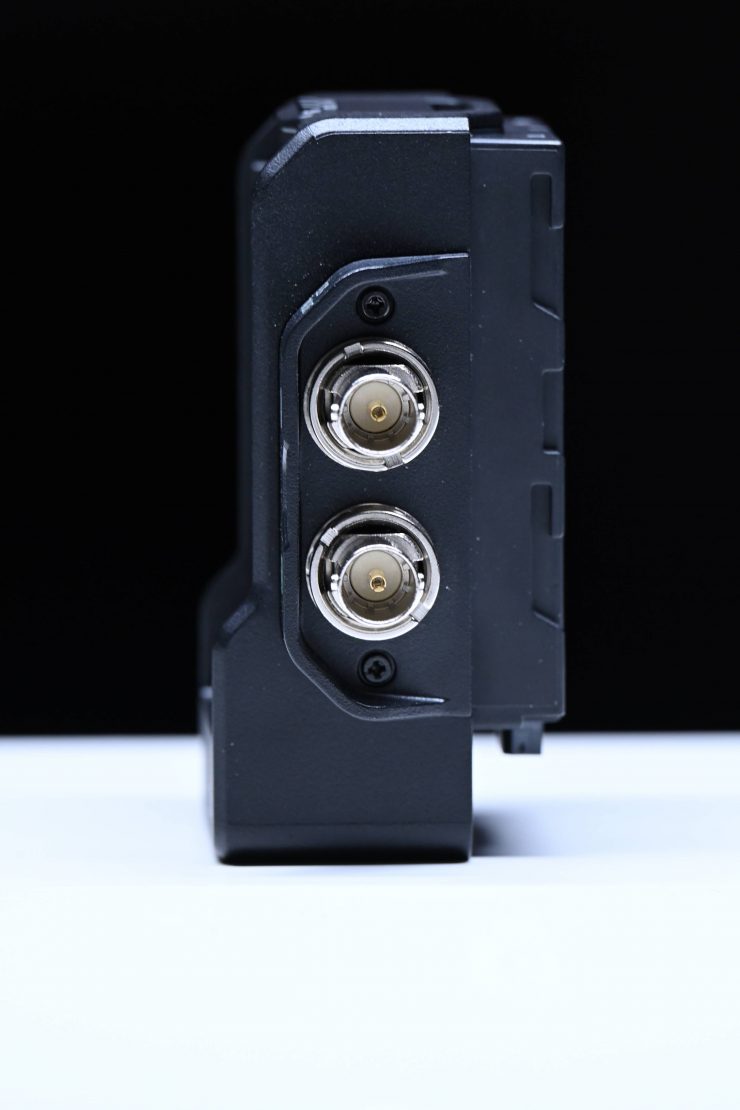

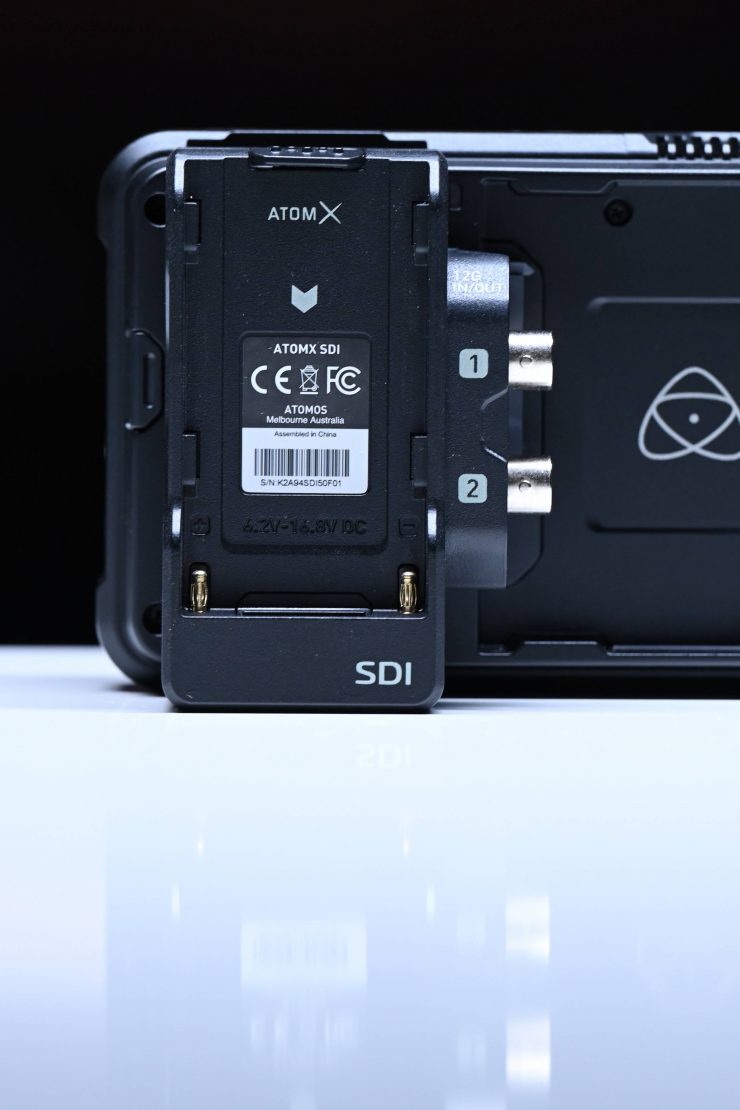

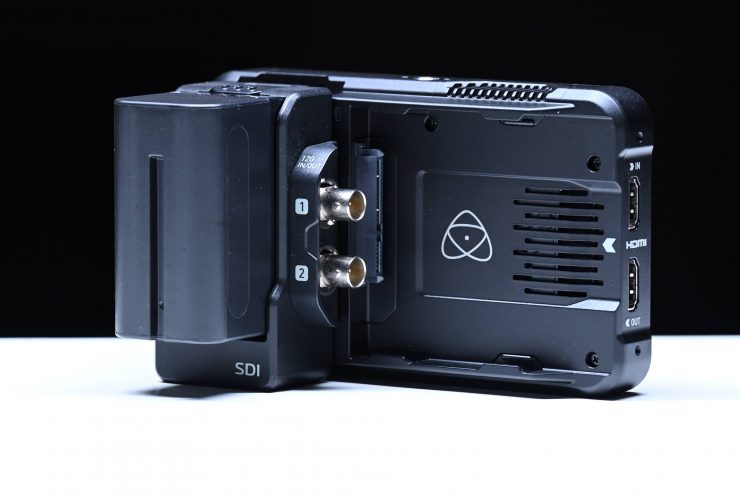

By adding the AtomX SDI module the Ninja V becomes a lot more versatile product that can be used with a wider range of cameras. The AtomX SDI module adds dual 12G SDI connectivity. Even if your camera internally records to a decent codec, you could also utilize the Ninja V to record a backup 10-bit 422 recordings in edit ready codecs, or use it to record proxy files from RED or ARRI cameras.

DSC 4313 01

Once you have the AtomX SDI module attached the Ninja V then communicates directly with that module.

The module supports 4K up to 60p as well as 2K up to 240p.

Of course, the Ninja V is still capable of recording RAW over HDMI from a lot of mirrorless cameras such as the Sony Alpha 7S III, Z CAM E-2 Series, Nikon Z-Series, Lumix S Series, Olympus OM-D EM-1X, and Olympus OM-D M1 MkIII.

HDMI to SDI cross conversion

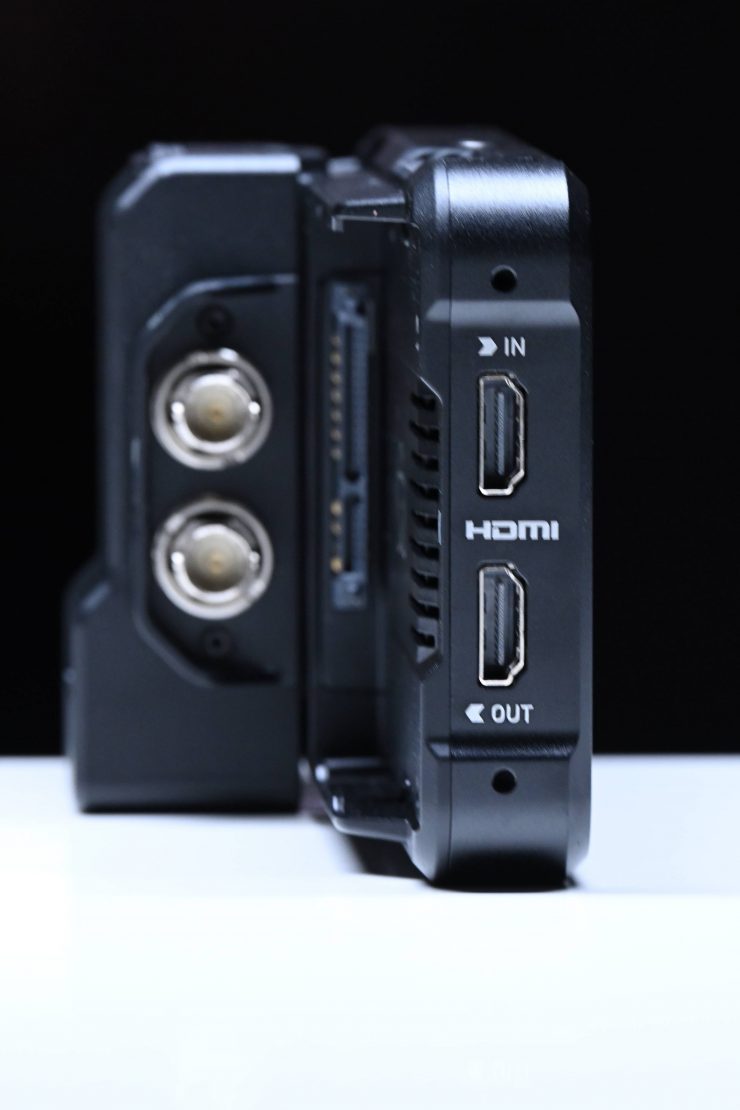

By adding the SDI module to the Ninja V you can effectively double its I/O functionality. HDMI or SDI connections can be cross converted. This allows you to down-convert 4K to HD so that you can utilize EVFs or wireless TX/RX without the need for additional converters.

DSC 4325

This was something that was previously lacking with the AtomX SDI module. I am not quite sure why it took so long to enable the cross conversion.

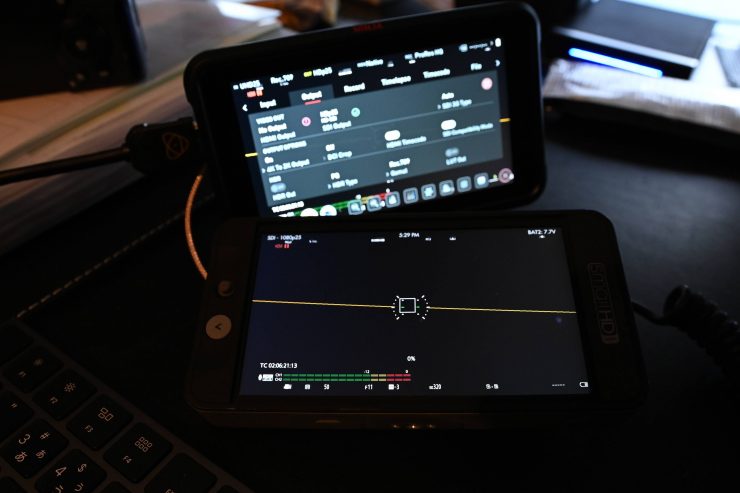

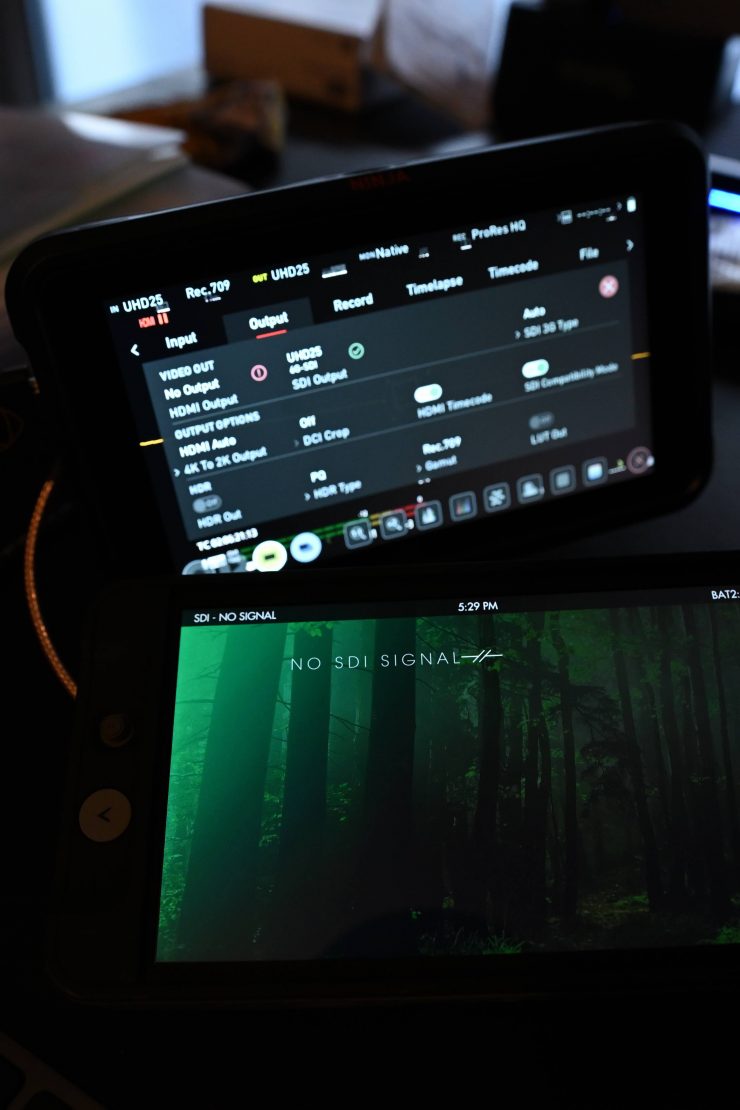

Now, if you are inputting a UHD signal over HDMI into the Ninja V and then outputting a signal over SDI to a device that only has a 3G SDI input you need to make sure that you turn on the Output Option and select 4K to 2K Output.

DSC 4334 01

If you don’t turn the Output Option on then you won’t see an image on the device you are outputting to.

If you leave the Output Option set at HDMI Auto the Ninja V will output a 6G SDI signal and not a 3G HD signal.

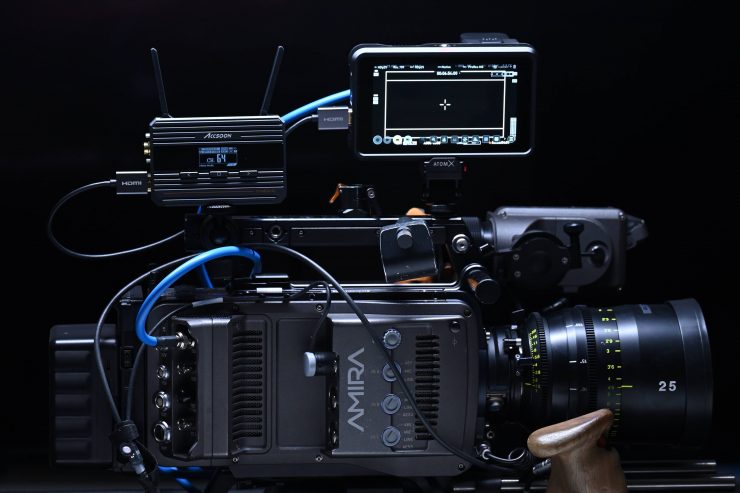

If you are inputting a RAW signal over HDMI from a compatible camera you can still do a cross conversion and get an HD SDI signal out of the Ninja V. This is handy if you want to run a signal into an SDI wireless video transmitter or even an EVF.

DSC 4328

If I inputted an SDI signal it was no problem outputting an HDMI signal.

What is also nice is that the AtomX SDI module has two SDI ports and you can use both of them as outputs if you are inputting an HDMI source. This is really handy and it allows you to send signals to multiple accessories at the same time. I was able to output two signals from the Ninja V, sending one to a SmallHD 502 and the other to an Accsoon CineEyes 2S.

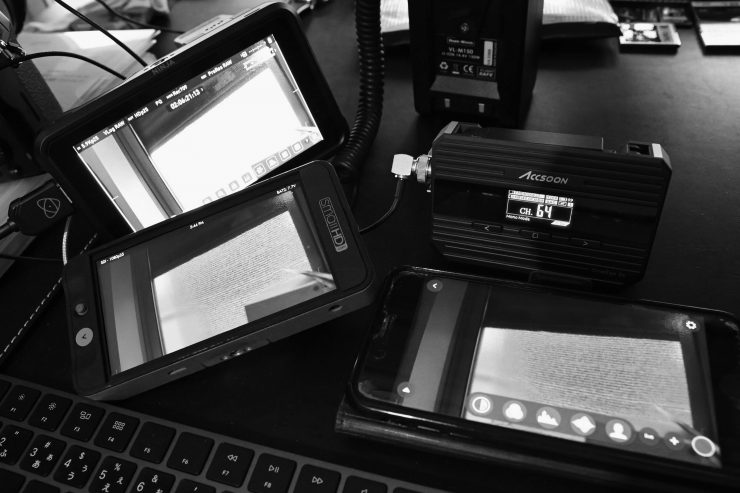

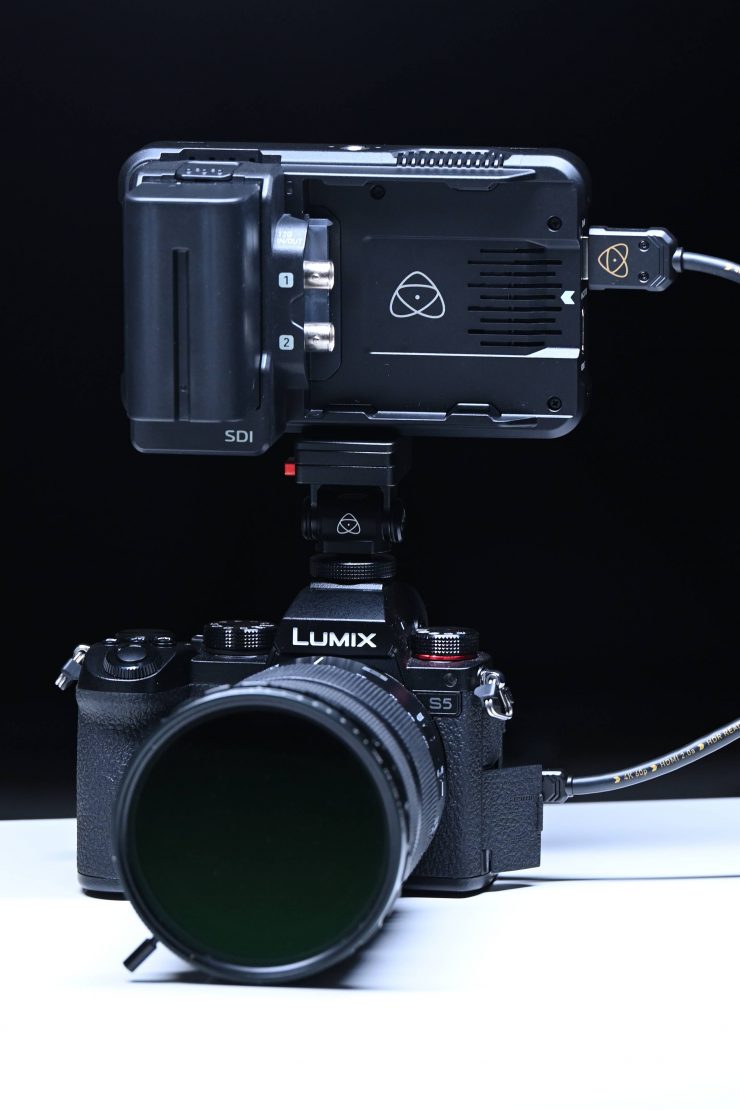

If you are using the Ninja V with the AtomX SDI module on a small sized mirrorless camera it gives you the flexibility to output an SDI signal to say an EVF and a wireless video transmitter at the same time.

Does the AtomX SDI module make the Ninja V a lot bigger and heavier?

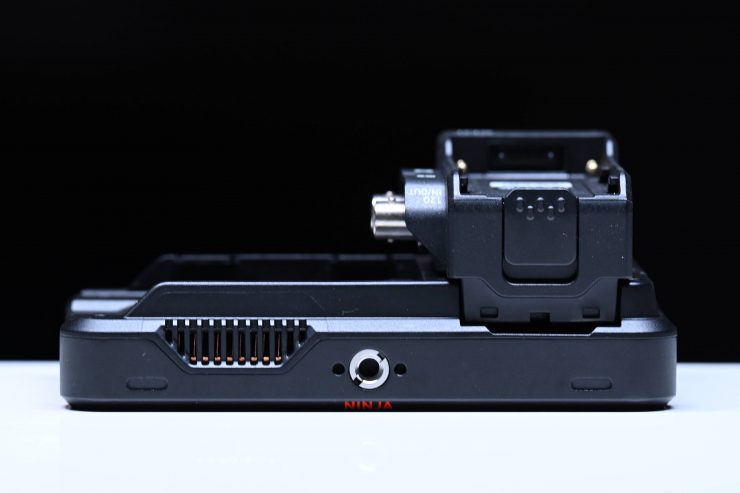

The AtomX SDI module certainly makes the Ninja V a lot wider, especially once you add a battery. However, the weight of the module is only 4.2 oz / 119.07g so it doesn’t really make any huge noticeable difference.

The biggest problem I found is that because the module and the battery are all on one side of the Ninja V the weight distribution is very uneven. This is not a huge concern, but it does become noticeable if you are using this combination with a bad monitor mount or monitor arm.

AtomOS 10.61

DSC 4318 01

Along with the Ninja V Pro Kit, Atomos also released AtomOS 10.61 which added the following functionality:

Time Lapse

  • Added the ability to record a time lapse sequence into a single video file.
  • Recordings are possible in ProRes, DNx and ProRes RAW over HDMI or SDI.
  • Ability to define the capture of sequence by changing: the number of frames/seconds captured, captured every frames/seconds/minutes/hours, for the duration specified in frames/seconds/minutes/hours

Compatibility mode for both HDMI and SDI inputs to improve signal locking from certain cameras

  • HDMI input compatibility.
  • Use with Z CAM.
  • Use with the Canon EOS – 1D X Mark III on 4Kp50 and 60 video.
  • SDI compatibility
  • Increased stability of input and output locking for 12G SDI.

Monitor Leica L-Log gamma in BT2020 gamut

  • Supported Leica SL2S Only.
  • Updates for other models will be available in future firmware releases.

Additional features for AtomX SDI Module

  • Cross Conversion of an HDMI/SDI video source:
  • Added the ability to convert incoming Non-RAW HDMI video to SDI video.
  • Two simultaneous SDI outputs are possible.
  • Added the ability to convert incoming Non-RAW SDI video to HDMI video.
  • Downscale and crop video while converting the signals listed above.
  • Output HDR versions of the signals listed above after cross conversion.

Better Playback Options

In playback mode, the Ninja V’s 2 x 12G SDI and 1 x HDMI 2.0 allow for simultaneous outputs up to 4K 60p.

RAW inputs can also be de-bayered in real-time and non-standard high resolutions are processed to SMPTE standard output formats. Conversion to HLG, PQ, or your choice of 3D LUT can also be applied allowing for RAW or LOG content to be viewed with the correct application of artistic intent.

AtomX 5″ Sunhood

Screenshot 2021 02 10 at 10 00 48 AM

Included in the Pro Kit is the AtomX 5″ Sunhood. The Ninja V has a reasonably bright screen, but it isn’t bright enough to be used outdoors in sunny conditions. Users can simply clip on the mounting frame and insert the hood to use the sunhood when required.

The sunhood is decent enough and it does certainly help when shooing in bright conditions.

Power Options

Screenshot 2021 02 10 at 10 11 38 AM

The Pro Kit gives users three ways to power the Ninja V

  • DC Power Supply: Indoors you can use the included DC power supply with a lockable jack to connect to the Ninja V. (International power plugs are also included)
  • D-TAP Cable: You can use this to connect to your choice of battery so you can run the Ninja V off an existing power source you may already be using.
  • NPF Battery: You can also power the Ninja V directly from an optional NPF battery or any 4 cell NPF you might already own.

Usability

Even if you have no intention of recording ProRes RAW, the Ninja V Pro Kit suddenly makes the Ninja V a lot more versatile product. Even if you just want to use it as an SDI or HDMI monitor or just as an interface to cross convert signals, having these abilities allows you to use the Ninja V with a far wider array of cameras and devices.

My main camera doesn’t feature an HDMI output, but with the addition of the AtomX SDI Module I can now use it and also send out a signal over HDMI.

The Ninja V suddenly becomes a lot more appealing product to me, because I can now swap it around and use it on any camera I own. Previously I only used it with mirrorless hybrids that had HDMI outputs.

What about existing Ninja V owners?

Screenshot 2021 02 10 at 11 58 04 PM

Existing users of the Ninja V can purchase the AtomX SDI module for $199 USD and the NEW RAW over SDI and HDMI RAW to SDI video feature can also be added to the Ninja V via a separate activation key for $99 USD. Existing AtomX SDI module owners will receive the SDI ⬄ HDMI cross conversion for 422 video inputs in the 10.61 firmware update for Ninja V and the activation key for RAW over SDI is available to purchase from the Atomos website.

Price & Availability

Screenshot 2021 02 10 at 9 05 27 AM

The Ninja V Pro Kit is now available to purchase from your local reseller for a retail price of $949 USD / €949. As part of the launch promotion, Ninja V Pro Kit users will receive a FREE Atomos Connect in the box.

Does the represent good value for money? Well, let’s see how much the individual items in the kit cost:

  • Ninja V- $599 USD
  • AtomsX SDI Module – $199 USD
  • Atomos D-Tap to DC Barrel Cable – $75 USD
  • Atomos Sunhood for Ninja V, Shinobi, and Shinobi SDI – $114 USD
  • RAW over SDI and HDMI RAW to SDI video feature activation key – $99 USD.

That comes to a total of $1,086 USD, so if you are buying the Ninja V Pro Kit, it is certainly cheaper than buying all of the items individually.

Conclusion

Screen Shot 2021 02 10 at 23 21 53

It is nice to see that Atomos has enabled RAW over SDI on the Ninja V through the addition of this new kit. Existing Ninja V owners will also breathe a sigh of release as they can just purchase the AtomX SDI Module and the RAW over SDI activation key separately.

This Ninja V Pro Kit greatly expands the versatility and capabilities of the Ninja V and I think a lot more people are likely to look at it now as a viable option.

While there is a lot to like about this new offering I can’t help but wonder why Atomos just didn’t release an SDI version of Ninja V so you didn’t need to attach additional modules. In saying that, Atomos probably has gone down the correct route and not upset all of the existing Ninja V users that are out there. Bringing out a brand new product would have been nice, but it would have also come with the caveat of upsetting a large user base.

I like what Atomos has done with this kit. It offers good value for money given the feature set and capabilities it brings to the Ninja V.
