Cartoni PTZ Camera Support

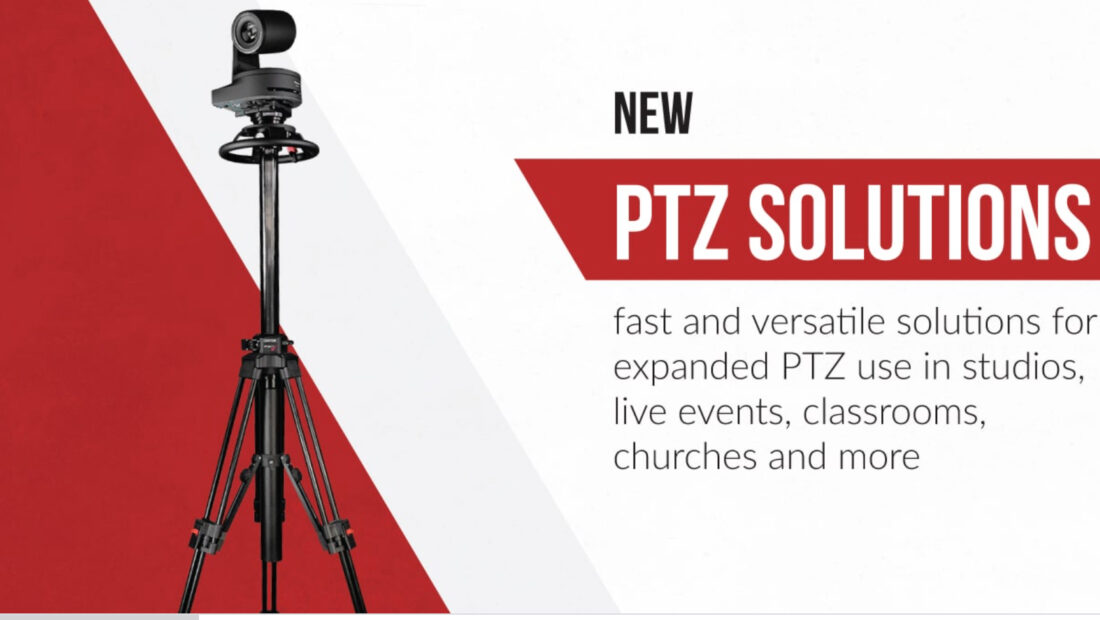

Screen Shot 2020 10 07 at 17 23 22

Cartoni has unveiled new PTZ camera support options. These were created, in part, to meet the continuing demand for remote video production.

Cartoni has three new solutions available.

With COVID-19 still effecting the film and TV industry across the globe, the need for remote video production and automated image gathering due to social distancing and reduced crew sizes has forced manufacturers to meet this demand.

Remote studio video production is now relying more and more on the use of PTZ cameras. While the latest generation of PTZ cameras can capture high-quality video, these cameras have traditionally lacked camera supports. This forced users to mount them on walls, ceilings, or use expensive camera supports meant for large cameras. To make things easier and more affordable, Cartoni has come up with a new range of camera supports that have been specifically designed for PTZ cameras.

So let’s have a look at the three new solutions.

Lightweight Tripod/Dolly

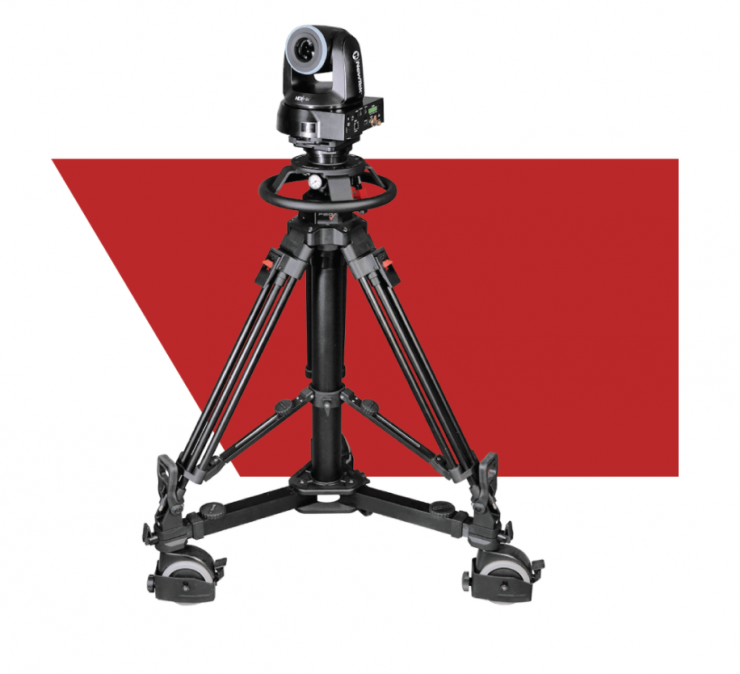

Cartoni Tripod Lightdolly

This solution pairs a lightweight Cartoni tripod equipped with a half-ball camera attachment for easy attachment of a PTZ camera. The entire set-up rests on a lightweight dolly, which allows studios to transport and move their PTZ setup easily. This set-up comes equipped with a mid-level spreader.

Specifications:

Minimum Height 78 cm (30.7 inches)
Maximum Height 135 cm (32.7 inches)
Material Aluminum
Capacity 40 kg (88.2 lbs)
Weight 1.9 kg (4.2 lbs)
Bowl Diameter 100/75 mm

Lightweight PTZ Stand

Cartoni PTZ stand w camera

The PTZ stand is a lightweight and versatile solution. It features a telescopic three-stage stand complete with a PTZ ball joint. This lightweight PTZ stand is also equipped with a quick-release sliding plate that allows users to attach and center a PTZ camera quickly.

The stand also comes with rubber feet, which can be used alone or can be installed on Cartoni’s lightweight dolly.

Specifications:

Minimum Height 89 cm (35 inches)
Maximum Height 205 cm (80.7 inches)
Material Aluminum
Capacity 20 kg (44 lbs)
Weight 3.2 kg (7 lbs)

P20 /PTZ pedestal

P020 PTZ medium 1

The P20 pedestal with PTZ attachment allows camera operators to use PTZ cameras when very high positioning is required. It features a vertical gliding movement of 40 cm stroke, and precise traveling ability on even floors.

It is equipped with a flat 3/8, ¼” camera attachment, the P20/ PTZ pedestal enables the PTZ camera to be assisted by a teleprompter, making it a good solution in newsrooms.

Specifications:

Minimum Height 74 cm (29.1 inches)
Maximum Height 171 cm (67.3 inches)
Material Aluminum
Payload Capacity 25 kg (55.1 lbs)
Weight 14 kg (30.9 lbs)
Minimum door track 67 cm (26.4 inches)
Maximum door track 97 cm (38.2 inches)
On-shot Stroke 40 cm (15.7 inches)
Maximum Pressure 13 stm (191.0 psi)
