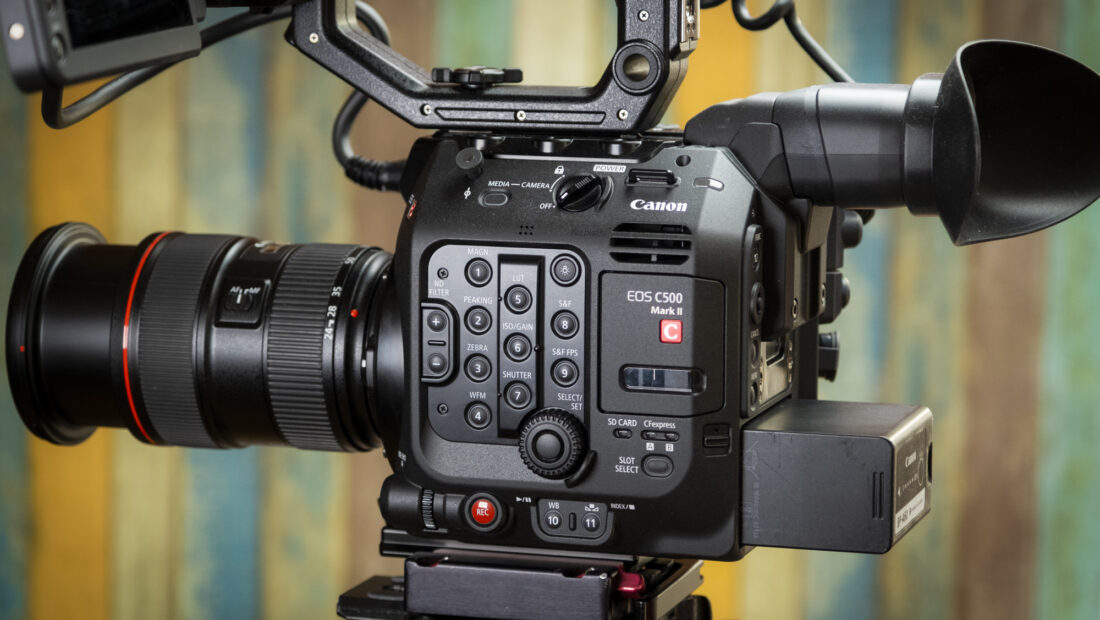

Canon has released Firmware Version 220.127.116.11 for the EOS C500 Mark II that incorporates the following fix and enhancements:
1. Compatible with EF Cinema Lens CN 10 x 25 IAS S/E1.
– Peripheral illumination / chromatic aberration correction has been added.
– Enable autofocus with Dual Pixel CMOS AF.
– Added support for “Dual Pixel Focus Guide” feature.
2. The ability to record XF-AVC Proxy has been added during XF-AVC recording.
3. The XF-AVC Long GOP bit rate recording mode has been added.
4. The ability to update the SDI/HDMI output from 59.94P to 29.97P (or 23.98P) has been added.
5. The ability to select “5 sec. Pre REC function” in XF-AVC recording mode has been added.
6. Improved the card file name when simultaneously recording XF-AVC or Cinema RAW Light.
7. “B&W during Magn. ” menu has been added when Magnification is enabled.
8. The default value of the assign button has been changed from “Magnification: Video terminal” to “Magnification”.
The update is more of an incremental update that fixes a few issues rather than adding new features.
Updating the camera
Currently, the Canon USA website is still down, but you can download the firmware from their other regions.
Follow the following instructions to update the firwmare.
– Firmware version 18.104.22.168 is for updating EOS C500 Mark II cameras running firmware version 22.214.171.124 – 126.96.36.199. If your camera’s firmware is already version 188.8.131.52, it is not necessary to update the firmware. Once the camera is updated to the latest version, it cannot be restored to a previous version.
– Please refrain from loading menu settings generated using the most recent firmware version to a product running an old firmware version, as doing so may affect camera operations.
Preparations for a firmware update:
– Please use a commercially available SD / SDHC / SDXC memory card that is 512MB or more for the firmware update.
– After the firmware update has been performed, the camera’s menu and custom picture settings will be reset. It is recommended that users save their menu and custom picture settings as settings data to an SD card, separate from the one that will be used to carry out the update, before starting update operations. This saved data can be loaded into the camera and the settings can be changed after the update has been completed. For further information on this, please refer to the section in the unit’s Instruction Manual titled “Saving and Loading Camera Settings”.
– The downloaded folder contains the firmware (file name: VPC3.FIR / file size: 76,848,000byte), and instructions on the firmware update procedures (a PDF file in five languages: Japanese, English, French, Spanish and Simplified Chinese). Before starting the firmware update operations, please be sure to carefully confirm your understanding of these instructions.
The following items are required to perform this firmware update:
1. Camera Body EOS C500 Mark II
2. A computer (OS requirements: Windows 10, Windows 8.1, Windows 8)
3. SD/SDHC/SDXC memory card with a capacity of 512MB or more (commercially available)
4. An SD card reader/writer (commercially available) or an SD card slot built into the computer
5. A fully charged battery pack for the camera
6. Power adapter (commercially available, DC IN 12V terminal): 4-pin XLR plug (female connector), 12 V DC (acceptable range: 11.5 V to 20 V DC), 10 A (acceptable maximum load current)
7. The firmware (the downloaded file)
Firmware Version 184.108.40.206 incorporates the following fix:
1. Remote A terminal and Remote B terminal can be used simultaneously.
2. Sensor mode information can be displayed.
3. Fixes a phenomenon in which, under specific conditions, high-brightness areas may appear tinted.
4. Fixes a phenomenon where the [C. Temp. Increment] setting cannot be changed.
5. Fixes a phenomenon where the SSID (stealth) setting cannot be made in a Wi-Fi connection.
6. Fixes the metadata to be recognized color profile correctly in some editing software.
