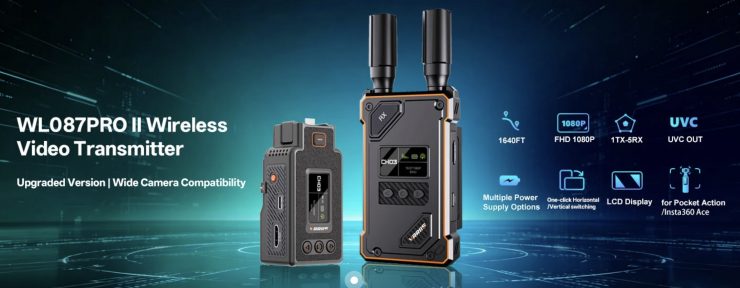

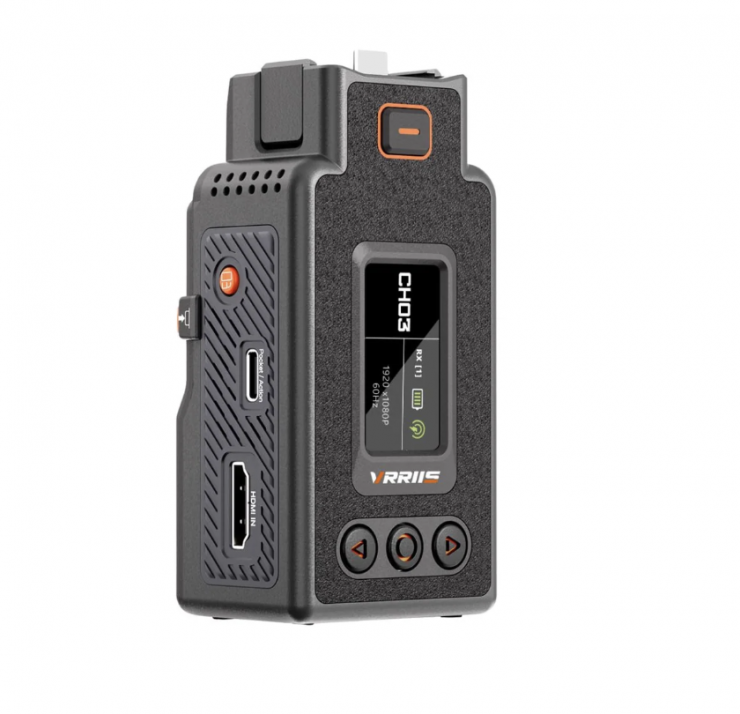

Vrriis Tech has come up with a wireless video transmission system that works with the DJI Osmo Pocket 3/4/4P, Pocket Action, and Insta360 Ace. The model number is called the WL087PRO II, and it attaches directly to the bottom of an Osmo Pocket.
This looks like a useful device, especially if you need to livestream footage from the Osmo Pocket, and it could work well for news crews.
The system has the ability to distribute a single camera feed to up to 5 receivers for use at events, concerts, presentations, etc.
You can also use it for OBS Live Streaming by connecting it via UVC to a laptop or PC for plug-and-play streaming without the need for a capture card.
Key features
- Type-C Male Port – Plug directly into Pocket 3/4 for seamless connection and reverse charging
- UVC IN Female Port (TX) – Compatible with Pocket/Action cameras with reverse charging support

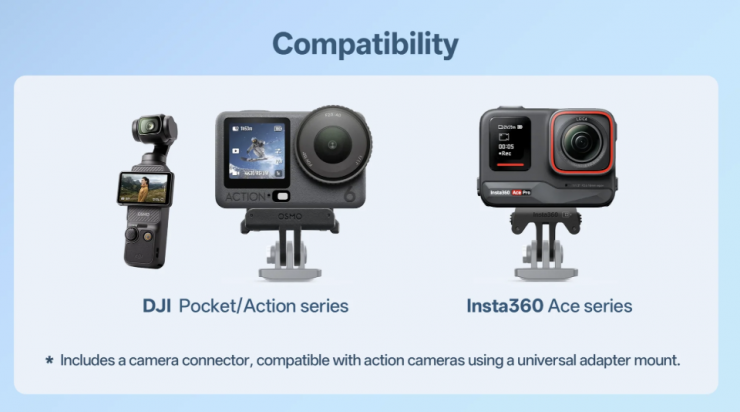

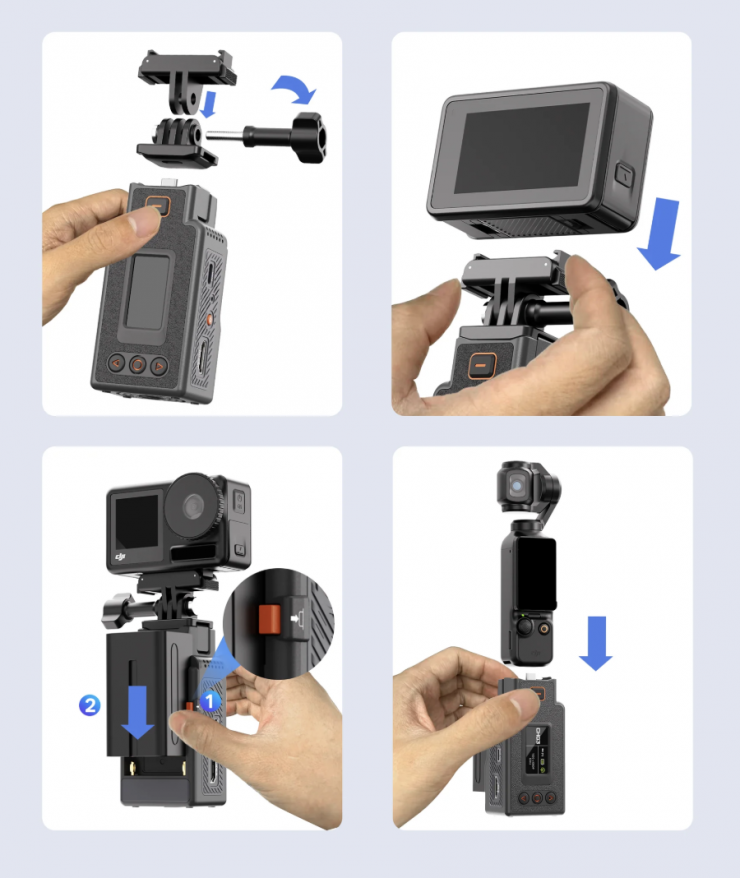

- Unique Expansion Adapter – Directly mounts Action cameras without additional accessories
- Flexible Screen Output – Horizontal/Vertical screen video adjustable; UVC out for OBS Live Streaming up to 1080P@60Hz
- HDMI IN/OUT – Up to 1080P@60Hz, compatible with a wide range of devices
- Long Wireless Range – Up to 500M / 1640FT
- 1.47-inch Display Screen – Real-time signal status monitoring
- 20 Frequency Band Adjustment – Flexible channel selection to avoid interference
- 1TX to 5RX Support – Broadcast to multiple receivers simultaneously
- Versatile Power Options – Supports NP-F970/550 series battery and USB-C power port

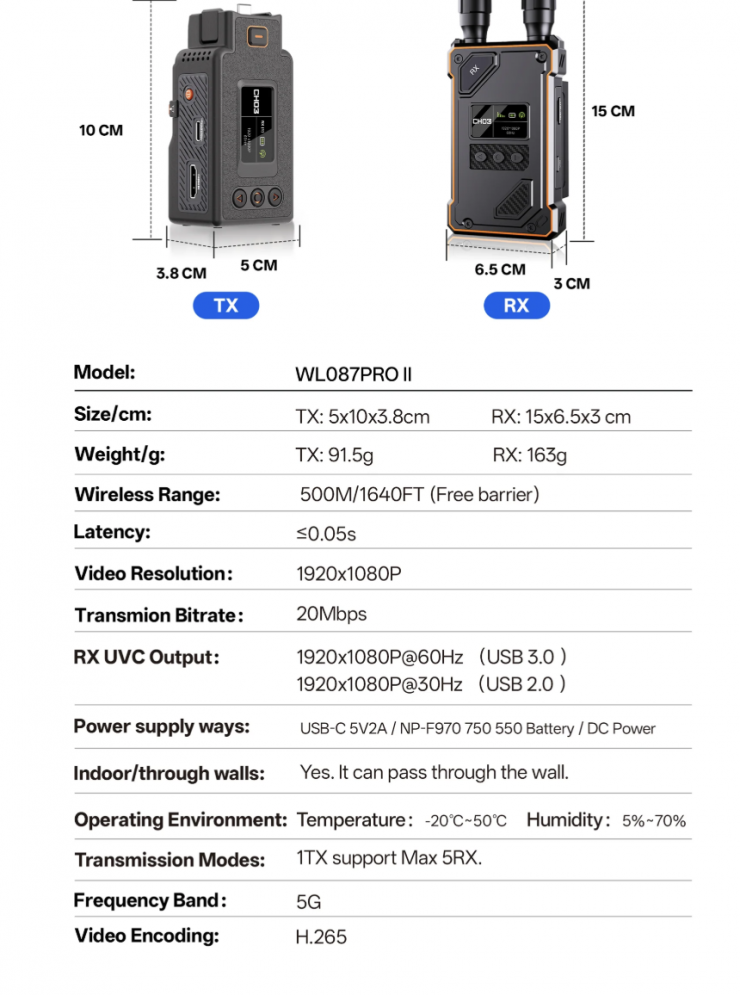

It can send up to 1080p 60 fps over the 5G frequency spectrum) and they claim that the latency is less than 50ms, but in example footage I have seen, it looks to be higher than that. Footage is claimed to be streamed at 20Mbps and it utilizes H.265 encoding.
The claimed operating range is said to be up to 500m / 1640 ft, but that would only be possible in a completely open area with no interference.
Claimed Transmission Range with Multi-Receiver (Tested in open field, no obstacles or interference)
- 1TX – 1RX: 1640 FT / 500 M
- 1TX – 2RX: 1500 FT / 450 M
- 1TX – 3RX: 1312 FT / 400 M
- 1TX – 4RX: 990 FT / 300 M
- 1TX – 5RX: 656 FT / 200 M

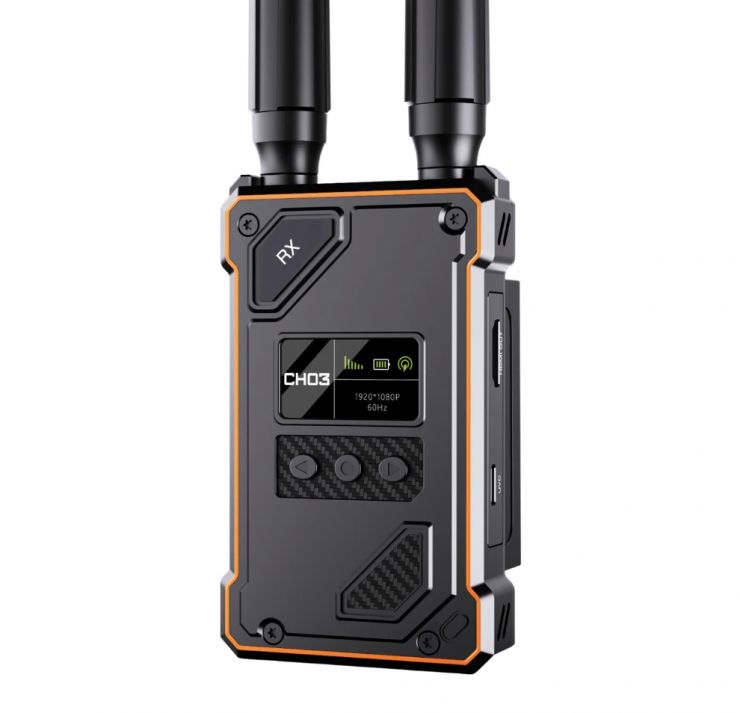

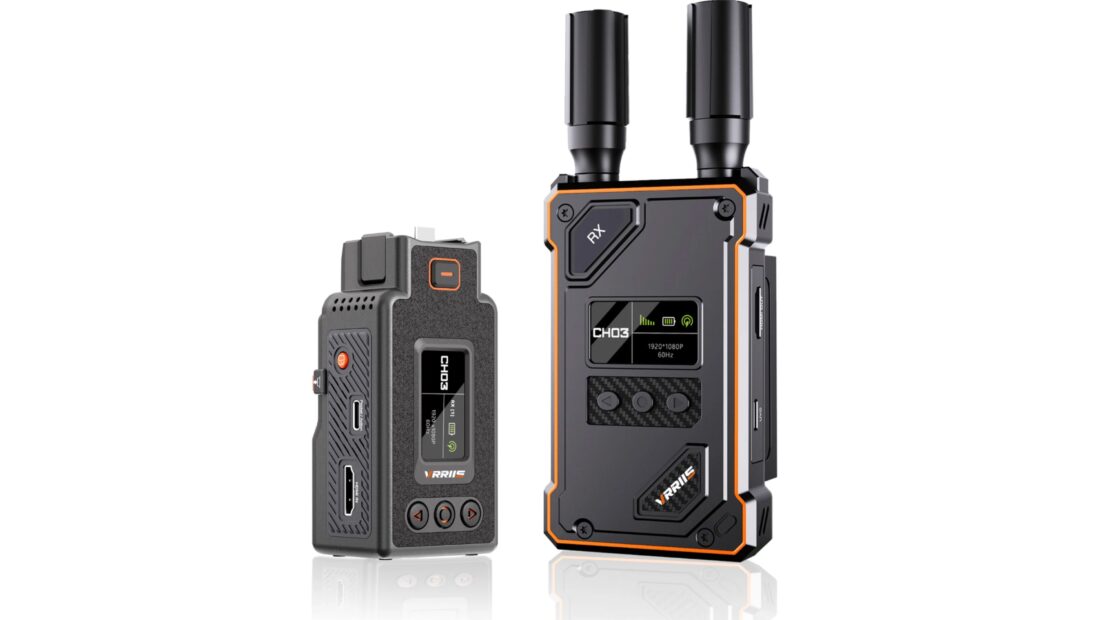

The Vrriis WL087PRO II Wireless Video Transmitter and the RX can both be powered via Sony NP-F style batteries. Additionally, they can be powered via USB-C 5V2A. The RX unit also has a DC input.

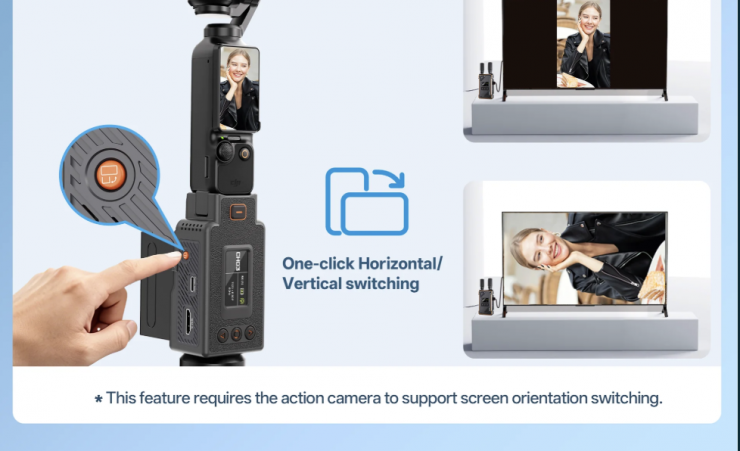

There is a nice feature on the TX where you can press a button to switch between horizontal and vertical video (as long as the host camera supports this).
Pricing & Availability
The Vrriis WL087PRO II Wireless Video Transmitter is available with the compatible RX unit for $399.99 USD.
