SmallHD PageOS 6.0.1 Firmware Update

Screenshot 2025 02 05 at 14 42 43

The SmallHD PageOS 6.0.1 Firmware Update was released in late December, but there are probably plenty of our readers who weren’t aware of this update.

This update fixes a lot of the issues that users encountered with the 6.0.0-Beta1 update that was announced last August and the 6.0 update that was released in November. I tend to only update my monitors once a stable update is available.

Improvements & Alterations

  • Function button tools may no longer be disabled via the toolbar or tool edit menu

Bugs Fixed

  • Resolved a small issue with the patch color used in Calman calibrations
  • Fixed an issue preventing the luminance slider from working on Focus OLED monitors
  • Connecting to an ALEXA Mini LF using a DHCP network connection will no longer crash the monitor
  • Fixed an issue with digits in RED® DSMC2™ camera timecode strings sometimes appearing in hexadecimal
  • Resolved an issue causing the Quantum 32 display to turn off when the active battery was removed from the Dual Battery Bracket
    • Following this change, the display will turn back on after 3 seconds
  • Fixed a UI layout issue when connecting to RED® DSMC2™ cameras
  • Resolved an issue where LUTs would not be applied correctly on some Ultra 7 Multi-View Pages
  • Resolved an instance of the calibration settings not lasting through a power cycle
  • Fixed an issue where some Cine 13 monitors would show a checkered pattern on startup
  • Resolved an issue that made the Quantum 32 display too dim after startup
  • Resolved an issue with the luminance Fine-Tune slider where changes did not take effect until exiting and then re-entering the menu
  • Resolved an issue where the Ultra 7 Multi-View Page pane may display the wrong source while being configured
  • Fixed SDI input breaking when an HDMI input is selected

The SmallHD PageOS 6 update adds powerful new capabilities to all current monitors. It features increased functionality, expanded customization, and a more streamlined, intuitive UI.

This was SmallHD’s first major PageOS upgrade in two years.

Screenshot 2024 04 13 at 11 39 24

New features include Fleet Control, a redesigned Color Pipe, Wi-Fi support, Handheld Multi-view, support for new dials, expanded control of function buttons, and more.

Screenshot 2024 04 13 at 11 48 11

A new Color Pipe interface gives users increased on-screen visibility to instantly review settings information and more intuitive management processes to speed up their workflow. Pomfort Livegrade integration lets users apply the tool on top of any preloaded 3D LUT in Color Pipe on their SmallHD Monitor.

Screenshot 2025 02 05 at 15 30 23

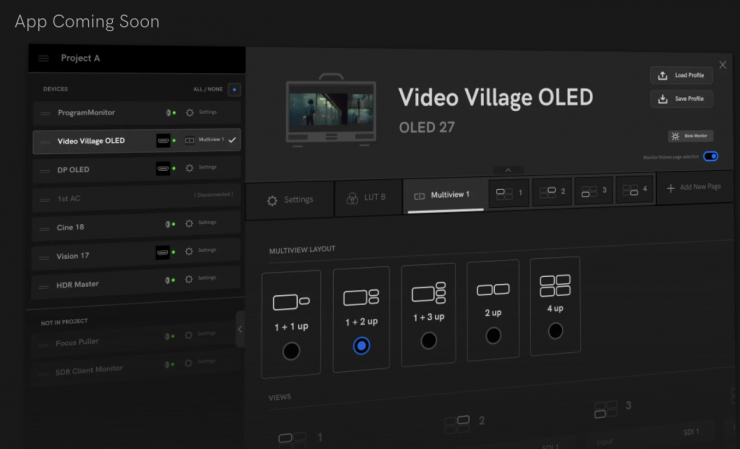

For remote wireless and network monitor control, SmallHD’s Fleet Control App (which is still not available yet) can be installed on a user’s tablet or computer to control one or more monitors at the same time, allowing them to match settings, manage signal and feeds, manage LUTs and Color Pipes and control multiple PageOS Tools via Ethernet or Wi-Fi.

Screenshot 2025 02 05 at 15 30 52

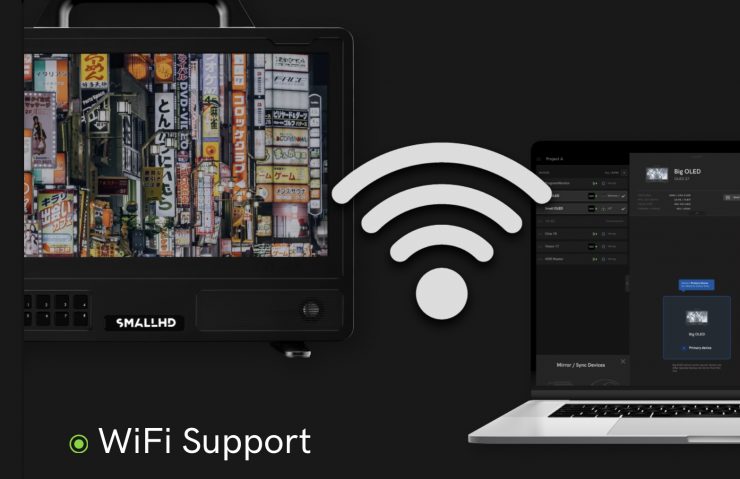

PageOS 6 supports Wi-Fi functionality on SmallHD monitors with off-the-shelf Wi-Fi adaptors to upgrade firmware or manage the Fleet Control App.

Screenshot 2024 04 13 at 11 49 37

Custom Exposure Assist offers custom control for black clip, white clip, and middle gray for much smoother transitions than Spectrum 1 and 2 modes.

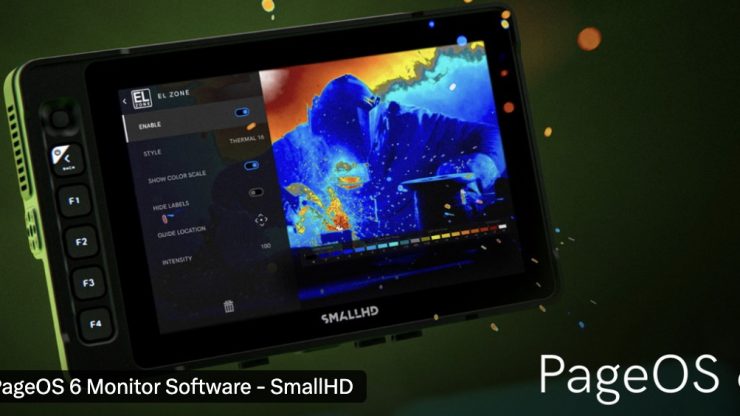

SmallHD has updated EL Zone. Ed Lachman, ASC’s intuitive stop-based exposure tool now supports wider dynamic range cameras. EL Zone works like a virtual spot meter, replacing IRE exposure values with stops.

Screenshot 2024 04 13 at 11 46 43

You can map nearly every aspect of PageOS to knobs with click, turn, and capacitive touch functionality. With tools like custom exposure or crop, multiple knobs can be used simultaneously to dial in precise changes.

Screenshot 2025 02 05 at 15 33 40

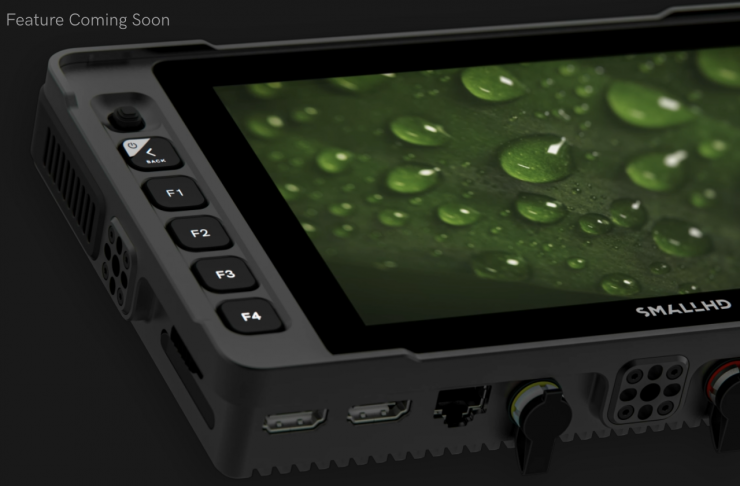

You will eventually be able to assign a press-and-hold capability by holding down a function button to speed up your workflow. Preview a feed or tool, quickly pull up a 1:1 pixel-zoom for precise focus, apply a pre-loaded LUT, and more.

Screenshot 2024 04 13 at 11 48 49

Handheld Multi-View lets SmallHDUltra 7 Monitors display multiple feeds in multi-camera environments. Users can view feeds from HDMI, SDI, or Internal Bolt 6 simultaneously with side-by-side dual monitoring.

Screenshot 2024 04 13 at 11 51 38

Other PageOS 6 features include a new pixel-based Fine Adjustments Tool for crop/size and exposure adjustment in increments as small as 0.1%, plus RAW 8-bit or 10-bit luma values for exposure.

Screenshot 2024 04 13 at 11 51 20

There is also a GPI Tally Overlay that displays a red “recording” border around the outer bezel of SmallHD 4K Monitors.

Screenshot 2024 04 13 at 11 39 00

You can assign a new press-and-hold capability by holding down a function button to speed up your workflow. Preview a feed or tool, quickly pull up a 1:1 pixel-zoom for precise focus, apply a pre-loaded LUT, and more.

Screenshot 2025 02 05 at 15 37 54

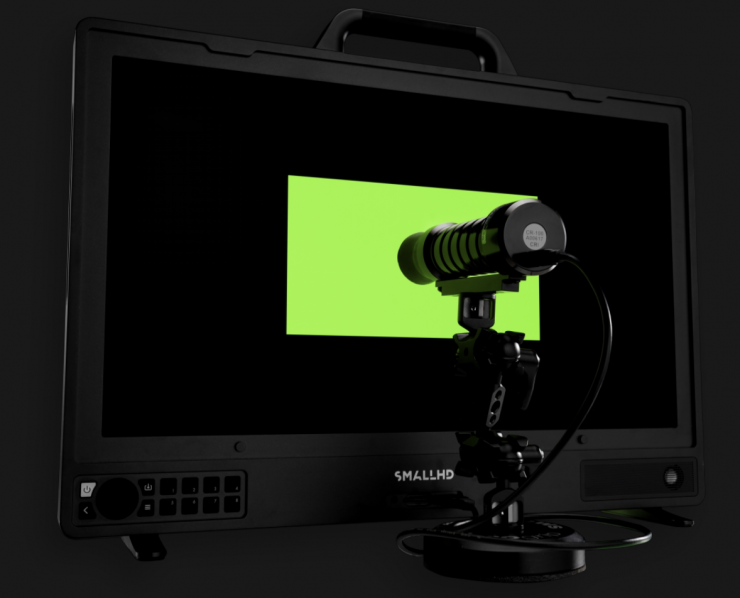

PageOS 6 maps your SmallHD panel’s full native color volume for fast, accurate calibration and easy comparison of SDR and HDR Log and Linear
transforms, plus alternative white point selection.

Screenshot 2024 04 13 at 11 54 21

Above you can see other features that will be added.

Screenshot 2024 04 13 at 11 38 31

You can turn your SmallHD Smart 7 Series Monitor into a remote command center with Bolt 6 transmitters and receivers. Use the same wireless signal used to transmit zero-delay wireless video for effortless touch-screen camera control at ranges up to 5,000 feet.
