SWIT VOLTA PRO– 9kWh Modular Power Station Power Station

VOLTA PRO Main Banner

SWIT has announced its new VOLTA PRO 9kWh Modular Power Station that was specifically engineered to meet the demanding needs of the broadcast and film industry.

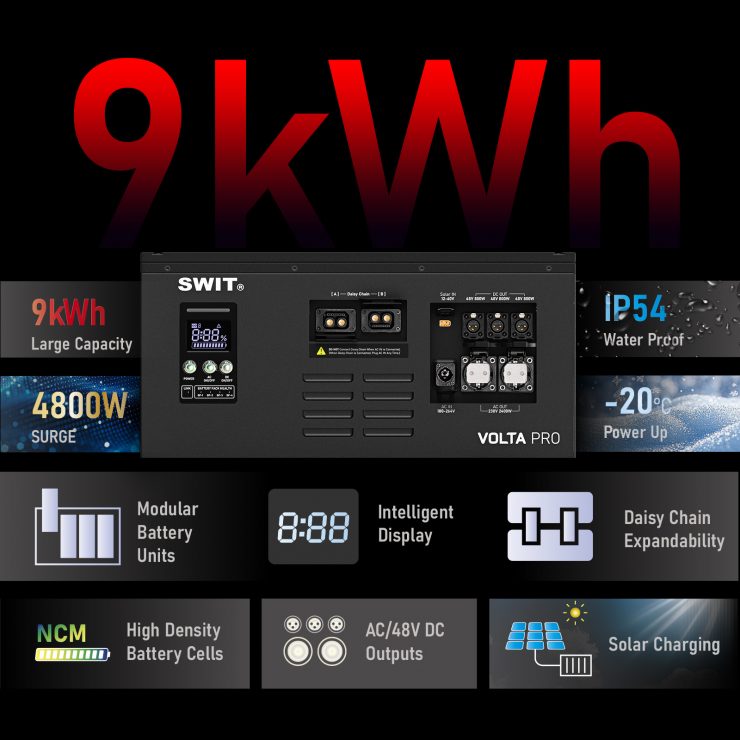

1600x1600 9

The VOLTA PRO combines high-capacity energy storage with modular flexibility, to provide reliable power in even the most challenging environments. It delivers an impressive 9kWh capacity, and is capable of handling 3200W continuous AC and DC power loads.

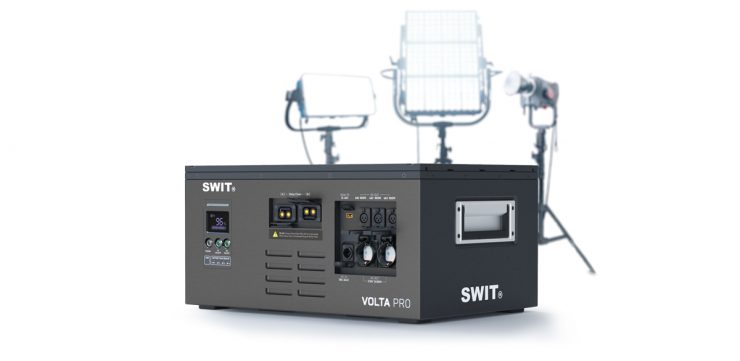

02

This system is specifically designed to support a wide variety of professional high-power lighting fixtures, cameras, and other essential filmset equipment. By integrating features like modular expandability and robust power handling, the VOLTA PRO looks to be a good solution for productions of any scale.

Key features

  • 3200W AC/DC Output
  • Up to 4800W Surge
  • Modular Battery Units
  • Compact Size with High Energy Density
  • Daisy Chain Expandability
  • Low-Temperature Operation
  • IP54 Water and Dust Resistance
  • User-Friendly Interface

High Output

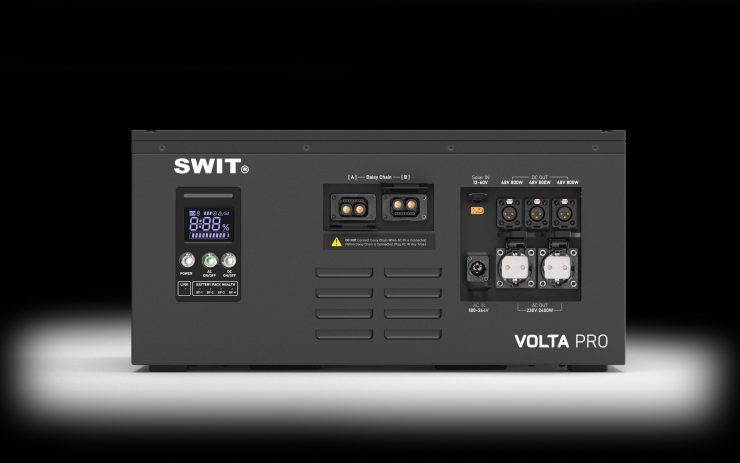

front view

The VOLTA PRO delivers dual AC 230V outputs with a combined capacity of 2400W and three DC 48V outputs rated at 800W each. This ensures stable power for high-wattage lighting and other critical production gear. Its ability to manage an aggregate load of 3200W makes it a suitable and reliable solution for both studio and location setups.

03

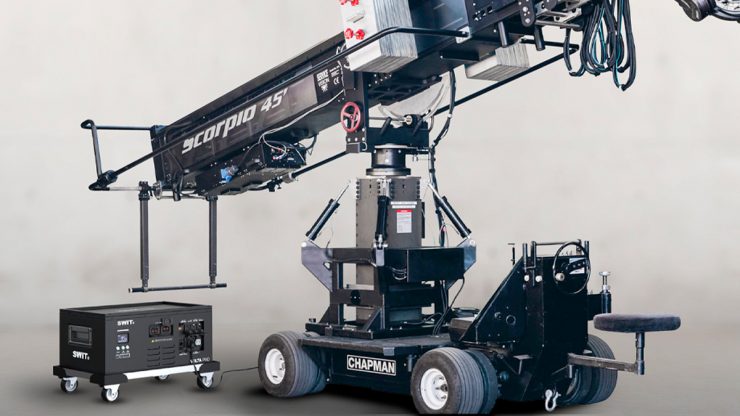

The VOLTA PRO AC can output a 4800W surge, which allows it to be used with the heaviest cine cranes including the Scorpio 45’/38’/35’/23’/17’/10’ etc; and the Moviebird 60’/50’/45’/35’/24’/17’ etc.

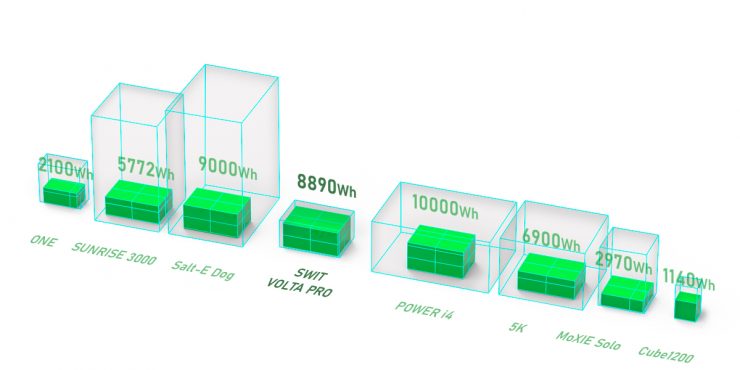

Small Footprint

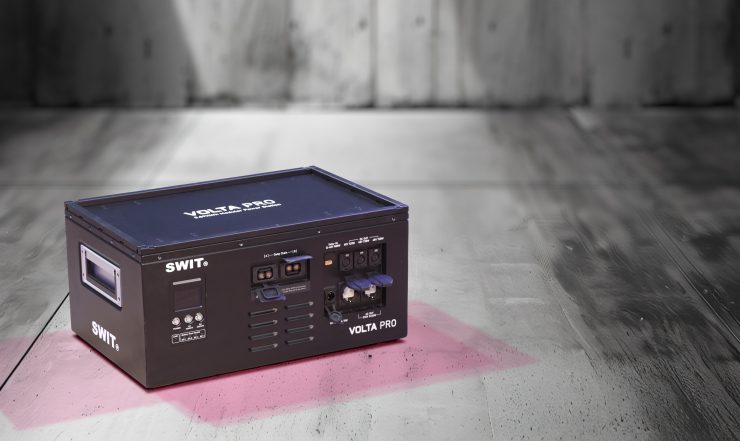

VOLTA PRO 01

Adhering to Eurobox pallet standards, the VOLTA PRO packs its 9kWh energy storage into a remarkably compact 600mm × 400mm × 296mm footprint. The VOLTA PRO weighs 65.5kg / 144.4 lbs.

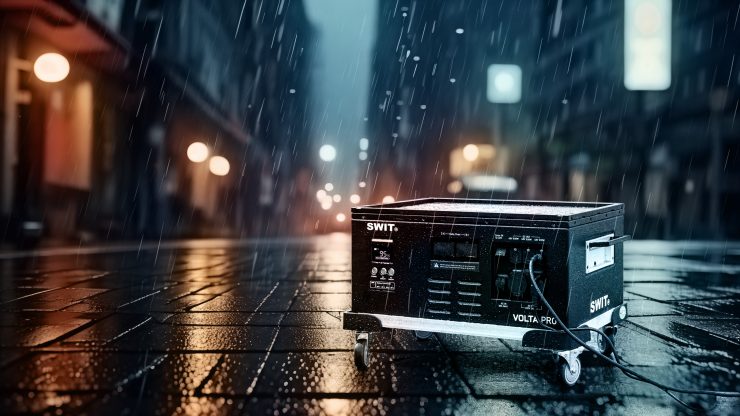

VOLTA PRO rain proof

Its ergonomic design makes it easy to integrate into both mobile and studio workflows while offering high energy efficiency per unit volume, which very few competing solutions can’t do.

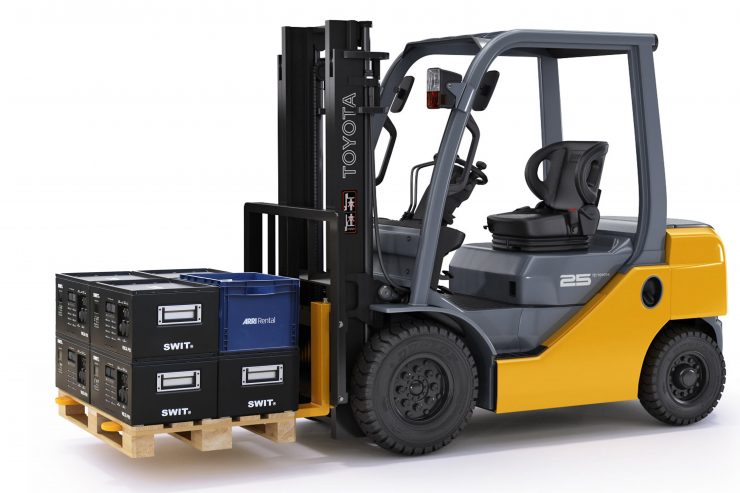

Transport

As the VOLTA PRO adheres to Eurobox pallet standards, it fits seamlessly into transportation and storage systems.

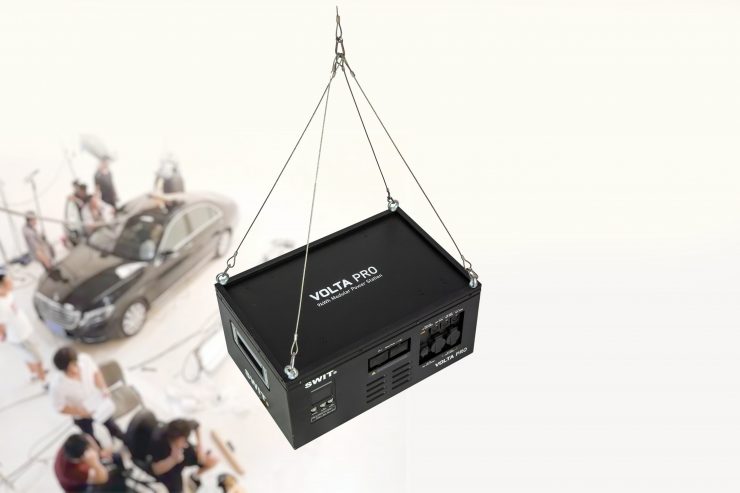

VOLTA PRO lifting

Its lightweight design and integrated lifting rings make installation on large filmsets or high-altitude equipment straightforward.

Modular Battery Units

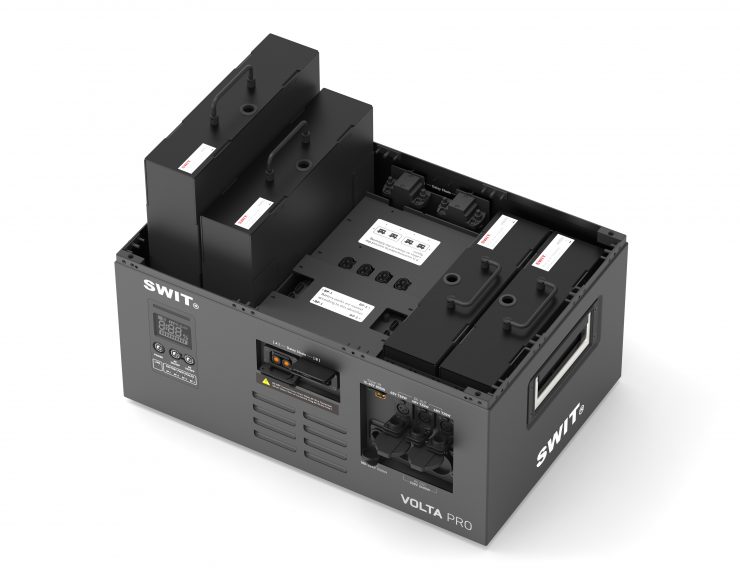

VOLTA PRO 3

The VOLTA PRO was designed with four detachable battery packs, to help simplify logistics, making maintenance and transportation more efficient. These battery modules are user-friendly, allowing for plug-and-play operation. Even with just two units installed, the system remains fully functional, ensuring that downtime is minimized in time-sensitive shooting environments.

Interface & Charging Options

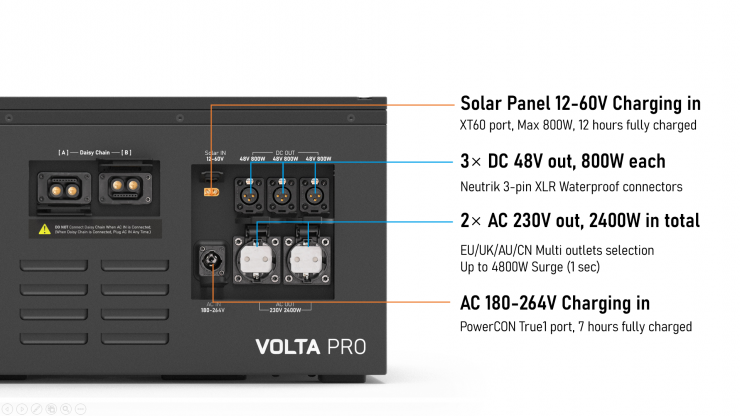

10

VOLTA PRO features a range of versatile interfaces to meet diverse production needs. It includes dual AC 230V outputs, three DC 48V outputs, and an XT60 port for solar charging. The solar input supports 12-60V at 800W, making it compatible with sustainable energy solutions and allowing eco-conscious productions to integrate renewable energy sources seamlessly. These interfaces provide filmmakers with the flexibility and reliability required for high-demand shoots.

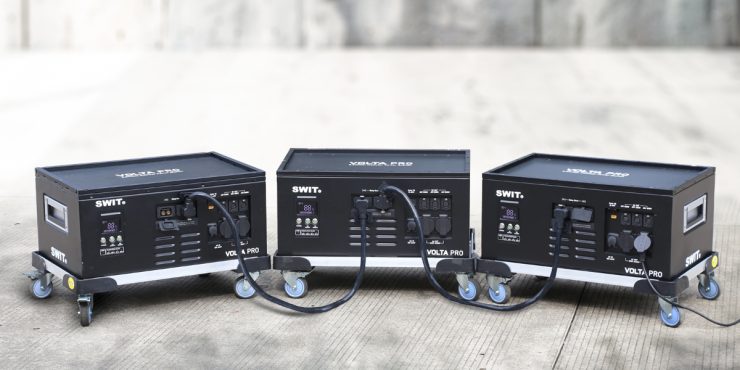

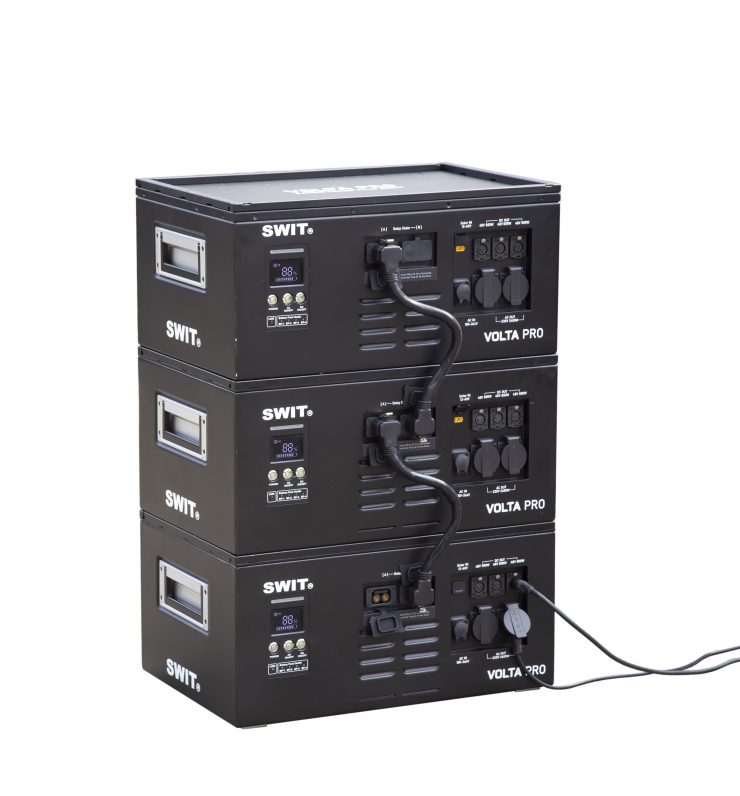

Daisy Chain Expandability

If you need more output than what a single VOLTA Pro can do, SWIT has designed the power station for daisy chain compatibility, enabling users to link multiple stations together. This provides nearly unlimited scalability, making it the perfect choice for large-scale filmsets and extended production schedules requiring uninterrupted power.

Reliable Low-Temperature Performance & IP54 Water and Dust Protection

05

Built with cold-resistant NCM (Nickel-Cobalt-Manganese) lithium cells and advanced low-temperature startup technology, the VOLTA PRO can reliably operate in temperatures as low as -20°C. Compared to LFP (Lithium Iron Phosphate) cells, NCM cells offer higher energy density and superior performance in cold conditions, making them ideal for outdoor shoots and extreme environments.

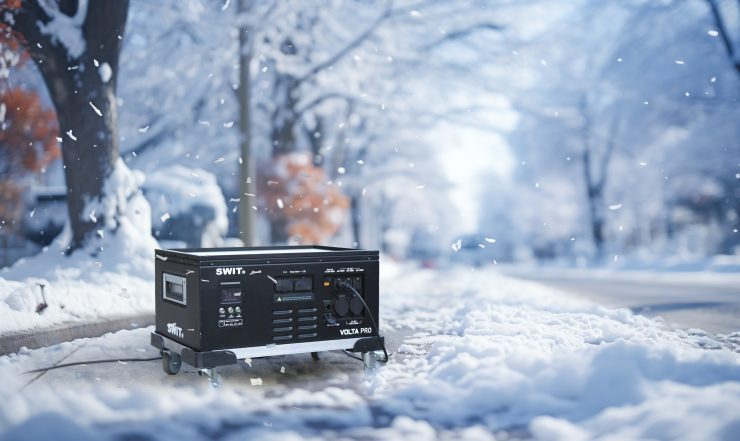

low temp power up

Additionally, the VOLTA PRO’s rugged, industrial-grade casing meets IP54 standards, ensuring dependable operation in dusty or rainy conditions. This robust design provides the reliable power support you need across a variety of filming locations.

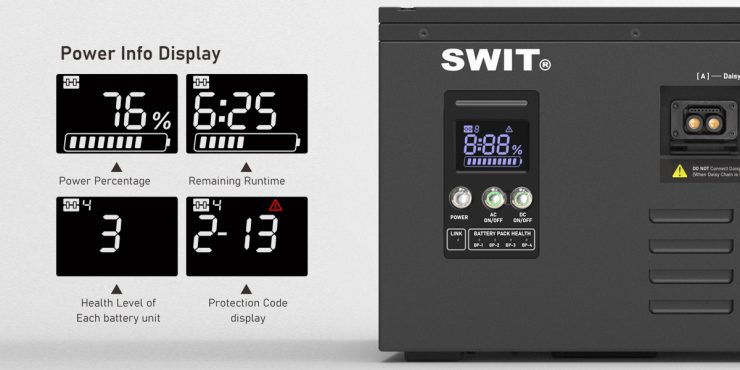

Intelligent Display

09

The VOLTA PRO can display real-time power stats, including battery health, remaining runtime, and alert indicators for abnormal conditions. The system’s ability to automatically enter sleep mode after 24 hours of inactivity extends its lifespan.

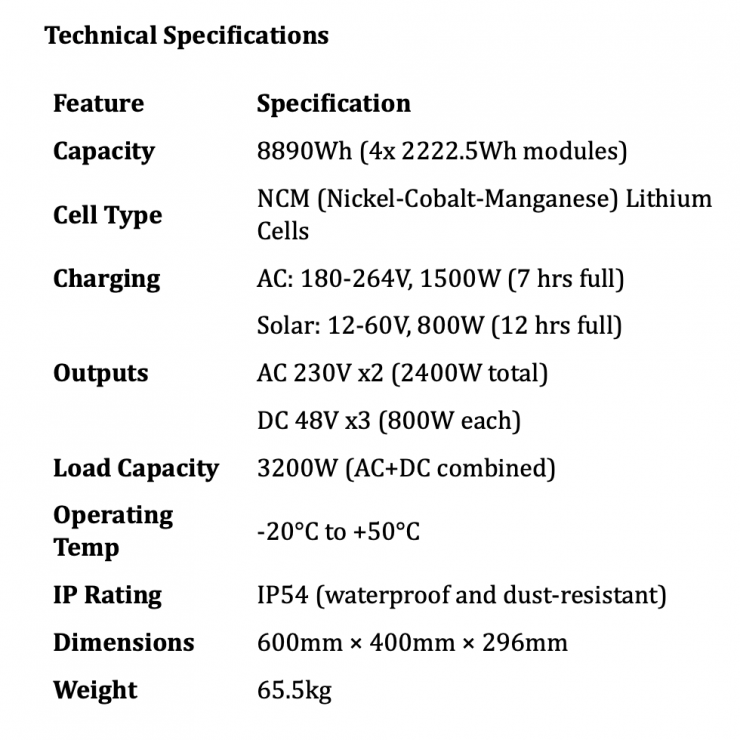

Specifications

Screenshot 2025 01 15 at 14 56 25

Price & Availability

  • VOLTA PRO: $9999 USD
  • Availability: Shipping begins Q1 2025.

Note: Currently available only in AC 230V versions. AC 110V models are under development and will be released in the future.
