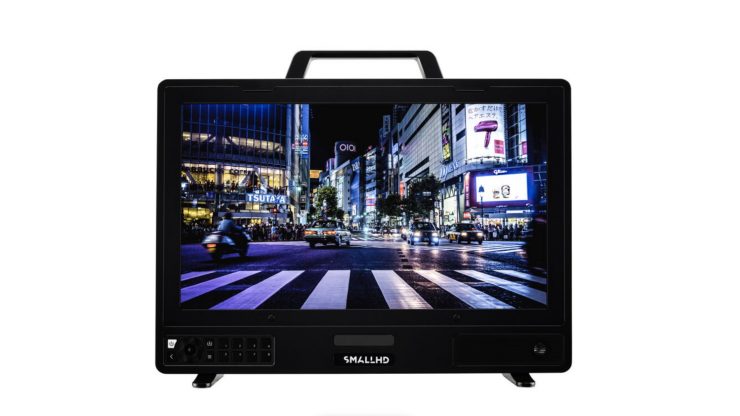

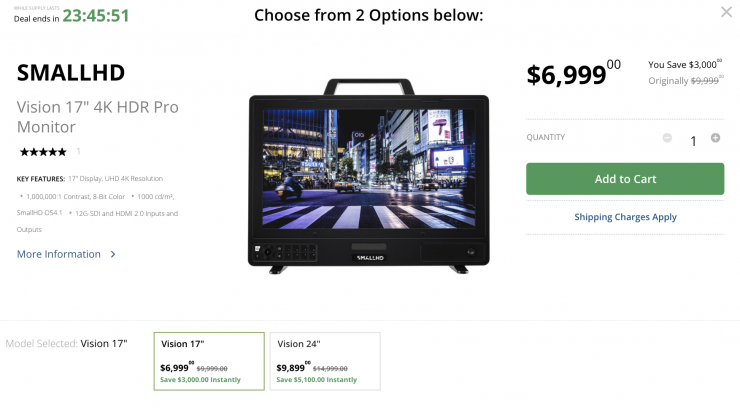

The SmallHD Vision 17″ & Vision 24″ 4K HDR Pro Monitors are on sale. You can get the Vision 17″ 4K HDR Pro Monitor for $6,999 USD which is a saving of $3,000 USD. The Vision 24″ 4K HDR Pro Monitor is on sale for $9,899 USD which is a saving of $5,100 USD.
Vision 17″ Key features
- 17″ Display, UHD 4K Resolution
- 1,000,000:1 Contrast, 8-Bit Color
- 1000 cd/m², SmallHD OS4.1
- 12G-SDI and HDMI 2.0 Inputs and Outputs
- 3D LUT Support, SD Card Slot
- RJ45 Ethernet and GPI, XLR Power Input
- USB Type-C Power Outputs, Redesigned UI
- Waveform, False Color, Focus Assist
- Peaking, Pixel Zoom, Pages, Page Tabs
Vision 24″ Key features
- 24″ Display, DCI 4K Resolution
- 1,000,000:1 Contrast, 10-Bit Color
- 1000 cd/m², SmallHD OS4.1
- 12G-SDI and HDMI 2.0 Inputs and Outputs
- 3D LUT Support, SD Card Slot
- RJ45 Ethernet and GPI, XLR Power Input
- USB Type-C Power Outputs, Redesigned UI
- Waveform, False Color, Focus Assist
- Peaking, Pixel Zoom, Pages, Page Tabs
The monitors feature four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitors is accessed via the innovative Page Builder in OS, which features a fully redesigned UI, preconfigured pages, and page tabs. Other monitoring features include a calibration wizard, false color overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with OS4 are 4K waveforms and scopes with regions of interest, with more functions to be introduced with future firmware updates.
The monitors can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4″-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.
Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.
The monitors includes numerous accessories such as an acrylic screen protector, a 3′ long HDMI cable, two 1/4″-20 cheese-style accessory mounting sticks, two 1/4″-20 and 3/8″-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.
