Today at NAB 2024, Deity introduced the DXTX plug-in transmitter that records in 32-bit float / 24-bit while transmitting on a Micro SD Card. This is a big deal as the THEOS system in the USA can not do this. The main reason Deity is able to achieve this is the plug-in transmitter is not a body pack and can do so without infringing on the patent.
![DEITY DXTX IMG 9545](/wp-content/uploads/2024/04/DEITY-DXTX_IMG_9545-740x555.jpg)

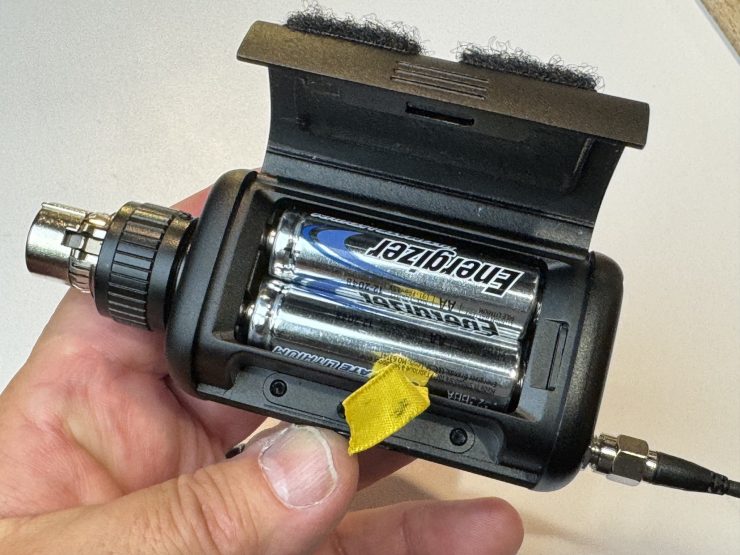

The battery door on the DXTX protects the two AA batteries that run the unit for up to 14hrs.
![DEITY DXTX IMG 9546](/wp-content/uploads/2024/04/DEITY-DXTX_IMG_9546-740x555.jpg)

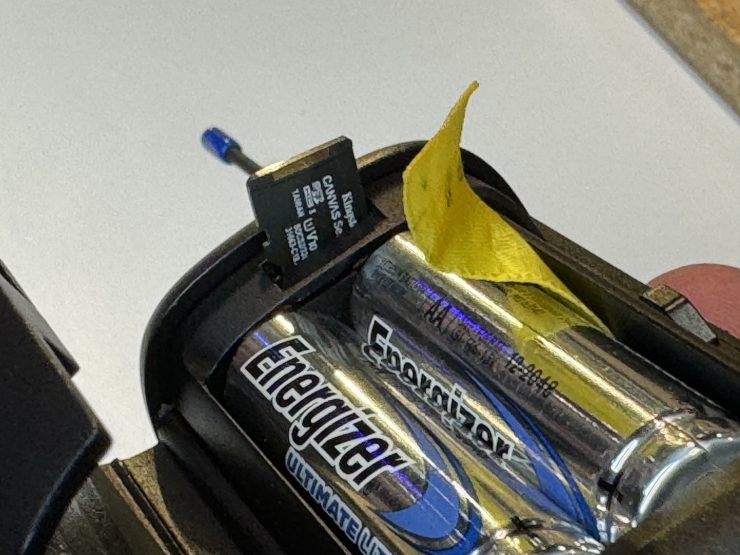

Also inside the battery door is the included 32Gb microSD card.
![DEITY DXTX IMG 9544](/wp-content/uploads/2024/04/DEITY-DXTX_IMG_9544-740x555.jpg)

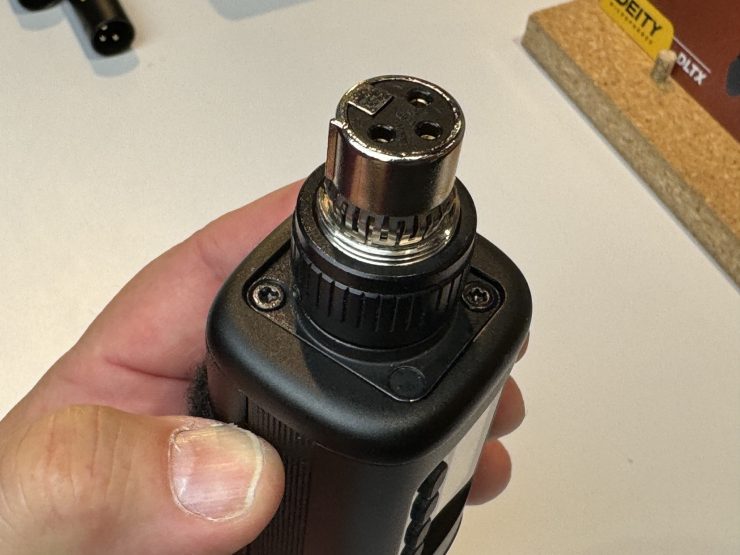

The XLR connector on the DXTX also features 5V Bias. Today the majority of video microphones used on cameras either need bias voltage to run (ie. Deity V-Mic D4 Mini, RODE VideoMic GOii, or Sennheiser MKE400) or they need bias voltage to trigger themselves awake (like the Deity V-Mic D3 / D3 Pro or RODE VideoMic NTG**)
![DEITY DXTX IMG 9543](/wp-content/uploads/2024/04/DEITY-DXTX_IMG_9543-740x555.jpg)

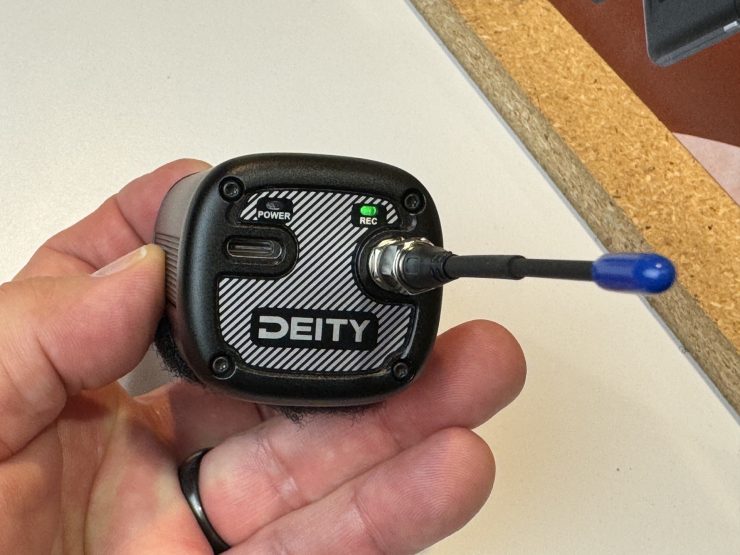

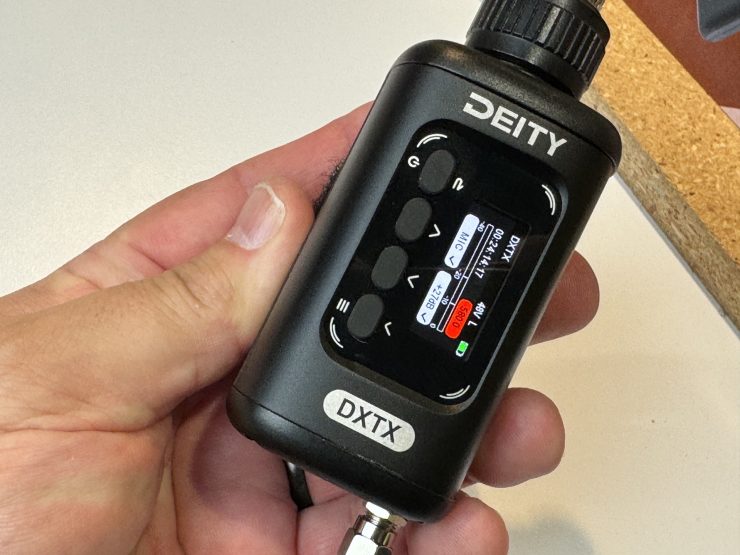

Deity placed the status light on the DXTX under the device so when flying it on a boom pole. you can see the status more easily, but also hide them from the camera lens when the DXTX is being used on-camera with a handheld microphone during interviews.
![DEITY DXTX IMG 9542](/wp-content/uploads/2024/04/DEITY-DXTX_IMG_9542-740x555.jpg)
Also on the bottom is the 50 Ohm SMA antenna port and USB-C port. This allow the DXTX to be integrated into larger systems like using it as an IFB or camera hop transmitter with a built-in backup recorder that could always be running as a safety take.
Key features
- Color Screen
- 550MHz ~ 960MHz; ≤100mW
- Featuring a Neutrik XLR Locking Input
- Dual AA Battery; Up To 14Hrs* of Battery Life
- 32-Bit Float / 24-Bit; Supports ≤128Gb MicroSD
- Remote Control the DXTX with BitConnectify™ 2.0; Up To 250ft Bluetooth Range
- Audio Input compatible feature analog 5V Mic Bias and Line signals
- It also supports AES 3 / AES 42 digital signals
- Analog Limiter
- Supports 48V Phantom Power
- External SMA Antenna
- External Power via USB-C
- Firmware Updatable
The DXTX is a UHF TX and works with the new THEOS system. Andrew states that when it ships there will be bundles available with THEOS.
