Atlas Lens Co. 18mm, 135mm, & 200mm Orion 2x anamorphic lenses

Atlas Lens Co. has just unveiled its new 18mm T2, 135mm T2.2, and 200mm T2.2 Orion 2x anamorphic lenses.

Screenshot 2024 04 04 at 22 16 33

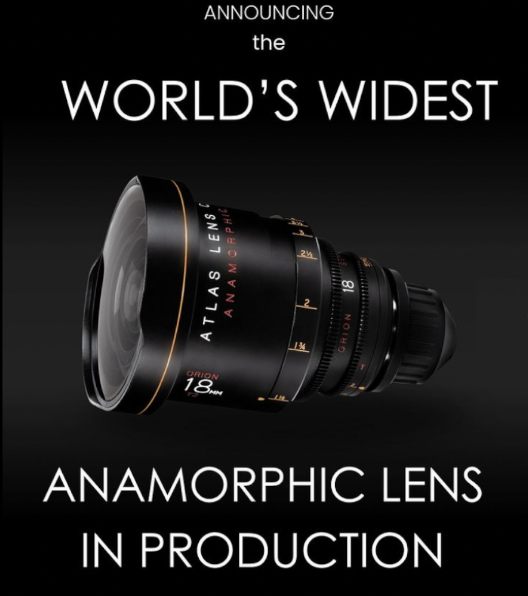

The 18mm Orion Series is currently the world’s widest-production anamorphic lens. This lens sets a new standard in ultra-wide angle perspective and it has a very close focus of 18” / 45.72cm. The 140º horizontal field-of-view gives it the widest horizontal field-of-view of any Cinemascope format 35mm motion picture camera lens in production.

Screenshot 2024 04 05 at 11 22 40 AM

Imager Coverage: 4-Perf Film for 2.40:1 Cinemascope Aspect Ratio Deliverable. 16:9 from Alexa LF Format mode (full Height) Covers full-frame formats edge-to-edge with Atlas 1.6x LF Extender & Atlas 1.4x LF Extender.

Screenshot 2024 04 04 at 22 19 26

The 135mm Orion allows for close-up shots from a distance, while the 200mm is now the longest focal length in the Orion series.

The 135mm T2.2 weighs 8.8 lbs / 3.99kg and it has a minimum focusing distance of 3.5 feet / 106.68 cm.

The lens covers well beyond Anamorphic 4 Perf Film Format into 2.40:1 delivery in Full Frame on both film and digital camera systems.

The 200mm T2.2 weighs 9 lbs / 4kg and it has a minimum focusing distance of 3.5 feet / 106.68 cm. The lens covers edge-to-edge full-frame (FF), large format (LF), or Vistavision on both film and digital camera systems. It can become a 280mm by adding the Atlas 1.4x Expander or a 320mm in combination with the 1.6x LF Extender. If you use the 2X Telephoto Extender it will become a 400mm.

The new lenses join the existing 21mm, 25mm, 32mm, 40mm, 50mm, 65mm, 80mm, and 10mm in the series.

The Atlas Lens Co. Orion Series utilize a true front-anamorphic group. They offer vintage optical characteristics and they cover slightly larger than S35 image circles.

Key features

  • Fast T2 (T2.2 for the 135mm and 200m) aperture for exceptional low-light performance and creative depth of field control.
  • Wide Angle field of view with controlled geometric distortion in a focal length loved by filmmakers
  • Interchangeable Mount System with native PL/EF mount options for versatile compatibility.
  • Exceptional optical performance, with modern mechanics and vintage look.
  • Characteristic cyan streak flares, artistic barrel distortion, and minimal chromatic aberration.
  • PL/EF mount, catering to both professional cinema cameras and mirrorless systems.

Price & Availability

Screenshot 2024 04 04 at 22 17 44

Atlas Lens Co. has limited quantities available for immediate delivery, orders placed after that will ship within 2 to 3 months.

The Orion 18mm T2 is priced at $17,995.00 USD and the 135mm T2.2 and 200mm T2.2 will be $14,995 USD each.
