Nanlux has announced its new WC-LM6P-C1 6 Pin Wired Controller for Evoke and Dyno series lighting fixtures. It is a product that many gaffers and filmmakers have requested.
The controller complements the existing physical, wired and wireless controls of the fixtures. It is useful when wireless communication is impractical due to environmental factors, or when the budget, time constraints and crew size do not allow for a wired connection from the light to a control board and operator.
- Alternative cabled control solution: The controller provides an alternative control option for Evoke and Dyno series lighting fixtures, complementing existing physical, wired, and wireless controls.
- Precision control: The controller features three knobs and three buttons for comprehensive control options, allowing easy adjustment of brightness, green/magenta values, and CCT.
- Intuitive interface: With a clear 3.2-inch display screen, the controller offers a user-friendly interface, making it accessible for both novice and experienced users.
- Robust connectivity: Equipped with an 8m connection cable, the controller ensures flexible positioning on set, addressing common challenges such as rigging lighting fixtures at elevated heights.

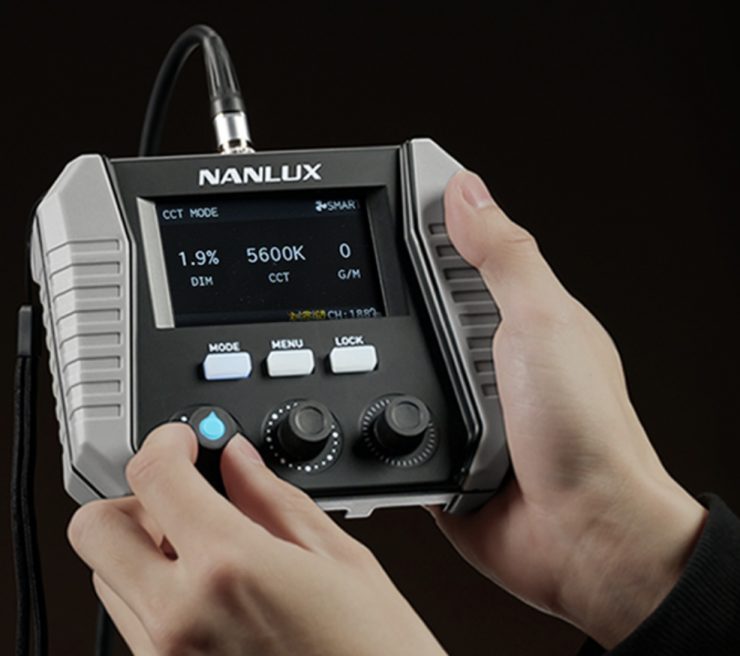

The WC-LM6P-C1 Controller replicates the physical controls of the fixtures to allow easy remote operation up to 8m from the lamp head. With its 3.2 inch display and control interface, it gives users control over high-output Nanlux lighting fixtures on set.
The WC-LM6P-C1 controls the latest Nanlux fixtures like the high power Evoke 2400B. The WC-LM6P-C1 Controller features three knobs and three buttons, providing users with a comprehensive range of control options. The left knob adjusts brightness with 0.1% precision, while the right knob handles green/magenta values. Quick switches between zero and current brightness can be done with a short press on the left knob. The green/magenta value can be switched to zero by short pressing the right knob. The middle knob is dedicated to CCT adjustment, allowing users to dial in precise values or toggle among commonly used values.
The cable features a 6-pin self-latching aviation connector on both ends, along with an additional USB connector. This design combines the advantages of high-quality and safe information transmission, as well as a stable power supply, allowing users to tackle common on-set challenges such as rigging lighting fixtures at elevated heights.
Price & availability
The WC-LM6P-C1 6 Pin Wired Controller will cost $225 USD and it is anticipated to ship by end of January 2024.
|Wired Controller: 142.5 × 120.5 × 40mm/5.61 × 4.74 × 1.57″ Carrying Bag: 205 × 150 × 180mm/8.07 × 5.91 × 7.09″
|Wired Controller: 0.29kg/0.64lb Connection Cable 8M: 0.478kg/1.05lb Carrying Bag: 0.245kg/0.54lb
|6 Pin Wired Controller × 1,Connection Cable 8M × 1 User Manual × 1, Carrying Bag × 1
