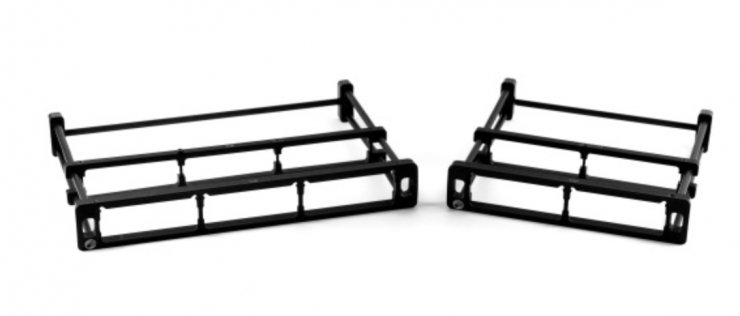

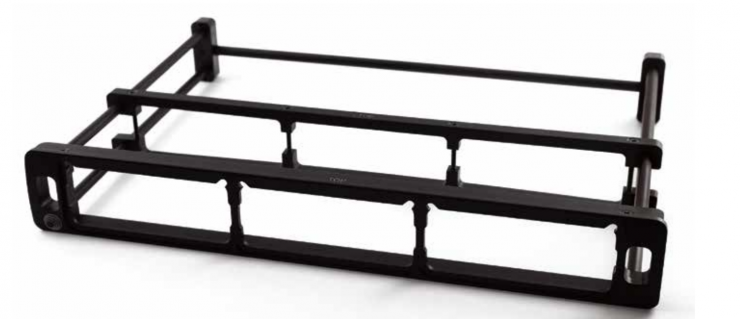

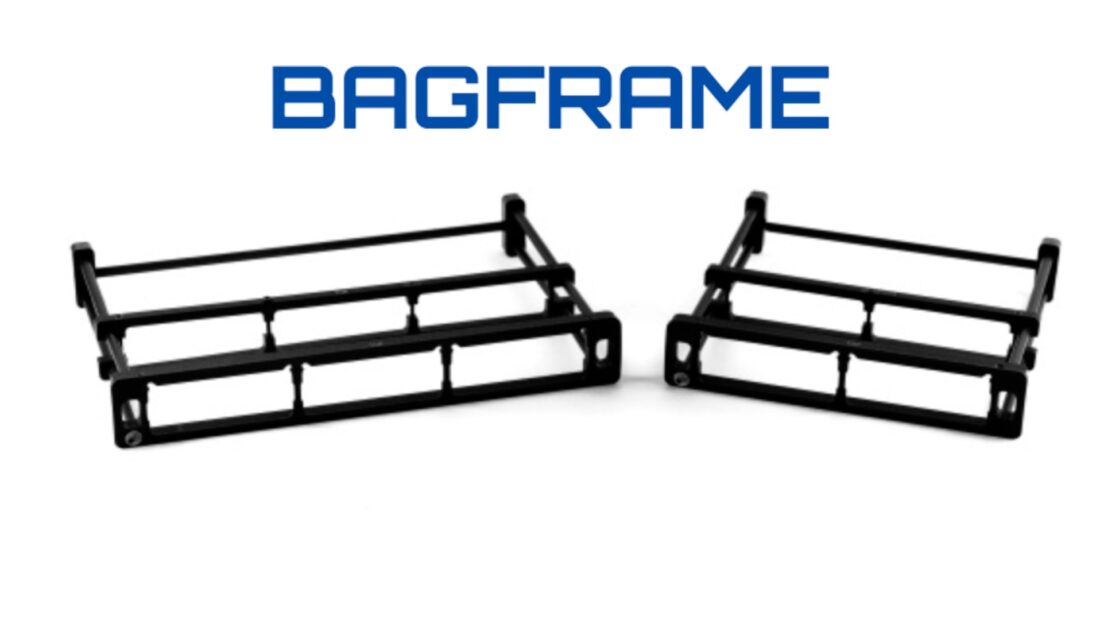

Lectrosonics has announced its new Bagframe portable receiver mounting system that was designed to allow sound recordists to mount any Lectrosonics SR, DSR, UCR211/411, and DCR822, and to keep those receivers organized in a bag.
Two different BAGFRAME widths are available: one for 2 receivers, and one for 3 receivers; while three different heights are available: S (short), M (medium), and T (tall). These kits are shipped ready to be assembled by the customers to keep assembly and shipping costs as low as possible. All Bagframe units are constructed of aluminum alloy, making them very sturdy and tough and yet very lightweight.
Key features

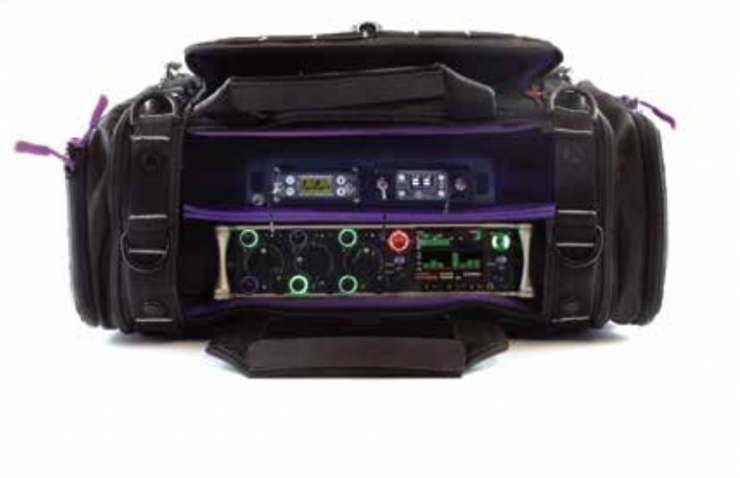

- Solves the challenge of keeping multiple units accessible and upright in an audio bag.
- Three depth sizes to accommodate a variety of commercially-available bags, with slots to securely hold two or three receiver units.
- Durable anodized aluminum construction.
- Ultra-lightweight, corrosion-resistant

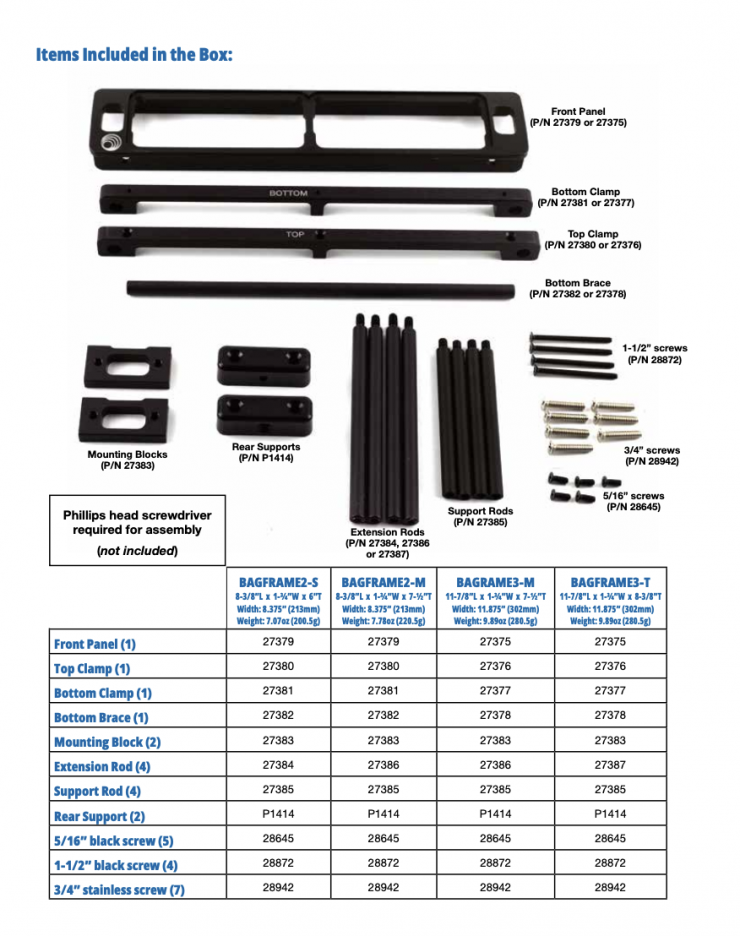

The BAGFRAME units use snap-in inserts for all receiver mounting. Some receivers also require screws and mid-frame mounts. There are specific parts or mounting kits required to mount the receivers. Audio and data connections are all handled per receiver, via whatever audio outputs or backplates are used on those receivers.
- BAGFRAME2-S (two receivers, short)
6” from front to back; width 8.375″ (213mm); weight 7.07oz (200.5g) - BAGFRAME2-M (two receivers, medium)
7-1/2” from front to back; width 8.375″ (213mm); weight 7.78 ounces (220.5g) - BAGFRAME3-M (three receivers, medium)
7-1/2” from front to back; width 11.875″ (302mm); weight 9.89 ounces (280g) - BAGFRAME3-T (three receivers, tall)
8-3/8” from front to back; width 11.875″ (302mm); weight 9.89 ounces (280g)
Price & Availability
The Lectrosonics Bagframes are now available to purchase.
The Lectrosonics BAGFRAME2-S Bag Frame for Two Portable Receivers in Short Bag retails for $278 USD.
The Lectrosonics BAGFRAME3-T Bag Frame for Three Portable Receivers in Tall Bag retails for $319 USD.
