Sony CBK-RPU7 HEVC 4K/HD Remote Production Unit

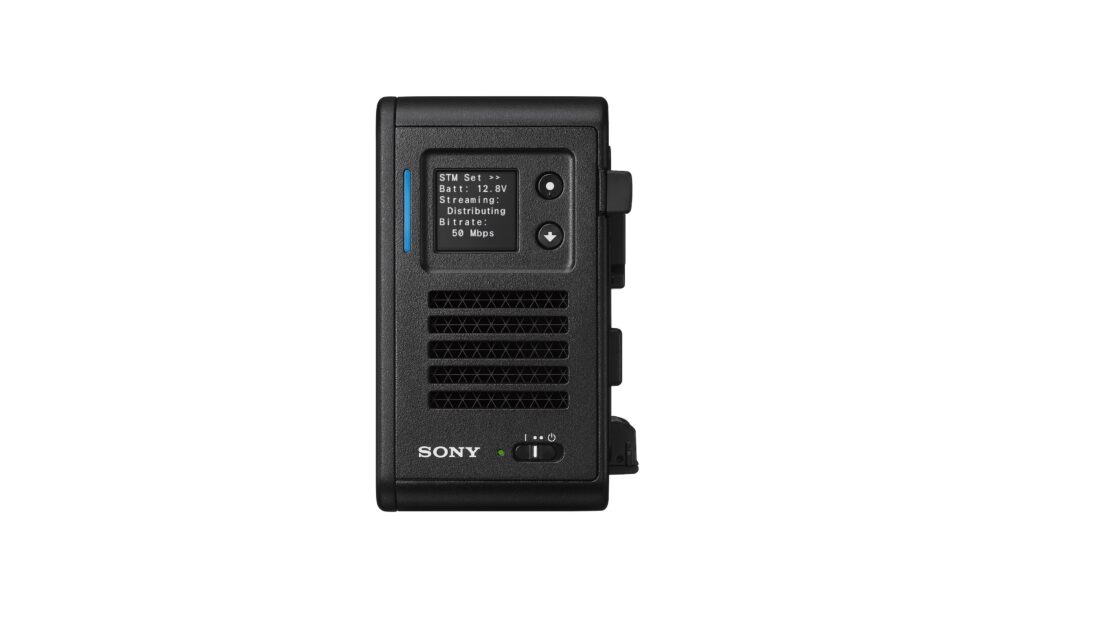

Screenshot 2023 09 21 at 4 12 25 PM

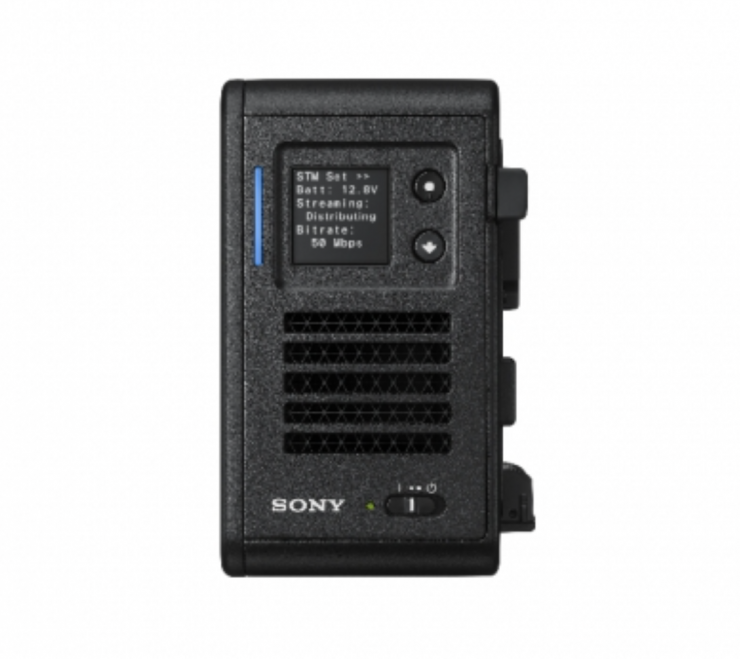

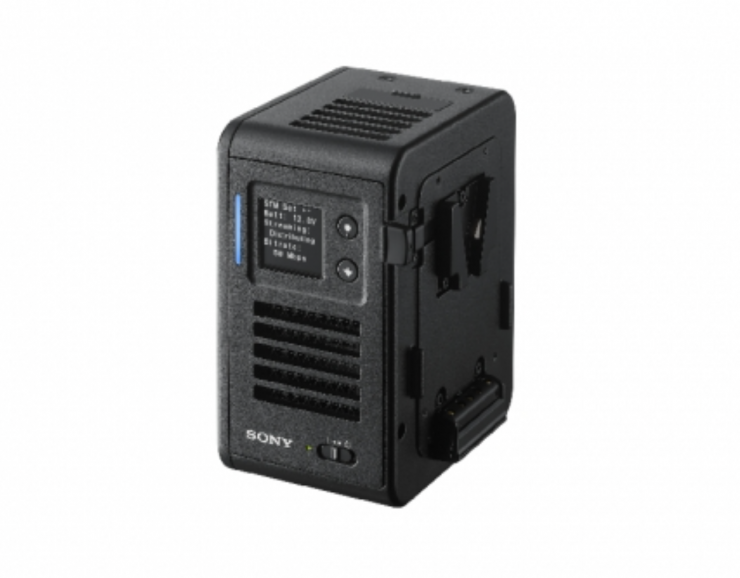

The Sony CBK-RPU7 acts as a portable 5G video transmission device when attached to a camera. Essentially the CBK-RPU7 is a wireless remote production unit module in the same form factor as the AXS-R7 RAW recorder that is attached to the V-mount plate of a camera.

By leveraging high-speed connectivity (such as 5G) through Networked Live and Sony’s other ecosystem of solutions you can use the CBK-RPU7 for creating high-quality live streaming.

With 5G now becoming more widespread across the world, the ability to transmit larger volumes of data with low latency and stability has become a lot easier.

Screenshot 2023 09 21 at 3 53 39 PM

Using the available bandwidth efficiently is critical when you need to deliver high-quality live images for production.

Screenshot 2023 09 21 at 4 10 19 PM

When coupled with 5G connectivity, the CBK-RPU7 enables a streamlined workflow for connecting remote teams to studios and live production environments by using the NXL-ME80 as a receiver.

Using Sony’s developed codec chip, a wireless camera can have similar performance to wired cameras. The CBK-RPU7 supports a wide range of formats, from HD to 4K 60p/50p 10-bit HDR transmission, which enables pairing with a wide range of cameras. In addition to supporting sports production, it also accommodates DCI 4K, 24p. This makes it suitable for cinema and virtual production remote monitoring.

Screenshot 2023 09 21 at 4 07 18 PM

The CBK-RPU7 not only supports HEVC encoding but also offers a range of features to ensure efficient operations while operators are in remote locations. The bi-direction connectivity enables industry-standard features like tally and return video, and also includes data links for remote camera shading.

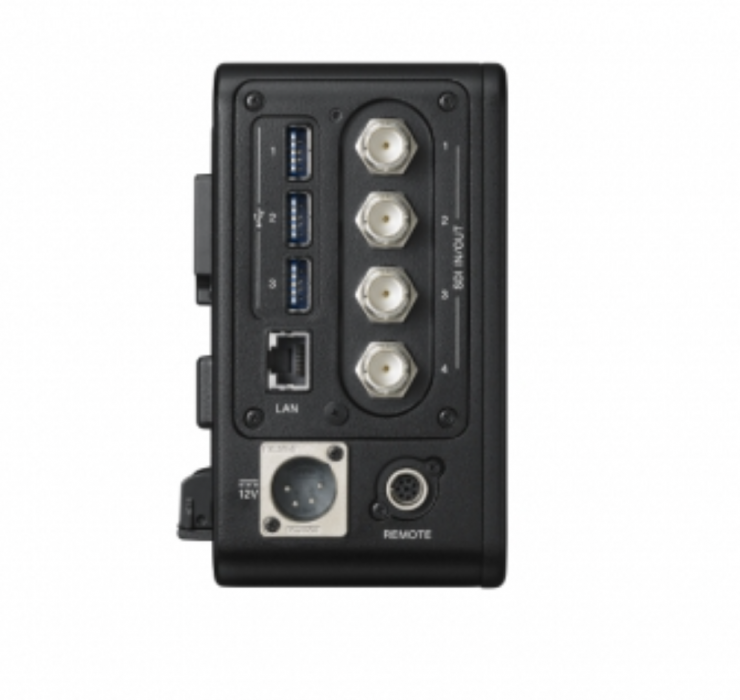

The CBK-RPU7 has the following SDI inputs and outputs:

  • SDI 1, SDI 4 BNC, 12G/6G/3G (Level-A) /1.5G IN/OUT
  • SDI 2, SDI 3 BNC, 3G (Level-A) /1.5G IN/OUT
