At IBC 2002 in Amsterdam, Chrosziel announced its new Meta Mount, an E mount camera to PL mount lens adapter with electronic contacts for metadata communication and lens control.
This is a really interesting lens adapter and it is the first time, at least to my knowledge, that anyone has released a smart PL mount that can be used on Sony E-mount cameras.
This is certainly not a cheap solution and it isn’t aimed at the casual user of a Sony a7S III or FX3. This is squarely aimed at users of the Fx9 who want to run PL mount servo zoom cine lenses or other expensive cine lenses with LDS or Cooke /i Data capabilities.
Key features
- Sony E Mount Camera to PL mount Lens
- Electronic contacts for metadata communication and lens control
- Lens metadata displayed in camera and recorded to file
- Shimmable E Mount
- Full focus/Iris/Zoom control on servo motor ENG lenses

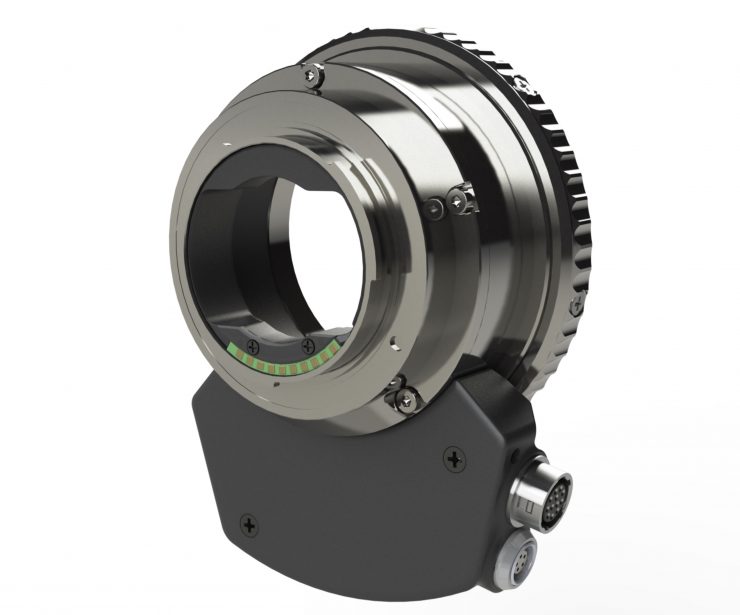

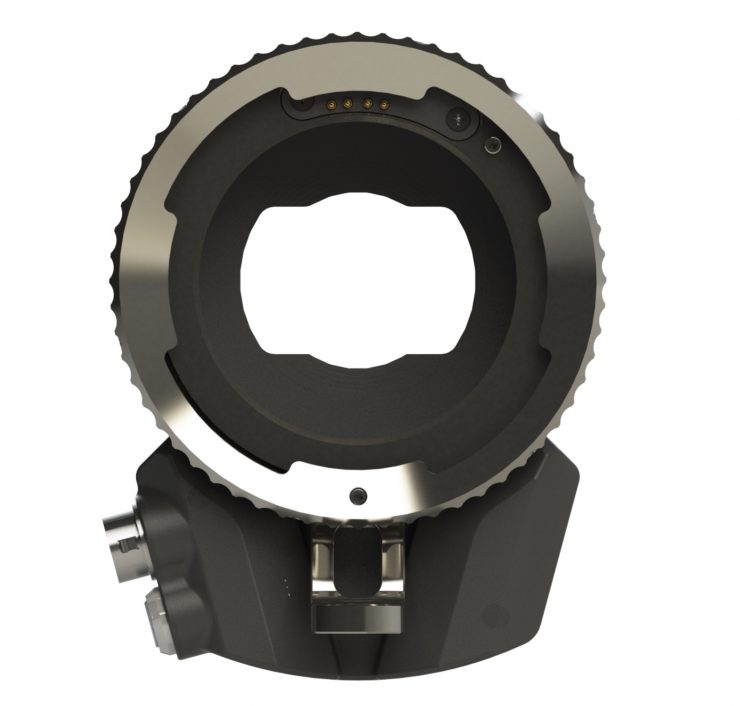

The Chrosziel Meta Mount is a Sony E camera to PL lens “hot mount” adapter with metadata communication. Each mount has the required pin contacts necessary to transmit lens metadata through to the camera and conversely the contacts provide lens control through a 12-pin Hirose out connection to an ENG lens.
When the Meta Mount is used with cine lenses with LDS or Cooke /i Data the metadata such as iris setting, focus distance and zoom focal length are transmitted through the adapter and appear in the viewfinder and monitor. This metadata is also recorded in the video file for use in post-processing.
When the Meta Mount is used with an ENG/EFP servo motor-controlled lens the Focus/Iris/Zoom can be controlled through the camera. It is also compatible with Sony FX9 / FX6 / FX3 hand grips, RCP, or the camera’s web GUI. This allows for easy and full control of an ENG broadcast lens through a Sony E mount camera.
The Meta Mount is shimmable with the included shim set for the E-mount.
Price & availability
The Chrosziel Meta Mount is available for pre-order and is expected to begin shipping in late September. The List Price is €3.850,00 Euros / $3,850.00 USD.
The Meta Mount will be shown at the Sony stand during IBC 2022.
