SmallHD OLED 27″ 4K Reference Monitor

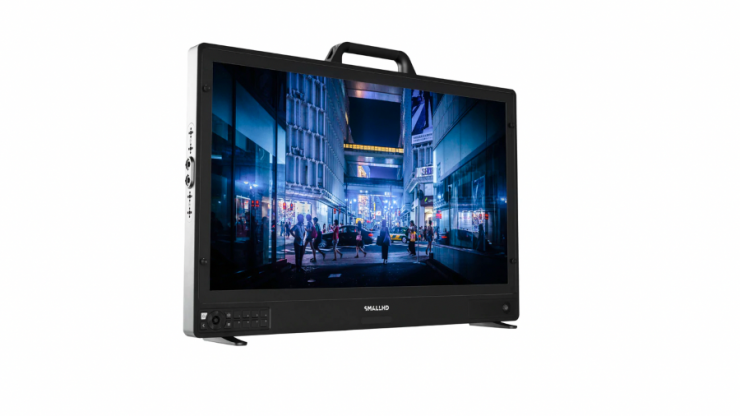

Screen Shot 2022 04 24 at 20 48 22

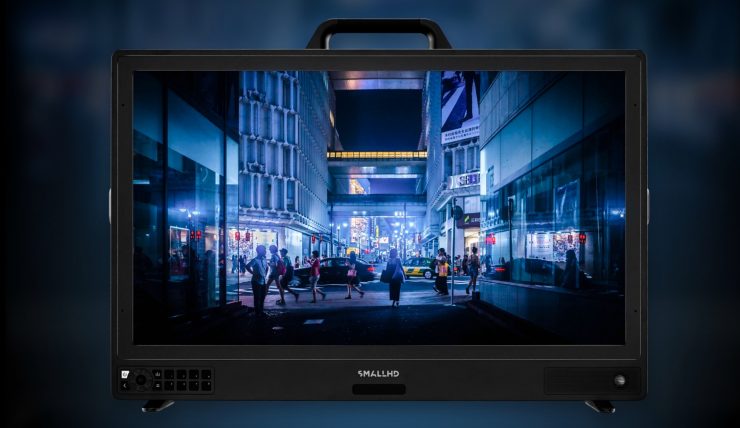

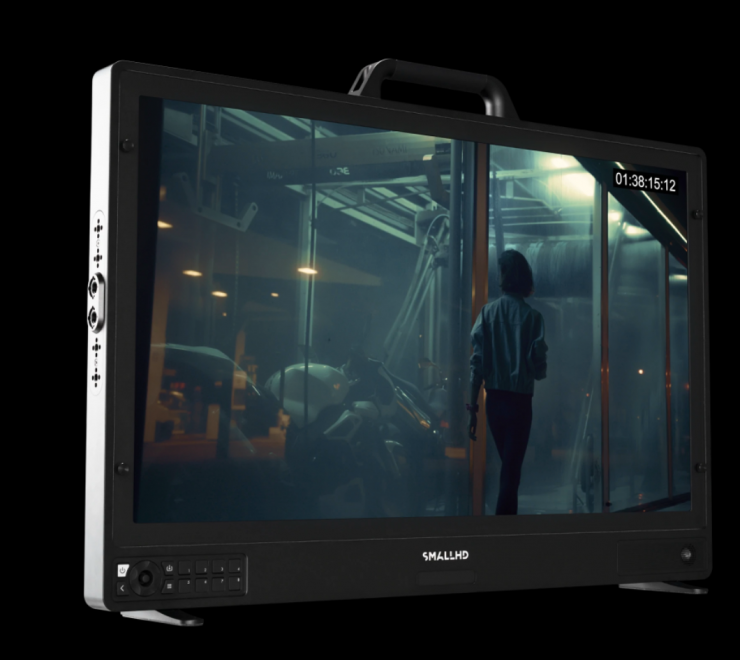

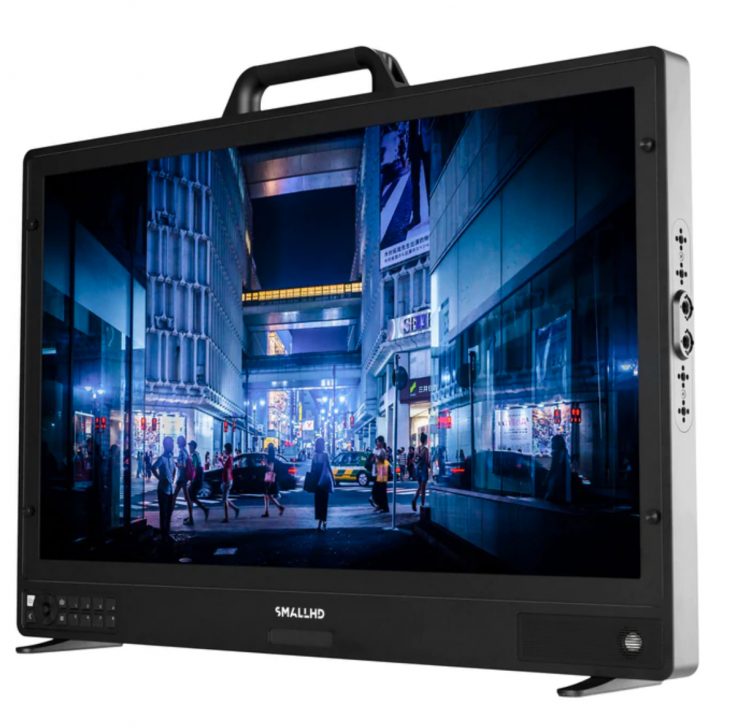

At NAB 2022, SmallHD has announced its new OLED 27″ 4K Reference Monitor. According to SmallHD the OLED 27 is a true 10-bit, lightweight, durable 4K UHD monitor with incredible black detail and unmatched contrast.

SmallHD claims that the OLED 27 4K Reference Monitor is a perfect fit on set or in a premium color suite.

The OLED 27 features a 1,000,000:1 contrast ratio and 500nits of brightness. SmallHD claims that this new monitor can display up to 12.3 stops of dynamic range. It covers 110% of DCI-P3 and 135% Rec. 709 color gamuts.

Key features

  • Contrast Ratio: >1,000,000:1
  • Screen Size: 26.9in / 68.3cm
  • Bit Depth: True 10-bit
  • Color: 110% DCI-P3 / 135% Rec. 709
  • Resolution: 3840 x 2160
  • Brightness: Up to 550nits

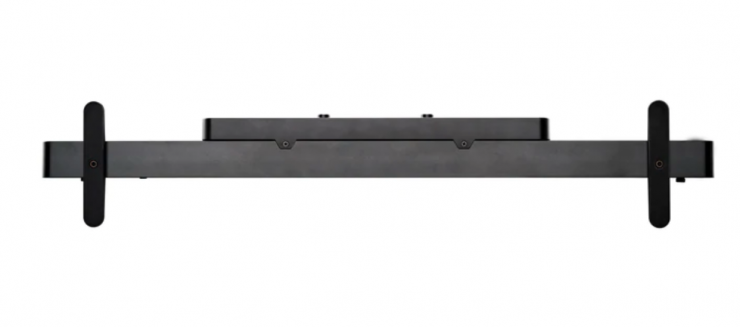

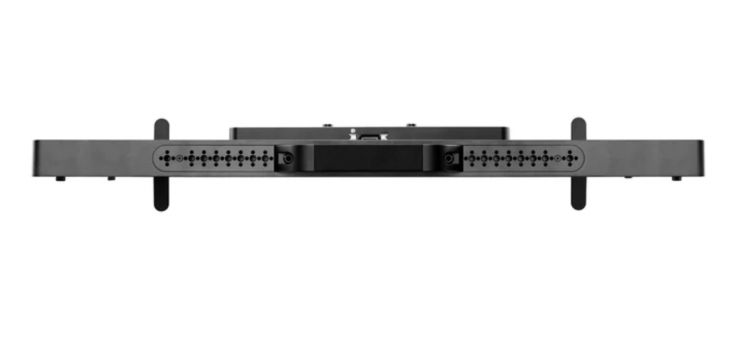

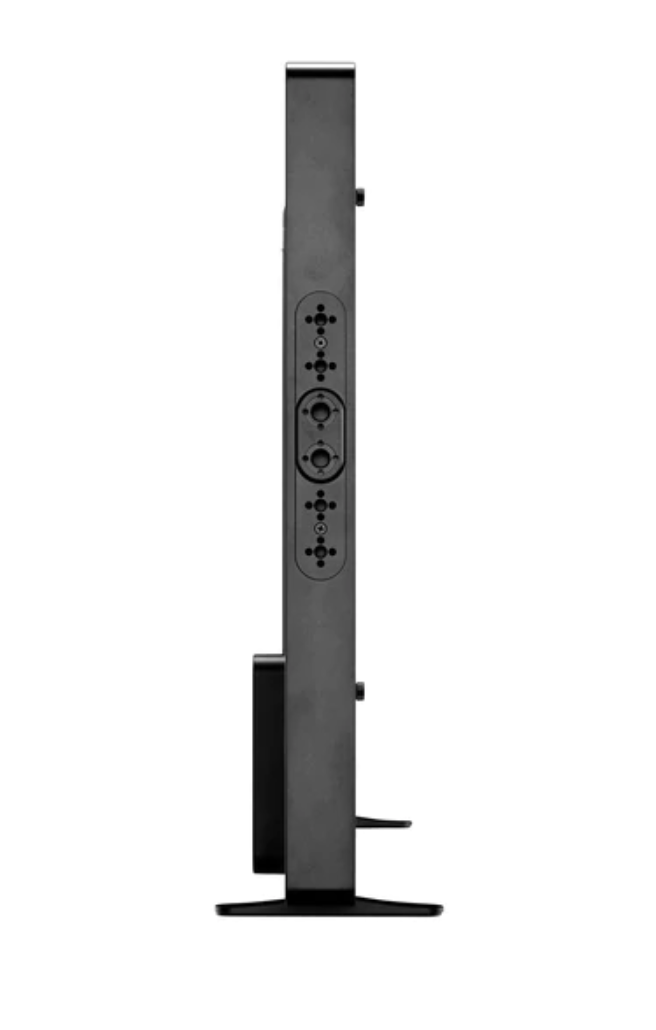

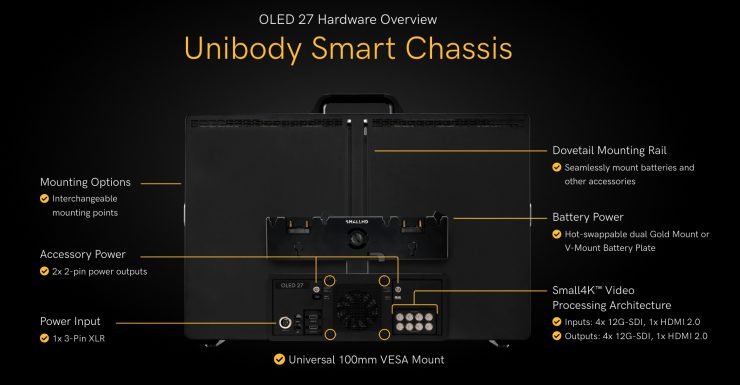

SmallHD’s OLED 27 features a unibody chassis crafted from aircraft-grade aluminum and weighs in at 13.16lbs / 5.97kg. It features multiple versatile mounting points, offering customizable power and accessory configurations.

Screen Shot 2022 04 24 at 20 35 06

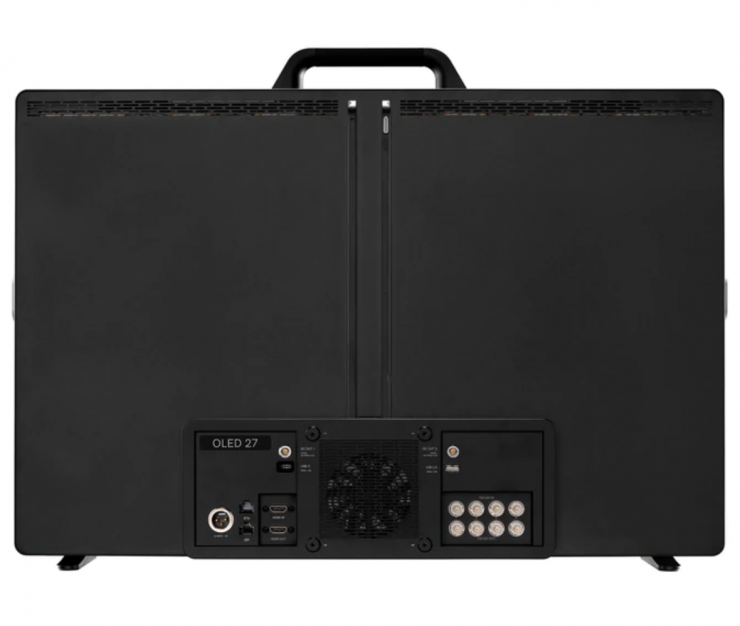

The monitor features 4x 12G-SDI inputs/outputs, 1x HDMI 2.0 in/out, 1x 4-pin XLR power input, an SD card slot, and 2x 2-pin locking power outputs to power external devices, such as Teradek Bolt 4K products.

The included PageOS 4 toolset features Color Pipe HDR color-rendering, Waveform, Vectorscope, Monitor Calibration Wizard, etc. The PageOS 4 UX/UI offers quick and repeatable setups and full control over all parameters and display tools. OLED 27 is fully compatible with the entire zero-delay Teradek Bolt 4K ecosystem.

Pricing & Availability

The SmallHD OLED 27″ 4K Reference Monitor retails for $11,999 USD. Strangely on B&H it is listed as $13,499.10 USD. I would imagine that price will get changed shortly.


Screen Shot 2022 04 24 at 20 55 45

Competition comes in the form of the Flanders Scientific XM312U, Sony PVM-X3200 4K HDR Trimaster High-Grade Picture Monitor (32″), Canon DP-V3010 30″ 4K Reference Display, Atomos NEON 24″ 4K HDR Monitor/Recorder, Atomos NEON 31″ 4K HDR Monitor/Recorder (which is currently available),
