amaran F21c, F21x, & F22c, F22x LED Flexible Panel Lights First Look

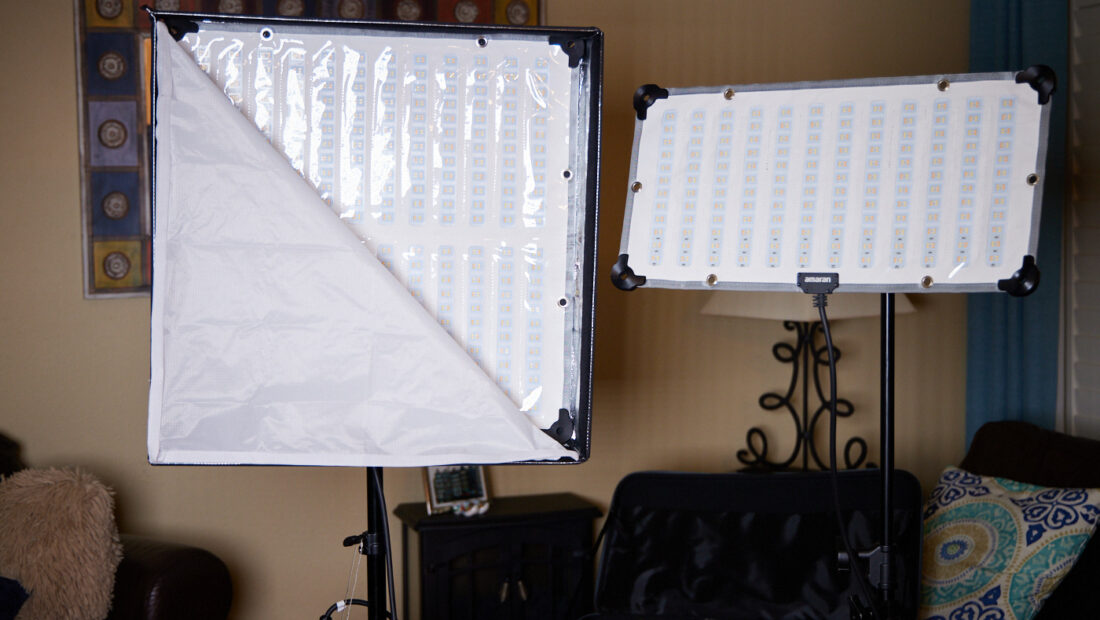

amaran F22 and F21

Flexible LED panels have some solid advantages as well as drawbacks. Since they are flat and have no bulk, they can be mounted directly to a surface like a wall or ceiling. In tight spaces, they can be very handy. The downside is they need to be put together to be used as a basic fixture. I always say use the right tool for the job, and flexible lights offer some advantages if you need them.

The F22c and F21c are RGBWW and the F22x and F21x are bi-color.

I have to admit I was a bit surprised amaran decided to introduce a new line of flexible LED panels. They were extremely popular five years ago, but I don’t see them as often now, Not to say they aren’t helpful. LiteGear is the market leader when it comes to panel lights, and they are used on a lot of sets today.

What’s Included

amaran F22c Clean 0004 x1000

Each kit includes the following in the F21c, F21x or F22c, F22x LED Flexible Panel fixture kits.

  • Fixture
  • Head Cable (3m)
  • Head Extension Cable (3m)
  • AC Power Supply
  • AC Power Cable
  • X Type Support Frame
  • Softbox set includes a softbox with two soft diffusion cloths and a grille
  • amaran Carrying Case

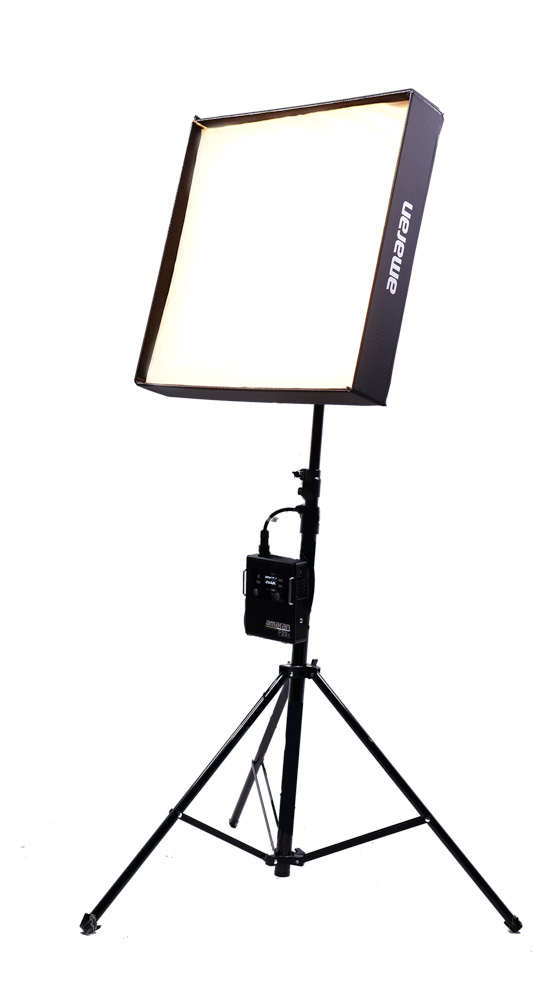

As I mentioned earlier, setting up flexible LED panels is a little more work than traditional lights. They come in a few pieces, and to be used as a conventional light, you use the included frame with light stand receiver. I like the design of the frame as it’s sturdy and doesn’t use hook and loop fabric to attach to the frame.

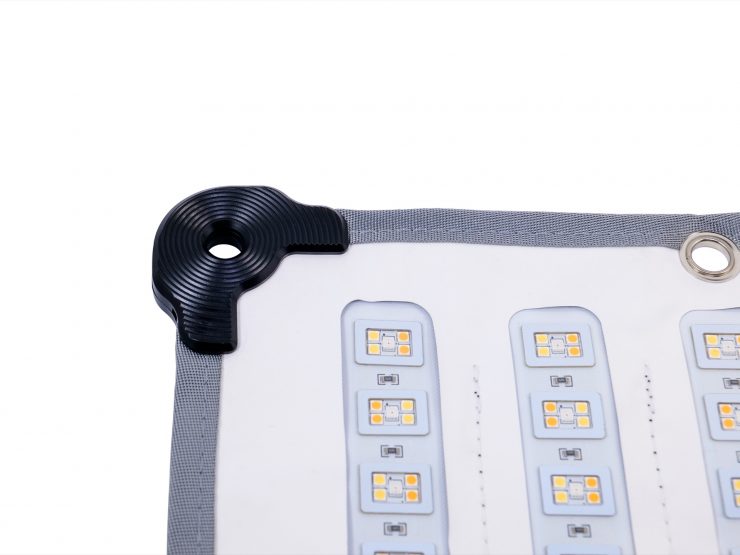

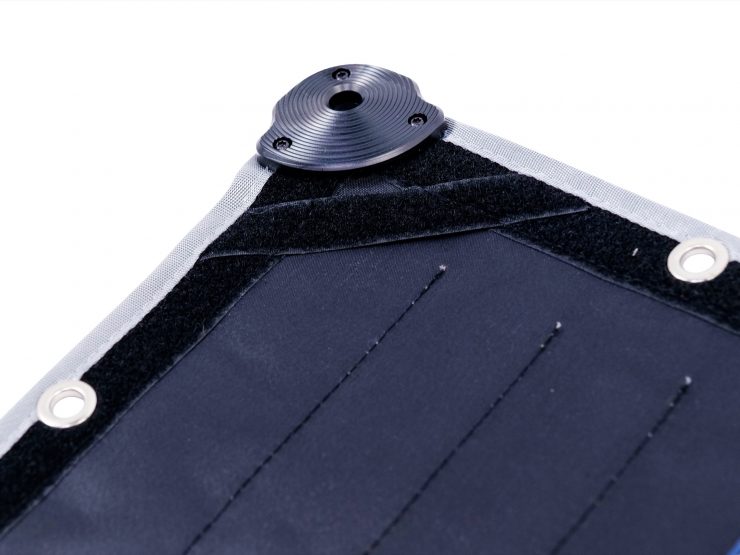

The X-Type Frame ends inserts into reinforced corners of the panel and pulls it out a little. It holds sturdy and won’t slip off easily, making it a good option for overhead use. Some of the Velcro-style frames tend to sag a little and are much more prone to falling off the frame over time.

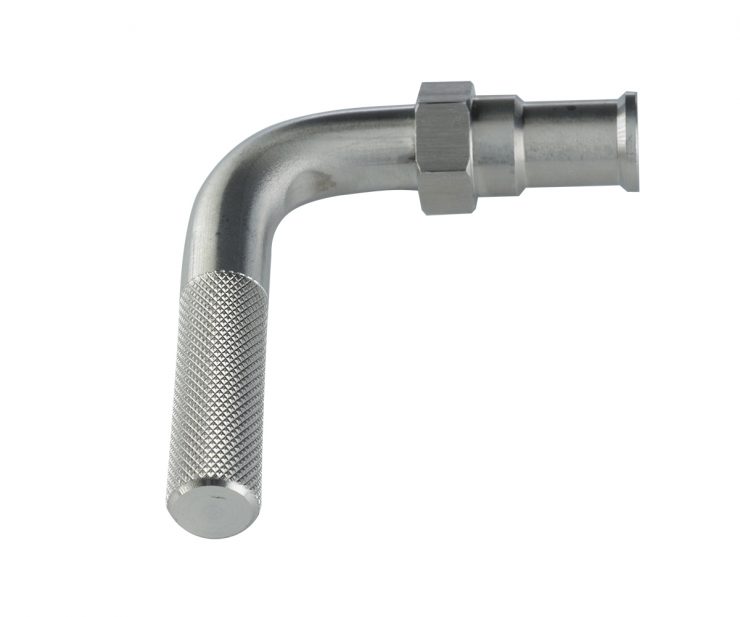

The light stand receiver is not my favorite. It’s on the light side and doesn’t lock down tight easily. You have to crank it down. I would upgrade this with a more robust light stand adapter or go with a grip head. The angled pin is also a bit odd as the end of the pin is a 3/8 16″ adapter.

amaran f22 mount and grip head

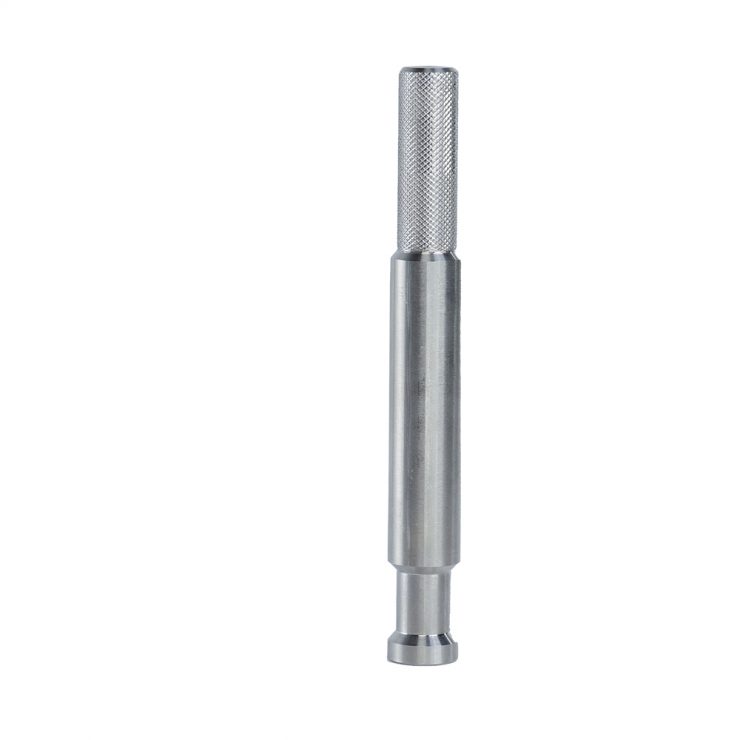

I like the included straight baby pin. It fits in a sturdy grip head so much better than the included adapter. I do understand the amaran line is for the budget-minded user.

amaran F22c Clean 0001

The cable is attached to the panel with a reinforced hard plastic bracket on both sides. This build is good and shouldn’t break easily; however, the F22c preproduction model started having some issues, and a row of LEDs changed colors when the connection was wiggled a bit. The other models didn’t have problems, so I’ll chalk it up to being a pre-production model. I will say the cable is thick and well-designed with locking connectors.

Controller and Powering

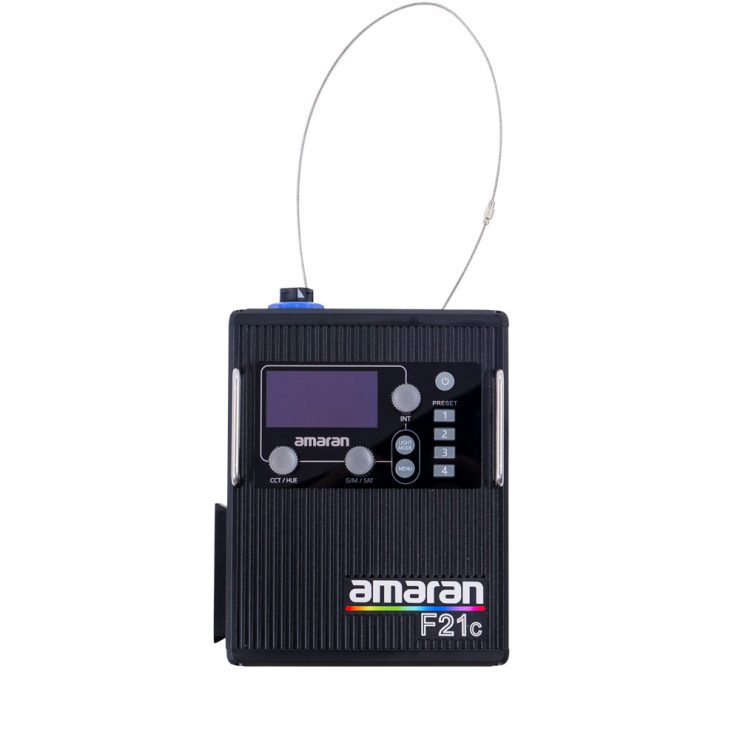

The controller is equipped with either a V-Mount or Gold Mount plate and has the Aputure QR plate on the side. However, the clamp to mount it isn’t included in the kit.

amaran F22c Controller 0008 x1000

The Aputure Lightening Clamp retails for $69 USD. I think it’s worth having as I do not like hanging controllers on the stand, especially with a battery attached. It gets bumped a lot and is a bit sloppy to use.

The lights come with a cord that lets you hang the controller on a light stand’s lockdown knob.

The control box is outfitted with a multi-voltage battery plate. You can use a 14.4V battery to achieve half power or max out the intensity with full power when using compatible 26V or 28.8V batteries. You can also achieve full output when using the AC power supply.

amaran F21c F22c Controller 0002 x1000

A new feature that will be popping up on fixtures in the amaran product line is DMX control with a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, allowing professional-level control to the flexible light product line. This USB-C DMX input is also included with the new amaran Tube Lights that were also announced.

Controller Fan Noise

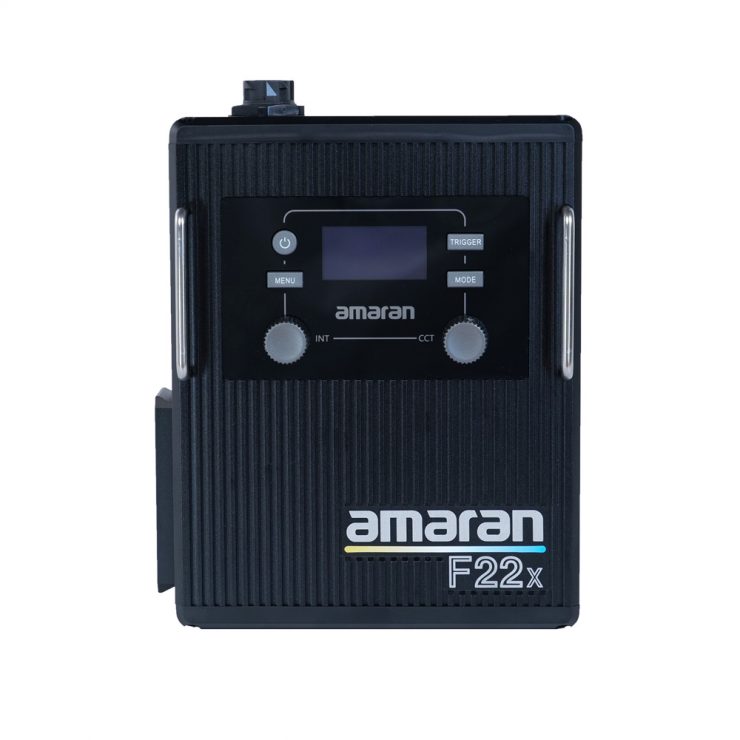

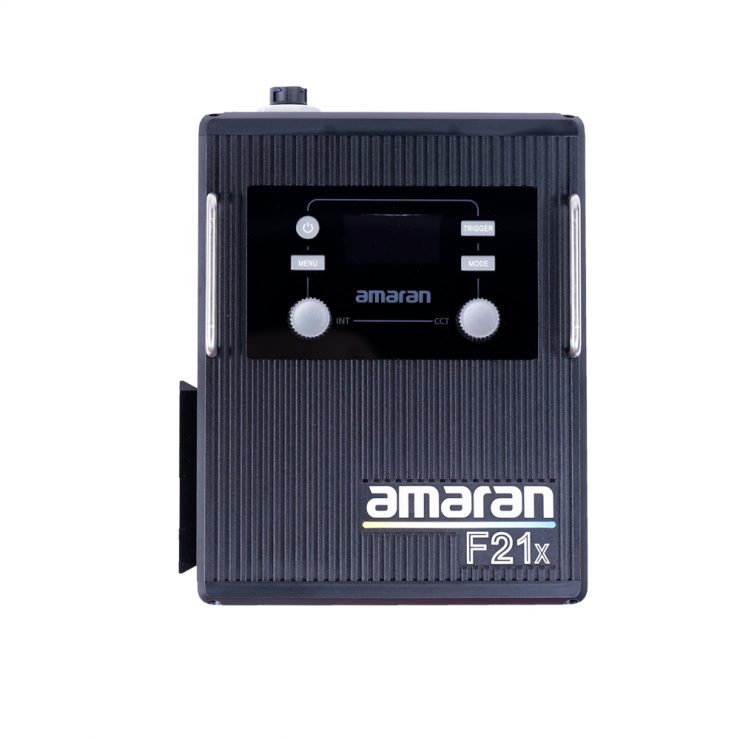

The F22x and F22c have a fan to keep them cool. I found the F22x is a touch louder than the F22c. It’s a bit odd the two controllers have different fan noises. I wish the tone was deeper; however, it’s a little bit on the higher end, and that is a little concerning if the light is close to sensitive microphones. Overall the fans are too loud for my liking, and I would have to move them away as far as possible from the microphones. It’s something to be aware of. The F21 fixtures have a passive cooling system, so no fan is used inside the controller.

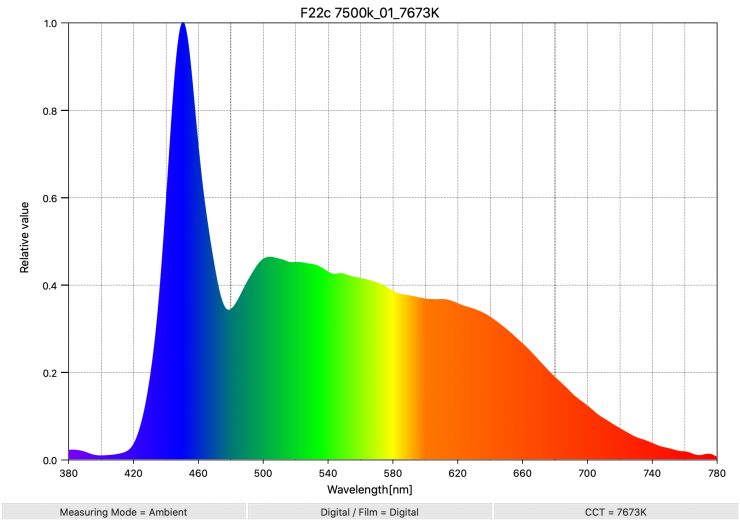

F22c Kelvin Color Temperature Accuracy & Color Rendering Scores

The 200 watts F22 model is basically two 100W F21 panels combined. Therefore you can expect half the output with the F21 model.

All tests were done with a Sekonic C-700-U from 1-meter / 3.3′.

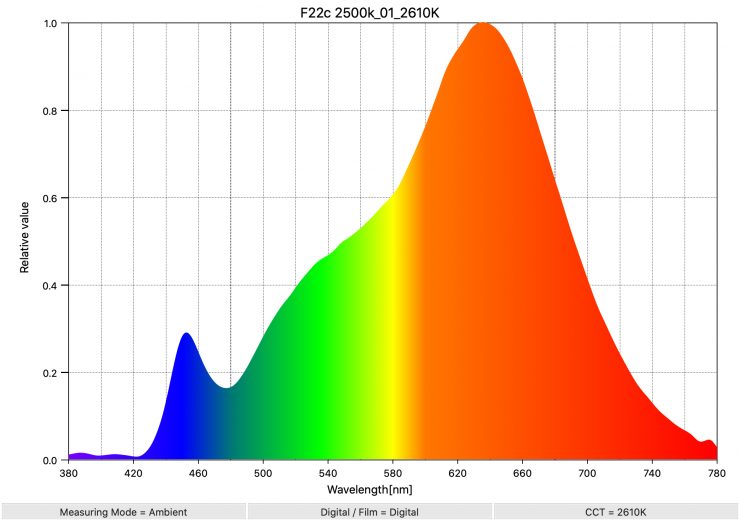

96.592610K0.2G17 MK-1

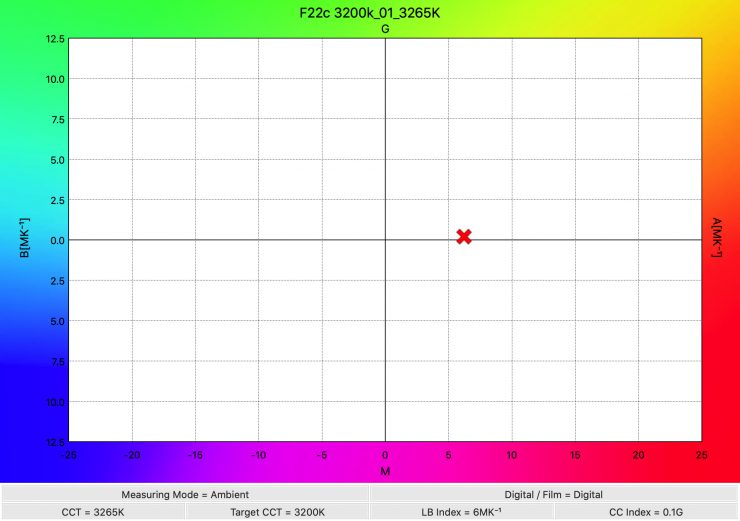

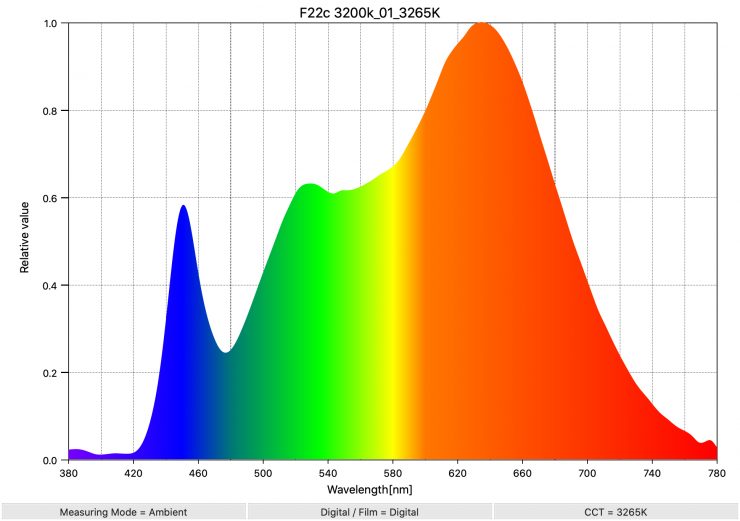

94.403265K0.1G6 MK-1

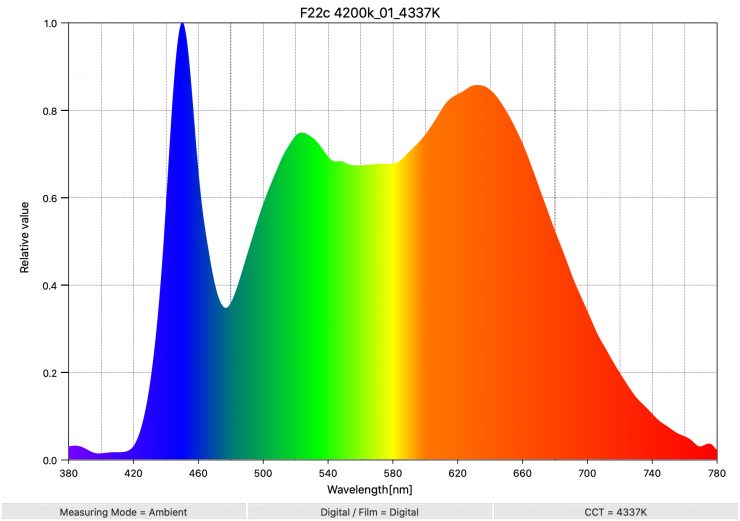

93.744337K0.1G8 MK-1

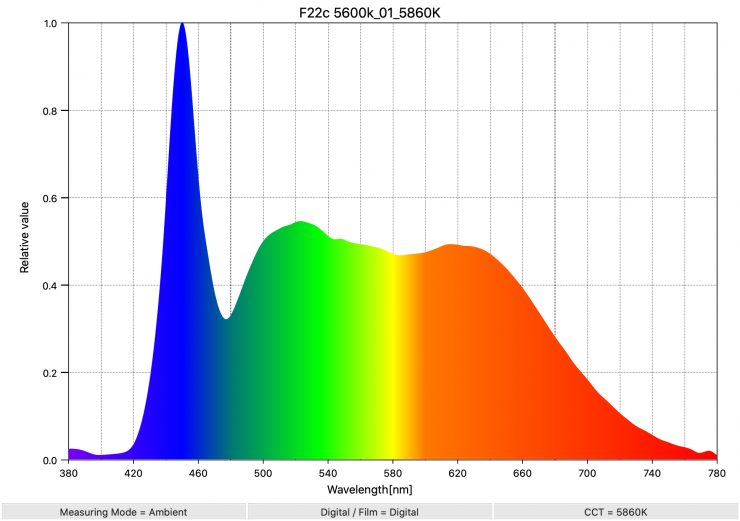

95.045860K0.2G8 MK-1


95.777673K0.6G3 MK-1

The light has pretty good extended CRI scores, like most LED lights these days. The Kelvin color temperature accuracy is reasonably good and the light doesn’t have any big noticeable shifts towards magenta or green.

F22c & F22x Output in CCT Mode

amaran f22

So now that we have seen the color rendering scores and the Kelvin color temperature accuracy, let’s have a look at the output.

All tests were done with a Sekonic C-700-U from 1-meter / 3.3′.

KelvinF22c F22x
2500K8240 lx8000 lx
3200K8040 lx8120 lx
4200K8120 lx8440 lx
5600K8770 lx8850 lx
7500K8850 lx9290 lx

Overall, the F22x is slightly brighter than the F22c, but not by much. The output is fairly consistent over the entire Kelvin color temperature range, although it is interesting to see that both lights had the most amount of output when used at 7500K.

If you need RGBWW in a fixture, the F22c is a better option; for a few more bucks, you get two fixtures types with minimal sacrifice in output.

F22c HSI Output

amaran f22 LEDs

To get an idea of the output when in HSI color mode, I took readings in the primary six colors from 1-meter / 3.3′.

HSI ColorF22c (1 meter)
Red 0°1010 Lux
Yellow 60°2360 Lux
Green 120°1740 Lux
Cyan 180°2230 Lux
Blue 240°392 Lux
Magenta 300°1160 Lux

As you can see, the output when using various different saturated colors varies quite dramatically.

Included Modifier

amaran F22c Softbox Setup 0003 x1000

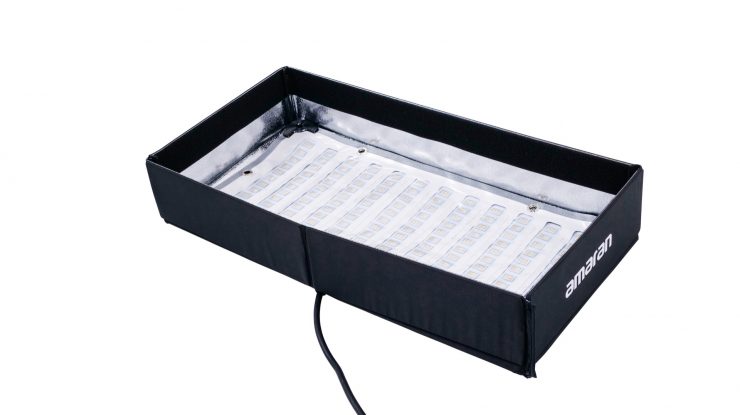

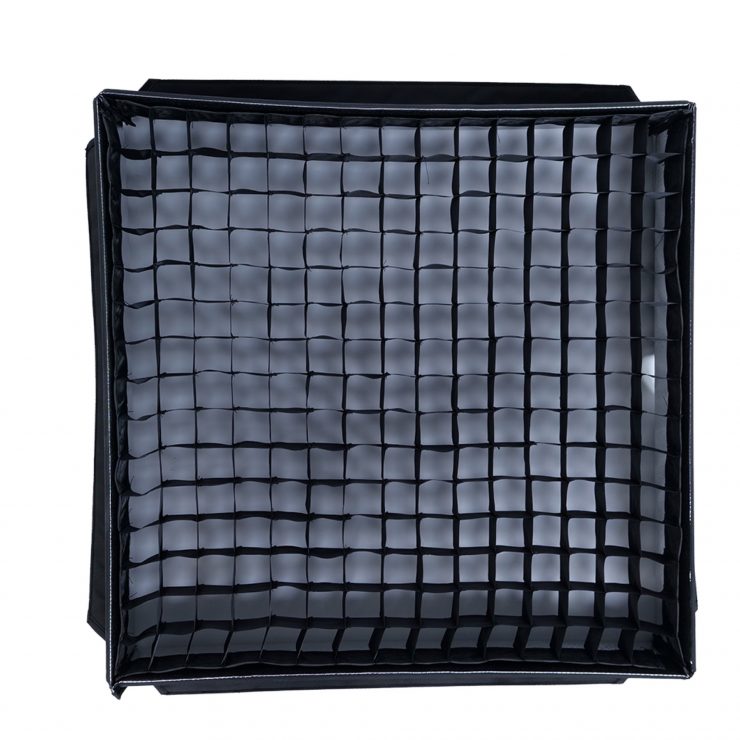

The kits include a 4″ shallow softbox that attaches with a hook and loop fastener. It fits nicely on the panel and comes with two diffusion fabrics: a 1/2 stop grid cloth and a milky 2.5 stop magic cloth type. I love the heavier diffusion. Since the box isn’t very deep, it softens it up more, and the fixtures have plenty of output so it can handle a stronger fabric in front.

When it comes to soft light, you want to get the diffusion farther away from the light. 4″ is not a lot. It’s nice to have a softbox included, and I appreciate the simplicity. However, I would punch it through a 4×4 or 6×6 frame to get a more pleasing look. Again. These are tools, and you have an included option that will work well in many situations.

Bare LEDs tend to cast multiple shadows. I highly recommend using the included modifier with at least the 1/2 Grid Cloth to smooth it out. Bouncing is also an option.


Screenshot 2022 03 31 at 4 31 48 PM

There are a lot of 2×2 flexible LED panels out there in the market. Last year Matt reviewed the Intellytech LiteCloth 2.0 LC-160RGBWW Foldable 2 x 2 LED Mat Kit (V-Mount) ($1,199 USD). That light draws 160W and it outputs 3130 lx / 290 (fc) when set at 5600K and run off mains power. The Intellytech has way less output than the amaran, but it draws less power and can be run at 100% output from a single flight safe battery.

Screenshot 2022 03 31 at 4 31 17 PM

Matt also reviewed the daylight-only Intellytech LiteCloth LC-160 2.0 ($819 USD). This light draws 160W and recorded an output of 3880 lx / 360 (fc) when set at 5600K and run off mains power.

Final Thoughts

The amaran flexible lights are well built with plenty of output for their wattage. I’m a bit surprised by the release since these styles of lights have somewhat cooled off over the years. Clearly, amaran feels there is interest in them as Aputure does listen to its customers and does a good job creating products they want. With that, the F22 fixtures are brighter than other 200W 2’x2′ models, so I see these as an advancement of the flexible panels at a lower price.

The fixture’s design and frame are well designed, I like that it doesn’t use a hook and loop for attaching to a frame. The eyelets can come in handy for mounting to a custom frame or nails to a surface. I do wish it included the controller mounting clamp as I like the feature with other Aputure lights that have controllers. I’m sure it comes down to keeping the cost lower.

I’m looking forward to seeing the lantern they will be releasing for the flexible light, as that would increase its usability. Always a good thing.

Pricing and Availability

The F21 and F22 series Flexible LED Light panels are available today for pre-order. Pricing below:
