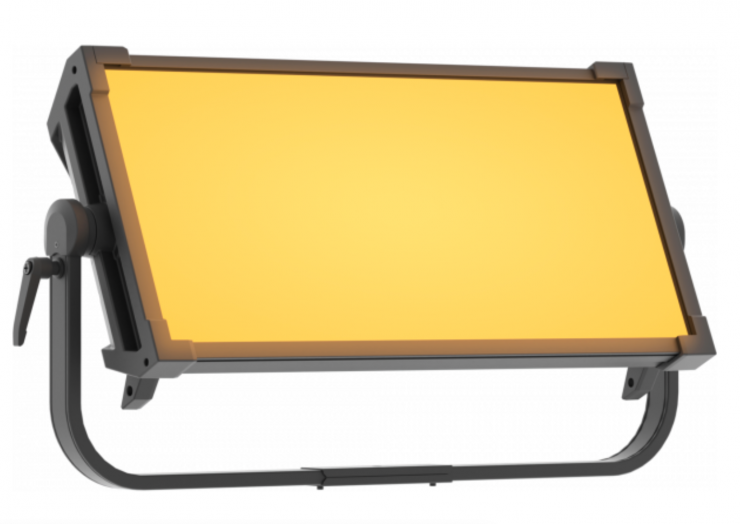

The PROLiGHTS EclPanel TWC is a 740W (driven @ 430W) Tunable White and colorful LED soft light with pixels and lighting effects.
The EclPanel TWC is a compact 2×1 LED soft light that is claimed to be able to reproduce a full range of white light, from daylight through to tungsten tones. PROLiGHTS states that the EclPanel TWC can produce superior light quality with high CRI, TLCI, and TM-30 scores.
If you are not familiar with PROLiGHTS, they are an Italian lighting manufacturer whose products can be found on shows, tours, events, installations, broadcasts, and films, in theatres, studios, houses of worship and venues around the world.
Key features
- 740W RGB + Warm White Led source (driven @430W)
- CRI > 95.5; R9 > 92; TLCI > 92
- 8 section pixel control and built-in lighting effects for Cinema applications
- Silent operation with multiple fan modes
- Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
You can adjust the light through 3 rotatory knobs with three fully-featured modes: CCT with +/- green shift, HSI for total control of hue, saturation, and intensity, and an FX mode that gives users access to the onboard pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk.
The light is designed with an onboard driver and a built-in power supply.
TECHNICAL SPECIFICATIONS
- Source: 740W RGB + Warm White LEDs (driven @ 430W)
- Luminous flux: 34’236lm @4.000 K with MD filter
- Lux: @4000K, 517lx @5 m
- CRI: 94.6 @3.200 K; 95.5 @5.600 K
- R9: 97 @3.200 K; 92 @5.600 K
- TLCI: 92 @5.600 K
- TM30 Rf: 92 @3.200 K; 89.5 @5.600 K
- TM30 Rg: 103 @3.200 K; 102.4 @5.600 K
- Source life expectancy: > 50.000 h
- Beam angle: 102°
- Field angle: 159°
- Lens type: Medium Density diffusion panel (interchangeable)
- Additional optics: see available accessories
- Color control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Color Macros, CTO on colors
- Color mixing: RGB + Warm White
- CCT: CCT control range from 2.200K to 15.000K, + / – green correction, tungsten emulation
- White presets: 2.800K – 10.000K with 28 K resolution
- Colour wheel: virtual color wheel with macros
- Macros: Gels library on-board
- Control Resolution: 16-bit dimmer, colors
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
- Body: sturdy die-cast aluminium body
- Body colour: black
- Protocols: DMX512, RDM, W-DMX, rotatory knob
- Stand Alone: selectable mode through 3 rotatory knobs
- Pixel control: 8 section control
- Wireless Control: integrated, CRMX + WDMX TRX
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 – 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker-free frequency with adjustable PWM
- Selectable PWM: 600 ~ 36.000 Hz
- Mains power supply: 100-240V – 50/60Hz
- Low Voltage DC mains: 24-36V
- Max power consumption: 460W
- Power factor: >0.94
- IP rating: 20
- Cooling: active, silent operation
- Suspension and fixing: bracket for hanging and positioning

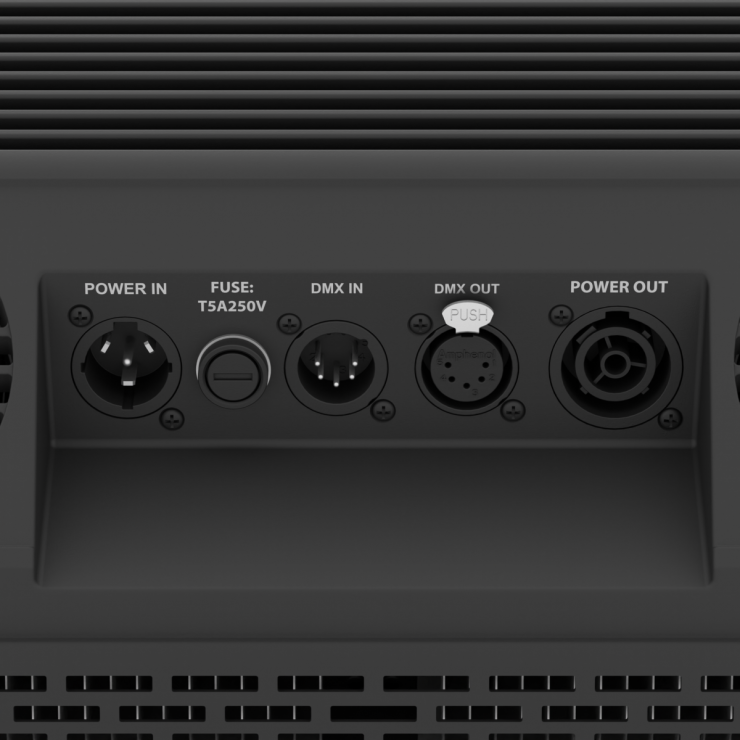

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Low Voltage DC connector: XLR 4p
- Dimensions (WxHxD): 819x431x144mm / 32.24” x 16.97” x 5.67”
- Dimensions with PO system (WxHxD): 836 x 431 x 144mm / 32.91” x 16.97” x 5.67”
- Weight: 15.3kg / 33.73lbs
- Weight with PO system: 17.1kg / 37.7lbs
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
- 1 x ECLPANELTWC
- 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
- 1 x ECLFRSPG
- User Manual
Price & Availability
The The PROLiGHTS EclPanel TWC reatils for $4,045.50 USD.
