PortKeys MT22 21.5-inch 1000nits 10-bit FRC production monitor

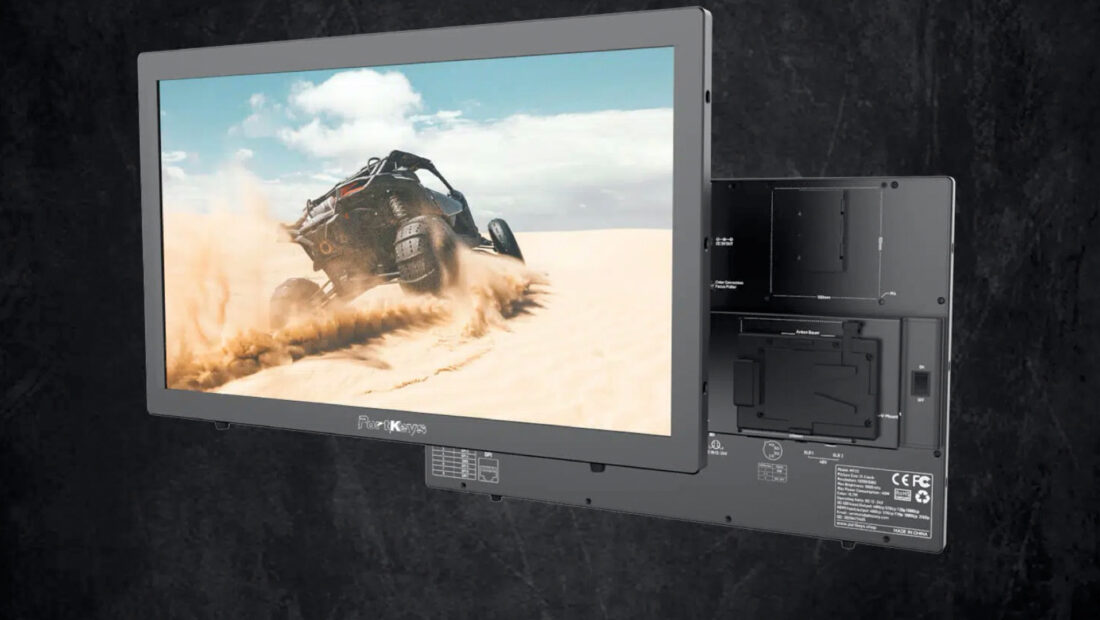

Newsshooter Thumbnails

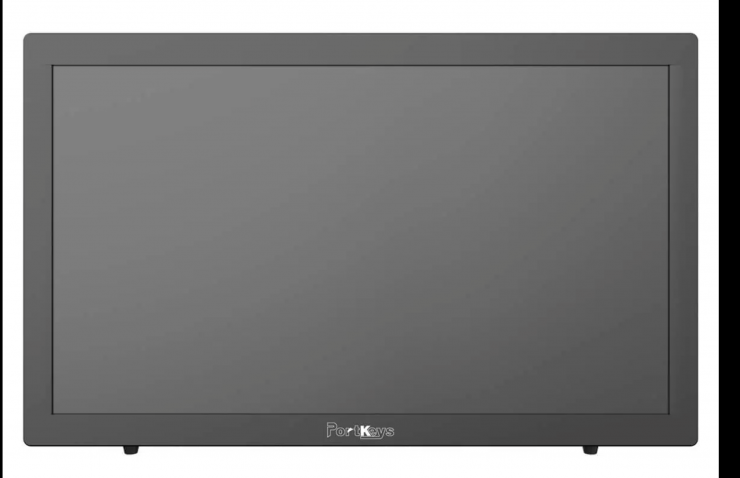

Portkeys MT22 is a 21.5-inch high brightness production monitor with 1000 nit brightness, 1920×1080 resolution, 3000:1 contrast ratio, and 10-bit color using FRC technology.

Portkeys MT22

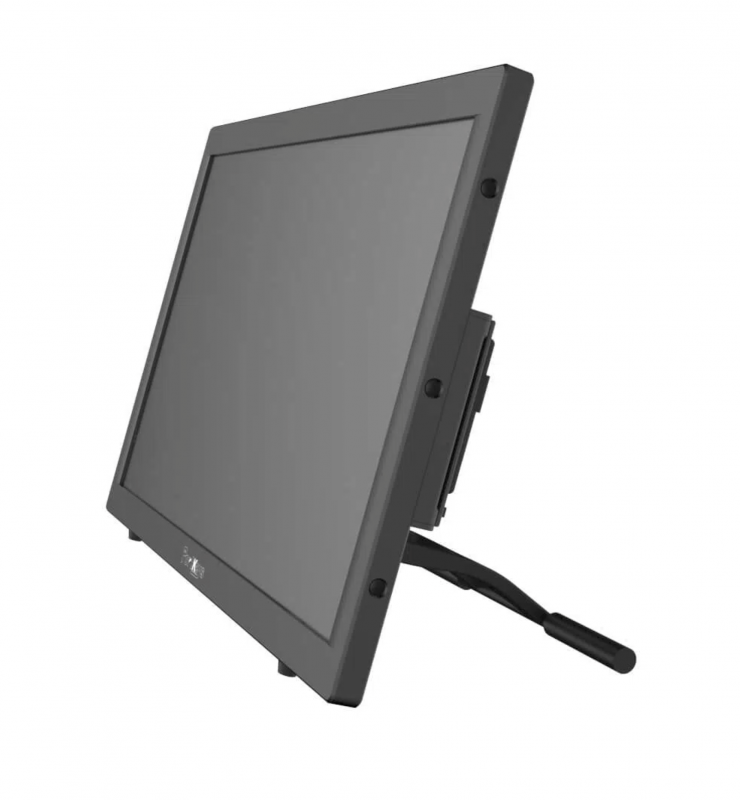

From the looks of the images, the monitor is very thin and supports battery power for field use plus a kickstand design for desk use. It’s not clear if the monitor can be mounted to a VESA mount or other field use stands.

MT22 Features

  • Support multiple devices to simultaneous monitor
  • Provides two-way 3G-SDI inputs and one way SDI output, Four-way HDMI input and output up to 4K

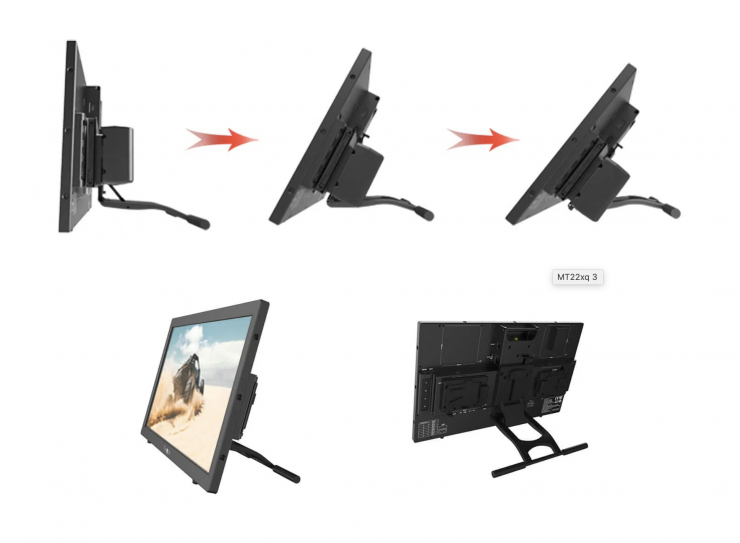

  • Folding stand
  • Support monitoring from various angles
  • x-rite 709 color gamut automatic color calibration
  • Support use x-rite i1 Display Pro screen color calibration device for one-click calibration
  • Wireless Video Transmission Power Supply Plate
  • Compatible model: XM1000S, CineEye-Pro, Moma400s
  • Provide multiple power supply methods
  • CANNON power interface, D-TAP power interface, and V mount battery plate.
PortKeys MT22 10

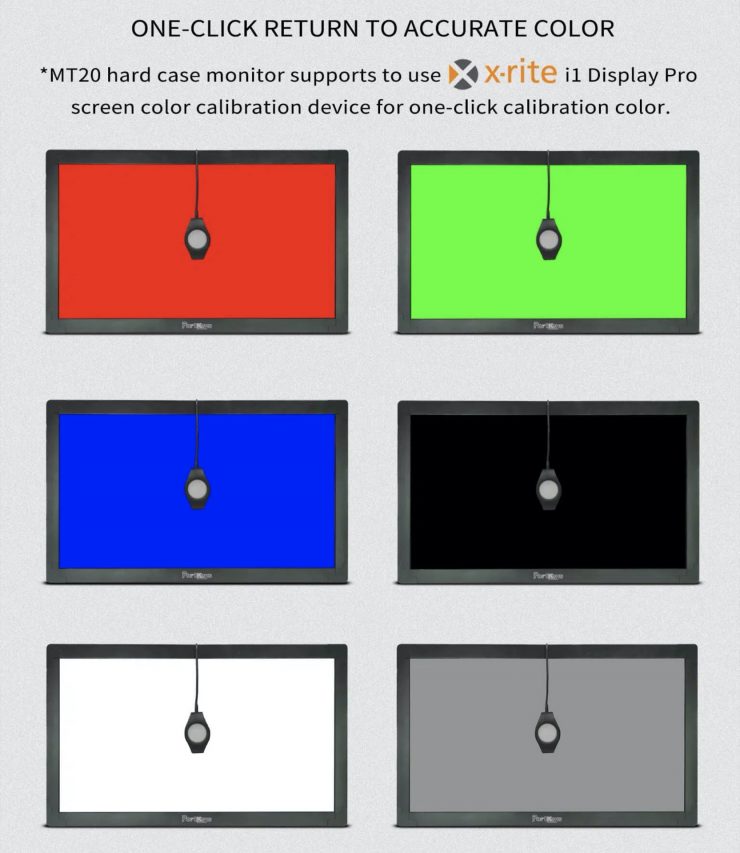

A nice feature is the ability to calibrate the MT22 with an x-rite i1 Display Pro screen color calibration device without a computer.

On-Board Tools & Features

Screen Shot 2022 03 03 at 7 30 31 AM
PortKeys MT22 3 1

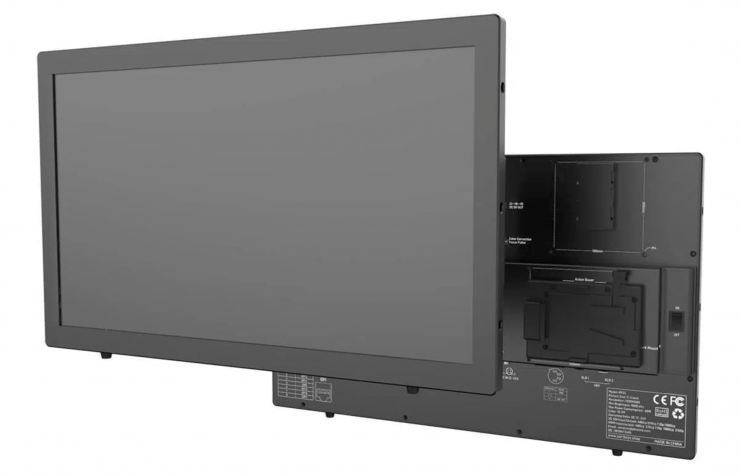

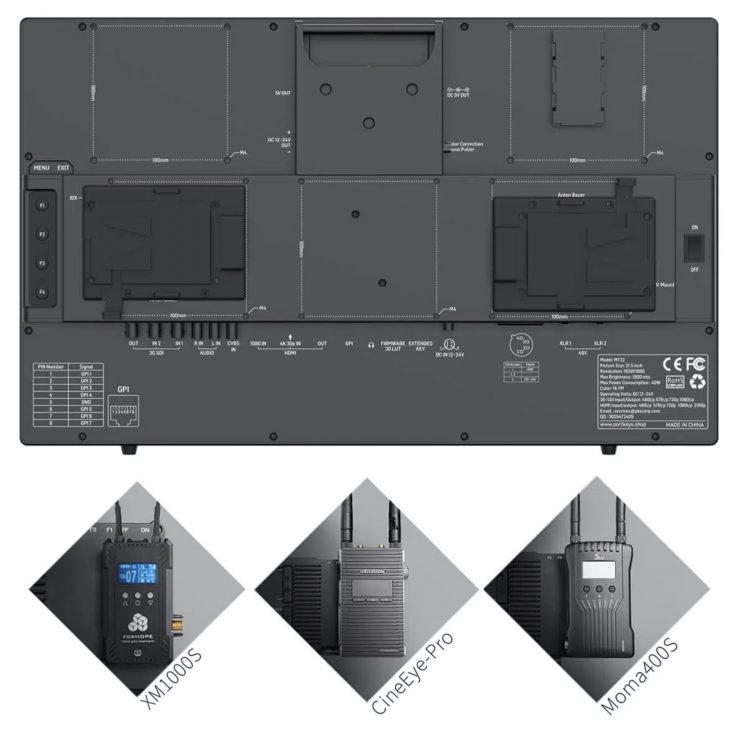

On the back are several mounting options for wireless video devices and powering options with V-Mount or Gold Mount batteries.


Screen Shot 2022 03 03 at 7 32 11 AM

HDMI Inputs Resolutions

Screen Shot 2022 03 03 at 7 33 32 AM

I/O and Power

Screen Shot 2022 03 03 at 7 40 45 AM
PortKeys MT22 9

MT22 is also priced very competitively at $1,399.00. If it delivers in image quality it could be a great budget play.
