CAME-TV 5.5-inch 3D LUT Field Monitor

Screen Shot 2021 11 30 at 17 48 34

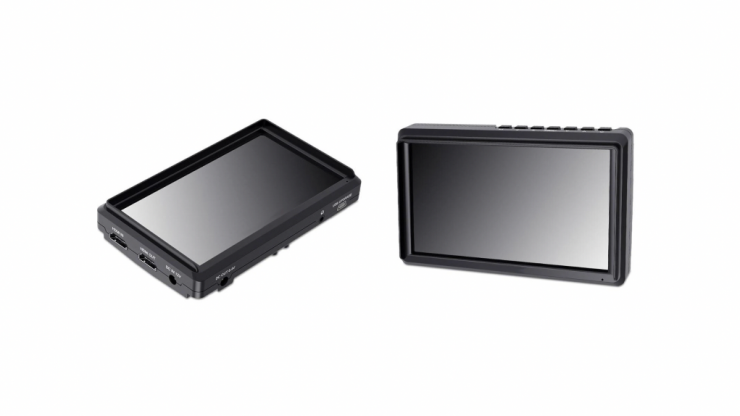

CAME-TV has announced a new affordable 5.5-inch 3D LUT Field Monitor for use with mirrorless and DSLR cameras.

The 5.5″ IPS panel has a resolution of 1920 x 1152 and a claimed brightness of 500nits and 400PPI. It has a 1000:1 contrast ratio and it can receive input signals of up to 4K UHD 30p over HDMI.

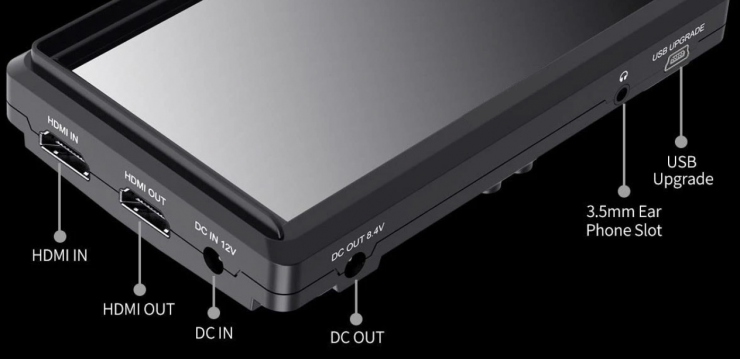

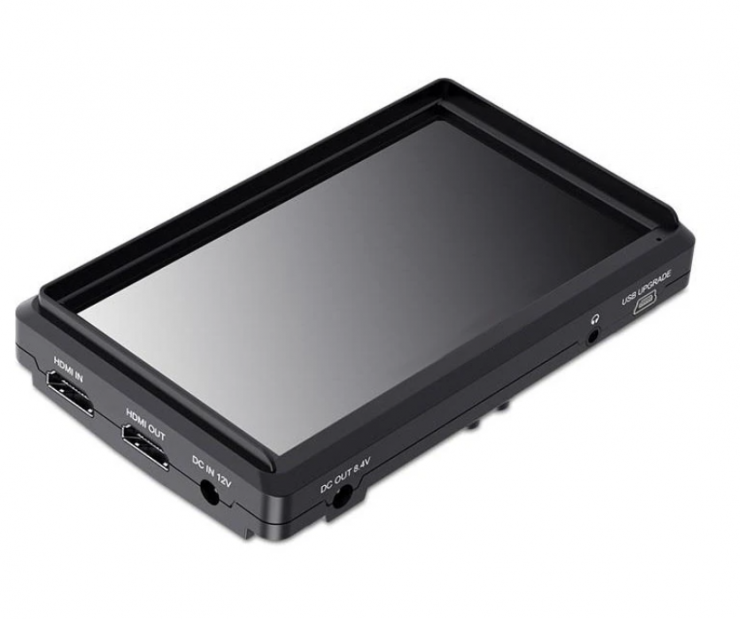

Speaking of HDMI, the monitor has both a full-sized HDMI In and Out. The HDMI has loop-through capabilities.

Key features

  • High Resolution: Full HD 1920×1152
  • High Contrast: 1000:1
  • High Brightness: 500cd/m²
  • 160° wide viewing angles IPS Panel
  • Provides auxiliary power out; allowing shooters to power their cameras
  • Custom 3D LUT import (up to 32)
  • All waves
  • Waveform (RGB, Y, YUV)
  • Histogram (RGB1, Y, RGB2)
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure
  • Nine Grid
  • Scan Mode (Under Scan, Over Scan)
  • Zoom (4x,9x,16x)
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
  • Pixel to Pixel
  • Center Marker
  • Safe Area (80%,85%,90%,93%,96%,2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Marker Color (Red,Green,Blue,White,Black)
  • Check Field (Red/Green/Blue/Mono)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Zoom All (0~500 adjustable)
  • U/D & L/R Zoom
Screen Shot 2021 11 30 at 17 37 02

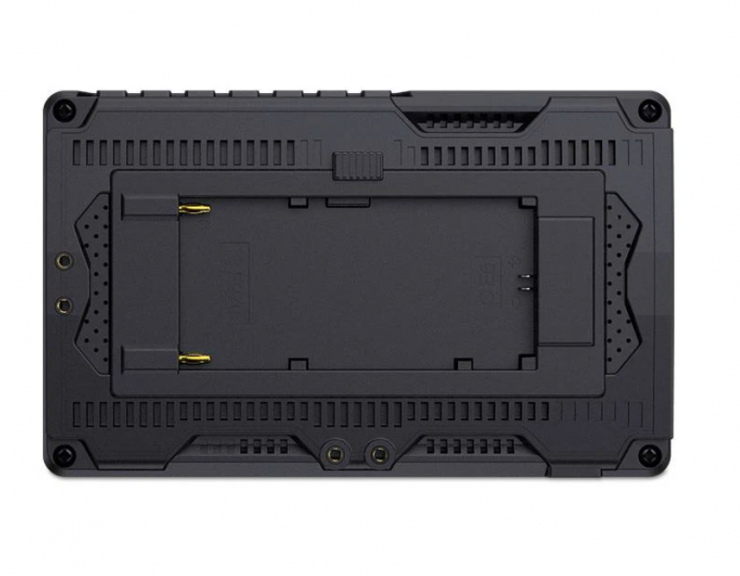

The monitor can take power inputs of DC 7-24V and it has a power draw of ≤9W. It features a built-in Sony NP battery plate. Given its low power draw, I don’t think there was any real reason to have a dual battery plate.

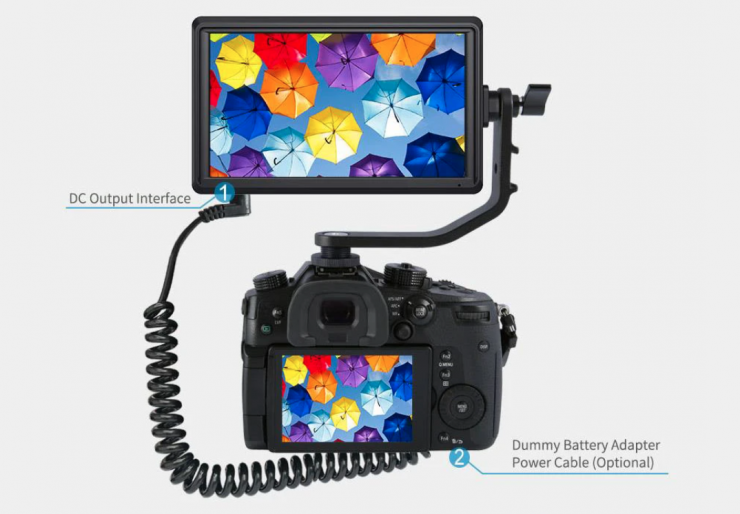

There is also an 8.4V DC output so you can power your camera or other select accessories.

The monitor is fairly light and tips the scales at just 175g / 6.17 oz.

Screen Shot 2021 11 30 at 17 39 19

There are plenty of monitoring tools available, including all of the usual suspects that you will find on most of today’s monitors.

Screen Shot 2021 11 30 at 17 39 30

As far as mounting is concerned, CAME-TV gives you a rotatable camera bracket that attaches to a cold shoe mount.

Screen Shot 2021 11 30 at 17 43 12

It also features two 1/4-20″ mounting points.

Price & Availability

Screen Shot 2021 11 30 at 17 38 19

The CAME-TV monitor retails for $156 USD.
