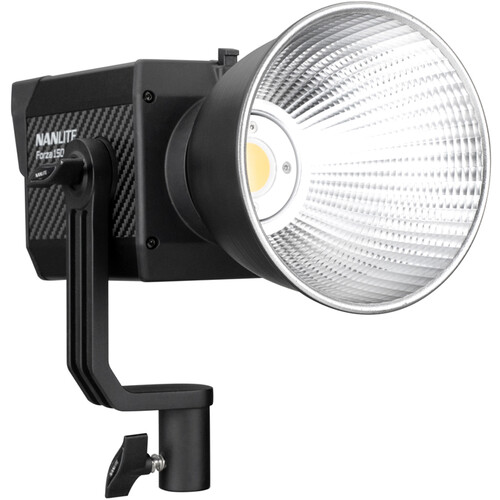

The Nanite Forza 150 is the fifth fixture in the series of COB LED lights with a rated power of 170 watts. The lineup consists of the Forza 60, 200, 300, and 500.
The fixture is designed to be compact with some punch plus you can use a V- mount battery to power the Forza 150, but it’s an additional accessory.
What’s Included
![Screen Shot 2021 11 02 at 9 50 17 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.50.17-AM-740x444.png)
- Forza 150 × 1
- Power Adapter 24V/7.5A × 1
- Power Cable 4.5M × 1
- Reflector × 1
- Bowens Adapter × 1
- Carrying Bag × 1
- User Manual × 1
- DMX Reference Guide × 1
![Screen Shot 2021 11 02 at 9 53 15 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.53.15-AM-740x487.jpg)
Specifications
Model | Forza 150 |
Rated Power | 170W |
Input Voltage/Current | 24V / 7.5A Max, AC 100-240V 50 / 60Hz |
CRI | 96 |
TLCI | 98 |
CCT | 5600K |
Dimming | 0-100% |
Control | On-board, 2.4G, Bluetooth, DMX/RDM |
Effects | INT Loop, Flash, Pulse, Storm, TV, Paparazzi, Candle/Fire, Bad Bulb, Firework, Explosion and Welding |
Product Size | Light Fixture: 227 × 133 × 115mm / 8.94 × 5.24 × 4.53″ |
Product Weight | Light Fixture: 1.36kg / 3.00lb Power Adapter: 0.64kg / 1.41lb Power Cable 4.5M: 0.4kg / 0.88lb Reflector: 0.14kg / 0.31lb Bowens Adapter: 0.19kg / 0.42lb |
Ligting Effects
Like many fixtures on the market today the Forza 150 has several lighting effects
![Screen Shot 2021 11 02 at 9 53 51 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.53.51-AM-740x423.png)
- INT Loop
- Flash, Pulse
- Storm
- TV
- Paparazzi
- Candle/Fire
- Bad Bulb
- Firework
- Explosion
- Welding
Photometrics Provided By Nanlite
Model | Forza 150 | ||
---|---|---|---|
Distance | 1M | 2M | 3M |
Light Only | 6870 lux / 638 fc | 1760 lux / 164 fc | 858 lux / 80 fc |
With Reflector | 27960 lux / 2597 fc | 6655 lux / 618 fc | 2824 lux / 262 fc |
With Fresnel Lens flood 45° | 17050 lux / 1584 fc | 4260 lux / 396 fc | 2009 lux / 187 fc |
With Fresnel Lens spot 10° | 69200 lux / 6429 fc | 16800 lux / 1561 fc | 7658 lux / 711 fc |

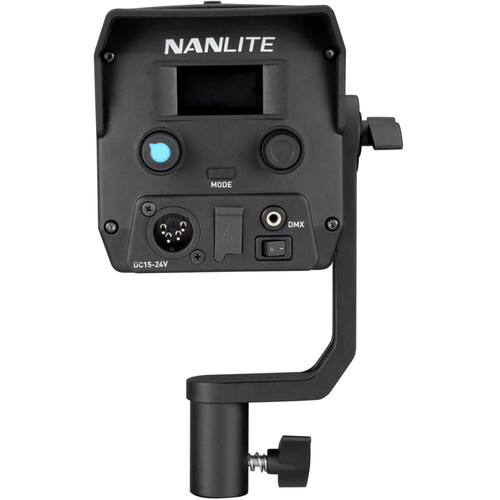

On Fixture Controls
![Screen Shot 2021 11 02 at 9 54 37 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.54.37-AM-740x941.png)

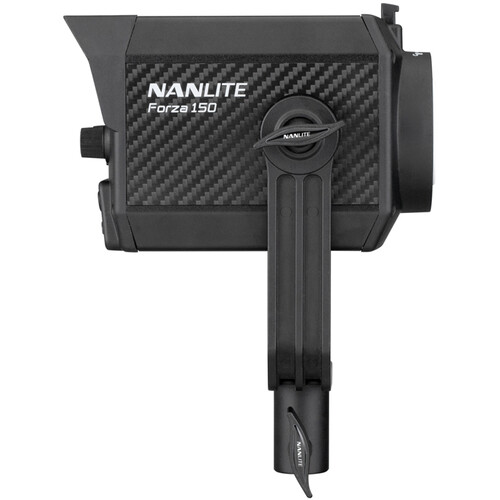

Instead of using a separate controller the Forza 150 has all the controls on the fixture. You do have a ballast still. The design is similar to the other Forza lights with a single sturdy L-bracket mount.
![Screen Shot 2021 11 02 at 9 52 49 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.52.49-AM-740x662.png)
If you want to use batteries an optional Battery Grip with V-Mount is available.
FM Mount Accessories
![Screen Shot 2021 11 02 at 9 56 16 AM](https://www.newsshooter.com/wp-content/uploads/2021/11/Screen-Shot-2021-11-02-at-9.56.16-AM-740x508.png)
The Forza fixtures use the Nanlite FM mount. They have several modifier options including the popular Bowens mount.
Pricing and Availability
The NANLITE Forza 150 is available now for $499.00.
