Roland V-02HD MK II Streaming Video Mixer

Roland has announced the V-02HD MK II Streaming Video Mixer. The whole concept behind the V-02HD MK II was to make an affordable livestreaming solution with two HDMI inputs, 10-channel audio mixing, and video effects.

Key features

  • 2 x HDMI Inputs Supports up to 1080p60
  • HDMI Outputs: 1 x Program, 1 x Preview
  • Discrete Scalers on Inputs and Output
  • USB Type-C Output for Easy Streaming
  • 14 x Real-Time Adjustable Effects
  • 5 x Compositing Effects
  • Picture-in-Picture Effect
  • Stores Single Still Image/Graphic

This is the follow-up to the original V-02HD that we reported on back in late 2018.

Screenshot 2021 09 15 at 9 44 41 AM

The V-02HD MK II features a built-in encoder that outputs your program output via the USB Type-C port, allowing you to stream easily from a computer without needing an additional encoder. Audio from both cameras and external sources can be mixed within the V-02HD MK II and monitored through a dedicated headphone output. The switched output is embedded in real-time and output over HDMI for reliable recording or monitoring. The switcher operates with 10-bit 4:4:4 processing. Integrated scalers enable the mixing of different formats, such as HD to SD and computer resolutions. You can embed and de-embed audio, both analog and digital. The V-02HD MK II has built-in three-band EQ and dynamics

Screenshot 2021 09 15 at 9 33 11 AM

Users can connect up to two HDMI cameras to the V-02HD MK II and it does all the hard work, thus eliminating USB conflicts with multiple webcams and HDMI-to-USB encoder adaptors. Other devices with HDMI output are also supported, including computers, mobile devices, and gaming consoles.

Screenshot 2021 09 15 at 9 38 46 AM

The V-02HD MK II features a simple to use control layout and T-bar fader. The USB connection is plug-and-play, so you can stream quickly to platforms such as YouTube, Facebook, Twitch, and Zoom. It also will work well with OBS Studio, Streamlabs OBS, StreamYard, and Restream.

Screenshot 2021 09 15 at 9 39 48 AM

The V-02HD MK II also includes a 10-channel digital audio mixer. There are two audio inputs with 3.5 mm jacks. It supports lavalier mics that require plug-in power, stereo audio from smartphones, mixers, or other devices. Users can mix embedded stereo audio from HDMI sources as well, including microphones connected to cameras.

Screenshot 2021 09 15 at 9 42 11 AM

You can power the V-02HD MK II via mains power or a battery using the 1 x Barrel (7 to 17 VDC) Input. You could even buy something like the IndiPRO Tools D-Tap to 2.1mm Cable for Roland V-02HD Video Mixer (24″) and run it via any D-tap device.

Screenshot 2021 09 15 at 9 40 37 AM

On the bottom of the V-02HD MK II, there is a 1/4-20″ mounting hole for attaching it to arms, stands, etc.

Screenshot 2021 09 15 at 9 36 05 AM

The V-02HD MK II supports hands-free control with up to two optional BOSS footswitches, which is convenient for creators who perform or give demonstrations during streams. With a discrete off-camera stomp, it’s possible to switch camera angles, cut to a static image, transition scene layouts, fade picture-in-picture windows, etc.

Upcoming free remote control apps will allow the V-02HD MK II to be controlled via an intuitive graphical interface on their iPad or computer. (Remote control apps for macOS and Windows will be available in late 2021.)

Screenshot 2021 09 15 at 9 34 10 AM

What is very interesting is that the V-02HD MK II also provides free access to Roland’s new AeroCaster Switcher for iPad, a powerful video and media expansion solution for select Roland hardware switchers. With this unique app, users can switch wireless feeds from up to five devices, including smartphone and tablet cameras and screen shares from computers and mobile devices. You can then output a combined program feed to the V-02HD MK II or another supported Roland switcher with HDMI input.

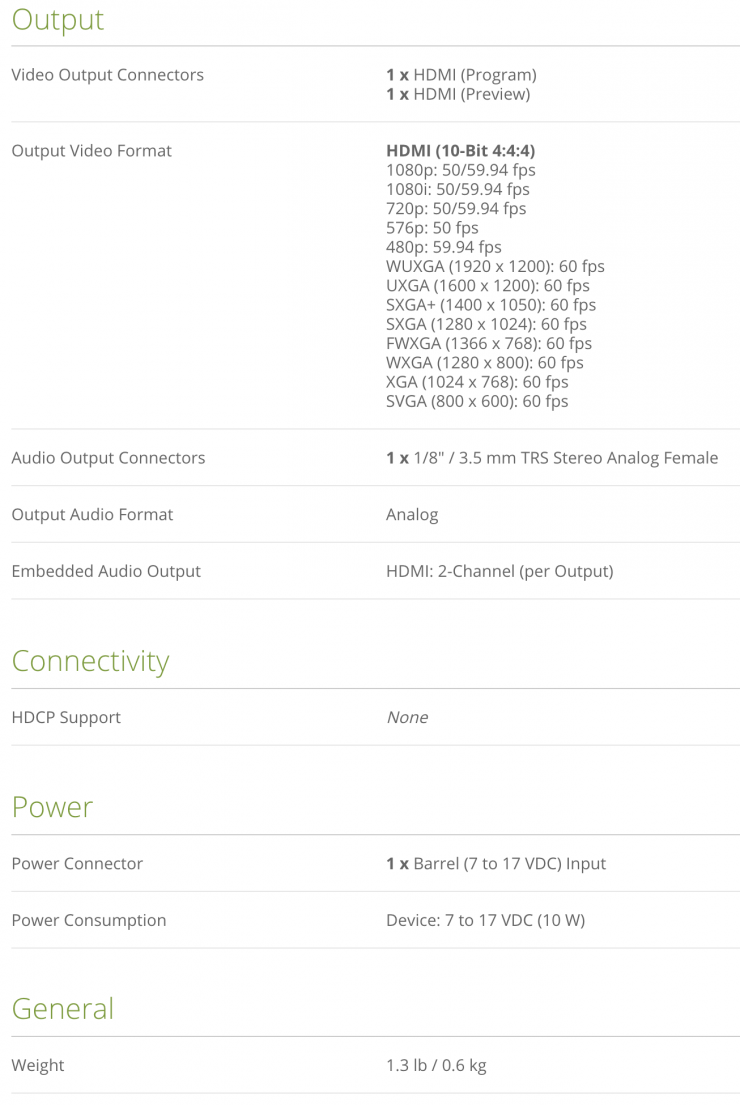

Full Specifications

Price & Availability

Screenshot 2021 09 15 at 9 35 56 AM

The Roland V-02HD MK II Streaming Video Mixer is available for $395 USD.

Competition comes in the form of products such as:
