Video Village Filmbox

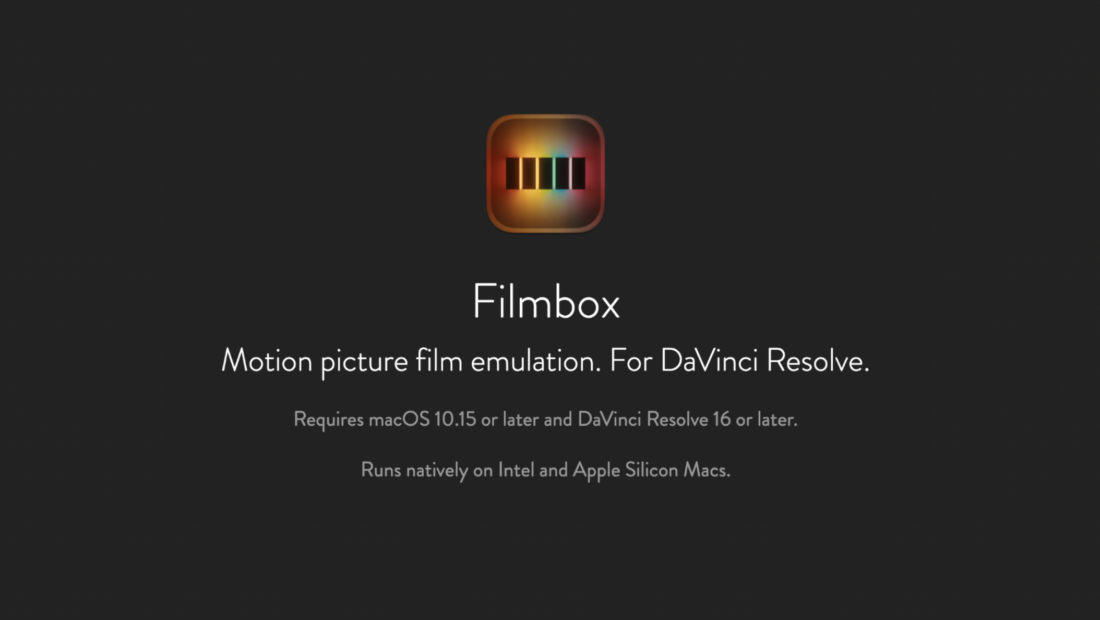

Screenshot 2021 05 05 at 11 14 46 AM

Video Village Filmbox is being touted as a creative utility you can use right inside DaVinci Resolve to create a ‘Holistic reproduction of photochemical motion picture imaging‘.

Video Village states that film has a unique response to light intensity and wavelength, and therefore, Filmbox uses rich empirical datasets to transform scene-referred image data to embody the non-linearities of contact-printed negative. As light strikes color film negative, different wavelengths scatter within the layers of emulsion and affect neighboring image regions in a very specific way. Filmbox claims to convolve digital image data to exhibit the soft yet detailed quality of the negative.

Screenshot 2021 05 05 at 10 38 35 AM

According to Video Village, Filmbox can model the subtle instability of real 35mm and 16mm cameras, and procedurally place samples of real dust.

Filmbox as a Format

Screenshot 2021 05 05 at 10 48 32 AM

According to Video Village, Filmbox is intended to emulate film not just in
appearance but also in working philosophy. A digital cinema camera on its own doesn’t really have an inherent “look”. It stores image data as a record of the light in the scene, not as a blueprint for how a particular display should reproduce that light. Some creative choices must be made about how that photometric data should be transformed and rendered on a display. This processing might involve the camera manufacturer’s video LUT, or it might be defined by any number of complex operations in the color grading process.

Filmbox is intended to bridge cinema cameras and digital displays into an imaging system that functions as a “Format” with defined characteristics and simple parameters for modulating those characteristics – similar to photochemical imaging. Filmbox is intended to be used as an extension of the camera as opposed to a generic post effect.

How does it work?

Screenshot 2021 05 05 at 10 49 46 AM

The Filmbox interface was designed to be as simple, or as granular as you want it to be. All you have to do is select the source camera and display colorspace.

MODES

Screenshot 2021 05 05 at 10 54 00 AM

Full
In the default mode, all modules of the Filmbox pipeline are active and it functions as an end-to-end footage-to-display color pipeline.

Negative Only
Disables the Print module so that the resulting image has only the film negative processing and is analogous to a “Log” film negative scan.

Print Only
Disables everything but the Print module, Useful for multi-node workflows.

Grain & Halation Only
Disables the Filmbox color pipeline allowing the spatial operations
(halation, grain, gate weave) to operate in the source colorspace as part of your own color pipeline.

Camera Module

Screenshot 2021 05 05 at 10 55 50 AM

Here you adjust the camera’s exposure and color balance before emulation
These controls are especially useful when compensating for differences in balance and exposure between cameras. Video Village recommends shooting a grey card and adjusting these parameters to establish a baseline when working with a new camera.

Negative Module

Screenshot 2021 05 05 at 10 56 57 AM

The negative module imparts the photometric and spatial characteristics of the film negative. Working with this module can be as simple as choosing a preset, or as granular as tweaking the components under Advanced Settings.

Lab Module

Screenshot 2021 05 05 at 10 58 21 AM

The “Lab” color controls creatively modify the look of the negative. They are complex transforms that behave differently from traditional color operations and have been designed to achieve creatively pleasing results.

Print Module

Screenshot 2021 05 05 at 10 59 58 AM

The print module simulates projecting a contact print of the negative in the selected display colorspace. The print module offers a “Tone Curve” parameter and a “Greyscale Neutrality” parameter that modifies the print transform allowing you to hose how “filmic” the tone curve is, and how color-neutral the grey-axis is Full, Standard, and Extended are presets based on those two parameters which can be directly manipulated by selecting Custom.

Grading with Filmbox

According to Video Village, grading before Filmbox is like grading before a “Show LUT” except that Filmbox also has spatial characteristics that depend on scene-referred pixel values. Grading before Filmbox is analogous to modifying light values on set before exposing the virtual film negative. If you wish to preserve the authenticity of the emulation it’s important to
perform Scene-referred Photometrically accurate grade operations “up-stream” from Filmbox.

Some grade operations, especially contrast adjustments have the potential to produce inauthentic results from Filmbox’s spatial processing if performed before Filmbox. These types of operations may behave more naturally when performed between the negative and print emulations like
grading a film scan. This is what the Filmbox Lab controls are for – but you can also perform your own operations between the Filmbox Negative and Print by using a multi-node workflow.

Screenshot 2021 05 05 at 11 00 54 AM
Screenshot 2021 05 05 at 11 01 09 AM

How much does it cost?

Screenshot 2021 05 05 at 11 07 55 AM

Filmbox is not cheap. An Indie Perpetual license is $999 USD. You can also buy yearly or monthly subscriptions.

Indie Licenses are for production budgets under $2.6 million. They may only be used on productions (or seasons of episodic content) with budgets under $2.6 million. For indie plans, you can install Filmbox on all computers where you are the main user. For studio licenses, you are billed per-seat. For production licenses, you have unlimited seats.

Screenshot 2021 05 05 at 11 08 03 AM

For larger productions, the cost is significantly more.

Screenshot 2021 05 05 at 11 06 37 AM

There is a free version called Filmbox Lite that is for non-commercial use with limited features, but no time limit or watermark.

Just how different this is to the countless other film emulation software platforms that are out there will be interesting to see. I have downloaded the free version to have a look.

Do you think there are far too many film emulation products out there? Do you use film emulation software for your work? Let us know in the comments section below.
