Astro Design BOSMA G1 8K M4/3 Camera

Screenshot 2021 04 25 at 10 00 18 AM

The BOSMA G1 8K M4/3 Camera is now being sold and rented directly by Astro Design here in Japan. Before you get too excited, this camera is intended for use in broadcasting, security, and surveillance environments where streaming is required.

Screenshot 2021 04 25 at 10 01 47 AM

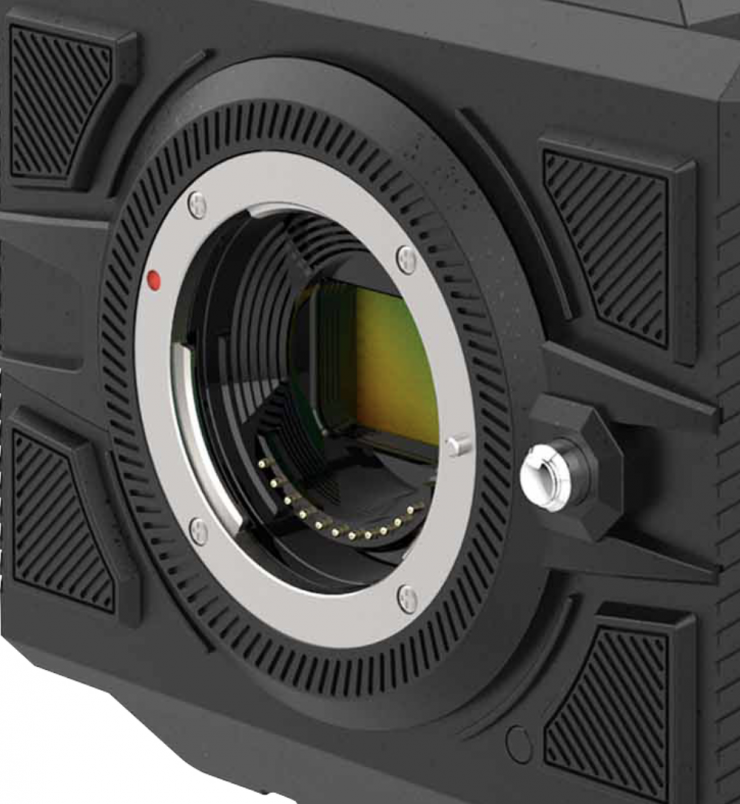

The Chinese-made camera features a 4/3 7680 x 4320 8K CMOS image sensor that has a physical size of 18.84 mm x 10.60 mm. The lens mount is also M4/3.

Screenshot 2021 04 25 at 9 53 47 AM

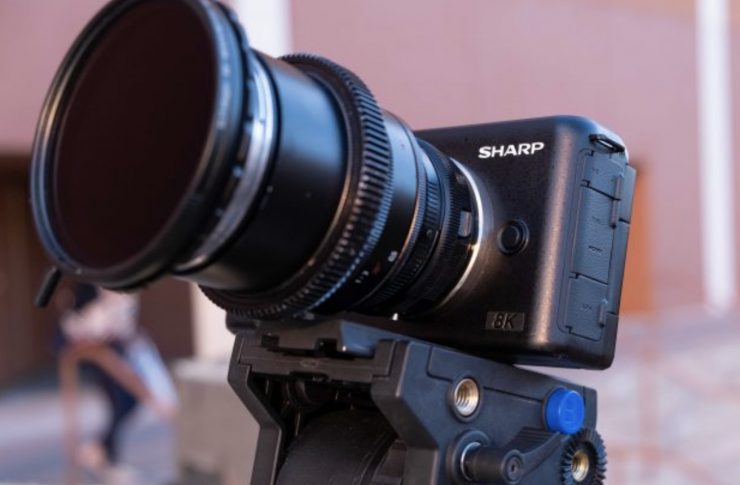

There is a very good chance that this is the same exact sensor that was being used in Sharp’s 8K Micro Four Thirds Camera that we first saw at NAB 2019. Sharp and Astro Design have collaborated before on quite a few cameras and that also appears to be the case with the BOSMA G1 8K.

If you are not familiar with BOSMA, they were established in 2000 in Guangzhou, China. They have primarily been making optical equipment such as telescopes, binoculars, and IoT products such as smart cameras.

Screenshot 2021 04 25 at 9 14 31 AM

The camera can record the following resolutions and frame rates:

  • 8K (7680 x 4320) 30/25/24fps
  • 4K (3840 x 2160) 60/50/30/25/24fps

The camera records in MOV/MP4 (H.264/H.265) in either VBR or CBR. You can choose to record in 8-bit or 10-bit. The bitrate when recording 8K30p is 200Mbps and at 4K60p it is 100Mbps.

The camera records to CFast2.0, but it can also output a signal over HDMI. You can also record externally via a USB3.0 output to an external SSD. There are no SDI ports on this camera. Despite these options, the G1’s primary purpose is for live streaming. It supports IPv4, RTP, RTSP, and SRT protocols.

The camera has an RJ45 connector and is Wi-Fi: IEEE802.11b / g / n / a / ac compliant 2.4GHz & 5GHz band compatible.

Screenshot 2021 04 25 at 9 23 14 AM

Astro Design is touting this camera as being a compact live streaming option that can be used for:

  • Live video distribution via the Internet
  • Inspection of equipment when installed in drones
  • Remote conferences
  • Online medical treatment
  • Live entertainment
  • VR content production
  • Disaster prevention such as river monitoring

Above you can see Astro Design’s introduction video to the camera that they did last month.

Screenshot 2021 04 25 at 9 12 37 AM

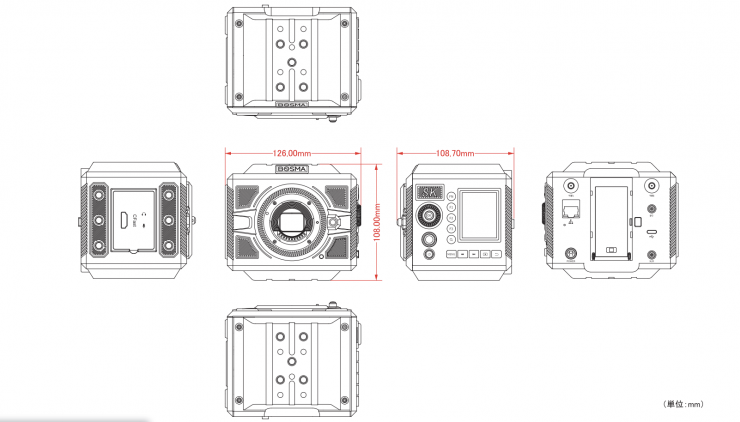

The BOSMA G1 8K M4/3 weighs in at 1.25kg (2.75lb) and it has physical dimensions of 126 (W) x 108 (H) x 108.7 (D) mm.

Screenshot 2021 04 25 at 10 01 40 AM

The camera does have a small LCD screen and physical controls that look very similar to what you would find on a Z-Cam.

The camera can be powered via a single Sony NP-F series battery and there is also a DC 12V 5A (4-pin LEMO) input.

Astro Design doesn’t list purchase or rental prices on their website.
