Ignite Digi TB50 Power Pack for RED Komodo

Ignite Digi has just announced the new TB50 Power Pack for the RED Komodo.

POST 1 POWER PACK 11

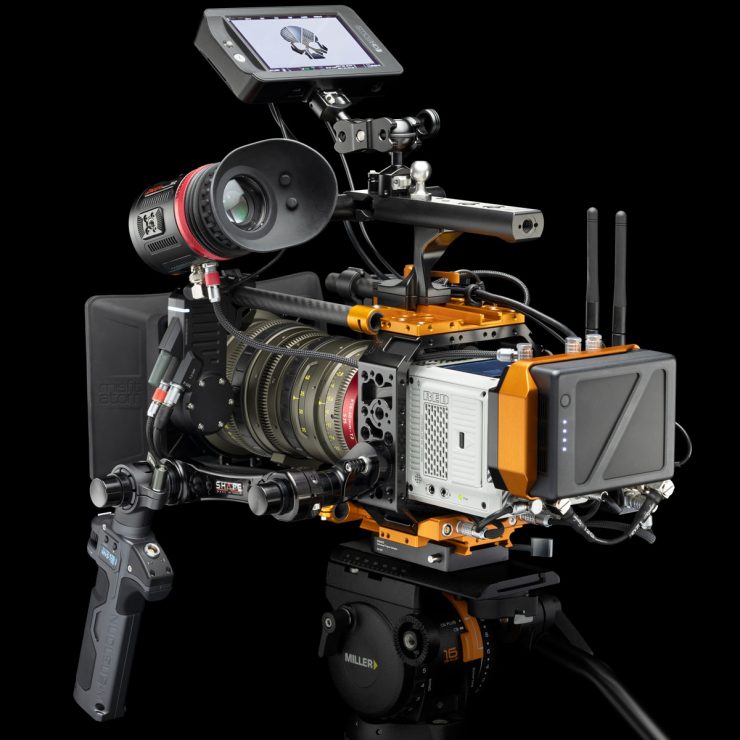

The TB50 Power Pack mounts onto the back of the Komodo battery plates to accept a single DJI TB-50 battery.

Key features

  • CNC machined aluminium housing
  • Three 15V 2-Pin Lemo outputs
  • Integrated cable for KOMODO DC-IN
  • USB-C input up to 100W for TB50 hot-swap or extended run times
  • Designed for straightforward transitions between gimbal, handheld and tripod modes
  • Conforms to the compact size of KOMODO
  • Includes a Magnetic USB-C PD 1.8m cable

Run Time

According to Ignite Digi, you can expect the following run time with a single TB50 battery which is rated at 4280mAh / 97.58Wh.

3.5hrs – KOMODO only
3hrs – KOMODO + SmallHD Focus Pro OLED
1hr45m – KOMODO + Teradek Bolt + Zacuto EVF + SmallHD 502 Bright + 3x Tilta FIZ Motors

No battery data will pass through to KOMODO.

Lemo Outputs

POST 2 ALL BLACK EVERYTHING 3

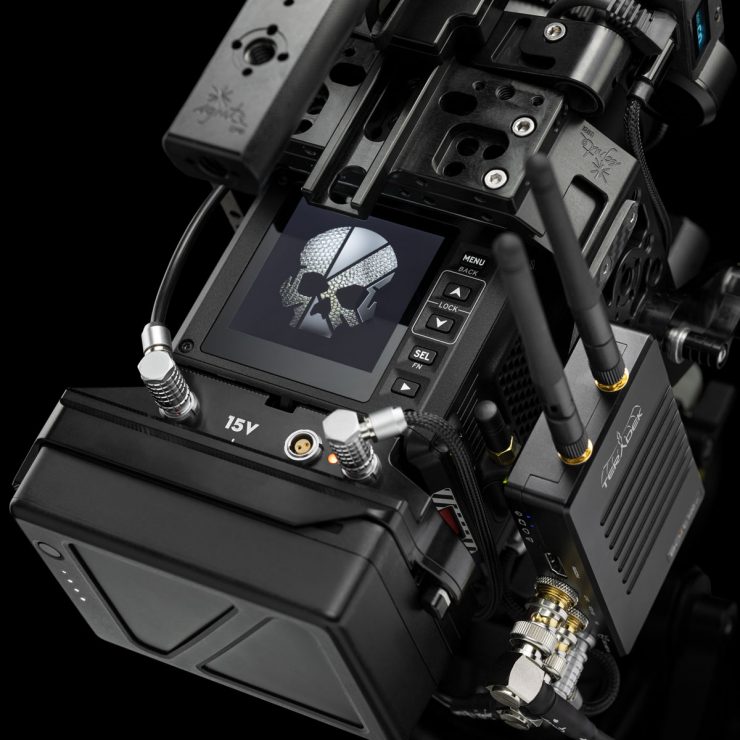

The Power Adaptor also features three 15V 2-Pin Lemo outputs which can be used to power accessories like a monitor, EVF, wireless transmitter & more.

Each port has been angled at 45-degrees to prevent cables from covering up the screen & buttons.

Hot Swap Capabilities

USB-C PD Input

Using the USB-C PD Input, you can continuously power the camera from an external source, or use it to hot-swap your TB50 batteries, removing the need to power down the camera.

Just make sure to use a power source with a minimum of 60W (20V at 3A). Ignite Digi has a list of recommended power & battery devices to use with this feature on their website.

When the LED turns blue, the power source has been switched to the USB-C input and it is safe to remove the TB50.

Power Connection

POST 1 POWER PACK 07
ERTACETAL BP BATTERY MOUNTS

The mounting plates are made of high-strength Ertacetal plastic to prevent damaging the surfaces of the camera.

In the case of a drop or damage, they are replaceable by the user and available as a spare part.

POST 1 POWER PACK 08

The TB50 adapter delivers power via the DC-IN port on the Komodo.

The integrated cable is designed to be the perfect length.

Pricing & Availability

The TB50 Power Pack for RED Komodo is available direct from Ignite Digi and authorised resellers. It retails for $690 AUD or $800 with the 2-Pin Lemo Cable.

Each Power Pack also includes a nylon braided, magnetic USB-C to USB-C 1.8m PD cable and two magnetic couplers, capable of powering at a maximum of 100W (20V at 5A).

image 2

Specifications

COMPATIBILITY
‣ RED KOMODO™ Digital Cinema Camera
‣ KEYSTONE for RED KOMODO
‣ Carbon Side Plate for RED KOMODO

I/O
‣ Three 15V 2-Pin Lemo outputs
‣ One USB-C PD input / up to 100W (20V at 5A)

WEIGHT
15oz / 430g Power Pack only
33oz / 960g Power Pack + TB50

DIMENSIONS (LxHxH)
5.43 x 3.62 x 2.2” / 138 x 92 x 56mm
