Vaxis Atom 600 KV White Version for RED Komodo

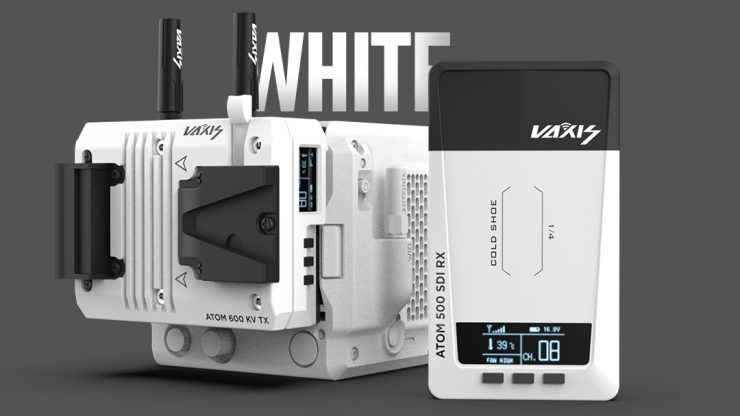

ATOM 600 KV W

Vaxix has released a white version of their Atom 600 KV wireless video TX unit for the RED Komodo. This is hardly earth-shattering news, but if you happen to be a Komodo Stormtrooper owner and you feel oke you need everything else that you use with the camera to be white, then this will probably interest you.

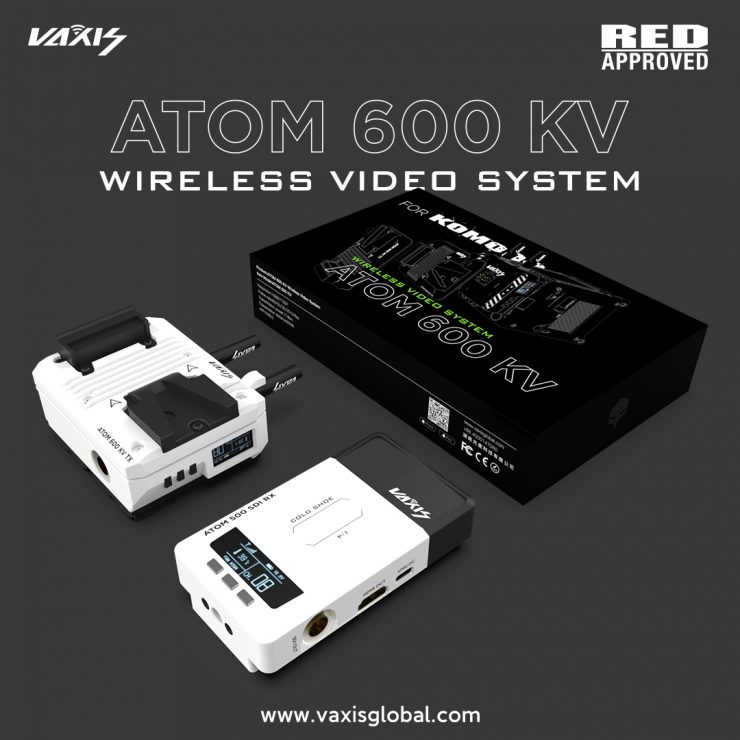

ATOM 600 KV BW2

In case you are not familiar with the ATOM 600 KV, it was designed specifically for use with the RED Komodo. It is a stand-alone TX unit that doesn’t come with a receiver, however, it is compatible with any Vaxis ATOM RX unit. You can also transmit simultaneously to up to three mobile devices over WiFi, and use the Vaxis Vision app to view images.

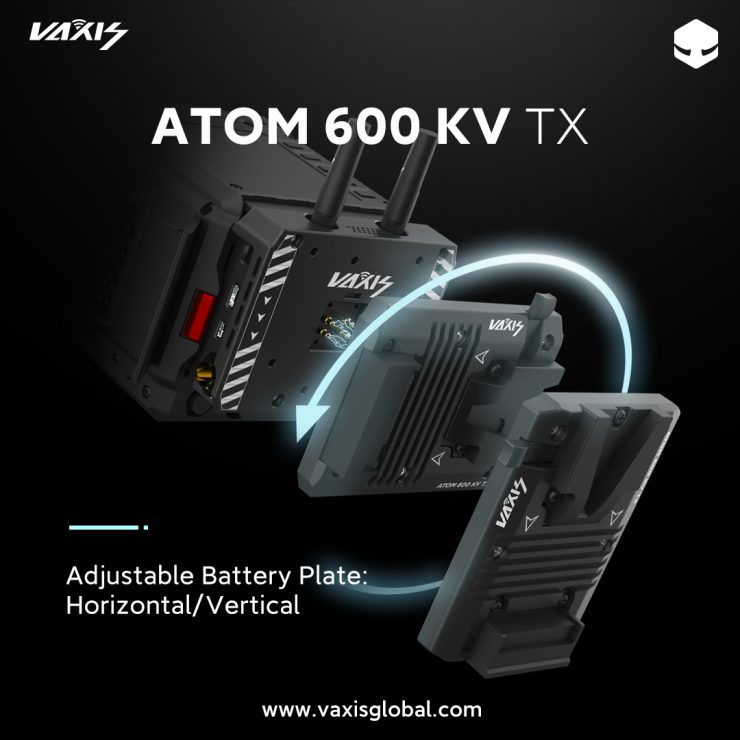

retatablebattery mount

It attaches directly to the rear battery mount. It also has a V-lock battery plate on the back. In a nice design move, Vaxis has made it possible to either keep the V-mount plate upright or you can remove four screws and turn it vertically. Turning it vertically probably works well if you are using mini V-lock batteries.

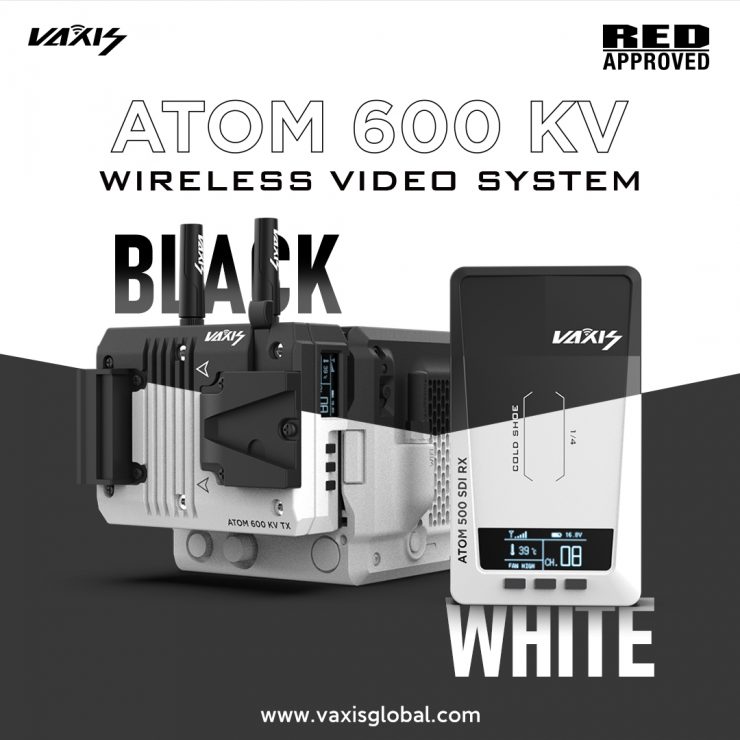

ATOM 600 KV BW1

It has been designed to integrate seamlessly with the RED KOMODO and it attaches directly to the rear battery mount. It also has a V-lock battery plate on the back. In a nice design move, Vaxis has made it possible to either keep the V-mount plate upright or you can remove four screws and turn it vertically. Turning it vertically probably works well if you are using mini V-lock batteries.

2

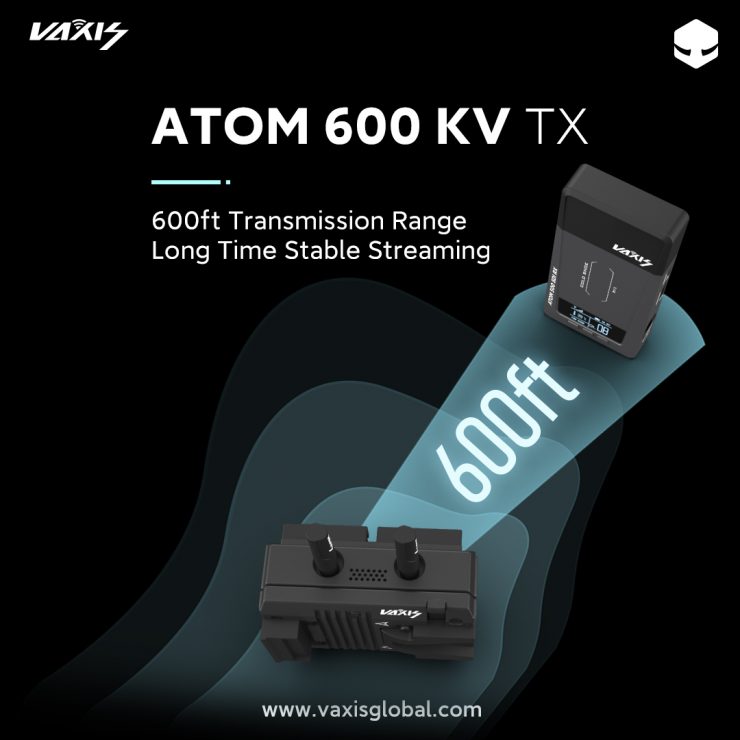

The ATOM 600 KV offers a 600 feet (182.8m) line of sight transmission range, with a claimed latency of less than 80ms.

8

It also features an OLED display, power pass-thru, and an SDI/HDMI loop out. It supports up to 1080p 60fps/1080i 60 transmission.

KEY FEATURES

  • Customized battery plate for Red Komodo, power pass-thru
  • Adjustable horizontal/vertical plate installation
  • 600ft transmission range, for long-term REC and streaming stability
  • Less than 80ms latency
  • SDI / HDMI loop out
  • Built-in HDMI & SDI signal converter
  • Real-time APP monitoring
  • Supports 13 channels, auto channel scan and selection
  • Smart fan for temperature control

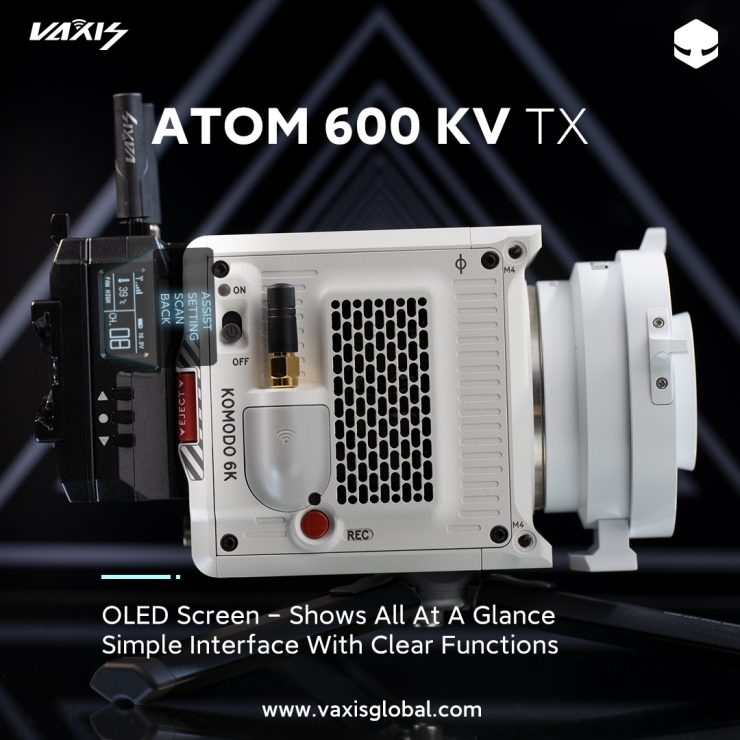

  • OLED screen for easy information access
  • Scan QR code to monitor
  • OTA / APP firmware upgrade
  • Pass-code protection
  • Audio-video 100% in sync
  • Switch by your needs: image prior / latency prior
  • Supports up to 1080p 60fps/1080i 60
  • USB-C port for firmware upgrade and 5V/2A power output
Screen Shot 2020 11 10 at 21 11 27

The Atom 600 KV has a built-in smart fan. A good thing about it is that you can turn it on/off or control its fan speed with the left button, according to your need at the shooting scene.

Full Specifications

Specification

Price & Availability

Screen Shot 2020 11 10 at 21 09 17

The Atom 600 KV retails for $749 USD. It still looks like it isn’t shipping yet, but it is available to pre-order.

You can also get the ATOM 600 KV kit that includes the Atom 600 KV and an ATOM 500 SDI RX for $999 USD.
