BB&S BiColor Compact Beamlight

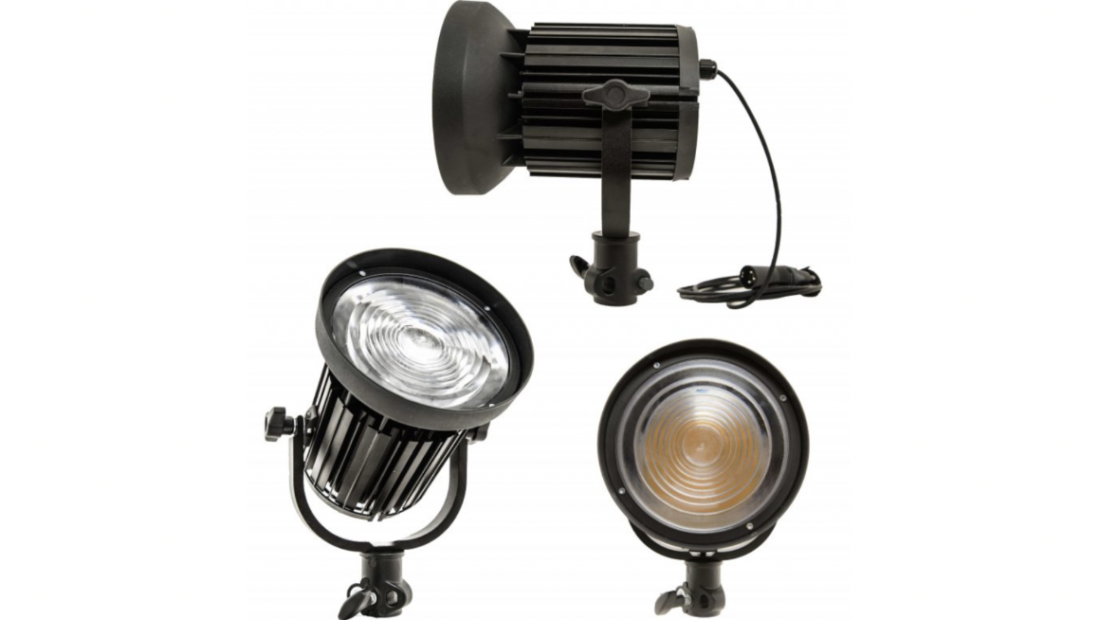

Screenshot 2020 05 15 at 10 43 02 AM

BB&S has announced a new BiColor Compact Beamlight which has a Kelvin color temperature range of 2700°-5700°K.

The BiColor Compact Beamlight is a hard beam fixture with a low 40W power draw, 5.5” footprint, and a 10-degree beam angle.

The light weighs just 1.5 kg (3.3 lbs) and measures in at 165mm long and 140mm in diameter.

The lights come as either single or 2×2 units. A Single fixture produces up to 2700-lumens and the 2×2, with its combined beam, provides up to 11,000-lumens. The beams fade from 100% at the center to 50% at the edges. These LED fixtures have been installed for uses up to 90-ft/27-meter distances.

The lights come with a 4-pin XLR, 2-meter cable, TVMP, and adjustable yoke. Optional accessories include a magnetic filter frame range of prismatic diffusers, a magnetic barndoor that rotates 360°, and a magnetic top hat/snoot.

Screenshot 2020 05 15 at 10 31 44 AM

The CBL BiColor 2×2 draws up to 160W but can output 11,000-lumens. It measures 165mm x 280mm x 280mm and weighs 8 kg (18 lb) including the yoke.

Each Compact Beamlight incorporates a proprietary 126mm diameter collimator lens that converts up to 90% of the LED light output, which is claimed to result in a high-intensity narrow beam with practically no spill light. Even with their strong illumination, they run silent, thanks to a highly effective heat-dissipating rear section that eliminates the need for a noisy cooling fan.

Compact Beamlights can be operated and dimmed in several ways. Singles work with the optional BB&S 4-Way Controller or Dual Channel Driver/Dimmer. The 4-Way Controller runs two Single BiColor fixtures and is ready for optional wireless control with built-in DMX/RDM 512 in/out powered via a 48V power supply. Utilizing the 4-Channel Control, the fixtures are fully dimmable (100% to zero) without color shift or flicker. Single BiColors may also be operated via the optional BB&S 40W Dual Channel Manual Driver/Dimmer to dial in CCT and level. It includes a 4-pin XLR connector for use with either an optional PSU or battery.

The 2×2 BiColor can be operated and dimmed with the optional new 8-Way Controller in a Peli case that offers 8-channels and is ready for wireless via the internal USB connector. It comes with a PowerCon True 1 locking AC 2-meter cable plus 48V DC PSU. For battery operation several third-party battery packs are available that can deliver the 160W minimum required.

Screenshot 2020 05 15 at 10 39 43 AM
The original CBL-1

BB&S already had the CBL-1, but that was only available in fixed Kelvin color temperature versions- 2700K, 3000K, 4000K, or 5600K. The CBL-1 draws 40 watts and delivers 4,000 lumens. It is available in 7 degree, 11 degree, 14 degree or 17 degree models.

The BiColor Compact Beamlight looks to be a good addition and it is certainly more flexible than the original CBL-1.

There is no indication of pricing yet, but the original CBL-1 models reatuil for $450 USD.
