SWIT FLOW6500 & FLOW10K long-range wireless video transmitters

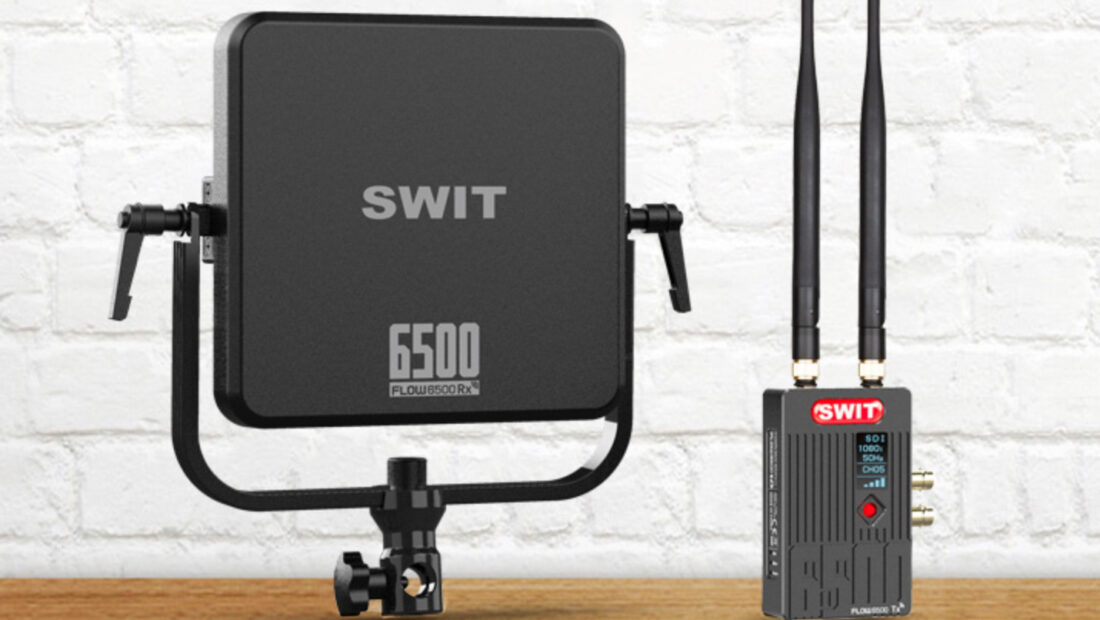

Screen Shot 2020 05 04 at 22 40 39

SWIT has announced the new FLOW6500 and FLOW10K long-range wireless video transmitters. The SWIT FLOW series have been around since 2019. The first two models were 500ft and 2000ft versions, that were designed primarily for wireless follow focus and for directors monitors.

Super long range

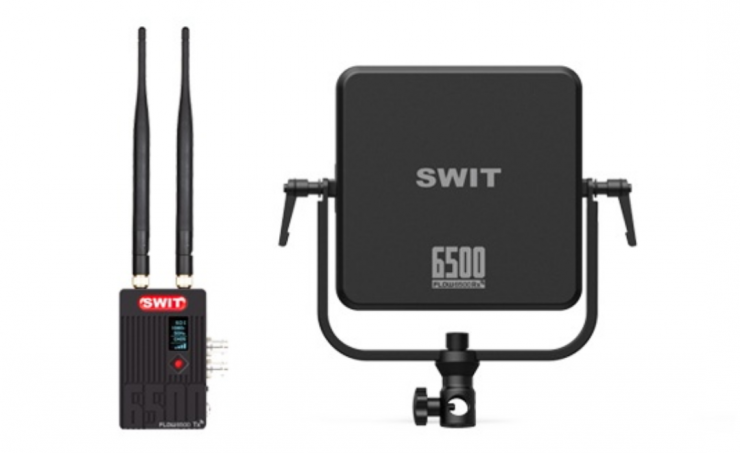

The FLOW6500 has a range of 6500ft/2km, and the FLOW10K has a range of 10000ft/3km. SWIT claims that the new FLOW models will be perfect for large scale event production.

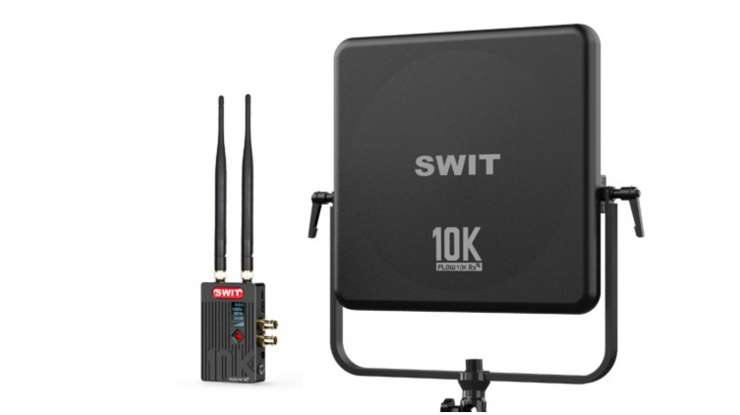

The FLOW6500 and FLOW10K use a high gain panel antenna with a built-in receiver. The transmitters are the same size as the FLOW500 and FLOW2000.

Screen Shot 2020 05 04 at 22 41 02

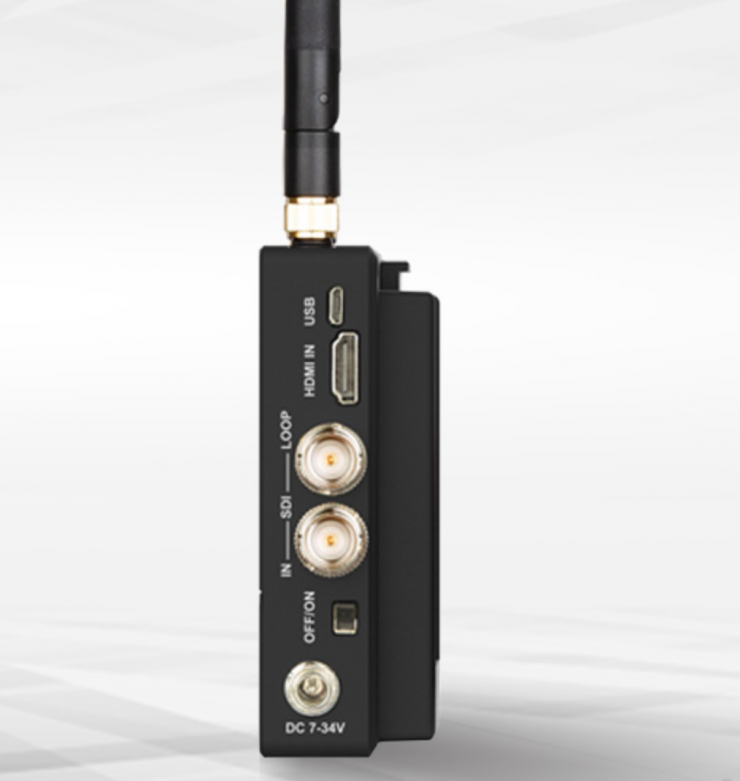

The transmitter has a 3G/HD-SDI in / loop out and HDMI in. The panel receivers have been designed so that you can use them on a light stand.


The panel receiver has a V-mount battery plate on the back and a 6-17V DC-IN connector. There is also an OLED screen that displays the video format, wireless channel, and signal strength.


The long-distance wireless system allows one transmitter to send signals to multiple receivers. they can even work with the FLOW500 or FLOW2000.

FLOW10K Key features

  • ›  KUWI 5.1-5.9GHz Wireless Technology
  • ›  DFS Comply
  • ›  3GSDI & HDMI, with 3GSDI loop out
  • ›  High gain panel antenna with built-in receiver
  • ›  10000ft/3km (Line-of-Sight) distance
  • ›  Strong Wall-Cross Performance
  • ›  2-ch SDI/HDMI audio transmission
  • ›  OLED info and channel switching
  • ›  Support multiple pairs working in one location
  • ›  Multicast – 1 transmitter to unlimited receivers
  • ›  Wireless protocol & content double encryption
  • ›  Reclock and accurate color reproduction

FLOW6500 Key features

  • ›  KUWI 5.1-5.9GHz Wireless Technology
  • ›  DFS Comply
  • ›  3GSDI & HDMI, with 3GSDI loop out
  • ›  High gain panel antenna with built-in receiver
  • ›  6500ft/2km (Line-of-Sight) distance
  • ›  Strong Wall-Cross Performance
  • ›  2-ch SDI/HDMI audio transmission
  • ›  OLED info and channel switching
  • ›  Support multiple pairs working in one location
  • ›  Multicast – 1 transmitter to unlimited receivers
  • ›  Wireless protocol & content double encryption
  • ›  Reclock and accurate color reproduction

There is no indication of price or availability.
