Phantom VEO 1310- 10,800fps

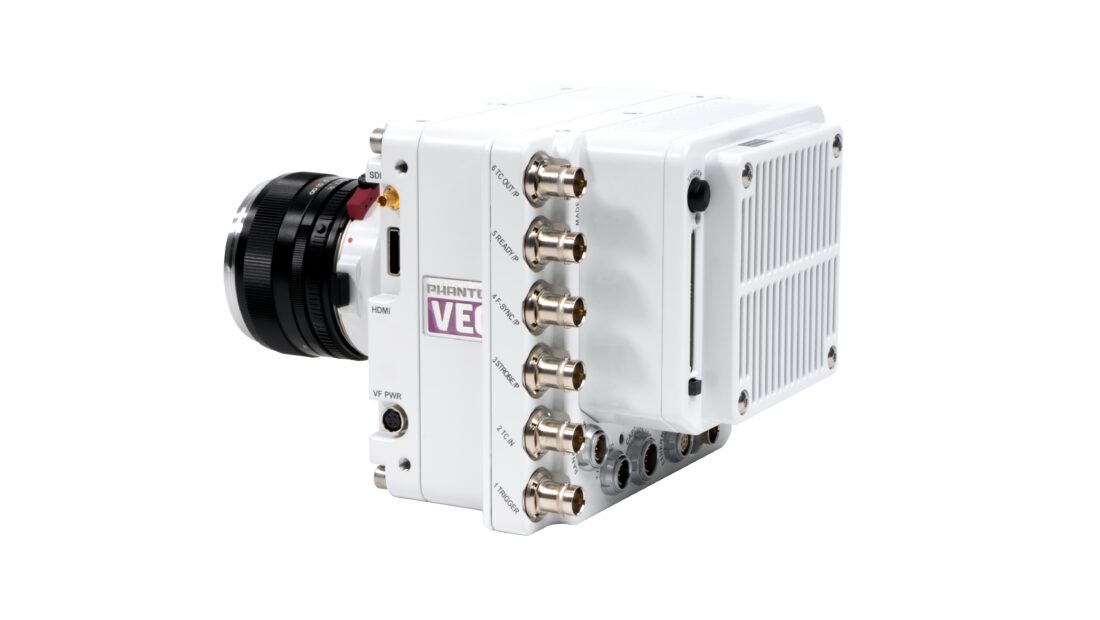

genVEOSleftBack

The Phantom VEO 1310 is claimed to be Vision Research’s most light-sensitive VEO yet. It is available in both L (light) and S (full) body styles to meet the needs of many applications.

The 1310 captures images at over 10,800 frames-per-second at 1.2 Megapixel resolution. Unfortunately, the resolution is limited to 1280 x 960. This won’t shoot at the resolutions of the Phantom VEO 340,640, VEO4K 990 and PL VEO4K 590.

There will always be a trade-off between fps and resolution with high-speed cameras.

This camera could be used for filmmaking applications, but with limited resolution, it is probably going to be more suitable for industrial use.

The camera uses a 1 Megapixel CMOS sensor. The sensor is 23 mm x 17.3 mm. The full-size sensor means bigger pixels (18 µm pixel size) which give the VEO 1310 higher sensitivity, a greater depth of field, and a wider field of view.

Screenshot 2020 02 05 at 9 51 11 AM

If you are going to shoot at 10,000fps you not only need a ton of light, but you need a fairly light-sensitive camera. The E.I range is 6,400 – 32,000 (color); 25,000 – 125,000 (mono).

Screenshot 2020 02 05 at 10 04 10 AM

The VEO 1310 uses interchangeable lens mounts. It comes standard with a Nikon F-mount that supports F & G style lenses.

Screenshot 2020 02 05 at 9 57 00 AM

Optional mounts include PL, C Mount, and Canon EF.

Key features

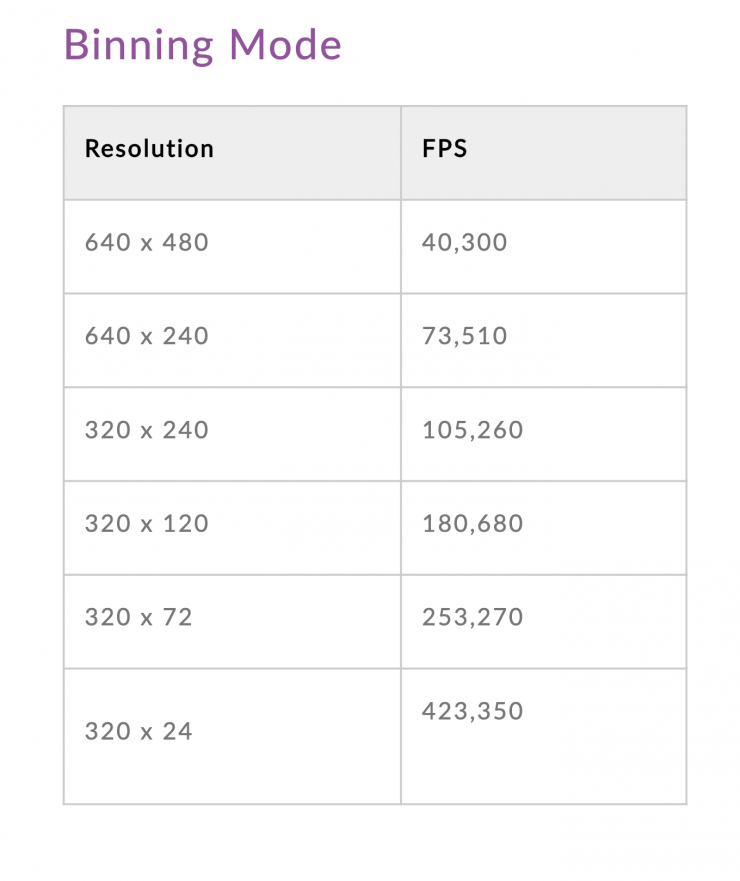

  • Binning Mode – 25% frame rate boost at 640 x 480 and below
  • SDI and HDMI video outputs
  • S-Model Includes:
  • CFast 2.0 media
  • 12V battery input
  • On-camera controls
  • Programmable I/O – assign and define camera signals
  • 10Gb Ethernet Connectivity Option

Frame Rates

The camera can record up to a whopping 423,350fps in a low resolution (320 x 24) pixel binned mode.

Recording

The camera can use 18 GB, 36 GB, or 72 GB of high-speed internal RAM. On-board removable CFast 2.0 cards (S-models) up to 512GB can also be used.

Record times are limited to 3.7 seconds at maximum frame rate, largest resolution, and into maximum internal memory.

Record triggering can be done in the following ways:

  • Programmable trigger location (pre/post trigger recording)
  • Image-Based Auto-Trigger
  • Trigger from software
  • Trigger from on-camera controls (S-model)
  • Hardware trigger BNC

Recording formats

The camera can record in the following formats:

  • Cine RAW & Cine Compressed (12-bit)
  • AVI, h.264 mp4
  • Apple ProRes .mov
  • Multipage TIFF
  • MXF PAL & MXF NTSC
  • Uncompressed QuickTime
  • Windows BMP
  • OS/2 BMP, PCX, TGA
  • TIFF, LEAD, JPEG
  • JTIF, RAW, DNG, DPX

Power

Screenshot 2020 02 05 at 9 59 00 AM

Vision Research offers 2 battery mounts including a V-Lock and an AB Gold mount which mount to the side of the camera and connect to the capture port. Vision Research also offers a short 12V XLR-4 pin cable for use with different battery mount solution.

Build Quality, Weight & Size

Screenshot 2020 02 05 at 9 52 16 AM

All Phantom VEO cameras utilize the same high-quality housing. The milled aluminum body is very compact, around a 5″ cube, and constructed to be lightweight, approximately 6lbs (2.7 kg). Components are safe from dust and sand as the electronics are safely sealed and protected from airflow. These added protections and the rugged design ensure device safety during outdoor and range use.

Price & Availability

I couldn’t find any information about pricing or availability.
