Vaxis Atom 500 – an affordable 500’ wireless video transmission system

Screenshot 2020 01 03 at 3 04 54 PM

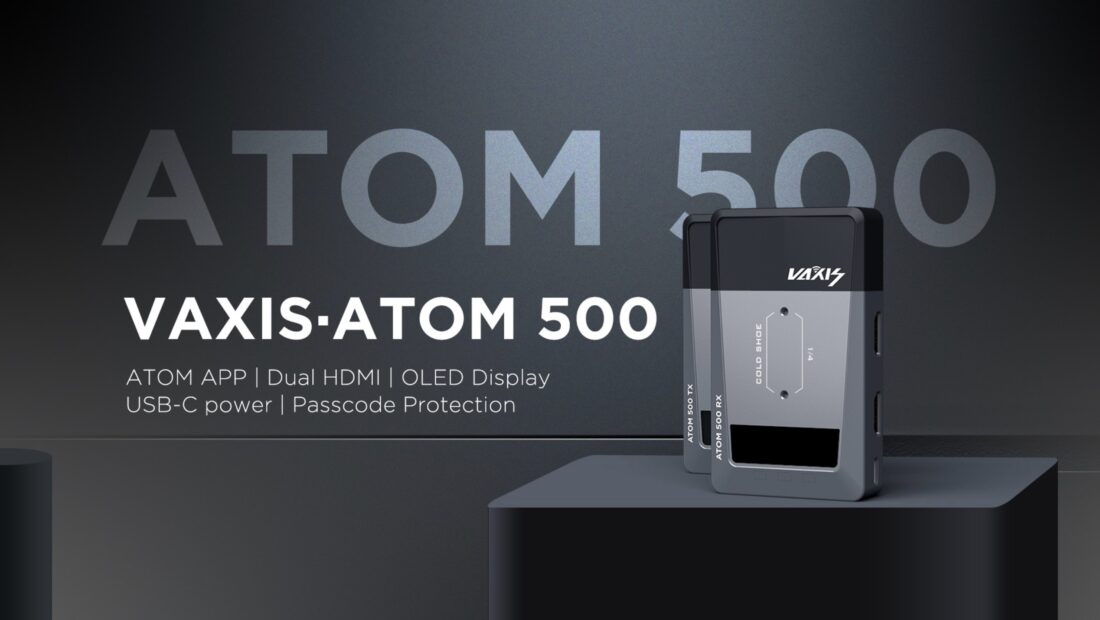

Vaxis has just announced its new Atom 500, an affordable 500’ wireless video transmission system.

KEY FEATURES

  • Up to 500′ Line-of-Sight Range
  • OLED Screen
  • HDMI In/Out on TX unit, dual HDMI Out on the RX unit
  • Dedicated iOS app where up to three iPhone or iPads can view the image at once
  • Built-in antenna design
  • Optional Battery Mounting Plates
  • Support USB-C voltage input
  • Stable & Reliable industrial metal housing
  • Future Firmware Upgrades via USB
  • Smart fan

Concept

6132352C CFA8 46E5 9360 4B27E7E21788

The Atom 500 signals Vaxis entering a new segment of the market. Affordable HDMI wireless video systems have been popping up everywhere lately and I guess it comes as no surprise that Vaxis want a piece of that pie.

Unlike previous products that were aimed at professional users, the Atom 500 is aimed at the Prosumer, YouTube, Vlogger market.

The Atom 500 consists of a HDMI TX and RX unit. Both work on the 5GHz frequency band so you aren’t going to get anywhere near the same operating range of a dedicated wireless video system.

The concept behind the Atom 500 is to give users an affordable and versatile monitoring solution. You can output to a traditional monitor that has an HDMI input, or you can monitor the signal through the dedicated app on an iPad or iPhone.

63CBE2D1 B81E 4978 A91D 4BD63EECF12B

Dual HDMI Ports

157BD9E8 44CA 420B 843C 74BAD0A75E66

Unlike most other budget app based wireless video systems, the Atom 500 TX unit has both HDMI In and Out ports, while the RX unit has dual HDMI Out ports. This is a nice feature to have because you can loop a signal out through a monitor.

Size & Weight

B3030181 28E2 4C95 8E8D D9ADA3D1B8C3

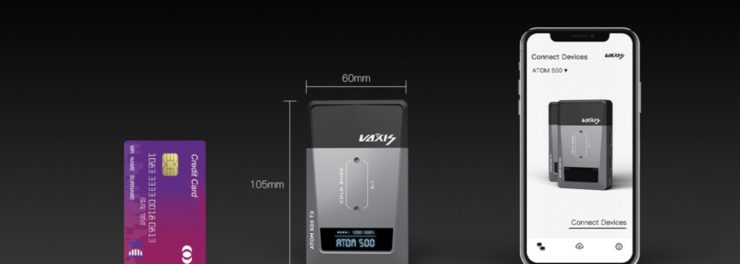

The Atom 500 RX and TX units weigh just 158g (5.57oz) each. They have physical dimensions of 105 x 60 x 22mm.

This does make them quite small, but because they have both full sized HDMI In and Out ports they are going to be larger than some other available systems.

What do you get?

640C4D21 3268 4066 B535 49A63A7E3DEB

The Atom 500 comes with the TX unit, RX unit, user manual, 1x cold shoe, 1x cold shoe platform, a type C cable and a hexagonal spanner.

Interface & Transmission

F165F975 6221 4D98 AA3A 6D4277FA8C83

On the front side of the TX and the RX units is a nice OLED display where you can see crucial information and make changes.

Being that the Atom 500 is using the 5GHz frequency channel, Vaxis have introduced a new automatic channel selection by default. The RX and TX units will constantly scan their surroundings and use the best available channel by default. When you are a selling a budget, easy to use wireless system, making it as easy to use as possible is key.

For those who want to select a channel manually, Vaxis gives you that ability as well.

There is also the ability to set password protection so only the people you want to view the signal can.

Another nice feature of the Atom 500 is that you can prioritize quality or distance depending on what your needs are. If quality is more important then the system with prioritize that, if distance is more import then the quality will be reduced.

Built-In Antennas

8206DF7F 4047 46B4 845D 6918761BCCA3

Both the TX and RX units feature internal antenna units.

H.265 Encoding

Screenshot 2020 01 03 at 3 03 18 PM

What is interesting is that Vaxis is using H.265 encoding for the transmission signal that can be viewed via the app on smartphones and tablets. This is quite clever as it allows Vaxis to send a much better signal while using less bandwidth.

According to Vaxis, the delay is <0.1s latency. In the future, they will release new firmware to shorten the delay.

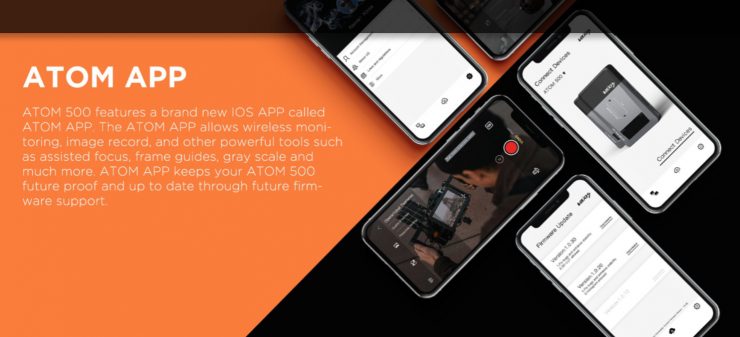

Atom App

Sending a wireless video signal that multiple people can view at once on a dedicated app is hardly new. Teradek has been doing this for years, and most recently we have seen seen very cost effective systems from gimbal companies such as Zhiyun.

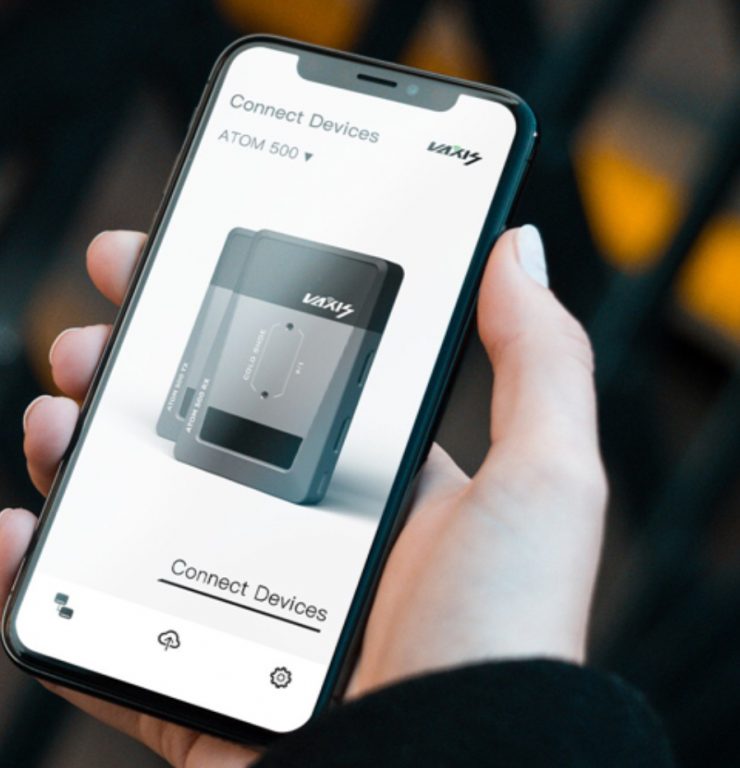

The Atom App is a stand alone purpose built app for the Atom 500. It allows anyone with an iOS device to view the wireless signal from the TX unit. Up to three IOS devices can be connected at once.

The Atom App is more than just a viewer. It gives you the ability to activate monitoring functions such as peaking, focus punch in, frame guides etc., and even the ability to roll record your camera remotely, as long as it supports HDMI record triggering.

Power

B453A764 832D 441A 8EB2 A439E02E7E8E

The Atom 500 RX and TX units both have in-built battery plates that can take Sony NP batteries. You also have the option to power it through USB-C.

It is nice that Vaxis gives you two ways of powering the device. I can’t help but wonder whether having an in-built battery would have made sense. If you are trying to keep a wireless systems form factor to the smallest possible size and weight, it doesn’t make a lot of sense to use a battery that weighs more than the device it is powering.

Competition

9D06BAA8 D837 4F94 9501 88A183AA9809

There isn’t much in the way of direct competition. The Atom 500 is more versatile and has a TX and RX unit unlike the Accsoon CineEye Wireless Video Transmitter with 5 GHz Wi-Fi for Mobile Devices.

Teradek has its Serv Pro, but that has both an HDMI and SDI in and uses an app that has far more functionality and features. The Serv Pro can also be connected to 10 IOS devices at once.

There is also the Zhiyun Image Transmission Module Transmount Transmitter for the Zhiyun Weebill S. Although this is designed for the Weebill S it can be used as a standalone wireless transmitter that can be viewed on iOS or Android devices.

Pricing and availability

2EED8D5E CE7C 4C5F BF26 15F1F001A36E

The Vaxis Atom 500 is now shipping for $480 USD.
