Optica Magnus Xpanders

The Optica Magnus Xpander’s are designed for digital cinema cameras and have been optimized to work with both vintage and modern-day zooms.

Screen Shot 2019 10 18 at 10 49 38 AM

With more and more full frame and VistaVision cameras emerging, there is a real shortage of zooms available that can cover these large sensors. By using expanders, cinematographers can utilize existing zooms that are already in circulation.

The Xpanders are a good match for the 24-290mm Angenieux Optimo and the Angenieux Optimo 17-80mm. They will also perform well on the Angenieux HR 25-250mm and the Angenieux 17-102mm.

The Xpander’s also provide new life to the Classic Cooke zooms like the Cooke Varotal 25-250mm and the Cooke 20-100mm, 18-100mm and the 20-60mm.

Screen Shot 2019 10 18 at 10 52 56 AM

This provides the option of matching zooms with the character of classic prime lenses.

A special series of the Xpander’s are also available that will work with the Fujinon 75-400mm, 18-85mm, and 24 –180mm Premiere zoom lenses.

Anamorphic 2x Angineux/Cooke

Screen Shot 2019 10 18 at 10 32 46 AM

This anamorphic 2x adapter will convert Angenieux and Cooke zoom lenses into a 2x anamorphic lens. It is optimized for use with the Angenieux Optimo 24-290mm, but it will also work on the Angenieux HR 25-250, Angenieux 17-120, Cooke Varotals 20-60, 18-100, 20-100, and the 25-250mm. Using this adapter will result in a 1 stop loss of light.

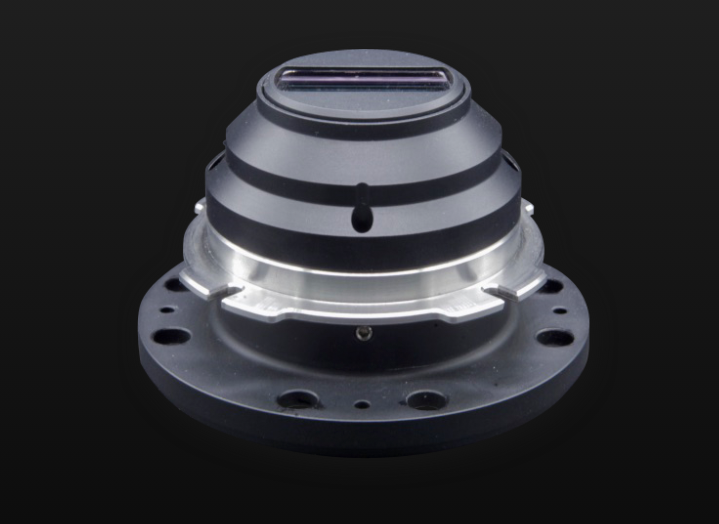

Anamorphic 2x Fujinon

Screen Shot 2019 10 18 at 10 33 57 AM

This anamorphic 2x adapter will convert Fujinon Premiere lenses to a 2x anamorphic lens. It is optimized for the Fujinon Premiere lenses: 24-180mm, 18-85mm and 75-400 mm. There is a 1 stop loss of light when using this adapter

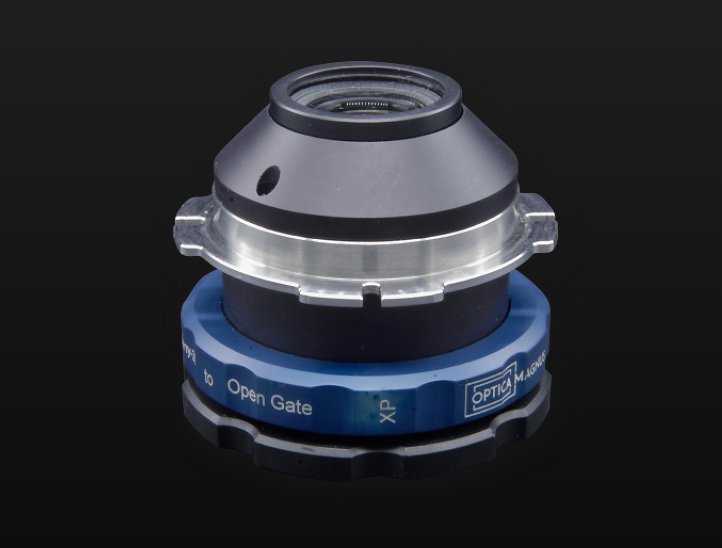

Xpander Academy to Super 35

Screen Shot 2019 10 18 at 10 35 34 AM

This Xpander is optimized to work with the 25-250mm Angenieux HR, the Cooke 18-100mm, Cooke 20-100mm, and the Cooke 25-250mm. Light loss is just 0.3 (1/3) stops.

It is also available for the 17-80mm Angenieux Optimo and Fujinon Premiere lenses 24-180mm, 18– 85mm, and 75-400 mm.

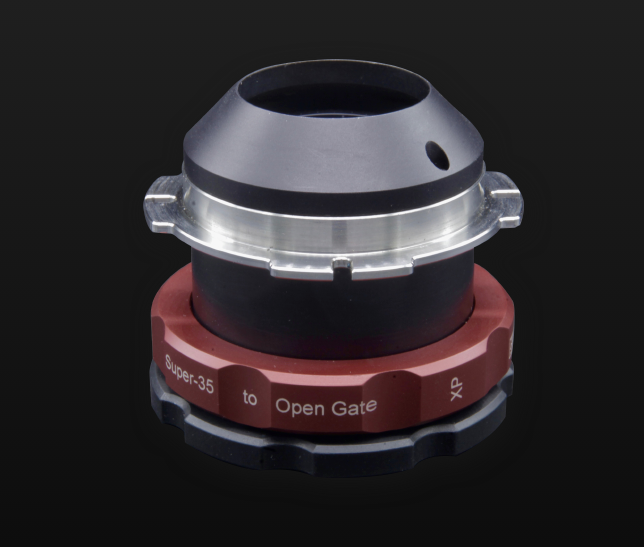

Xpander Super35 to S35 Opengate

Screen Shot 2019 10 18 at 10 36 50 AM

This Xpander is optimized to work with the Angenieux Optimo 24-290 mm. The Stop loss is 0.3 (1/3) stops.

It is also available for the 17-80mm Angenieux Optimo and Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400mm.

Xpander Super 35 to Full Frame Netflix Format

Screen Shot 2019 10 18 at 10 37 44 AM

This Xpander is optimized to work with the Angenieux Optimo 24-290 mm. The stop loss is 0.65 (2/3) stops.

The adapter is also available for 17-80mm Angenieux Optimo and Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400 mm.

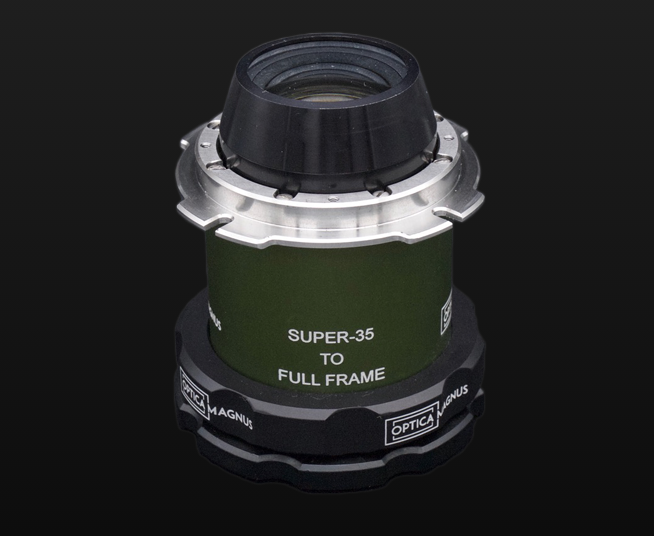

Xpander Super 35 to Full Frame

Screen Shot 2019 10 18 at 10 38 34 AM

This Xpander is optimized to work with the Angenieux Optimo 24-290 mm. The stop loss is 1.5 (1 1/2) stops.

It is also available for 17-80mm Angenieux Optimo and Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400 mm.

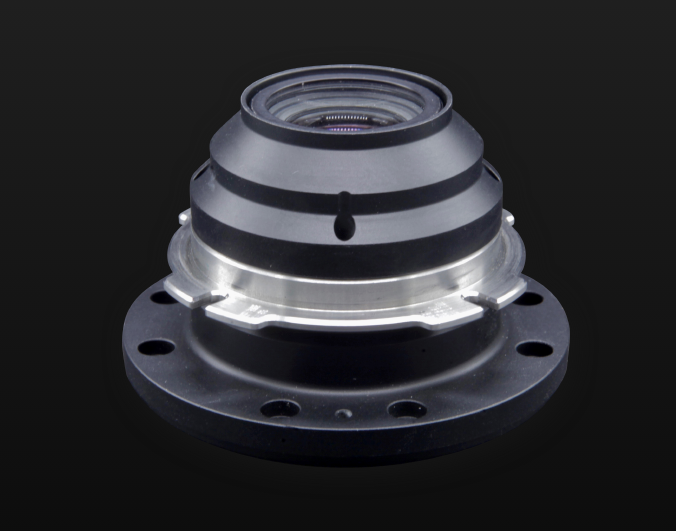

Fujinon Academy to S35 Opengate

Screen Shot 2019 10 18 at 10 39 36 AM

This Xpander is optimized to work with the Fujinon Premiere lenses: 24-180, 18-85 and 75-400 mm. The stop loss is 0.5 (1/2) stops.

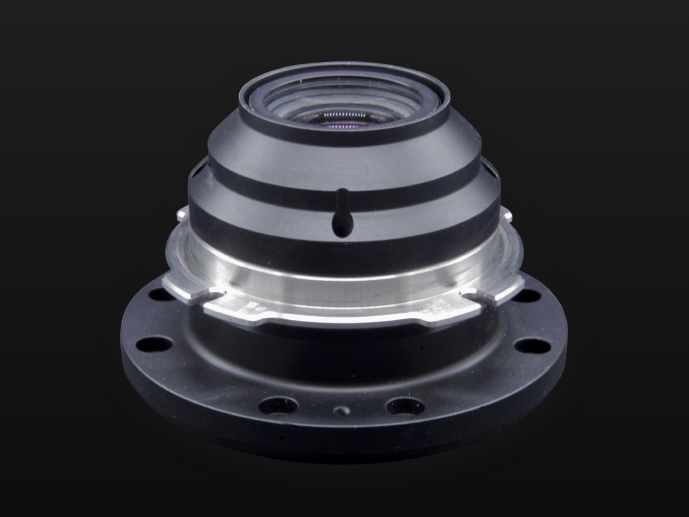

Fujinon Academy to Opengate

Screen Shot 2019 10 18 at 10 40 29 AM

This Xpander is optimized to work with the Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400 mm. The stop loss is 0.5 (1/2) stops.

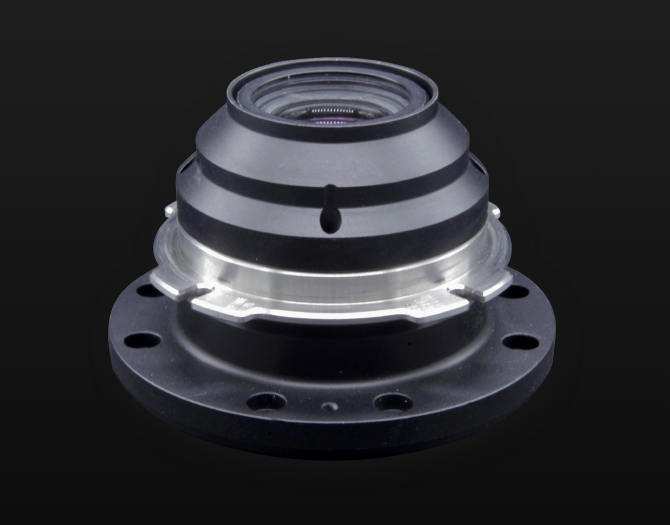

Fujinon Academy to Full Frame Netflix

Screen Shot 2019 10 18 at 10 41 16 AM

This Xpander is optimized to work with the Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400 mm. The stop loss is p loss is 0.5 (1/2) stops.

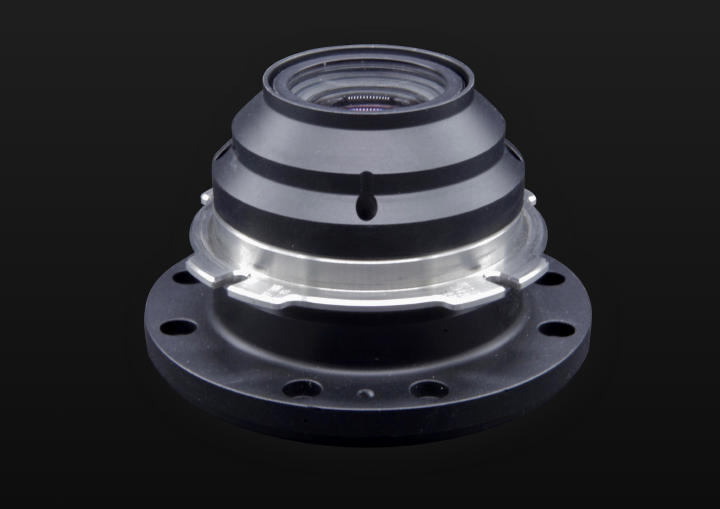

Fujinon Academy to Full Frame Opengate

Screen Shot 2019 10 18 at 10 42 09 AM

This Xpander is optimized to work with the Fujinon Premiere lenses: 24-180mm, 18-85mm, and 75-400 mm. Stop loss is 1.5 (1 1/2) stops.

Pricing

I couldn’t find any pricing listed for the Xpander’s. If you are interested you would need to call Optica Magnus up in Hollywood or email them at [email protected]
