ATOM one SSM500 – a 400g camera that can capture up to 500fps

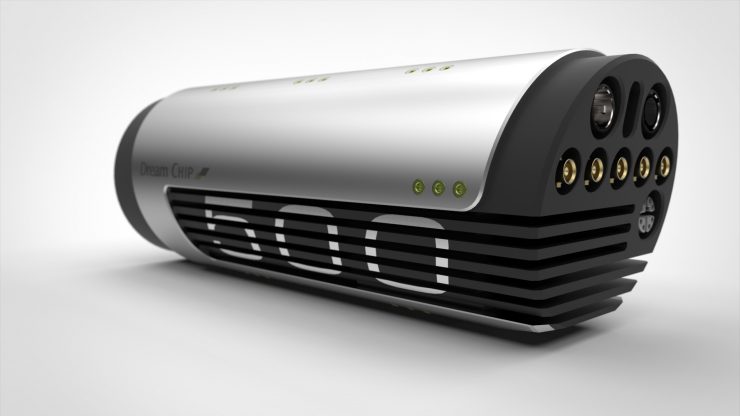

ATOM one SSM500 1

The ATOM one SSM500 is a full HD digital high-speed camera system developed by Dream Chip Technologies GmbH for the Broadcast Television Industry. The system is specifically targeting sports.

The camera weighs just 400g and it features a C Mount for attaching compatible lenses. The SSM500 uses a 2/3″ CMOS sensor with a global shutter.

ATOM one SSM500 Specifications

Sensor2/3“ CMOS
ShutterGlobal (1/25-1/10000s)
Video OutputEVS SSM mode or Trigger mode
Recording Time@500fps 60 seconds
Frame Rateup to 500 fps
Dynamic300 fps 12 bit – 500 fps 10bit
SDI Output4x HD-BNC / 3G SDI
Sensitivity640 ISO
Voltage Range11V – 36V
Power20W 1,[email protected]
ControlRS485 and IP
Dimensionslength 165mm, with Ø60
ATOM one SSM500

The camera has the capacity to capture up to 500 frames per second in 1920x 1080 10-bit, or 300fps in 12-bit. Because of its size, the camera can be easily placed on a Polecam or over the basketball net. Users can connect the camera directly to their EVS system and control the slow motion with their standard work flow.

For small production or stand-alone applications, the camera also supports internal recording of up to 500fps for 60 seconds.

ATOM one SSM500

There is no information currently about pricing or availability, but the camera will be on display at IBC later this week.
