SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller

SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller

SmallRig has announced a new Quick Release Clamp for the Tilta Nucleus-Nano Hand Wheel Controller.

Nucleus N Controller with Rosette adapter on Tilta Cage
Nucleus N Controller with included Rosette adapter on Tilta Cage

We previously reviewed Tilta’s Nucleus Nano system and one of the complaints Erik had was that the Hand Wheel Controller was difficult to hold onto and mount. While the Hand Controller Wheel does have an in-built rosette plate, that doesn’t necessarily suit everyone’s needs.

SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller

This new solution from SmallRig looks like a good option, especially if you want to place the hand controller on a gimbal or camera cage.

Key features

  • Lets you attach the Tilta Nucleus-N Handwheel to Gimbals, camera cages and handles
  • Quick release lever and installation marks
  • Safety mechanism to prevent the handwheel from sliding off

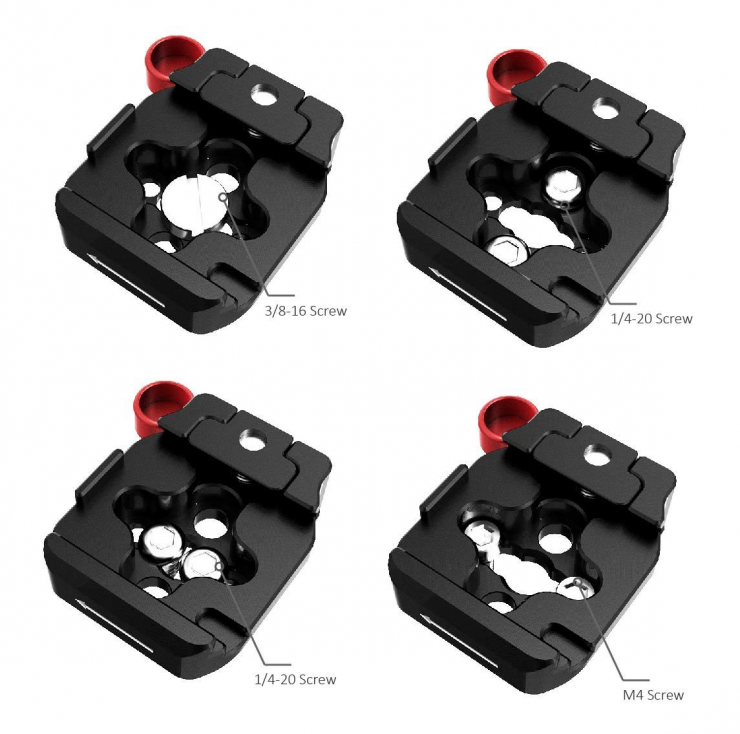

  • Provides multiple mounting points such as 1/4”-20, 3/8”-16 and an m4 hole

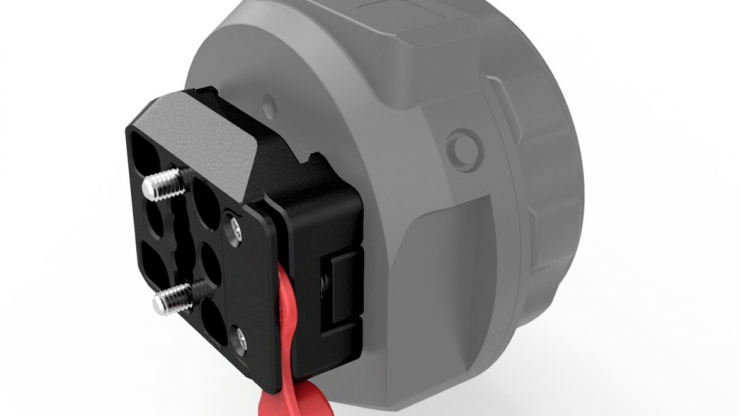

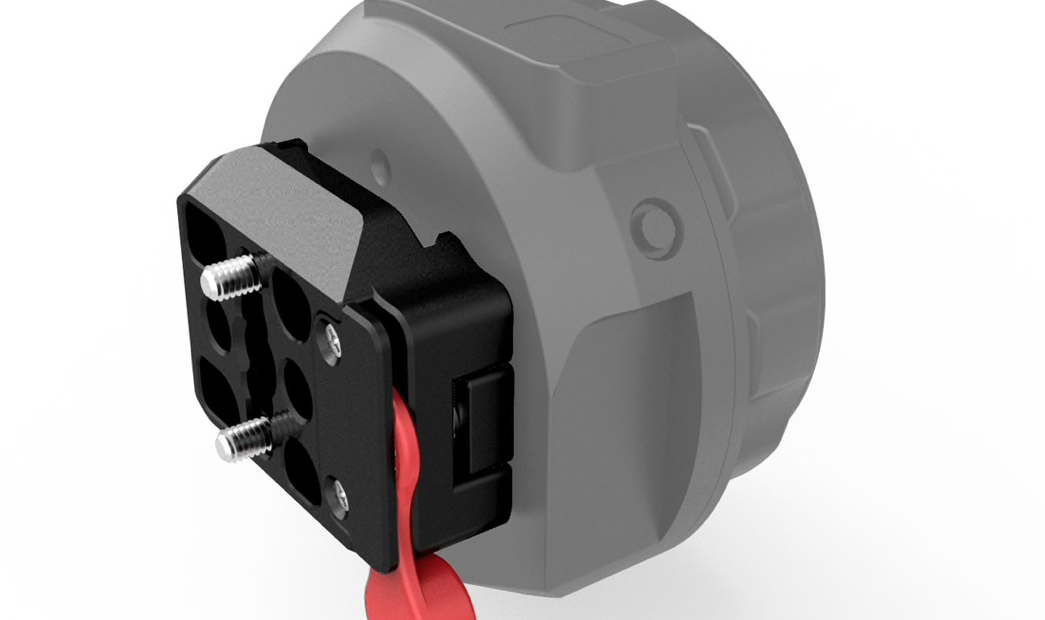

The SmallRig Quick Release Mounting Clamp for the Tilta Nucleus-Nano Handwheel has been designed to allow you to attach the handwheel controller to gimbals and any other camera equipment that has a 1/4”-20, 3/8”-16, or m4 threaded holes.

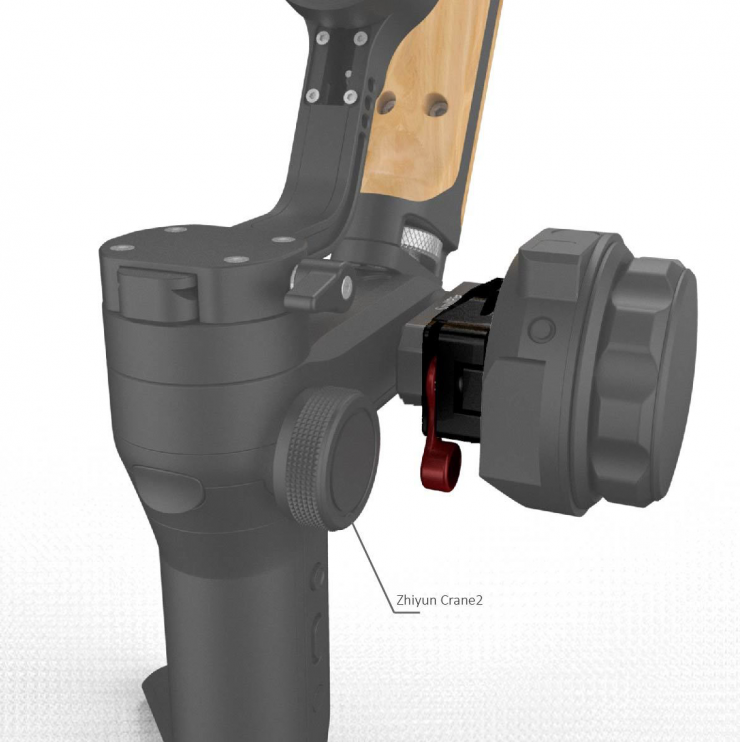

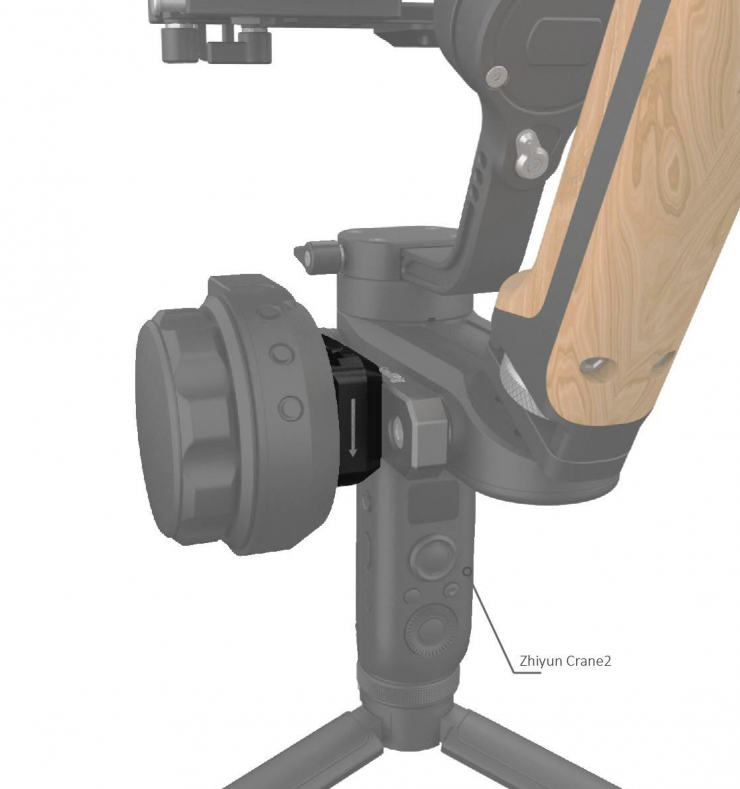

For use on gimbals, it attaches to the DJI Ronin-S directly via two m4 screws. To attach it to the Zhiyun Crane 2 you will also need the Rod Clamp for Zhiyun Crane2/Crane v2. For the Moza Air 2 you will also need the Mounting Plate for Moza Air 2 Gimbal. It can also be attached to the Tilta G2X Gimbal via an m6 screw.

SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller

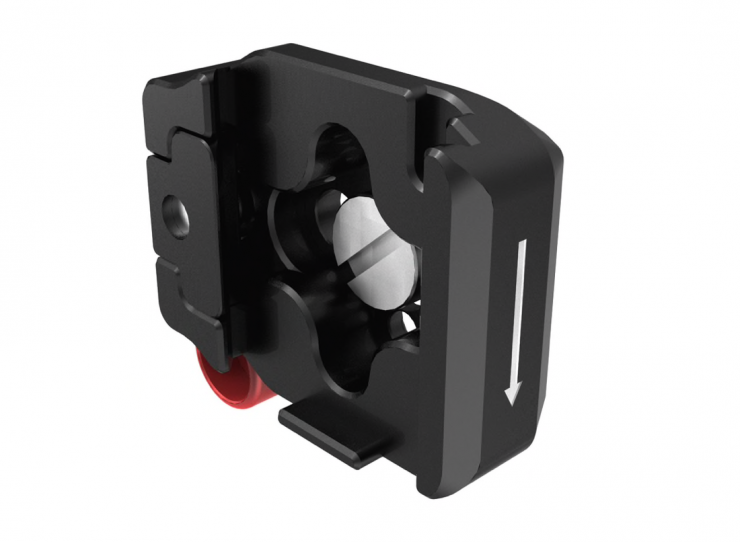

The quick release mounting clamp features a lever and installation marks to prevent any error when installing. The adapter has a safety mechanism to prevent the handwheel from accidentally sliding off.

What do you get?

  • 1 x Clamp
  • 1 x 3/8”-16 Screw
  • 2 x 1/4”-20 Screw
  • 2 x M4 Screw
  • 2 x Hex Spanners

Product Dimensions: 50 x 48 x 22mm
Package Dimensions: 76 x 63 x 40mm
Net Weight: 61g
Package Weight: 83g
Material(s): Aluminum Alloy

Other Option

Screen Shot 2019 03 30 at 3 25 53 PM
Tilta Nucleus-Nano Handwheel Attachment Plate for DJI Ronin-S/Gravity G2X.

Tilta also make their own Nucleus-Nano Handwheel Attachment Plate for DJI Ronin-S/Gravity G2X. It costs $15 USD.

Price & Availability

The SmallRig Quick Release Clamp for Nucleus-Nano Hand Wheel Controller is now available to pre-order. It is expected to start shipping on the 9th May 2019.

The price will be $26.90 USD.
