New IDX DUO-C150 and CUE-D300 batteries – Interbee 2018

At the Interbee 2018 show in Japan, IDX was showing two new batteries- the DUO-C150, and CUE-D300.

DUO-C150

The DUO-C150 will be the 3rd member of the DUO family and joins the DUO-C98 and the DUO-C198. With 143Wh capacity, it meets the passenger aircraft carry-on limit while still providing enough power to cine-style cameras such as the ARRI ALEXA Mini and RED WEAPON.

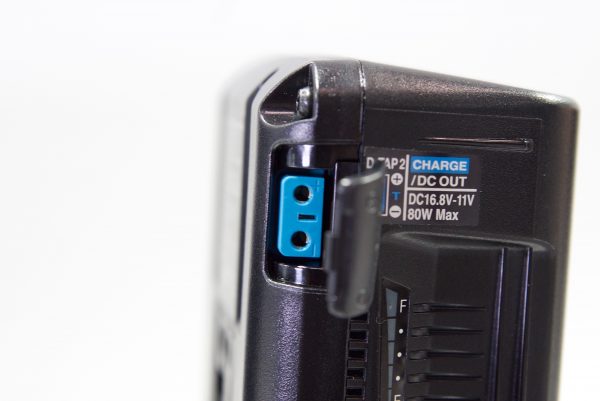

Compared to the current DUO-150, the new DUO-C150 can now handle a higher load, and it has been upgraded from a single D-Tap port to a D-Tap Advanced (can be used as a charging port when used with the VL-DT1 charger). The battery also features a 5 LED indicator for more accurate remainder display (in 10% increments), an added V-Torch light for use in dark environments, and SMBus for providing data in the viewfinder when used with cameras such as RED.

DUO-C150 will retire the IDX user favorite DUO-150 and it will be available in December.

Specifications

Battery Capacity 143Wh (14.4V/ 9.9Ah)
Max.Output Voltage 16.8V DC
Nominal Voltage 14.4V DC
Maximum Discharge Current 14A ‡
D-Tap 80W each
USB DC 5.0V / 2.3A
End Voltage 11V
Battery Protection Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Dimensions 97(W)x146(H)x59(D)mm
Weight 910 grams approx.

CUE-D300

The CUE-D300 is a 286 Wh large capacity V-mount battery that has been designed for cameras and devices that have a high power draw. The battery has one D-Tap with a maximum 80 W output. It features the same 5 LED indicator that can be found on the DUO-C150.

The CUE-D300 will be available in January 2019. The retail price in Japan will be 85,000 yen ($750 USD).

Specifications

Capacity: 286 Wh (14.4V 19.8Ah)
Maximum output: 154W (14A at 11V)
External dimensions / mass: (W) 97 mm × (H) 146 mm × (D) 79 mm / about 160 g
D-Tap output voltage / maximum power: battery voltage / 80W
Protection function: overcharge protection, over-discharge protection, overcurrent protection
Air transport: Since it exceeds 160 Wh, it is impossible to take on board a passenger aircraft
