F&V Z800S Soft 2×1 LED panel review: a new rival for Kino Flo?

DSC04444

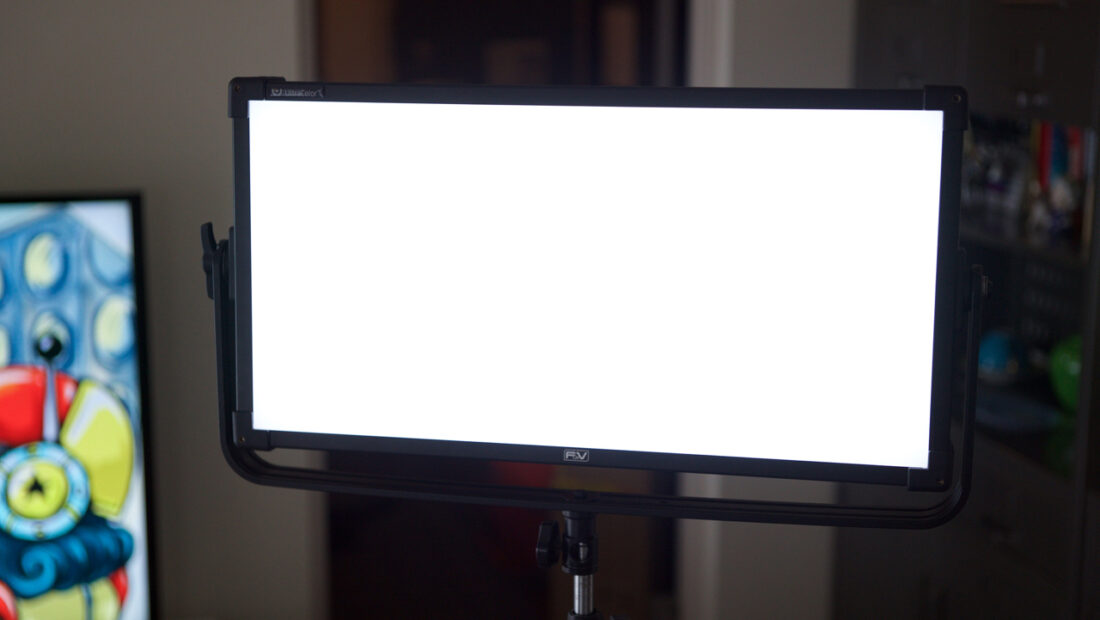

2×1 LED panels may not be as popular as their 1×1 counterparts, but they can make a nice addition to your lighting arsenal. In most cases they offer a greater output, wider light source and the ability to light a subject either horizontally or vertically. The downside to 2×1 panels is obviously when it comes to travel. It’s not the weight that is the problem, but the physical size. Transporting and flying with a light that is 60cm (23.6″) long with its yoke attached is no easy task.

DSC04446

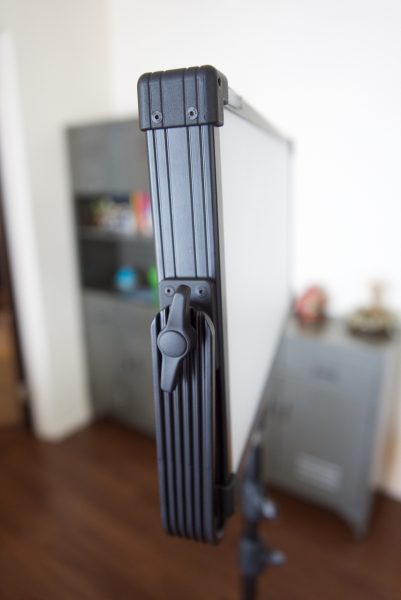

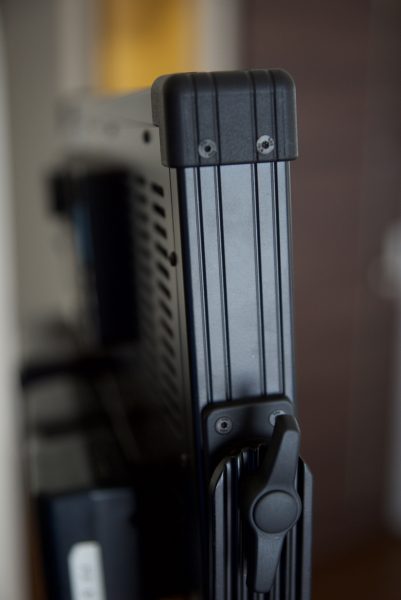

The 2×1 LED panel I have been putting through its paces is the F&V Z800S Soft. Despite its large physical dimensions, the light is just 8cm (3.14″) thick and weighs in at 3.6kg (7.93lb) with its yoke frame attached. The Z800S is bi-colour adjustable between 3200-5600K and can be dimmed from 100-0%. It also features a built in diffusion panel to create a nice soft source.

DSC04448

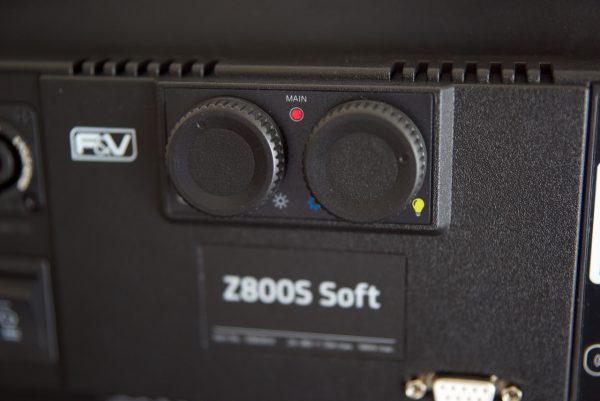

The Z800S has two physical dials, one for adjusting colour temperature and the second to adjust power output. There is also an LCD display where it is very easy to toggle between the two to see a clear visual indicator of your settings.

DSC04453

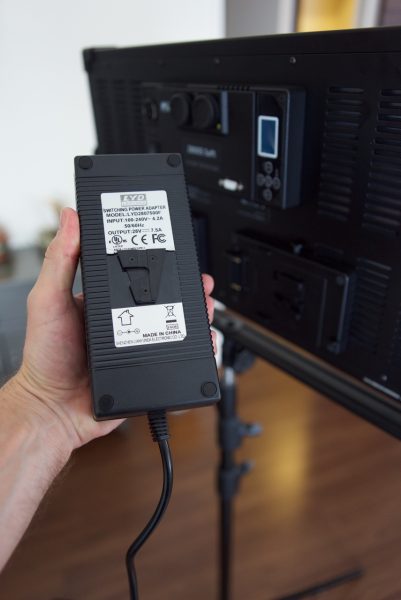

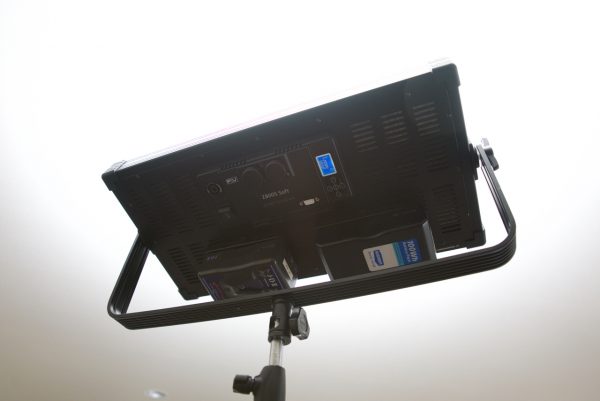

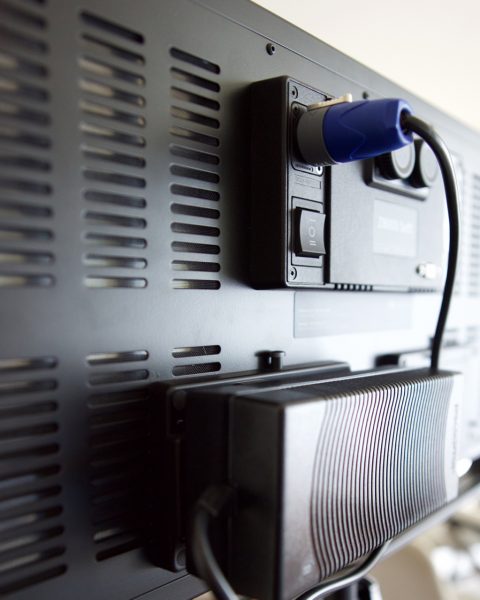

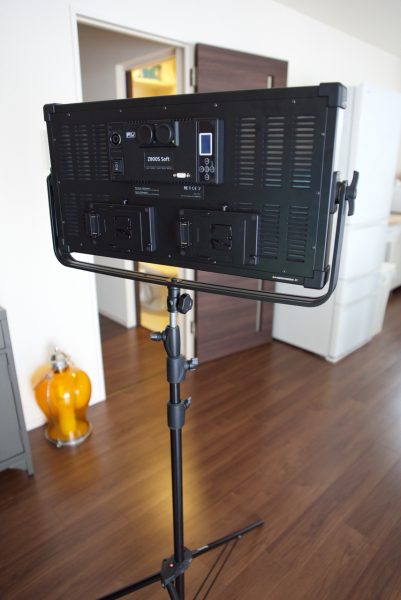

To power the light you can attach a power supply that has a V-lock wedge directly to one of two V-lock plates on the back of the Z800S (an Anton Bauer option is also available). The power supply I was testing was just a prototype and did not fit very well on the V-lock plate and wobbled around. F&V have a new production version that will ship once the light is available that will not have this problem.

DSC04451

The light draws 180W, which means that if you intend on running it off a camera battery you’re going to need two. Despite this, it is still a nice option to be able to remotely power a higher output light such as this in the field. The light doesn’t feature a fan and it does tend to get very hot when left on for long periods of time. The heat it was generating was far greater than any other LED light I have tested.

The Z800S has a nice wide 130° beam angle, and this coupled with its wide (or high depending on how you mount it) physical dimensions makes it a great choice for lighting up large areas. I found this to be one of the light’s best strengths and you can get away with illuminating quite a large space using just one light: something that’s very hard to do with a smaller light. The light is also flicker free up to 15000fps which is handy.

The Z800S top and the Z400S bottom.
The Z800S top and the Z400S bottom.

As the name suggests, the Z800S is roughly twice the size of its smaller sibling the Z400S. Both lights are part of F&Vs UltraColor range. I have previously reviewed the Z400S and I was interested to see if the Z800S could match it for colour accuracy. Even though LED technology has improved greatly, historically the larger the LED light the less colour accurate they tend to be, although that has started to change. I also wanted to see just how much more output the Z800S put out over the Z400S. In theory it is just two Z400S panels in one housing, so the output should be very close to being double.

I tested the Z800S output at both 3200K and 5600K using a Sekonic C-700 at a distance of 1 meter and you can see the results I got below.

The F&V Z800S tested at 3200K.
The F&V Z800S tested at 3200K.
The F&V Z800S tested at 5600K.
The F&V Z800S tested at 5600K.

At 3200K the light produced 4040lx and at 5600K 4290lx. When I tested the Z400S it produced 2020lx at 3200K and 2250lx at 5600K. These results were pretty much expected, with the only variable being that the Z800S didn’t quite have double the power output at 5600K of the Z400S. The power output was nonetheless still quite impressive for a soft source that could be used in interview environments. I usually find that a light source of at least 3000lx (before you add diffusion or a softbox) at a distance of 1 meter is required for use as a key light when shooting a interview.

The light was also very colour temperature accurate and the ⊿uv (the value to show how much this light is away from being an ideal light source (black body radiation = incandescent lamp) score was almost perfect at -0.0002 when tested at 3200K. At 5600K it also recorded a ⊿uv reading of -0.0002, showing that the light is extremely consistent across the colour temperature spectrum.

Next I wanted to test the light’s colour accuracy at both 3200K and 5600K. Again I used the Sekonic C-700 and the results can be seen below.

The F&V Z800S at 3200K.
The F&V Z800S at 3200K.

At 3200K the light recorded an average CRI (R1-R8) of 96.4 and an extended CRI (R1-R15) of 95.12. For the important scores that correlate for good skin tone reproduction it scored R9 (red) 91.3, R13 (closest to caucasian skin tones) 95.5 and R15 (closest to asian skin tones) 95.0. These results were very impressive for a larger LED light and were very similar to what I got when I tested the smaller Z400S.

The F&V Z800S tested at 5600K.
The F&V Z800S tested at 5600K.

At 5600K the light recorded an average CRI (R1-R8) of 93.4 and an extended CRI (R1-R15) of 92.1. For the important scores that correlate for good skin tone reproduction it scored R9 (red) 90.8, R13 (closest to caucasian skin tones) 94.9 and R15 (closest to asian skin tones) 91.4. These results were again very similar to what I got when I tested the smaller Z400S, with the exception of R9 (red) being quite a bit higher than than what it was on the Z400S (83.1).

DSC04459

The only other 2×1 panels I have tested so far have been the bi-colour flexible panels from Aladdin and Westcott. As they don’t feature built in diffusion I will only compare them for colour accuracy up against the Z800S.

3200K
F&V Z800S
CRI (R1-R8) 96.4
Extended CRI (R1-R15) 95.1
R9 (red) 91.3
R13 (closest to caucasian skin tones) 95.5
R15 (closest to asian skin tones) 95.0

Westcott Flex 2×1 Bi-color
CRI (R1-R8) 96.9
Extended CRI (R1-R15) 95.45
R9 (red) 96.7
R13 (closest to caucasian skin tones) 98.6
R15 (closest to asian skin tones) 98.8

Aladdin B-Flex 2×1 (tested at 3000K)
CRI (R1-R8) 98.5
Extended CRI (R1-R15) 97.54
R9 (red) 96.7
R13 (closest to caucasian skin tones) 98.6
R15 (closest to asian skin tones) 98.8

5600K
F&V Z800S
CRI (R1-R8) 93.4
Extended CRI (R1-R15) 92.1
R9 (red) 90.8
R13 (closest to caucasian skin tones) 94.9
R15 (closest to asian skin tones) 91.4

Westcott Flex 2×1 Bi-color
CRI (R1-R8) 97
Extended CRI (R1-R15) 95.2
R9 (red) 91.1
R13 (closest to caucasian skin tones) 97.8
R15 (closest to asian skin tones) 94.4

Aladdin B-Flex 2×1 (tested at 6000K)
CRI (R1-R8) 97
Extended CRI (R1-R15) 95.52
R9 (red) 97.8
R13 (closest to caucasian skin tones) 98.6
R15 (closest to asian skin tones) 97.6

While both the Westcott and Aladdin beat out the F&V when it comes to colour accuracy, it is important to remember that CRI values of less than five points are not significant, e.g., light sources with 80 and 84 CRI are essentially the same. In saying that a very high (90+) CRI is desired in applications where the appearance of colours is critical.

DSC04443

I have been quite impressed with the Z800S after spending some time using it. My initial reaction when first receiving the light was that I thought it would be too big for a lot of the work that I do that requires travel. While that opinion hasn’t really changed I have found it a very useful light for jobs locally in Japan where I don’t need to fly. The light source it produces is very soft and it creates very subtle shadows. The 130° beam angle as I mentioned earlier allows you to light up large spaces and I particularly like using the Z800S up high on a lightstand. It works equally well bouncing into a wall or ceiling to produce a nice indirect soft source.

The optional KS-2 softbox will be available once the light starts shipping.
The optional KS-2 softbox will be available once the light starts shipping.

For use during interviews the light really does require a softbox to control the wide beam angle. Unfortunately I wasn’t able to test it with a softbox as F&V didn’t have one available yet, but the KS-2 softbox that works with the light should be available when the light starts shipping. If you are planning on using it for interviews without a softbox you are going to get an awful lot of light spill, but that may well work depending on the look you are going for.

DSC04452

As far as 2×1 LED lights go, the Z800S certainly isn’t as versatile or travel friendly as a flexible panel. The Z800S is also a lot more power hungry, however it is extremely quick to set up and its wide beam angle allows you to get away with using one light instead of two to light up a larger space. To be fair to F&V the Z800S is not really being targeted at people looking to buy flexible LED panels.

F&V have done a good job with keeping the weight down and the price as well. The Z800S will retail for €1,499 ($1,690 US), and if you look at some of its direct competition it stacks up very well. The Zylight Pro-Panel V2 is $2,699 US and weighs 6.35kg, the Rosco Silk 210 is $2,246 US and weighs 5.9kg, and the Kinoflo Celeb 201 is $2,373 US and weighs 6.8kg. The only other soft 2×1 source light that competes on price is the SoftPanels 1×2 ($1,495 US), but it is yet to ship and weighs in at 7.5kg.

DSC04455

If you travel a lot, the Z800S probably isn’t the light for you. Despite the relatively low weight, its physical dimensions require you to put it in a very large pelican case or a suitcase if you intend on flying. If you’re not travelling a lot and you are looking for a nice soft light that has a decent output and the ability to light up large spaces, the Z800S is a good option. With high photometric scores, good colour accuracy and easy to use controls F&V have created a nice light at a reasonable price.

The Z800S is due to start shipping sometime this month.
