Canon announce massive CN20x50 50-1000mm Cine Servo zoom with built-in 1.5x extender

By site editor Dan Chung:

CN20x50-039 FSR

Canon today took the wraps off a phenomenally long range servo cine zoom. The CN20x50 is a whopping 50-1000mm in length natively – which can be extended with the built-in 1.5x teleconvertor to an unbelivable 75-1500mm.

It will come in EF and PL versions and is T5.0 at 50-560mm, dropping to T8.9 at the 1000mm end. Add in the extender and it drops to T7.5 and 75-840mm and T13.35 at the 1500mm end.

The lens has a close focus of 3.5m/11.5 inches and the front element is a giant 136mm – you will likely want a camera with built-in ND filters.

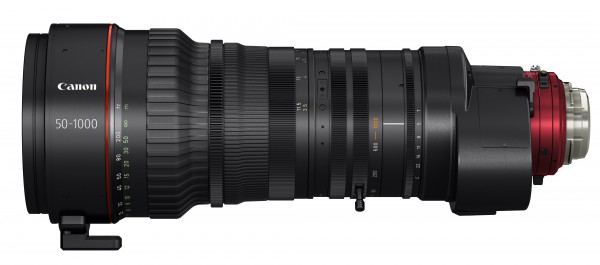

CN20x50-039 Right

At 413.2mm long in EF mount and 405.2mm in PL the CN20x50 it isn’t exactly hand holdable. Weight is a relatively light 6.6 kilograms, given the focal length I would have expected it to be heavier.

This is a lens that is certain to have sports and wildlife shooters drooling. With the servo unit on the side it is well suited to fast paced shooting, although a solid tripod or vehicle mount will be a must.

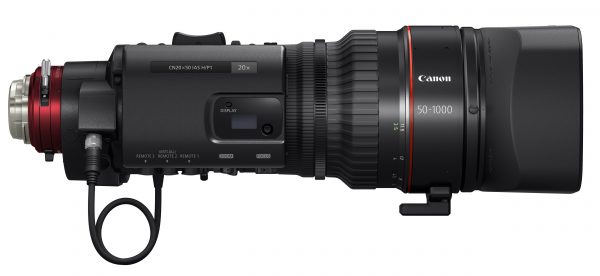

CN20x50-039 Left

No pricing is given yet but it is not going to be inexpensive given the specialist nature of the lens. It will probably be in the same league as a rather nice new car.

Here are the details from Canon:

Canon introduces new 4K cine-servo, ultra-telephoto lens with world’s longest focal length

United Kingdom, Republic of Ireland, 16 October 2014
– Canon today bolsters its cine servo lens line-up with the new CN20x50 – a high performance, ultra-telephoto zoom lens for sport and nature TV production. Leveraging Canon’s long-standing and unparalleled expertise in lens design, the CN20x50 delivers superb image quality and exceptional creative control, and is the first lens of its type to combine a built-in 1.5x extender, class-leading 20x magnification and a removable servo drive, with a native 50-1000mm focal range that expands to a huge 75-1500mm.

Designed to be a portable solution for broadcast productions using super 35mm cameras – whether HD, UHD or 4K – the CN20x50 is a tool of unprecedented quality, versatility and usability. Featuring a completely removable updated servo drive unit that enables an agile shooting style that’s difficult to achieve with typical cine lenses, the new cine-servo lens helps to meet growing demands for Ultra High Definition (UHD) resolution sport and nature television production.

Versatile and reliable
With productions today expected to shoot in demanding and unpredictable environments, a huge level of lens flexibility is required. For wildlife television, operators typically work in hostile and sensitive conditions which often necessitate shooting from extremely long distances, while sports productions typically require extremely high resolution for close-to-the-action stadium work. In both situations, operators require fast, reactive positional changes, shooting flexibility and nimble hardware that allow them to respond to changes in the scene.

Weighing just 6.6kg, the CN20x50 is conveniently portable and lightweight and offers an unrivalled focal length and zooming capabilities for its class. It enables sport and documentary crews to capture footage at a distance, while maintaining the highest quality throughout the zoom range. The lens’s huge zoom range also significantly reduces the volume of hardware that crews are required to carry, offering a superb solution for location shoots.

The latest in Canon’s cine-servo lens line-up, the CN20x50 is also user-friendly and robust. The design has been developed to ensure high levels of ruggedness and reliability, even in unforgiving broadcast environments – combining the finest quality optics with a weather-and-shock-proof construction that makes it suitable for use in the most hostile conditions when on location, to the same level as conventional Canon broadcast lenses.

Flexible operability
Compatible with a wide range of cameras, the CN20x50 also supports communication between lens and camera and will be available in both EF-mount and PL-mount variants. The EF-mount version utilises Canon’s own system, while the PL-mount variant supports Cooke’s /i Technology standard.  Both models feature a 12-pin serial connection for integration with typical broadcast equipment.

The focus ring rotation is 180 degrees, balancing the accuracy required for 4K imaging with the speed needed for broadcast use. In scenarios where every second counts – and operators only have one opportunity to capture a shot – high speed zoom, iris and simple focusing operation mean that even rapidly changing scenes can be captured with ease and accuracy.

The lens’ design supports a range of cinema and broadcast accessories including operational zoom and focus controls, matte boxes and 0.8- and 0.5-type gear module accessories such as follow focus units, to provide a truly versatile solution.

CN20x50 key benefits:
Ultra-telephoto lens with class-leading focal length
Capture every detail in sports and nature TV broadcast
Achieve stunning shots in outstanding 4K quality
Enjoy a wide variety of shooting and expression
Portable and durable with intuitive operation
