Marshall to show Full HD 1080P 7 inch V-LCD71MD camera top monitor at NAB

By site editor Dan Chung:

The Marshall V-LCD71MD 1080P monitor
The Marshall V-LCD71MD 1080P monitor

It had to happen sooner or later. Most popular camera top HD monitors until now have had a maximum resolution of 1280×720, but with consumer tablets like Amazon’s Kindle HDX now sporting higher than 1080P resolution it was only a matter of time before professional monitors caught up.

marshall 1080p 3

Marshall’s new V-LCD71MD is a 7 inch camera top monitor with a 1920×1080 resolution and a contrast ration of 800:1. The display is of the backlit IPS LED variety. It features Marshall’s modular input and output system so it capable of HD-SDI as well as HDMI with the correct adapter.

Brightness is very high (700-nit) and it is of course adjustable. There are on-screen waveform, zebras and audio level meters too. In addition there is a manual gamma adjustment but it is not clear how customisable this is.

Marshall's on-screen waveform monitor and audio level meters
Marshall’s on-screen waveform monitor and audio level meters

The screen shares a similar design to others in the Marshall family and is 1.1” deep. There is a headphone jack on the monitors front facia which is a nice touch. The now standard aspect ration adjustments for older DSLRs like the 5D mkII is also included. Power is from 12V or one of Marshall’s battery plates.

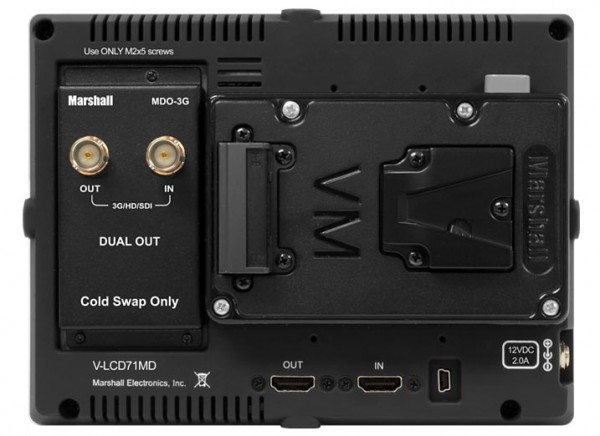

V-LCD71MD rear view
V-LCD71MD rear view

The monitor has a custom pixel-to-pixel mode. Given that the monitor is displaying full HD, an actual actual pixel mode wouldn’t change magnification at all. It appears that you can select which area you want magnified and zoom in on it. This is something I would like to test to see how it works.

The Newsshooter team will be checking out the V-LCD71MD and the competition from the likes of SmallHD and Ikan at NAB next week. It will be interesting to test how much the extra resolution actually aids focussing.

Here are the specs from the Marshall website:

– FULL RESOLUTION 1920 x 1080 LCD panel
– High Brightness 700-nit with Adjustable Backlight
– Available in three Configurations:
V-LCD71MD (No Module)
V-LCD71MD-O** (3G Output Module with two 3G-HDSDI outputs converted from the HDMI input. HDCP Compliant)
V-LCD71MD-3G (3G Input Module with loop-through)
– DSLR Ratio Adjustment with 4 DSLR Ratio Presets
– On Screen Waveform / Stereo Audio Bar Display
– Manual Gamma Adjustment
– Adjustable IRE Clip Guide (Zebra Filter)
– 1/4″-20 mounts on all sides
– Stereo Headphone Output (select a L+R Pair from the available channels)
– 6 Monitor Configuration User Presets
– Custom Screen Markers (choice of four colors and variable lines widths)
– HDMI Pass-Through (HDCP Compliant)
– HDMI Auto Color Space and Ratio detect
– New Peaking Filter (Choice of four color highlights and variable sensitivity)
– False Color Filter
– Four User Assigned Function Buttons with 32 possible uses
– Pixel-to-Pixel Panning (Custom Pixel-to-Pixel Mode)
– 15:9, 16:9, 4:3, Pixel-to-Pixel modes
– Input Crop with automatic scaling
– RGB Check Field with Monochrome
– Scratch Resistant Protective Screen
– Variety of Optional User-Replaceable Battery Adapters available
– Icon assisted Menu System
