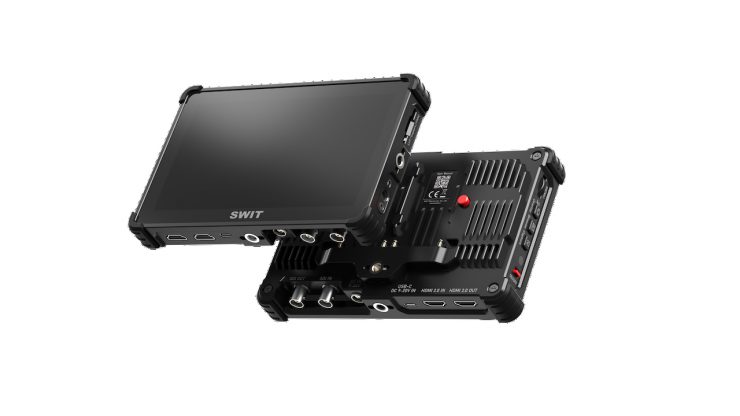

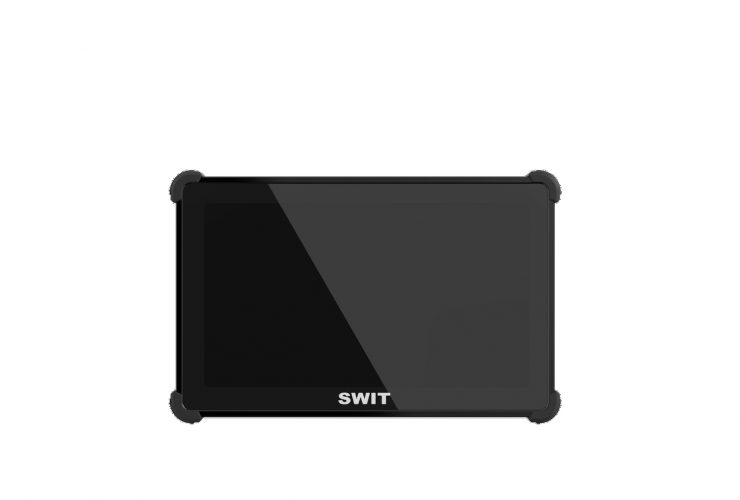

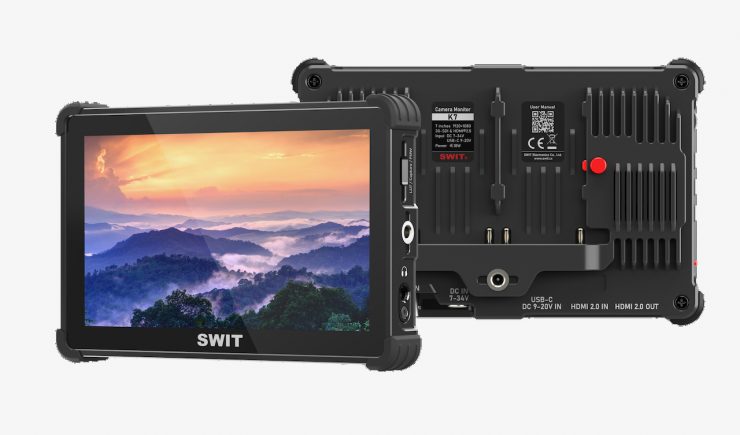

SWIT has officially launched its new K7 monitor, which we first saw as a prototype way back in April at NAB. The K7 is a 7″ on-camera monitor with a claimed brightness of 2800nits. It features an optically bonded Full HD touchscreen in an all-metal body with rubber corner guards.
It has a 3G-SDI and HDMI 2.0 4K60p input and loop output with built-in SDI/HDMI cross conversion, dual hot-swap NP-F battery slots. 2-pin LEMO 7-34V and USB-C PD power, as well as built-in LUTs and the ability to import your own through an SD card.
Above, you can see our first look at the monitor from NAB 2026 in Las Vegas earlier this year.

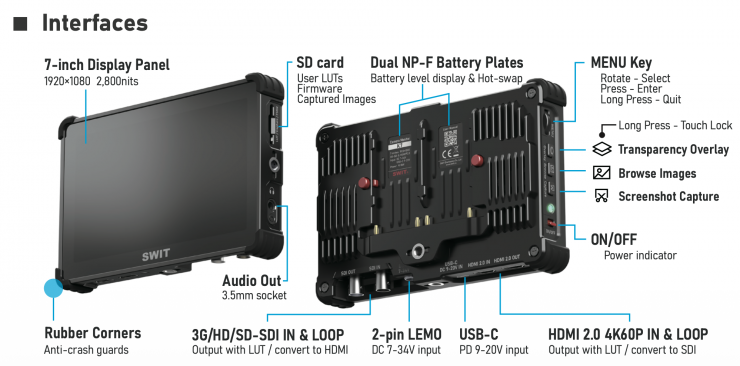

Key features
- 7-inch 1920 x 1080 optically bonded Full HD touchscreen rated at 2,800nits for daylight monitoring.
- All-metal body with protective rubber corner guards for demanding production environments.
- 3G/HD-SDI and HDMI 2.0 inputs and loop outputs with built-in SDI/HDMI cross conversion; HDMI supports input signals up to 4K60p.
- Dual NP-F battery slots support hot-swap operation and battery-level display.
- External power through 2-pin LEMO (7-34V DC) and USB-C PD (9-20V) inputs.
- Multi-touch operation with scroll/enter control, two function keys and touch lock.
- Built-in DeLog LUTs, SD-card user LUT import and SDI/HDMI LUT output; 4GB SD card included.
- Screenshot capture to SD card and adjustable-transparency reference-image overlay.
- Custom anamorphic de-squeeze from 0.5x to 2x and rotatable/flippable OSD for vertical rigs.
- Peaking, zebra (IRE -7 to +109), ARRI or Spectrum false color, waveform, vector, histogram, grids, scale markers and safe-area guides.
- Four-channel audio meters and 3.5mm audio output.

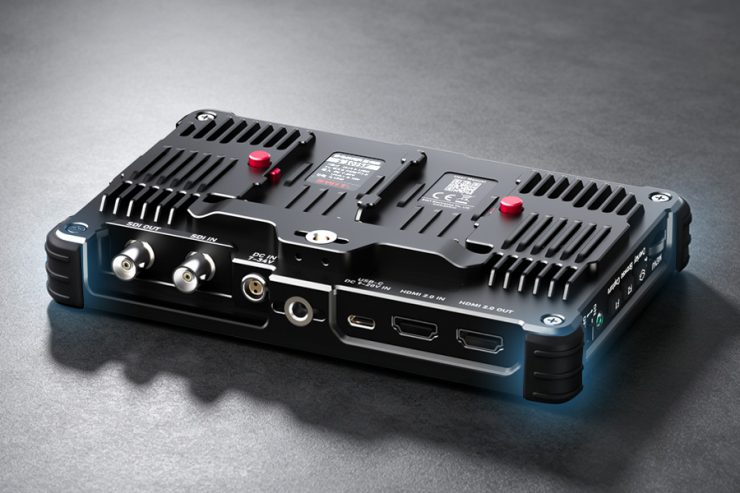

Full-metal construction

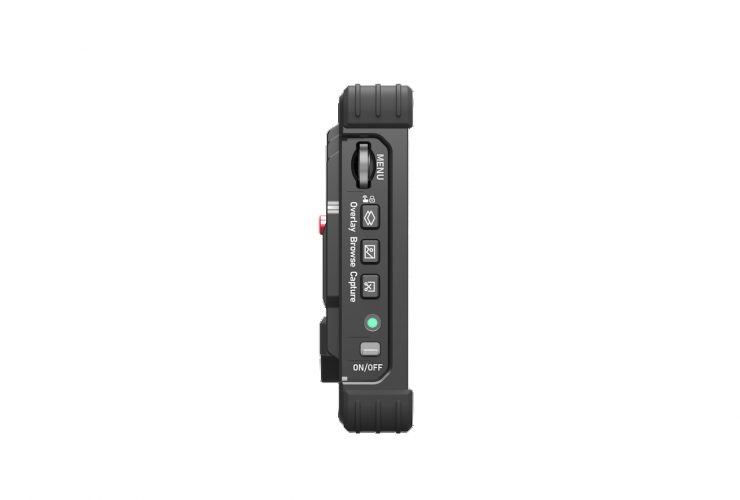

The K7 features an all-metal housing and protective rubber corner guards. The touchscreen, scroll/enter control, and function keys provide direct access to monitor tools.

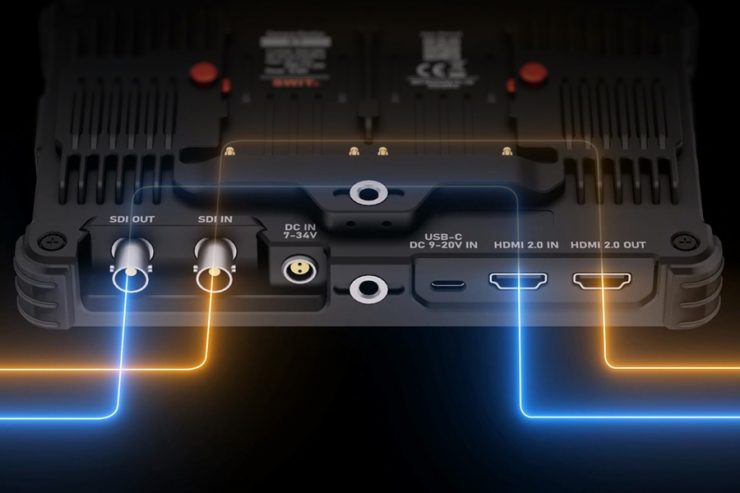

SDI & HDMI for mixed camera workflows

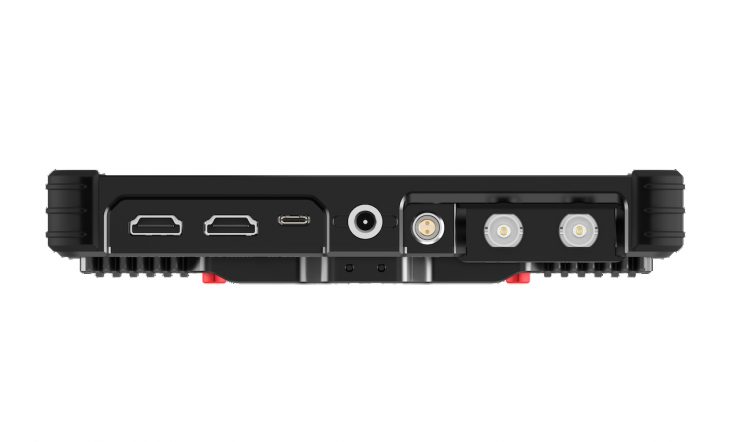

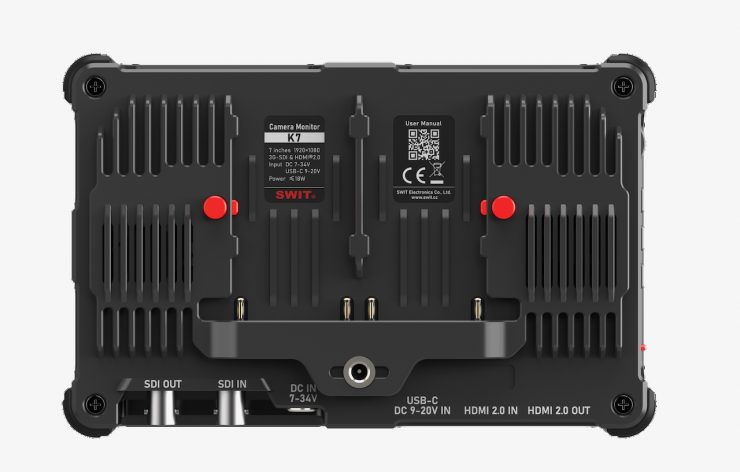

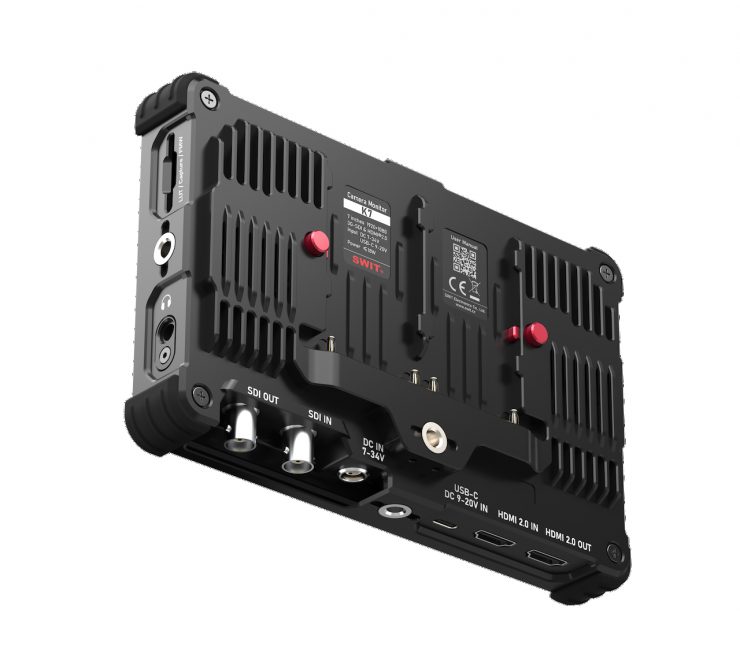

The 3G/HD-SDI and HDMI 2.0 provide input and loop output, with built-in conversion between the formats. HDMI accepts signals up to 4K60p; the display panel is 1920 x 1080 Full HD.

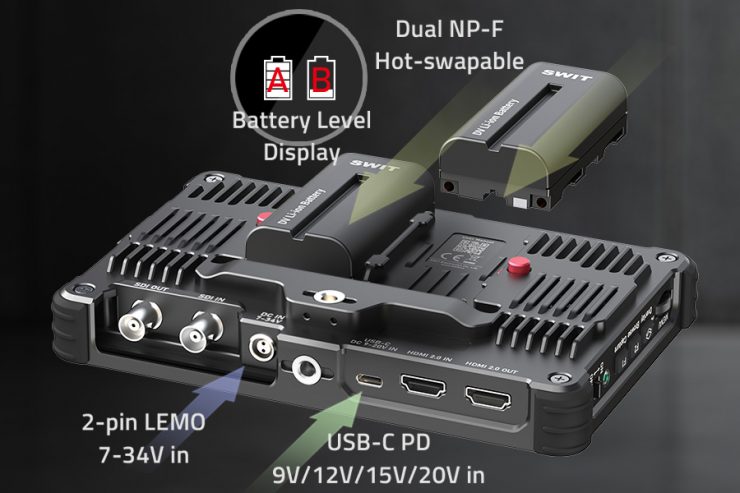

Power Options
Two NP-F slots support hot-swapping and battery-level display. External power is accepted through a 2-pin LEMO at 7-34V DC or USB-C PD at 9-20V.
LUT workflow, capture & image-assist tools
The K7 supports built-in DeLog LUTs, user LUT import via SD card, and LUT output over SDI and HDMI. The included 4GB SD card can store LUTs, firmware, and captured still images.

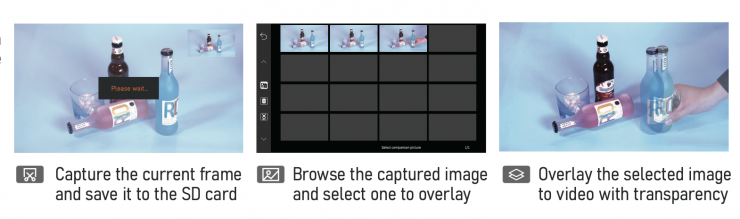

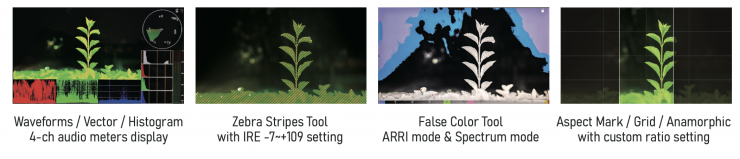

A screenshot can be saved to the SD card and recalled as a reference image overlay with adjustable transparency. For exposure and focus checks, the K7 includes peaking, zebra with IRE adjustment from -7 to +109, and false color with ARRI or Spectrum modes, alongside waveform, vector, histogram, scale markers, grids, and safe-area guides.
Touch operation, vertical rigs & anamorphic monitoring

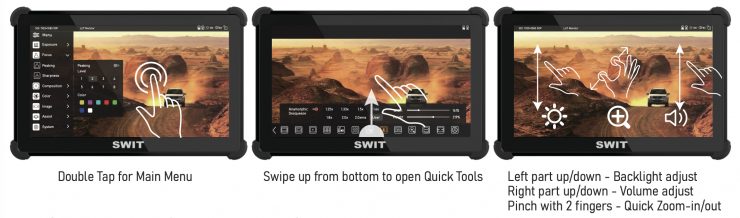

The multi-touch screen works alongside a scroll/enter control, two function keys, and touch lock. Gestures open the main menu and Quick Tools, adjust backlight and volume, and enable quick zoom.
For specialized camera builds, the on-screen display can be rotated or flipped to suit vertical rig configurations. Custom anamorphic de-squeeze ratios from 0.5x to 2x support a range of lens workflows. Four-channel audio meters and a 3.5mm audio output add audio monitoring to the same on-camera display.
Pricing & Availability
SWIT K7 and the separately sold accessories listed below are now available.
| Product | Description | Price (EUR) |
| K7 | 7-inch 2,800nit touchscreen cine monitor | €599 |
| MA-K7CAGE | Monitor cage and sunhood kit | €329 |
| PA-D2L2 | D-tap to 2-pin LEMO cable | €35 |
| PA-ACL2 | AC to 2-pin LEMO adaptor | €45 |
Package & Optional Accessories
The K7 includes a 4GB SD card. The following optional accessories are sold separately:

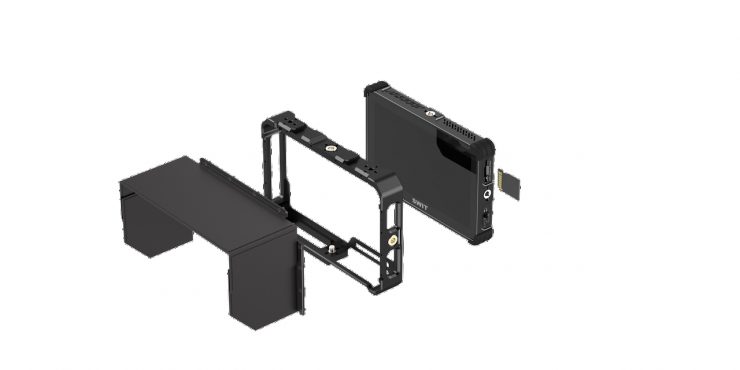

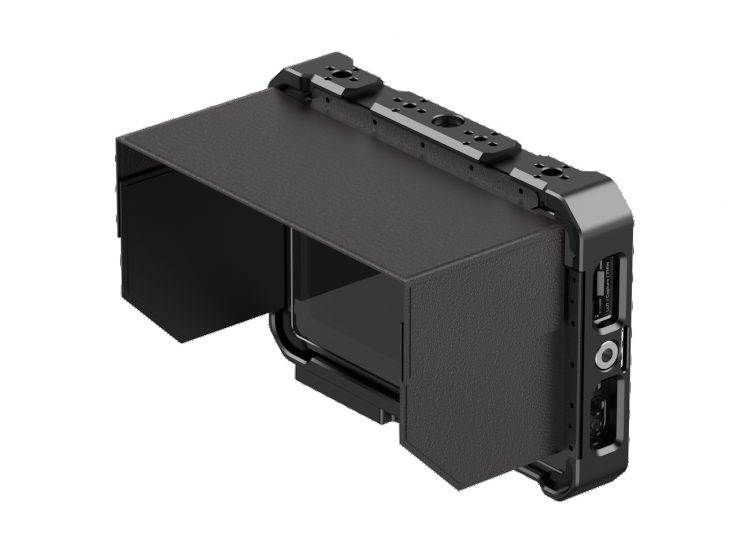

- MA-K7CAGE – monitor cage and sunhood kit (SWIT item no. 10700656; EAN 6948193515311).
- PA-D2L2 – D-tap to 2-pin LEMO cable.
- PA-ACL2 – AC to 2-pin LEMO adaptor.
- KA-F20S – V-mount to NP-F regulated 8.4V plate.
Specifications
| Display | 7-inch, 1920 x 1080 Full HD, optically bonded touchscreen |
| Brightness | 2,800nits |
| Construction | All-metal body with protective rubber corner guards |
| Controls | Multi-touch screen; scroll/enter control; two function keys; touch lock |
| SDI | 3G/HD-SDI input and loop output |
| HDMI | HDMI 2.0 input and loop output; supports input signals up to 4K60p |
| Conversion | Built-in SDI/HDMI cross conversion |
| Power | Dual NP-F slots with hot-swap; 2-pin LEMO 7-34V DC; USB-C PD 9-20V |
| LUT | Built-in DeLog; SD-card user LUT import; SDI/HDMI LUT output |
| Capture | Screenshot to SD card; adjustable-transparency reference overlay |
| Image assist | Peaking; zebra IRE -7 to +109; ARRI or Spectrum false color; waveform, vector, histogram, grids, scale markers and safe areas |
| Other functions | 0.5x-2x anamorphic de-squeeze; rotatable/flippable OSD; four-channel audio meters; 3.5mm audio output |
| Included | 4GB SD card |
