The STEADICAM Elite was built for operators who want a mid-sized solution without stepping into full-size rig territory.
It features a 30 lb / 14kg payload capacity, a rigid unibody top stage, and a 3-Axis Volt gimbal. It is claimed to deliver precise control, smarter ergonomics, and integrated electronic stabilization in a streamlined form.
Key features
- Integrated 3-Axis Volt with Pan Control
- 30 lb (14kg) Camera Payload Capacity
- Rigid Unibody Top Stage
- Fine-Adjust Stage Controls
- 12V / 24V Power Distribution at 8A
- Dual Sliding & Pivoting Battery Mounts
- Universal Yoke-Style Monitor Mount
- Ultra Secure Docking Bracket
The STEADICAM Elite is available as Sled Only without monitor, or as a Turn-Key Kit with our Steadicam G-50X Arm and all-new Elite Lightweight Vest, and 7″ SDI Monitor.
Integrated 3-Axis Volt with Pan Control
The Elite transforms stabilization from passive balance into active control assistance, not only helping maintain horizon during long takes and dynamic moves but giving the ability to control rotational inertia for pan stability, opening up a whole new world of tracking and whip pans, and long lens work.
12V/24V Power Distribution at 8A
Elite supports 12V with hot-swappable and 24V selectable power distribution, no external adapters.
30 lb / 14kg Camera Payload Capacity
This enables operators to carry production-ready camera packages instead of stripped-down versions.
Rigid Unibody Top Stage
Strong torsional rigidity is claimed to reduce vibration transfer, allowing increased capacity and strength for a greater variety of builds.
Fine-Adjust Stage Controls
There are side mounting controls for speed and ease of access for making precision adjustments.
Dual Sliding & Pivoting Battery Mounts
Allows for easier dynamic balance and optimal monitor and battery positioning.
Universal Yoke-Style Monitor Mounts
Elite supports a wide range of monitor sizes and viewing configurations for every operator preference, including 9×16 aspect ratio placement.
Available Configurations

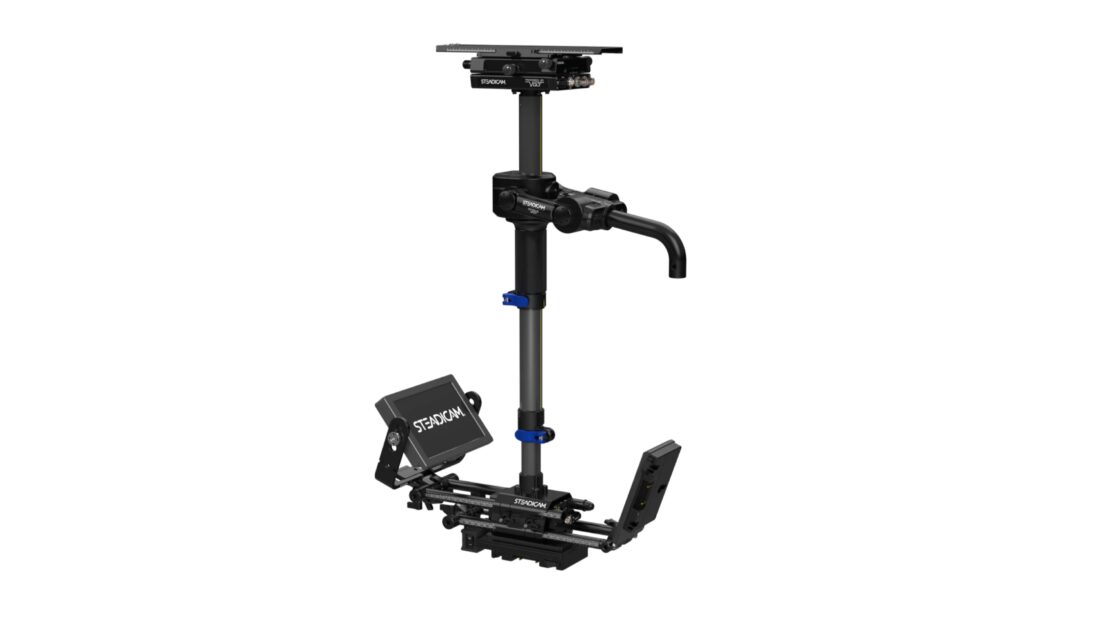

Elite Sled ONLY
- STEADICAM Elite sled (Monitor Not Included)
- Lightweight sled but with a 30lb/14kg max payload
- 2-stage carbon fiber post
- All-new configured top stage and camera plate with integrated Volt 3 as standard
- Selectable 12/24V 8A with Hot Swap
- All new pivoting lower battery mount under post
- Universal Monitor Bracket with 9×16 facility.
- All new secure docking bracket
- ½” Gimbal Handle post
- Choice of Gold Mount or V-Mount battery configuration
- Ideal for operators to integrate Elite into an existing Steadicam system.

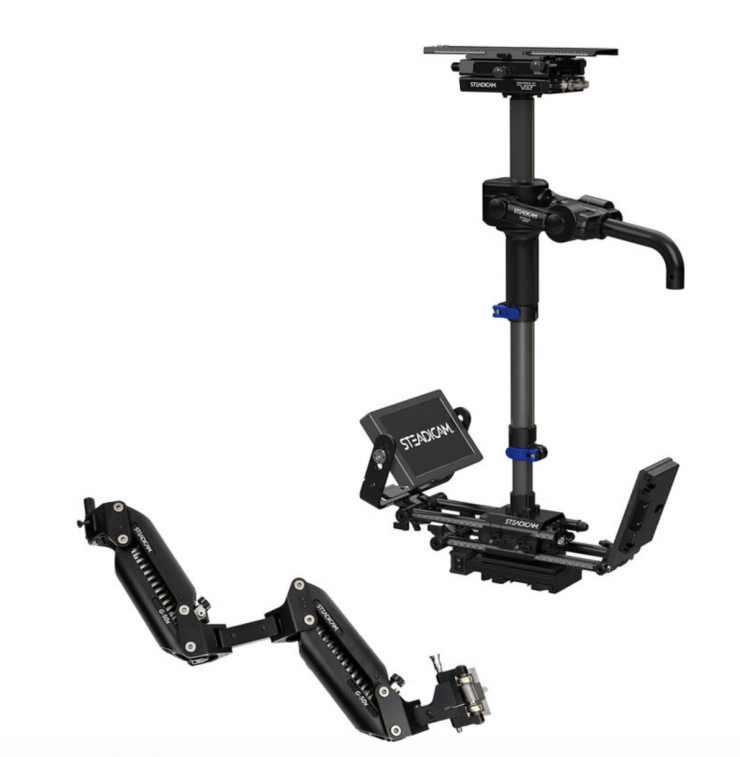

Elite Kit:
- STEADICAM Elite sled

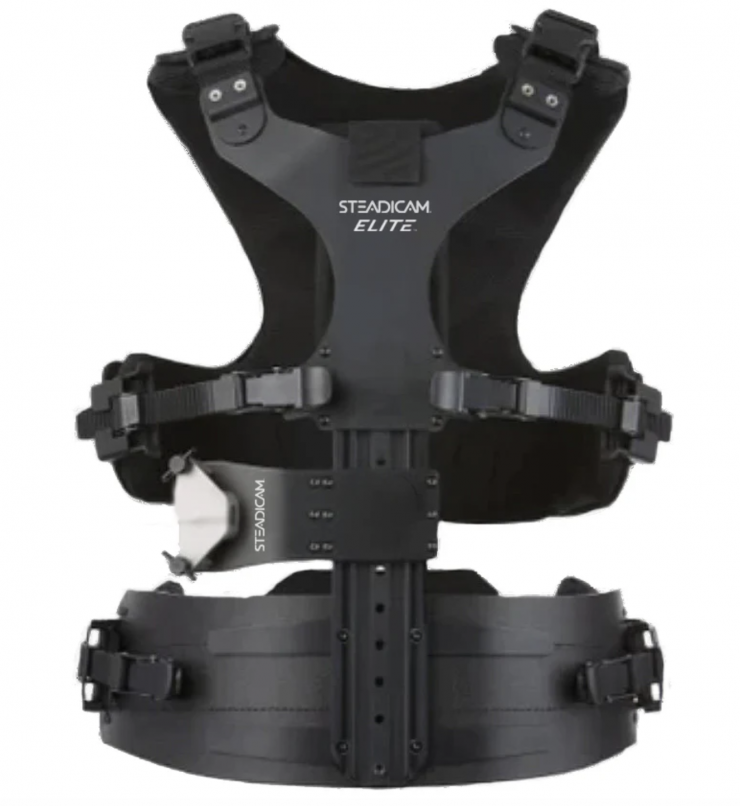

- STEADICAM Elite Series Vest

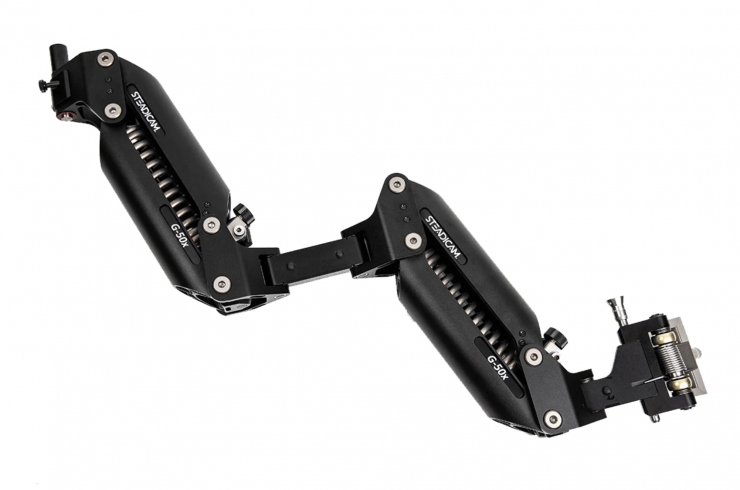

- STEADICAM G-50x Arm with ½” Post
- 7″ SDI High Brightness Monitor
- Choice of Gold Mount or V-Mount battery configuration
- Designed as a ready-to-deploy solution for operators entering the 30lb / 14kg max payload class with a ready-to-go system
Pricing & Availability
The STEADICAM Elite is now available to pre-order, starting at $9,995 USD.
The Steadicam Elite Stabilizer Kit with G50X Arm and Elite Vest is $19,995 USD.
