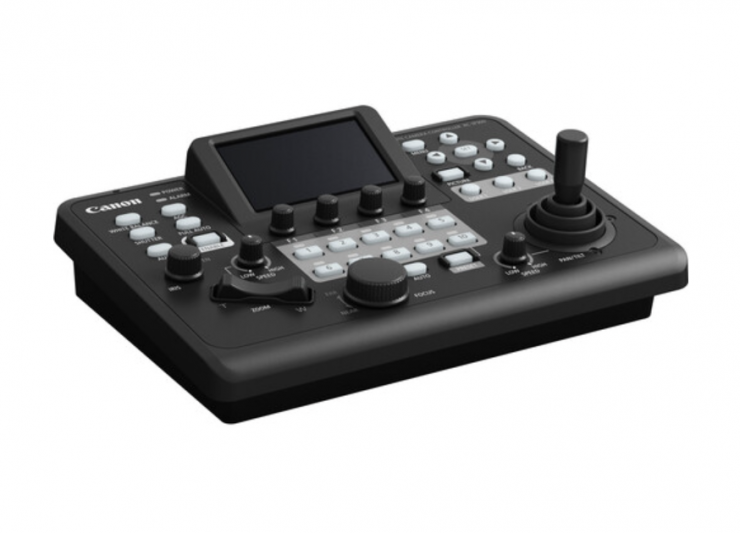

The Canon RC-IP300 PTZ Camera Controller was designed to offer quick, tactile IP control for up to 200 supported Canon PTZ cameras.
This compact controller features a 3.5″ touchscreen display offering OSD menus for compatible cameras, camera configurations, live views, and touch autofocus. Power the RC-IP300 via PoE (power over Ethernet) or the included power supply.
Key features
- Control up to 200 PTZ Cameras via IP
- 3.5″ Touchscreen Control-Panel Display
- RS-422 Serial and Canon XC, NU Protocols
- Supports Autofocus, Tracking, and Loop
- 7 Knobs, 12 Buttons, 100 Presets
- Precision Pan/Tilt Joystick, Zoom Rocker

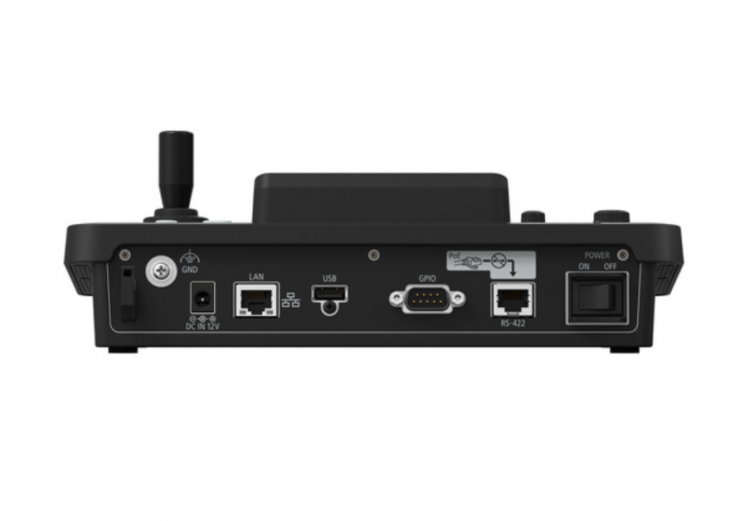

- USB-A and DB-9 GPIO Ports
- Power via PoE or Included Power Supply
3.5″ Touchscreen Panel

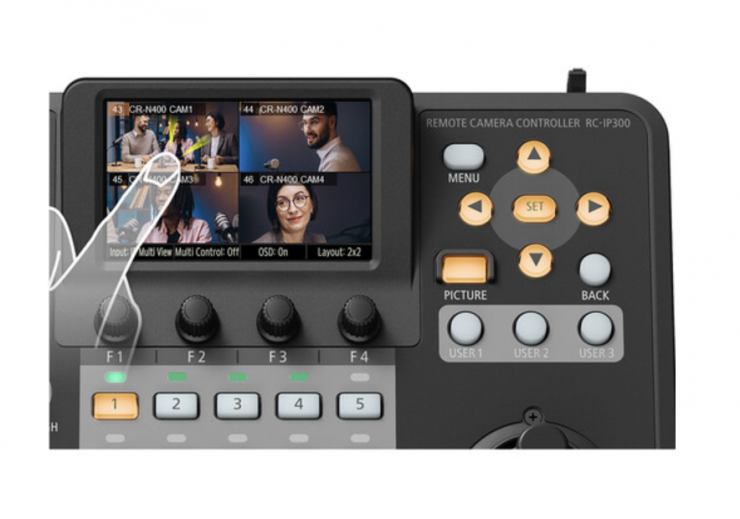

The 3.5″ touchscreen at the center of the RC-IP300 controller provides operations menus, live feeds for up to nine cameras per page, and multiview displays in both 2×2 and 3×3 layouts.
Designed for easy multicamera control, the RC-IP30 supports Canon’s auto-tracking, autofocus, auto loop, and crop control for supported cameras. Indexed, single-page menu tabs let users easily navigate the system.

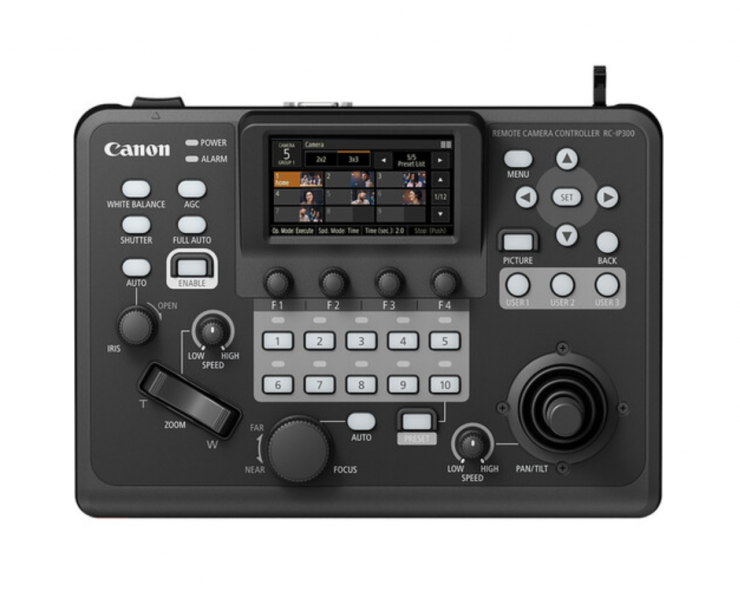

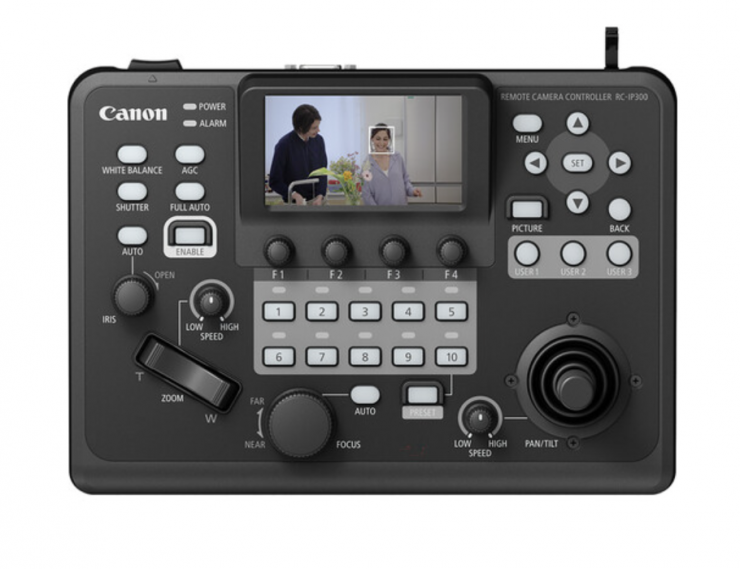

The RC-IP300 incorporates a joystick, zoom rocker, focus dial, 7 knobs, and 12 programmable user buttons for tactile camera control.
PoE compatibility enables control, video, and power for your RC-IP300 via a single Ethernet cable. You can also power the RC-IP300 using the included AC adapter.
Pricing & Availability
The Canon RC-IP300 PTZ Camera Controller is now available for $2,499 USD.
