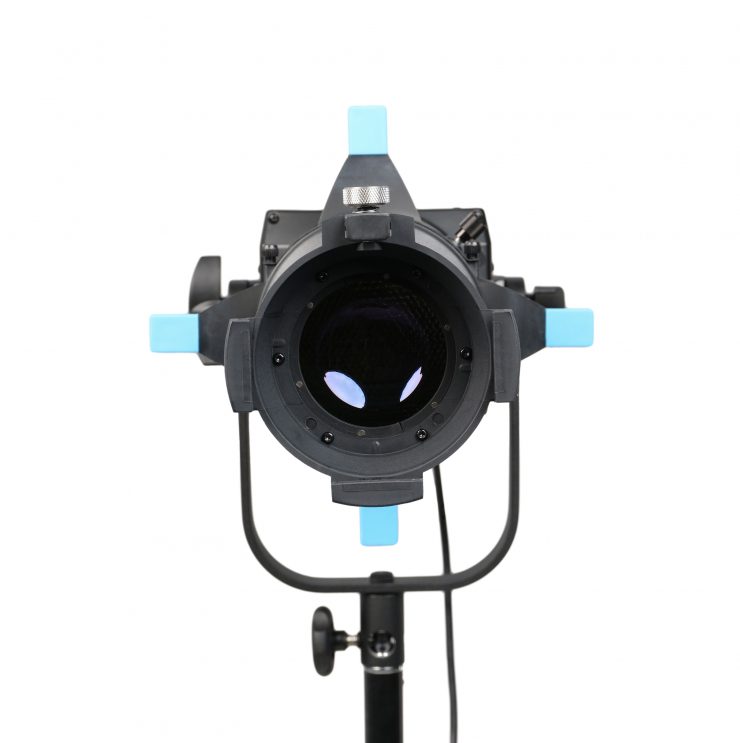

NANLITE has announced its new Bowens Mount Projection Attachment 25°-45°. The NANLITE Bowens Mount Projection Attachment 25°–45° (PJ-BM-25-45) features a 25° to 45° beam angle for control over where light is focused.
The projection attachment features a standard Bowens mount, masking it compatible with Bowens-mount fixtures under 800W, including NANLITE’s popular Forza, FC, and FS series LED spotlights, as well as numerous fixtures from other brands.
Key features
- Zoom range from 25° to 45°
- Weighs only 2.68kg/5.91lb
- Compatible with Bowens mount fixtures under 800W
- Built-in gobo holder compatible with standard M-size gobos
- 360° rotatable lens barrel
- Yoke-free direct mounting for faster setup
- Precise beam shaping with adjustable shutters
- Convenient gel frame for quick gel insertion
The attachment weighs just 2.68 kg, which makes it light enough to be used without an additional yoke or support on the light. With this relatively low weight and compact size, it looks to be a good solution for creators and small teams.

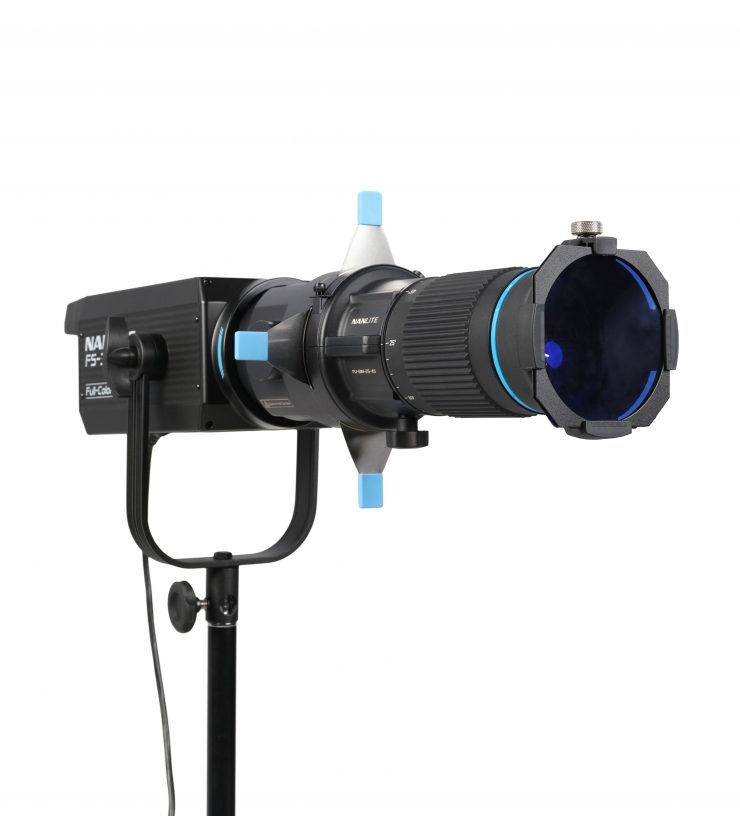

The Bowens Mount Projection Attachment 25°–45° features a 360° rotatable
lens barrel that enables zooming without removing any gobos or shutters. It also enables users to transition from medium to wide beam angles with a
simple rotation of the zoom ring.

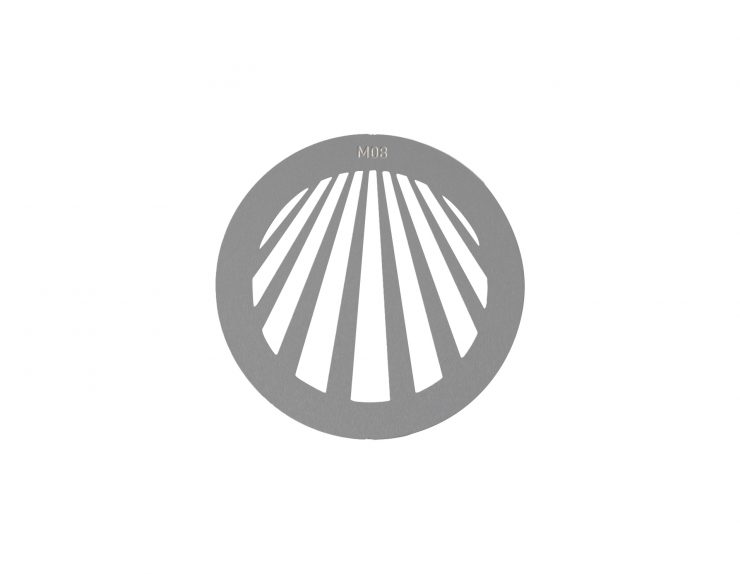

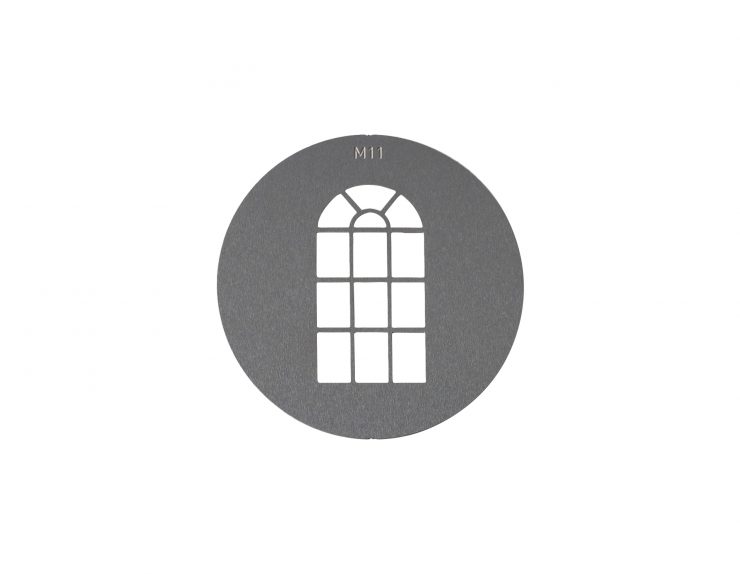

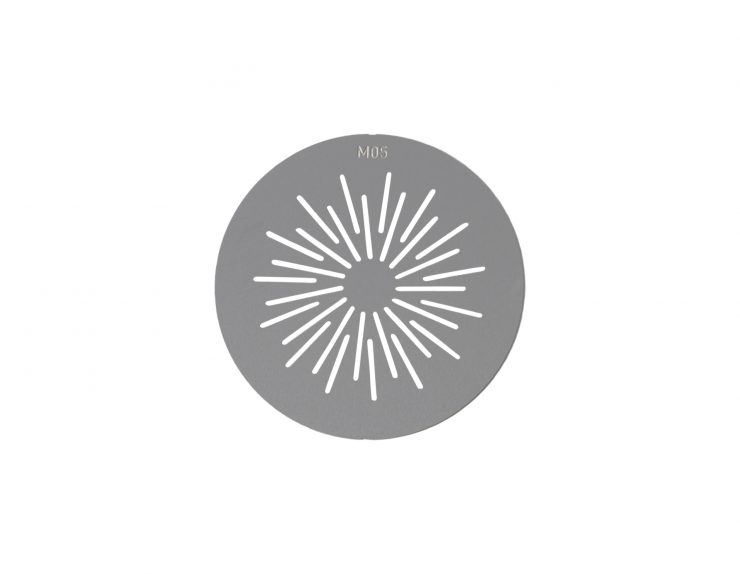

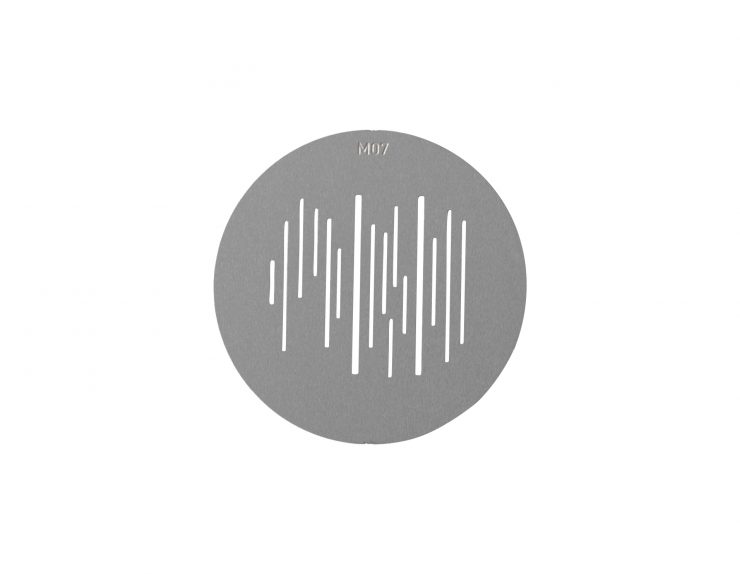

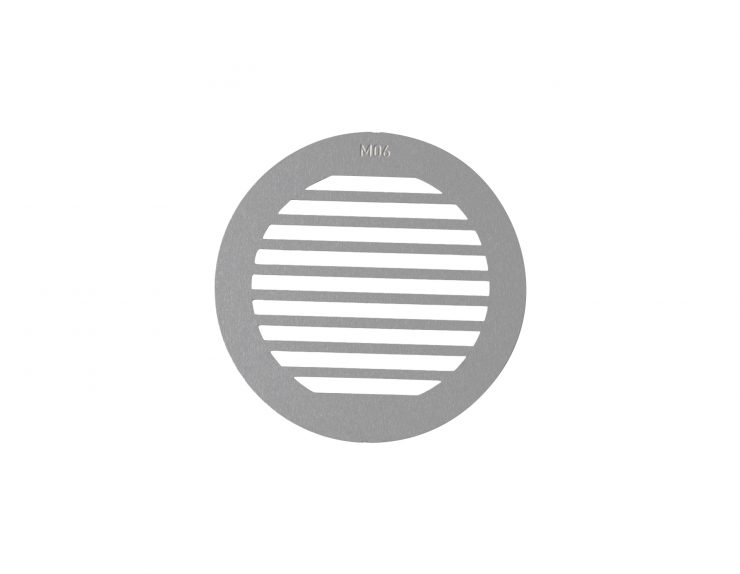

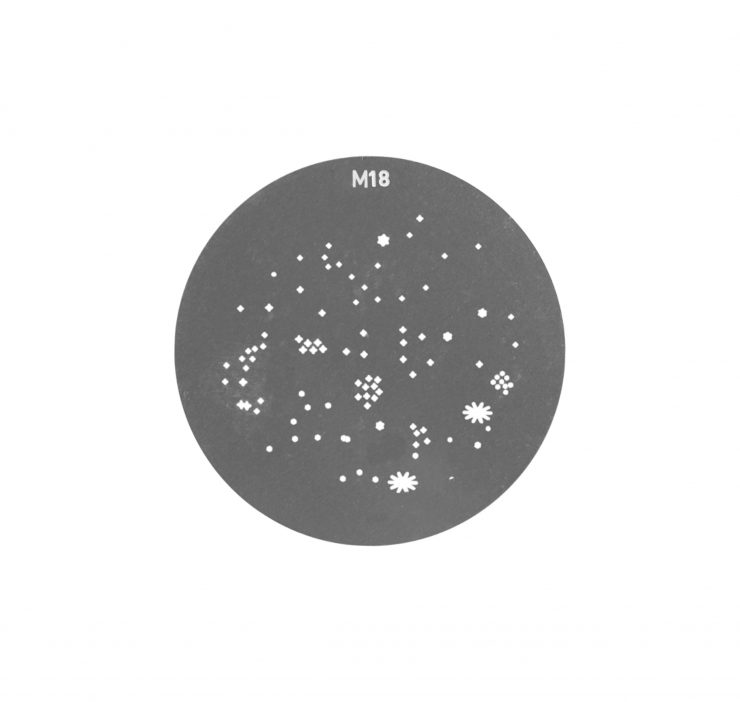

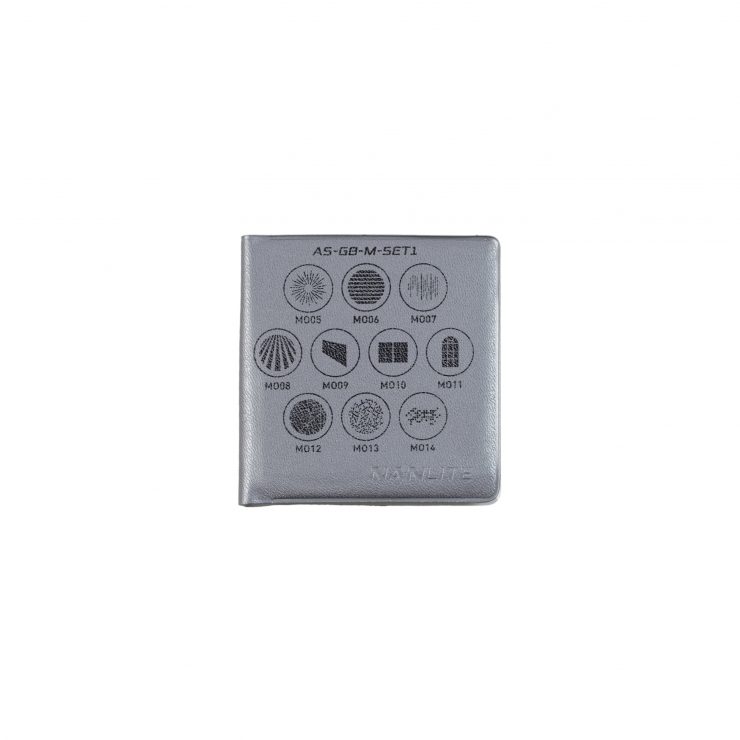

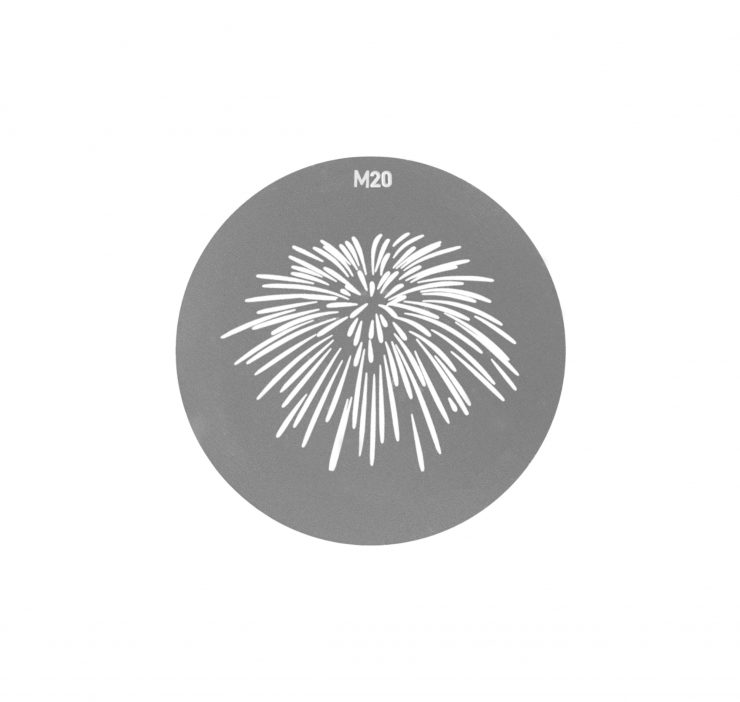

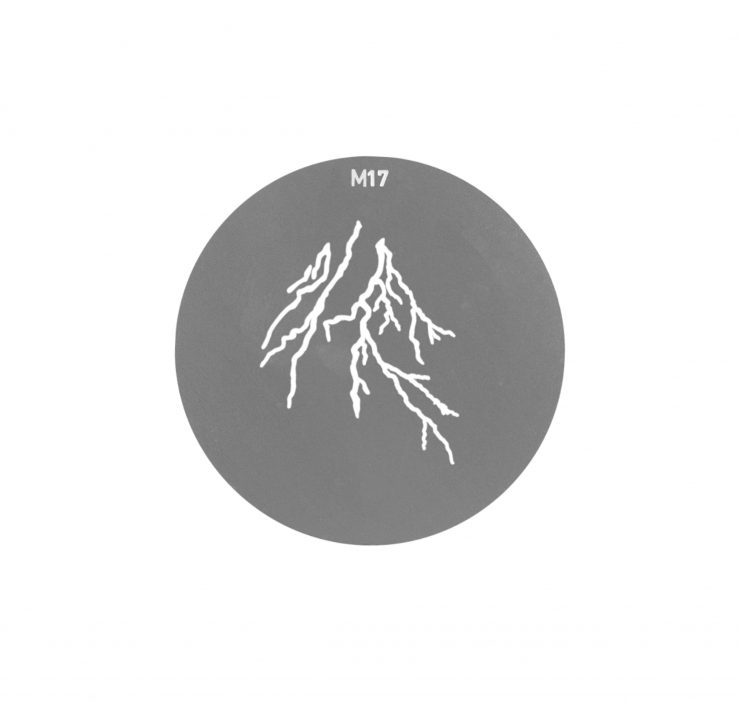

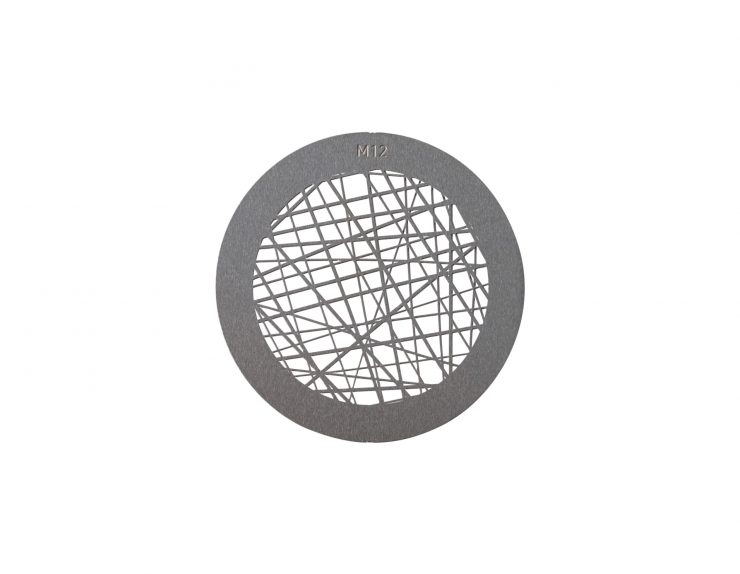

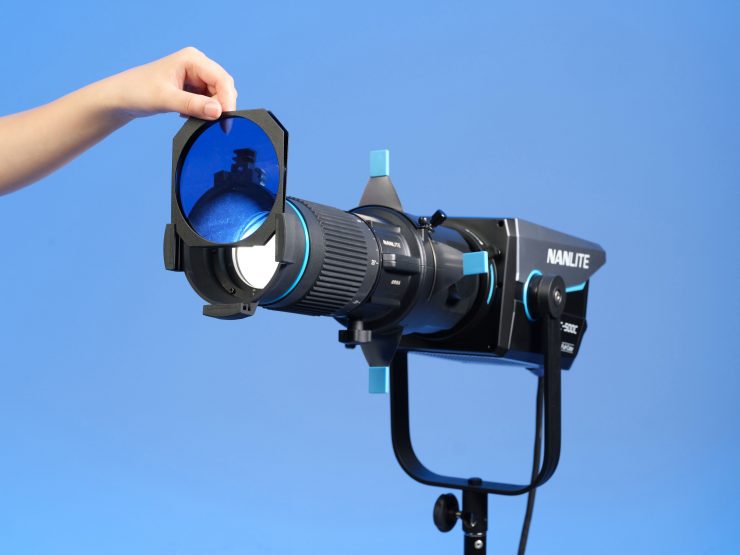

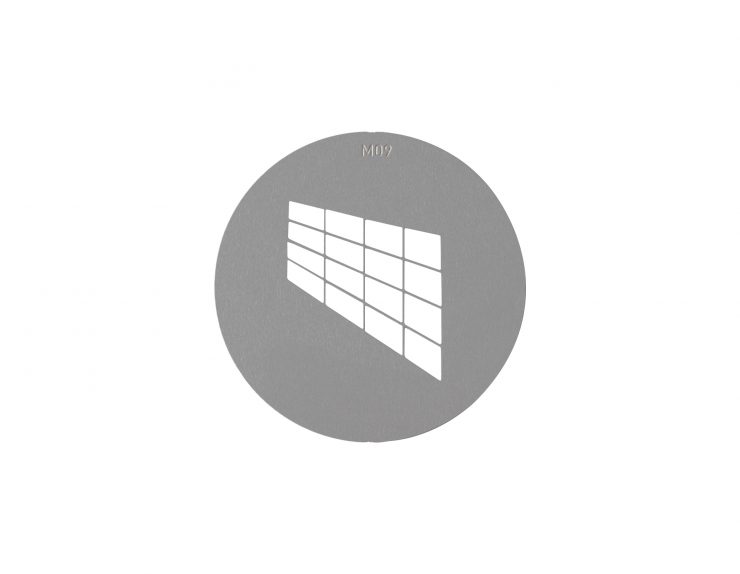

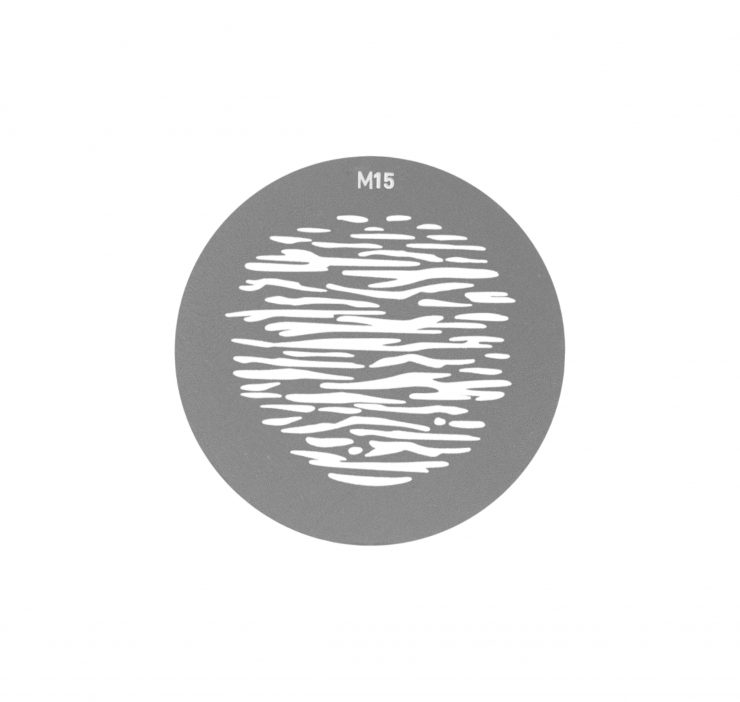

The built-in gobo holder accepts standard M-size patterns, and the included gel frame allows for quick and easy gel insertion. Four M-size gobos are included, with two optional NANLITE gobo sets available. The holder also supports a wide range of third-party M-size gobos readily available on the market. The aperture blade can be magnetically secured to reduce stray light and improve beam edge quality. Additionally, an optional 18-blade iris diaphragm is available, offering control over beam diameter.
NANLITE states that the lens design allows for smooth and precise focusing or defocusing. It features an aspherical lens to reduce distortion, optical coatings to enhance light transmission and minimize chromatic dispersion, and a matte inner barrel to control stray light, the projection attachment delivers image clarity and sharp beam edges.

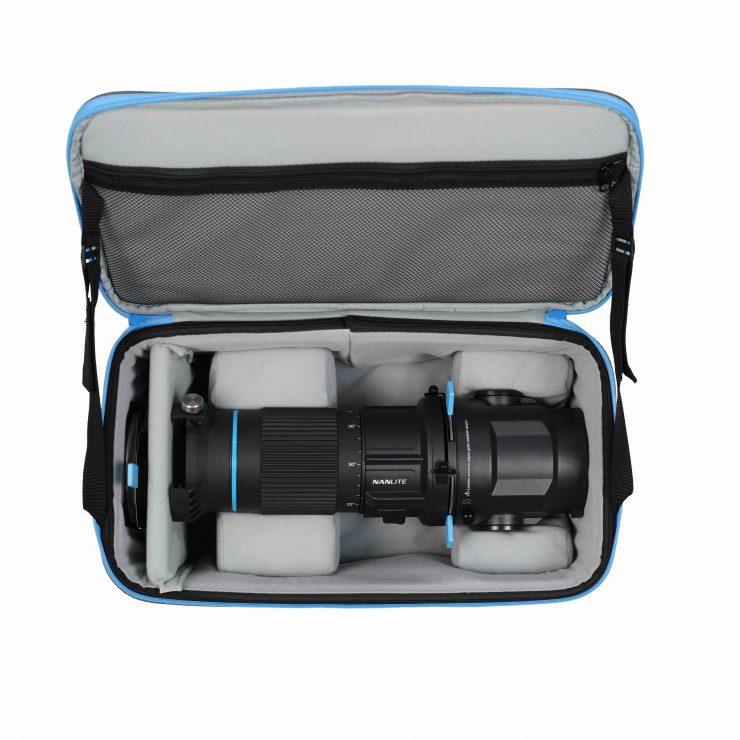

The Bowens Mount Projection Attachment 25°–45° is made from high-thermal-conductivity aluminum alloy to efficiently dissipate heat and ensure stable performance during prolonged, high-output use. A carrying bag is included.
Price & Availability
The Bowens Mount Projection Attachment 25°-45° is now shipping for $389 USD. It will be on display at Cine Gear expo in California (booth S3009).
