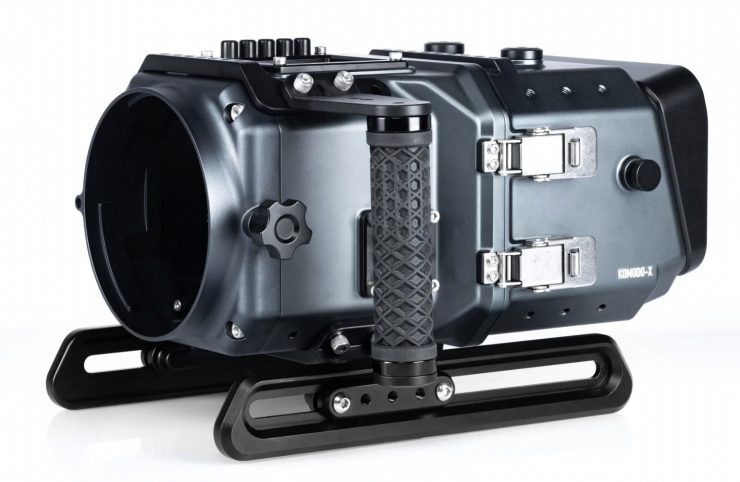

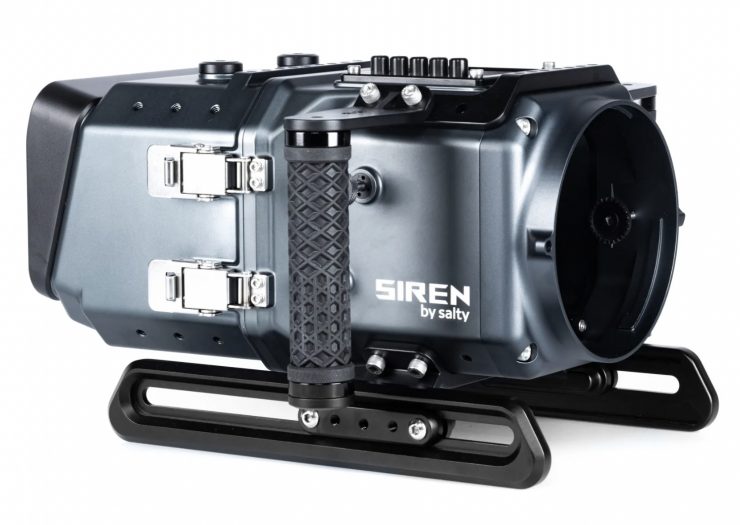

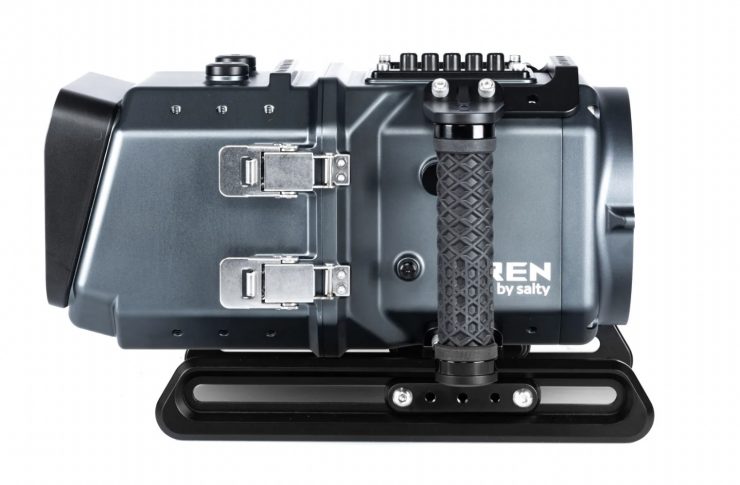

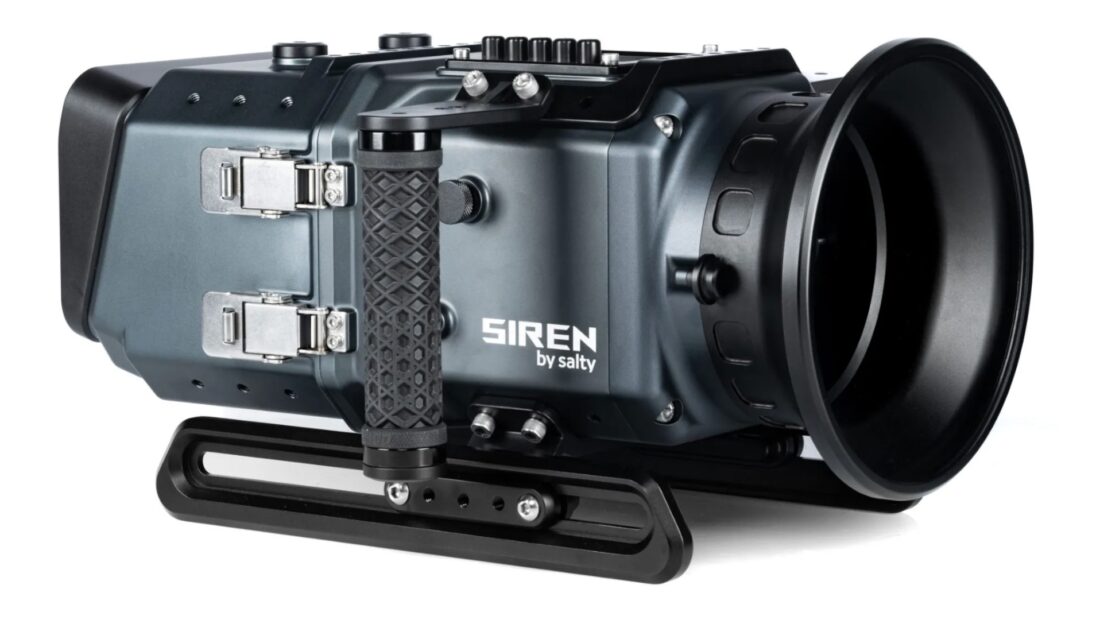

Salty Surf Housings has introduced the smallest, lightest, and most compact RED Komodo-X underwater housing on the market. The KX housing was built for versatility and portability.
It can be streamlined if you want it, or turned into a full production rig if you need it. The KX housing was built for versatility and portability.
Included:
- Housing shell
- 2x Side Handles
*BASE price does NOT include a mandatory housing front, back or port option.

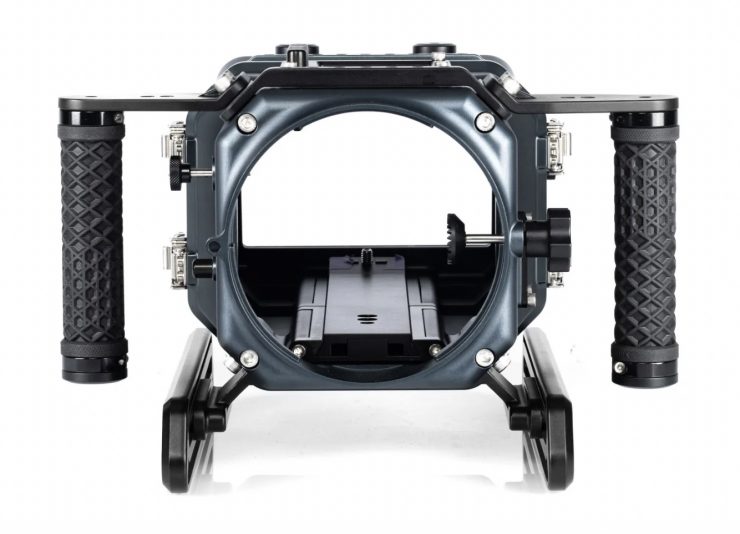

Camera Configuration
The new RED KOMODO-X housing is designed to work with one of the two configurations:
- RED KOMODO-X Camera
- FX Lion Nano 2 or a similar-sized battery
- Portkeys BM5III Monitor (using the BM5 BACK)
Or,
- RED KOMODO-X Camera
- FX Lion Nano 2 or a similar-sized battery
- No monitor (using the COMPACT BACK)
Controls
The housing has full physical control of the camera, including
- ON/OFF Switch
- MENU
- FORWARD
- BACK
- SELECT
- PLAY
- RECORD
- 2x M16 bulkhead thread
We now also offer a control configuration to suit the original KOMODO camera.

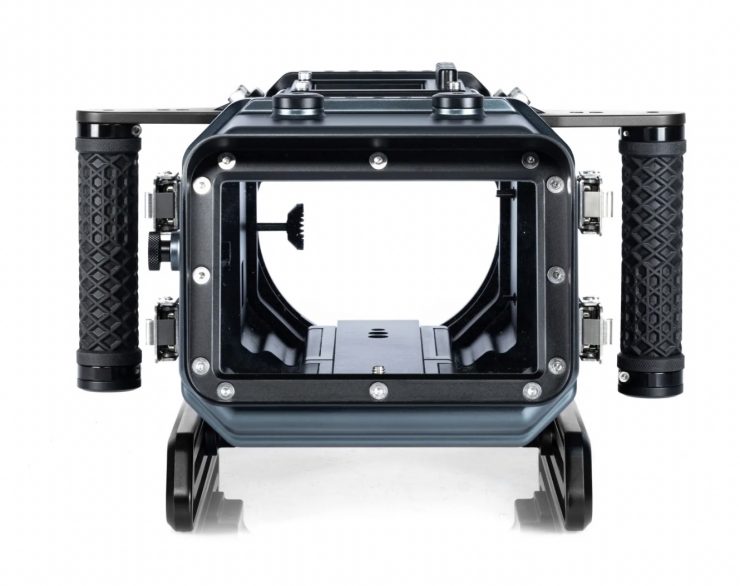

Construction
CNC machined from a single piece of billet aluminium, then anodized and painted.
All buttons and hardware are 316 stainless steel, providing superior corrosion resistance.
Grips
The housing comes standard with two Vans ODI side handles included.
Paint
The housings are anodised grey for corrosion resistance, however, you also have the option of adding a highly durable two-pack paint finish.
The paint not only provides additional corrosion protection to your housing, but also provides an opportunity to customise the look of your housing.
You get to choose your colour(s) and the options are almost endless.

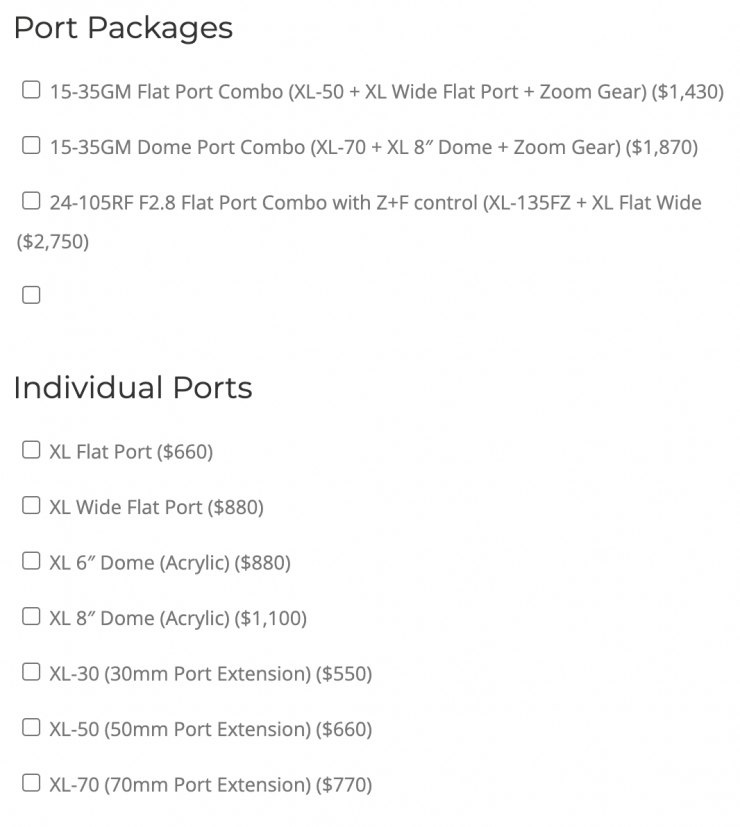

Ports
Salty’s SIREN models offer a stackable bayonet port system for seamless and flexible lens changes.
The KOMODO-X Housing utilises the SIREN XL Bayonet Port System as standard, and can also be configured with a custom Titanium Nikonos Port Front.
BASE price does NOT include a mandatory port option. You cannot use the housing without at least one port.
The front element in our ports is replaceable in less than 30 seconds by simply unscrewing the locking ring and dropping in a replacement acrylic screen we offer for purchase. So no more spending hours buffing scratched ports!
Weight
- Shell only = approx. 4kg
- With dual side handles and port = approx. 5kg
Depth Rating
- 20m / 66ft underwater with flat port
- 40m / 133ft underwater with dome port
Here’s a breakdown of the two back options:

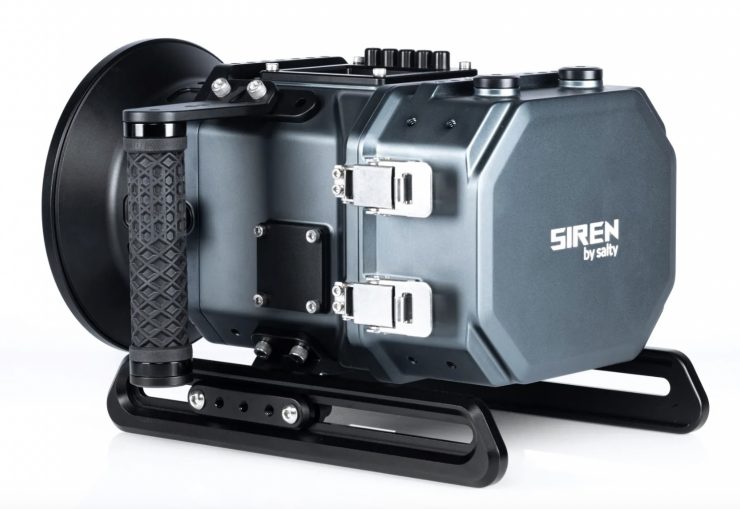

Compact Back
Ideal for lightweight, fast-paced shooting where speed and mobility are key, but with the flexibility to expand into a full production build, including support for a top-mounted monitor.
Specs:
210(W) x 240 (L) x 160 (H)
3.8kg/8.4 lbs

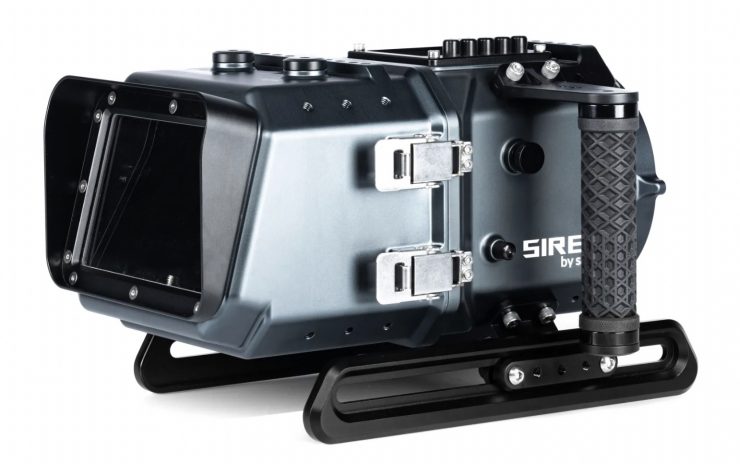

Monitor Back
This setup offers the space to use a monitor without compromising portability. It’s specifically designed to integrate with the Portkeys BM5 III monitor and the FX Lion Nano II battery. There are also plenty of mounting points on the housing that let you customize your setup and add accessories, like a GoPro/DJI Osmo.
Specs:
210 (W) x 320 (L) x 160 (H)
4.5kg/9.9 lbs
If you’re using a Komodo 6K, Salty Surf Housings can adjust the control layout to fit your rig, too.

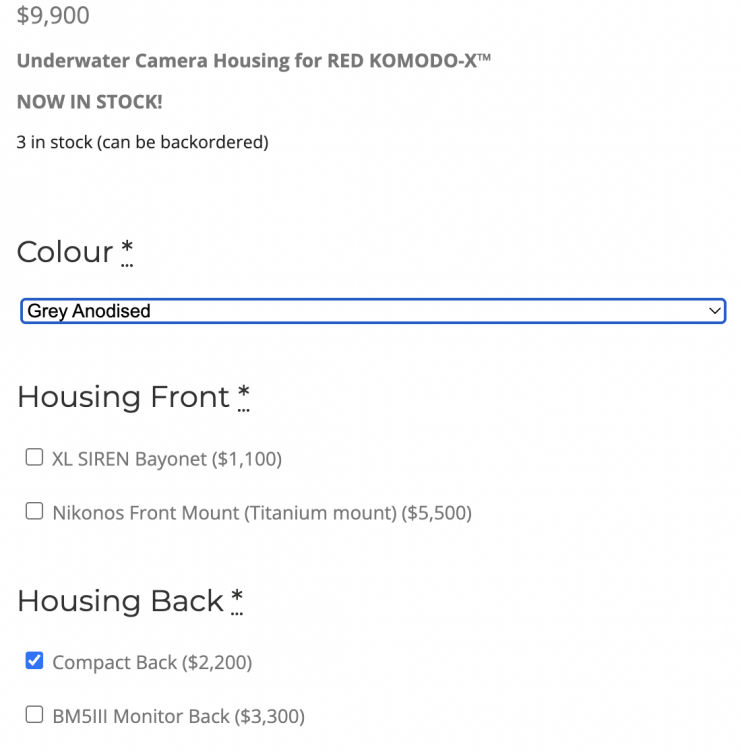

Price & Availability
The Salty Surf Housings RED KOMODO-X Housing – SIREN is now available from $9,900 USD.
